USD $5

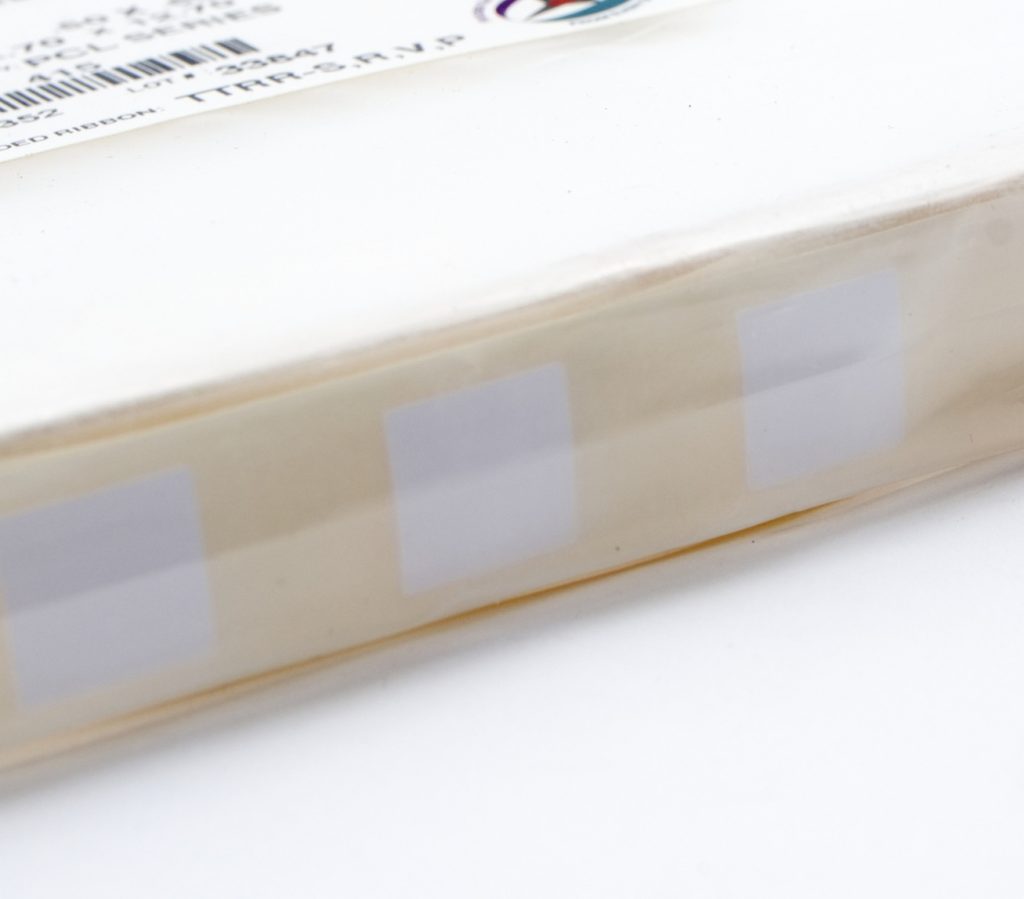

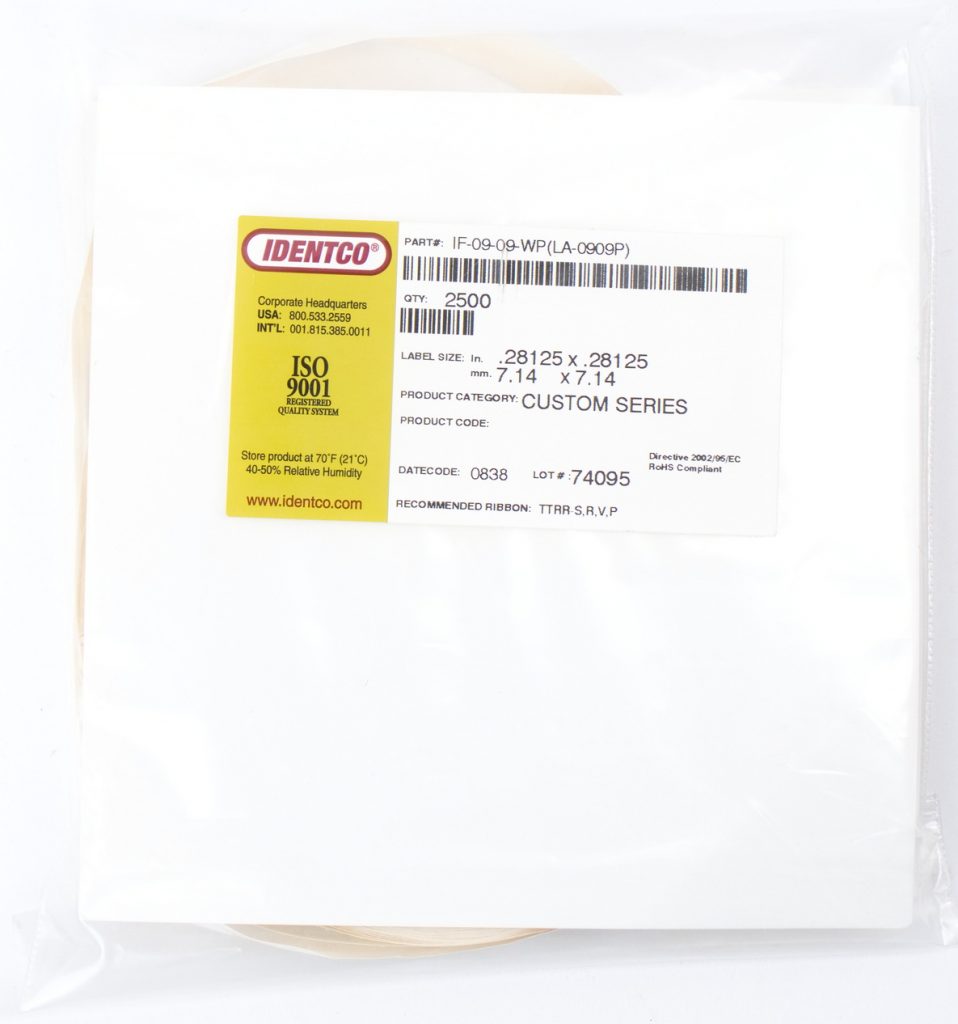

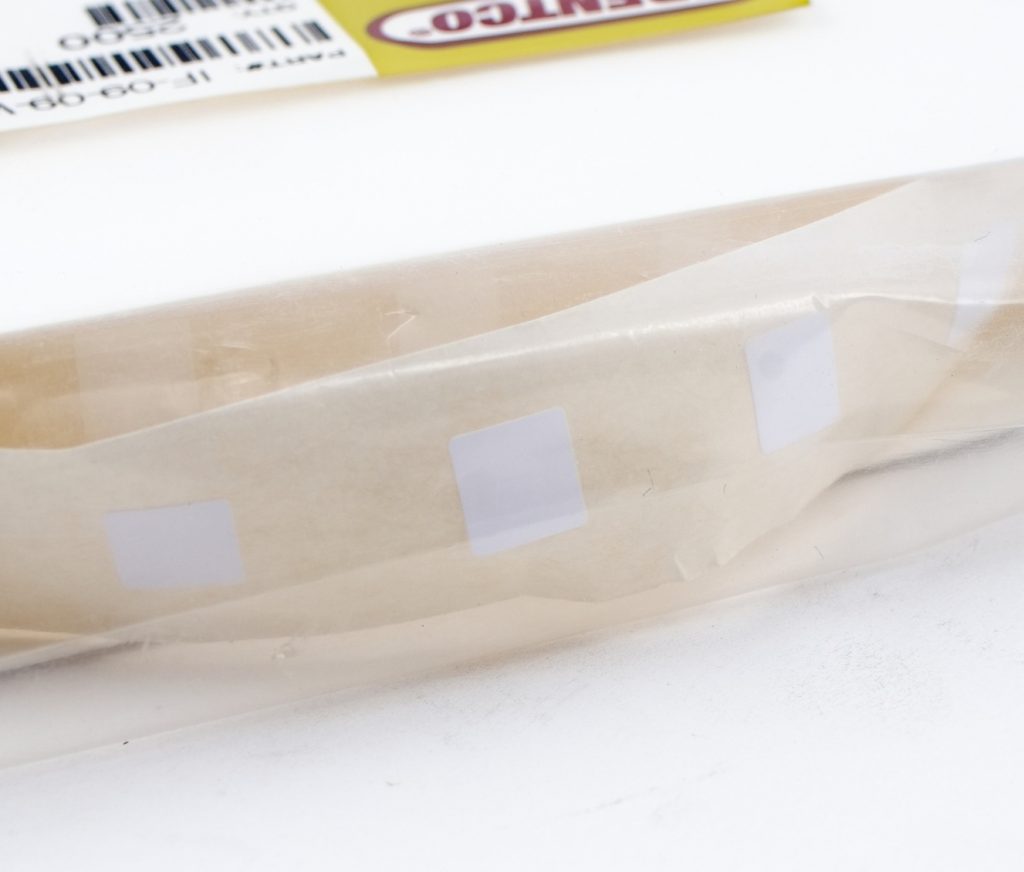

IDENTCO – IF-09-09-WP Labels (7.14mm x 7.14mm, roll of 2500)
Stock: 1
USD $5

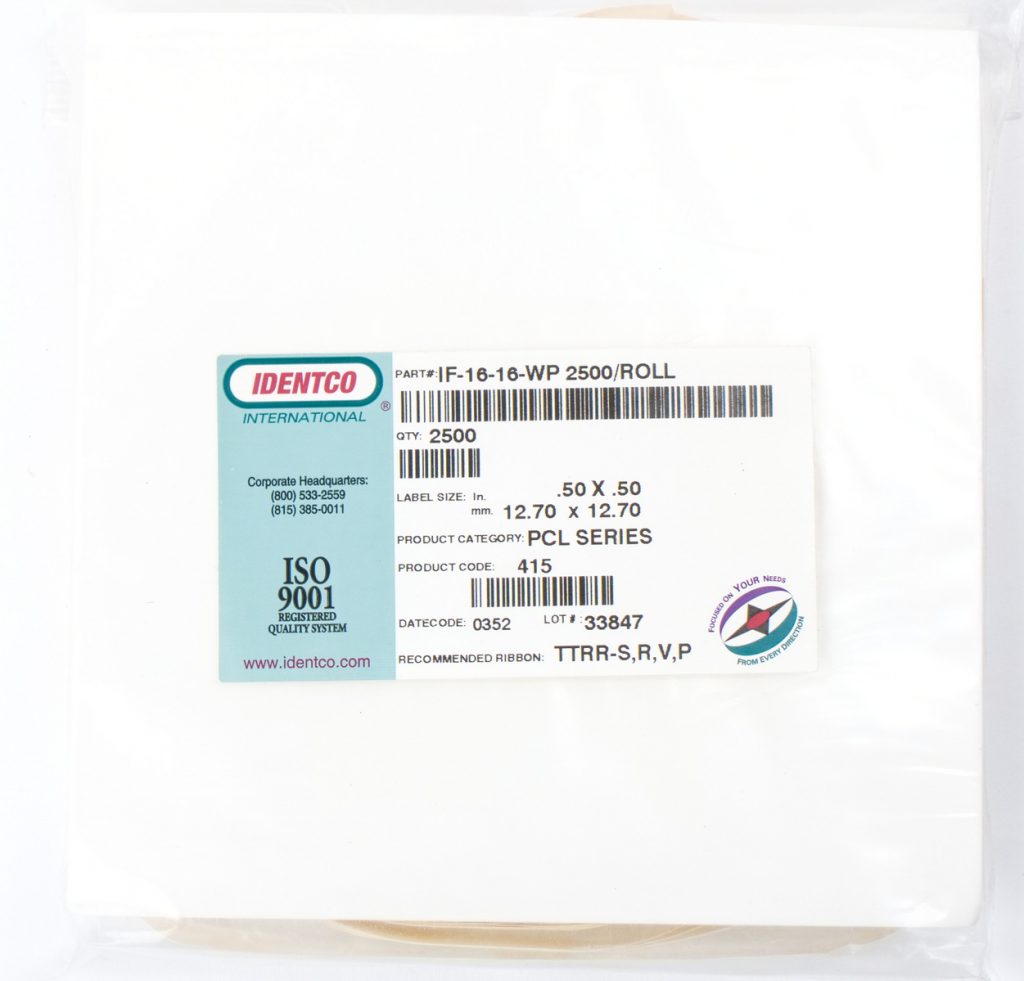

IDENTCO – IF-16-16-WP Labels (.50″x.50″, roll of 2500)
Stock: 1
USD $95
Model 1100-AR is a modular telemetry receiver, developed between 1969 and 1972 by Microdyne Corporation in Rockville (Maryland, USA). The receiver was aimed at the emerging lunar mission and satellite business of the late 1960s and early 1970s, but eventually became the workhorse for many tracking stations for the next three decades. Although it has since been succeeded by new designs, it is still widely used today (2019), mainly because of its robustness and reliability.
The receiver is fully modular and consists of a 4U 19″ rackmount enclosure that contains the basic circuitry, and has five bays for optional modules, which makes it highly customisable.
The two wide slots at the top are suitable for a CRT (spectrum) display or an RF field strength indicator, whilst the other slots are for the RF front-end (bottom right), the IF strip (centre) and a demodulator (bottom left). Depending on the application and the required frequency range, a selection of a range of modules and options could be installed in the 1100-AR mainframe.
Although the 1100-AR was primarily intended to be used as part of a satellite (or aerospace) base station, it was sometimes used as a reference receiver, an intercept receiver, and even as a surveillance receiver.
Included modules:
Full working condition of this unit is not known.
Stock: 1
USD $25
This ultra-fast RF Power Meter has been optimized to increase productivity of RF and microwave test stations. It provides a unique combination of speed, accuracy and dynamic range with a frequency range spanning the heavily used RF and microwave bands. It measures 100kHz to 18GHz frequency range. 4 digit LED display 500 Readings per second +40 dBm to -50 dBm.
Stock: 1
USD $185
Model 1100-AR is a modular telemetry receiver, developed between 1969 and 1972 by Microdyne Corporation in Rockville (Maryland, USA). The receiver was aimed at the emerging lunar mission and satellite business of the late 1960s and early 1970s, but eventually became the workhorse for many tracking stations for the next three decades. Although it has since been succeeded by new designs, it is still widely used today (2019), mainly because of its robustness and reliability.
The receiver is fully modular and consists of a 4U 19″ rackmount enclosure that contains the basic circuitry, and has five bays for optional modules, which makes it highly customisable.
The two wide slots at the top are suitable for a CRT (spectrum) display or an RF field strength indicator, whilst the other slots are for the RF front-end (bottom right), the IF strip (centre) and a demodulator (bottom left). Depending on the application and the required frequency range, a selection of a range of modules and options could be installed in the 1100-AR mainframe.
Although the 1100-AR was primarily intended to be used as part of a satellite (or aerospace) base station, it was sometimes used as a reference receiver, an intercept receiver, and even as a surveillance receiver.
Included modules:
Stock: 1
USD $85
Austron 8152 Time Code Gen-Reader. A device specifically designed for use as a central timing device for the purpose of providing time-correlated signals for magnetic tape recorders, oscillographs, strip chart recorders, cameras, digital printers, remote digital displays or direct computer entry. The device may generate various time code formats, contain special features for time comparisons against broadcast time signals and provide visual display in bcd or decimal format.
Unit is missing its bottom cover, and the top cover is loose.
Stock: 1
USD $70
Systron Donner Model 6150 Counter/Timer, wrong period on “mult 1” setting, but otherwise in working condition.
Stock: 1
USD $25
Integra Microwave Model VTS-102 (2.0-18.0GHz) VCO Test Set, working condition unknown.
Stock: 1
USD $60
Systron Donner Model 6054B Frequency Counter (20MHz-24GHz), does not work correctly over 8 GHz
Stock: 1
USD $20
Mu-Del Electronics Power Panel Model MPP-2223
Serial no: 287901
Stock: 1
USD $20
AVO Multi-Amp TCM-915S, Timer Control Monitor unit, manual available here.
Stock: 1
USD $115
This frequency standard unit comes complete with the following modules:
Stock: 1
USD $195
The Guildline 9576A DVM (Digital Voltmeter) is a highly efficient and reliable voltage measurement instrument designed for precise and accurate readings in industrial and laboratory settings. With advanced digital technology, this DVM offers exceptional measurement capabilities and a wide voltage range to accommodate various applications. The 9576A DVM features a high-resolution display that ensures clear visualization of measurements, enabling users to gather information quickly and effectively. Additionally, it boasts low internal noise, guaranteeing accurate and distortion-free voltage measurements.
Specifications
Stock: 1
USD $185
The 8901A modulation analyzer measures modulation and recovers the modulation signal, determines RF frequency and measures RF power.
Stock: 1
USD $160
Boonton Electronics – Microwattmeter 42BD
Serial no: 1448
Power Sensor model: 4200
S/N 4981
Stock: 1
USD $15
067-0591-00 Calibration Fixture Case
Horizontal Programmable Plug-In Extender
Stock: 1
USD $20
Wavetek Model 601 Signal Switching System, includes two Wavetek model 610, 200 MHz, 10 channel switch modules.
Stock: 1
USD $30
CXR Telcom 702
Serial no: 1467
Identification no: XMSS3/A279268
Authority (T.O., ETC) 33K3-4-1256-1
Stock: 1
USD $15
Multiplexer Model FE-7723A Frequency Electronics Inc.
Serial no: 8044-7934
Part no: D26070-7493
Stock: 1
USD $85
Hewlett Packard 5334B Universal Counter
Serial no: 2937A06886
Stock: 1
USD $185
The HP 8981B vector modulation analyzer (and HP 8780A/8782B vector signal generators) can be used to adjust and troubleshoot I/Q modulators, demodulators, and I/Q modulated signals used in digital mobile radio, microwave radio, and the transmission of digital video. The analyzers can be connected to the I/Q outputs of a demodulator in a receiver, or to IF test points. Once connected, the 8981B displays constellations, EYE diagrams, and vector diagrams of digital modulation formats such as QPSK, 16QAM, 64QAM, and 256QAM. The analyzer also makes statistical measures of system quality such as closure, lock angle error, and quadrature error. Through these “constellation analysis” techniques, transmission quality can be measured and monitored to detect degradations in the transmission link before link bit error rates reach unacceptable levels.
This unit has not been tested, and is sold “as is”.
Stock: 1
USD $17
Humitemp – Phys-Chem Scientific Corp.
Instrument S/N: 2862
Model no: 2200-C/E
Stock: 1
USD $25
Microwave Crystal Test Set
Type 390
Airborne Instruments Laboratory
Stock: 1
USD $22
Signal Corps Crystal Rectifier Test Set TS-268C/U Test Set
Serial no: 860
Order no: 25669-PH-49-7
Stock: 1
USD $35
HP 6266B DC Power Supply (0-40VDC, 0-5A), working condition unknown, left panel meter loose.
Stock: 1
USD $115
Trek model PA1208A ESC HV Power Supply. Working condition unknown.
Stock: 1
USD $30
Tektronix 2721 Sweep Transmitter. Working condition unknown.
Stock: 1
USD $115
EA FISCHIONE SSG-100 Digital Function Generator
Stock: 1
USD $25
Power Science Industries – Varitron AC Line Conditioner and Variable Power Supply
Stock: 1
USD $115
General Data Products 543 Dual Frequency Synthesizer
Serial no: 115
Stock: 1
USD $160
Calibration state and working condition of this unit is unconfirmed, and it does not have a current calibration sticker.
Stock: 1
USD $115
Hewlett Packard 5334A Universal Counter
Stock: 1
USD $75
Hewlett Packard 5334B Universal Counter working unit
Serial no: 2937A05859
Manual available here
Stock: 1
USD $185
Tektronix 2706 RF Preselector 9kHz – 1800 MHz. The Tektronix 2706 RF Preselector improves the flexibility and accuracy of your Spectrum Analyzer measurements, and is especially useful for EMI applications.
Manual available here
Specifications available here
Stock: 1
