*Circular Slide Rule

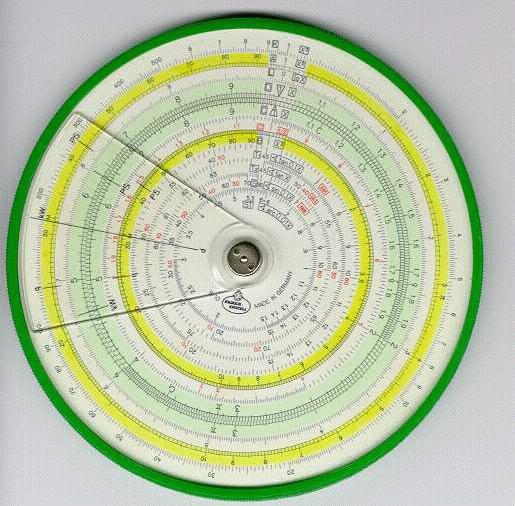

Uncommon Faber-Castell circular, plastic body rule with rotating scale and 7 line cursor, two color (red/black) scale markings, trademark mint green accent stripes on primary scales, yellow stripes on dual cycle scales, and expanded trig scales. The rule is self documenting on right hand side for all scales. An exceptionally high quality and attractive circular rule, seldom seen. The reverse side is blank.

(11 Scales)
Front - K, A, L, D, C, CI, D, T1, T2, S, ST


CLICK on the image below to see the manual page.

Page 1, CLICK for bigger PIC Page 2, CLICK for bigger PIC Page 3, CLICK for bigger PIC

Page 4, CLICK for bigger PIC Page 5, CLICK for bigger PIC Page 6, CLICK for bigger PIC

Page 7, CLICK for bigger PIC Page 8, CLICK for bigger PIC
