* Graphoplex (often mistakenly called Raphoplex because people do not realize the large stylized surrounding G is part of the name) was the main slide rule manufacturer in France. They were based in Paris, and all their rules found so far are of plastic construction, and from the materials used, would seem to be a post-WW2 manufacturer. Only short form catalog additions to instructions sheets have been found so far, so the complete model range and dates of manufacture are not known at this time.

* The rules are all very distinctive in style, and are exceptionally attractive and well designed. Common color schemes were maroon, violet and gray, and cases were typically a two part plastic case (maroon or later, gray), or a thin brown flap-style leather case.

Graphoplex
The large stylized G with 'raphoplex' inside is their logo, and often confuses people into thinking the rules are called 'Raphoplex' rules. The higher end (gray end brace) duplex rules from Graphoplex were also sold in the USA by the large drafting supply distributor, Koh-I-Noor, based in New Jersey, and still have the Graphoplex logo.
CLICK to see a larger logo


* Like other slide rule makers, Graphoplex either produced general drafting items or distributed them as well. Drafting sets with the Graphoplex logo, as well as other related drafting and art items are known to exist. I have been unable to locate a current company called Graphoplex in France today, but they supposedly were involved in other plastics molding and manufacturing, so may now exist as a different company, or as part of a larger conglomerate.

* Graphoplex clearly exported rules outside of France, as the instructions supplied with rules come with French, Spanish, German and Italian inserts, and were rules were also redistributed to the USA via Koh-I-Noor. Despite this, they are quite uncommon outside of France today, and virtually all the examples here were obtained in France for me by fellow collector Stéphane Guglielmi [sguglielmi@free.fr] from local store finds. I was able to find two Koh-I-Noor sets here, but only one other original Graphoplex rule.

* So far, we have located a wide variety of simplex pocket and full sized rules, and several full sized duplex rules, all in plastic construction. Circular rules existed under the tradename Roplex, with an uncommon wheel-rotation design. Pocket duplex rules were quite uncommon, with only a single example found so far, the 692b. Many later Graphoplex rules have a very unusual color scheme, with violet, red and gray markings, with gray end braces, and maroon cases. They are visually very striking, something often hard to judge well from a scan, which tends to increase the visual contrast (gray becomes black), and makes exact colors hard to reproduce. The 621 has crisp black scales, with inverse and extension areas in red, and many extra secondary numbers in pale blue, an exceptionally clean and clear rule layout, worth tracking down. The surface finish is very glossy on most rules, and the scale markings appear to be underneath a thin clear surface coating or layer.

* Thanks also to John Mosand, Marc Thomas and Bill Robinson for additional model information and corrections.

The ARCHIVE will appear below shortly!

ARCHIVE: JUST SCROLL DOWN TO SEE EVERYTHING !down

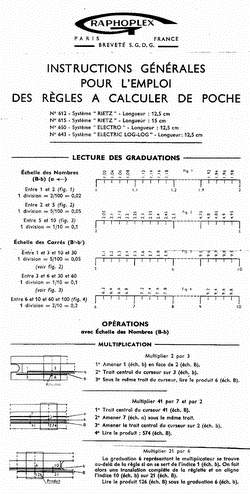

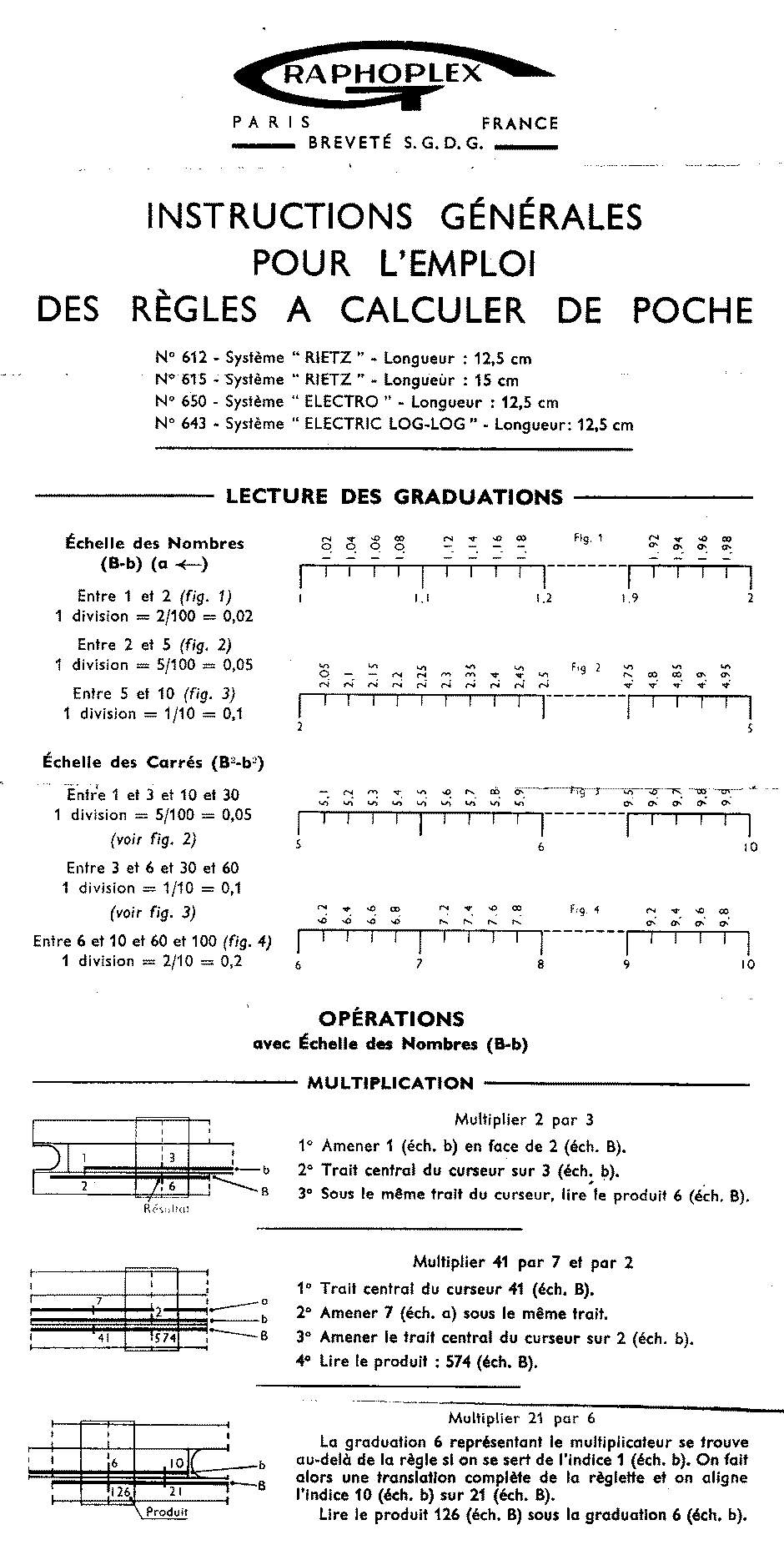

Here are the original French instructions included with typical Graphoplex rules:
CLICK to see a larger version
CLICK for bigger PIC!
CLICK to see a larger version
CLICK for bigger PIC!
Graphoplex

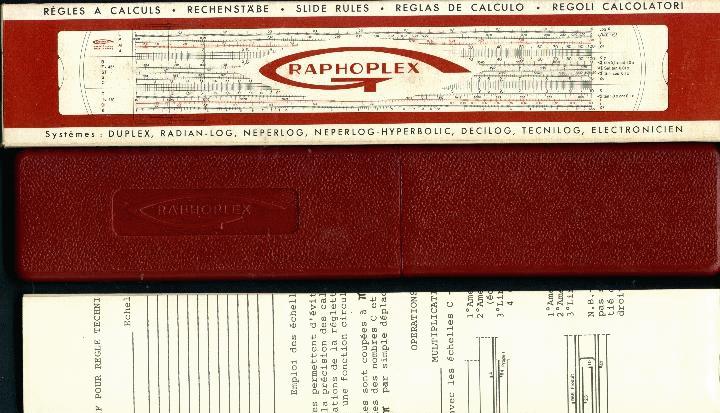

Instructions were typically very short, folded brochures, often folded to fit inside the cases. A short form catalog often was present at the top, listing similar rules by model number.
Graphoplex
Model Number
Slide Rule Type Size,
Core Material
Scales
Features
LINKS
(Browser Back to Return)

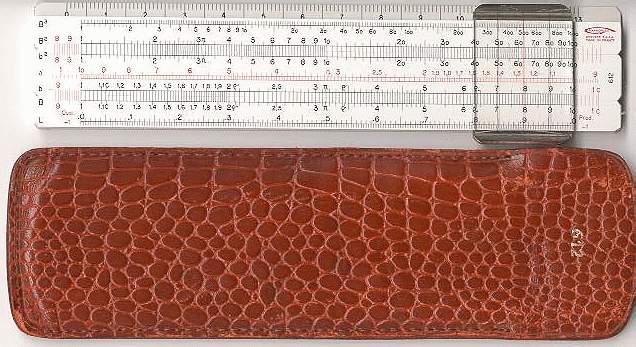

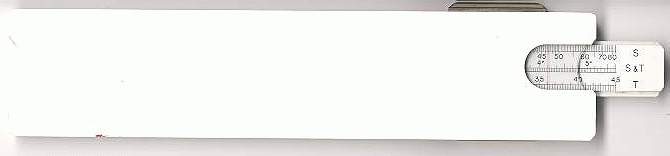

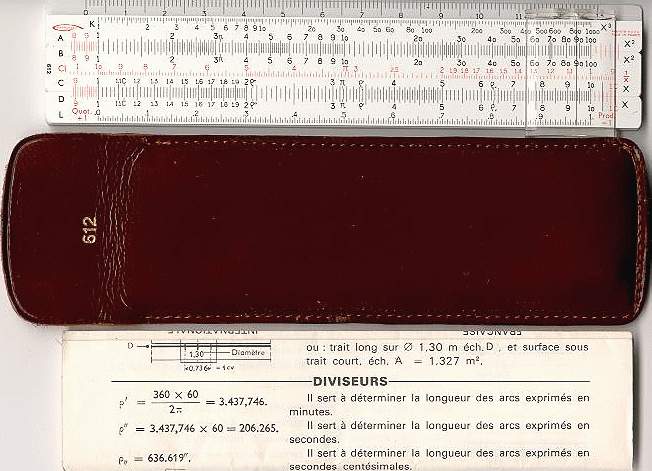

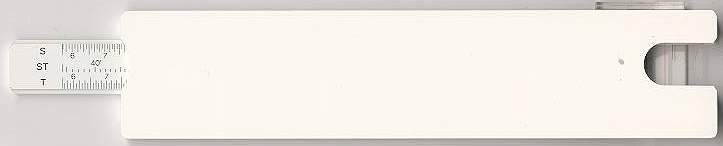

612
Made in France
Pocket
Rietz
12.5cm/5"

White Plastic

cm ruler
B3, B2,
[ b2, a, b, ]
B, L
-or-
K, A,
[ B, CI, C, ]
D, L

[ S, S&T, T ]

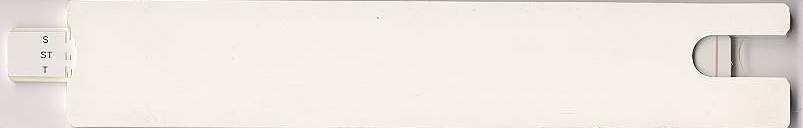

leather slip case

3 line Simplex indicator,

Note the unusual scale markings (B's) on the lower early rule. Leather slip case

CLICK for bigger PIC!

CLICK for bigger PIC!


CLICK for bigger PIC!

CLICK for bigger PIC!
615
Made in France
Pocket
Rietz
15cm/6"

White Plastic

cm ruler
K, A,
[ B, CI, C, ]
D, L

[ S, S&T, T ]

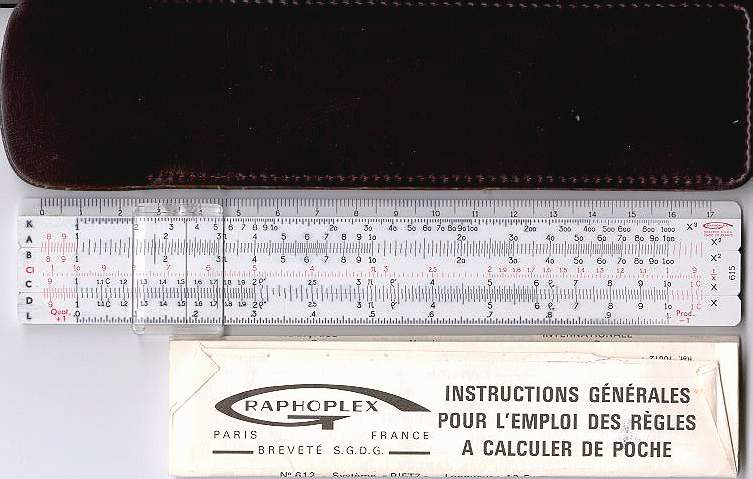

leather slip case

3 line Simplex indicator,

Leather slip case

CLICK for bigger PIC!

CLICK for bigger PIC!

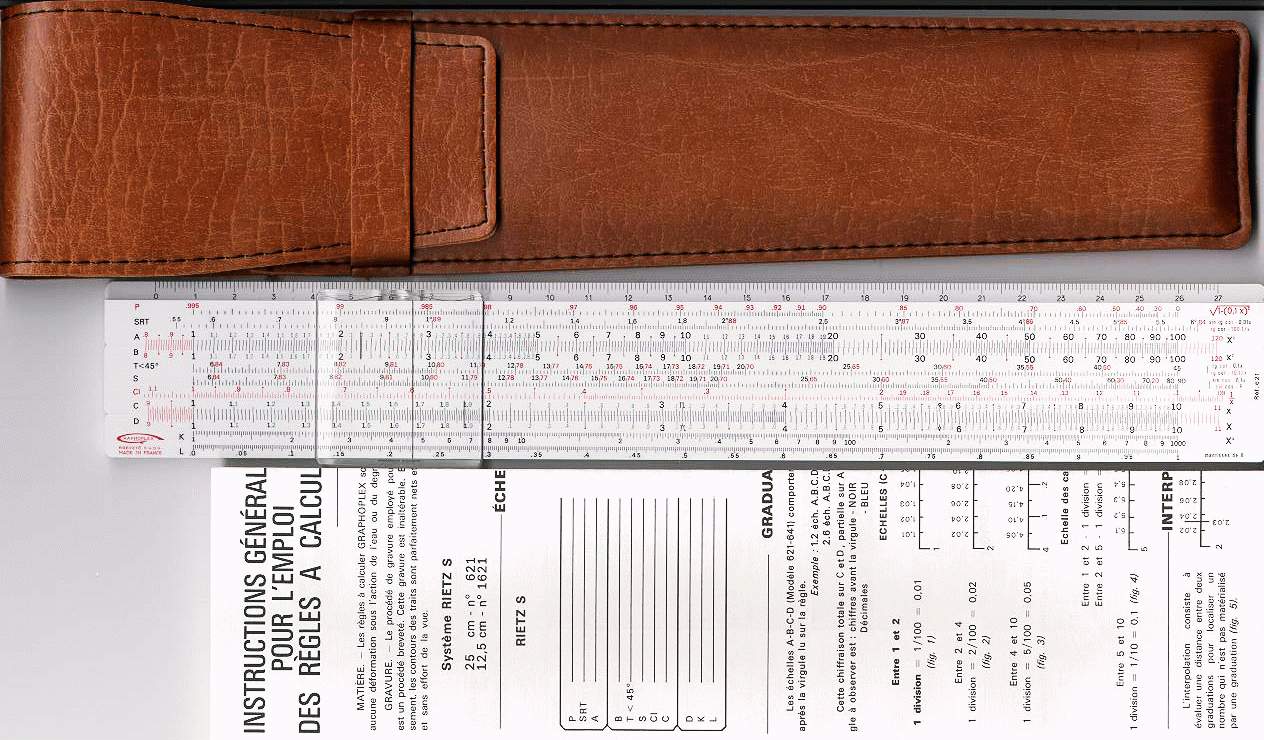

621
Made in France
Rietz S 25cm/10"

White Plastic

cm ruler
P, SRT, A,
[ B, T, S, CI, C, ]
D, K, L

[ Blank ]

3 line Simplex indicator,

Unusual black, red and blue scale markings, fine secondary numbers in blue. Leather flap case

CLICK for bigger PIC!
643
Made in France
Pocket
Electric
Log Log
12.5cm/5"

White Plastic

cm ruler
L, Cos, B3, B2,
[ b2, a, b, ]
B, LL3, LL2, LL1

[ S, S&T, T ]

leather slip case

3 line Simplex indicator,

Note the unusual scale markings (B's) on the rule. Leather slip case

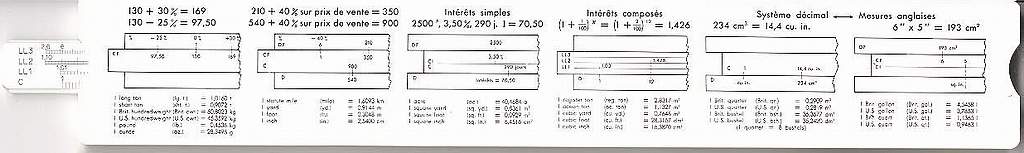

645
Made in France
Commercial 25cm/10"

White Plastic

cm ruler
+/-%, DF,
[ CF, CI, C, ]
D, L, Factors

[ LL3, LL2, LL1, C ]
Directions

leather slip case

1 line Simplex indicator,

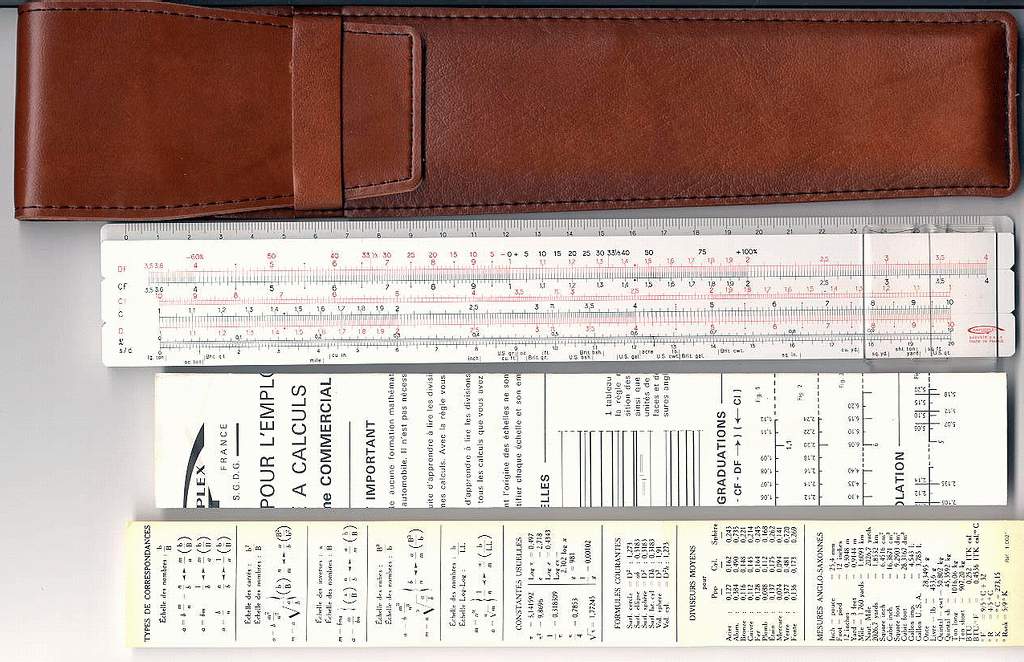

Specialized commercial rule, mark up, discount, factor conversion. Leather Flap case

CLICK for bigger PIC!

CLICK for bigger PIC!
650
Made in France
Pocket
Electro
12.5cm/5"

White Plastic

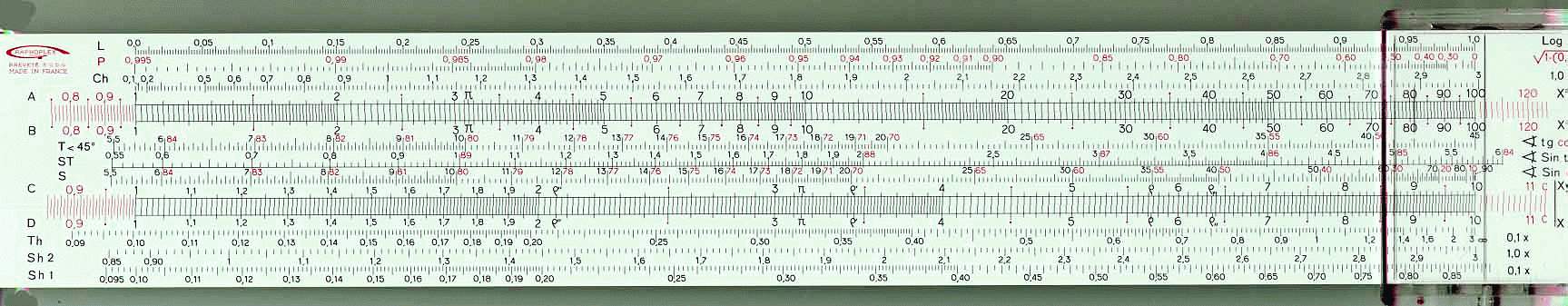

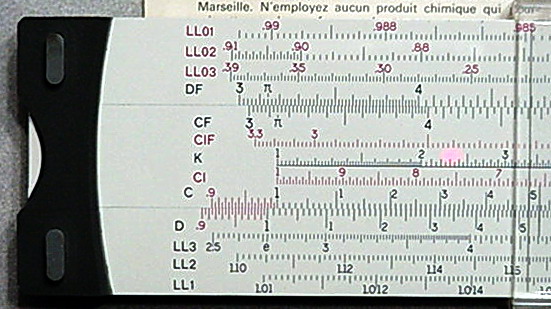

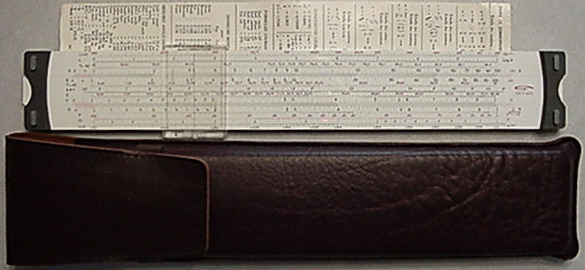

690a
Made in France
Neperlog 25cm/10"

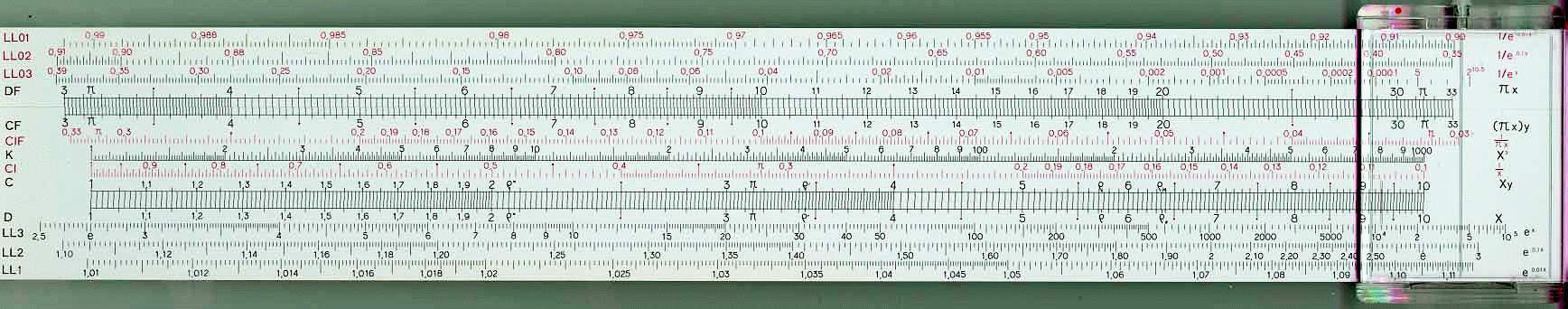

White Plastic
Gray end braces

LL00, L, T>45, A,
[ B, T<45, SRT, S, C, ]
D, P, DI LL0

LL01, LL02, LL03, DF,
[ CF, CIF, K, CI, C, ]
D, LL3, LL2, LL1

5/4-line Duplex indicator,

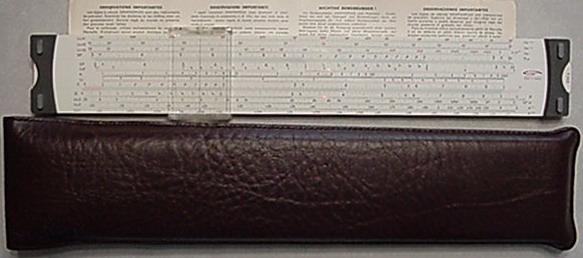

Extended capacity log log rule, has (P) Pythagorean scale. Leather Flap case.


Original French manual for this series, courtesy of Daniel Fournier, CLICK HERE to download PDF (3Mb).
CLICK for bigger PIC

CLICK for bigger PIC!
CLICK for bigger PIC

CLICK  for bigger PIC!

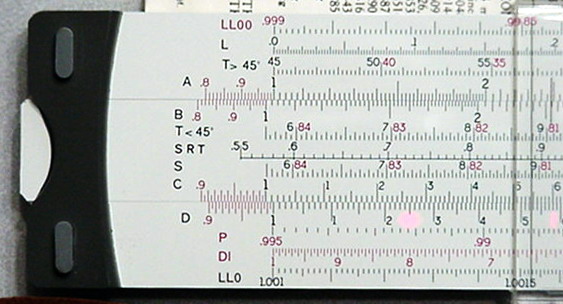

691a
Made in France
Neperlog
Hyperbolic
25cm/10"

White Plastic
Gray end braces

L, P, Ch, A,
[ B, T, ST, S, C, ]
D, P, Th, Sh2, Sh1

LL01, LL02, LL03, DF,
[ CF, CIF, K, CI, C, ]
D, LL3, LL2, LL1

5/4-line Duplex indicator,

Extended capacity hyperbolic log log rule, has (P) Pythagorean scale. Leather slip case

CLICK for bigger PIC

CLICK for bigger PIC

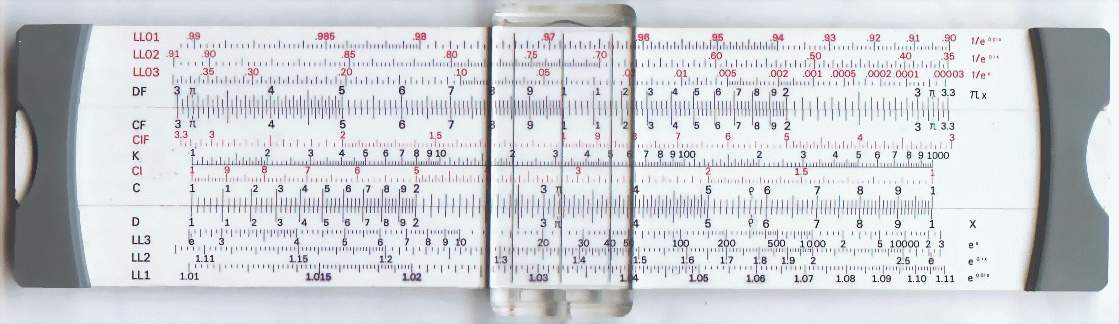

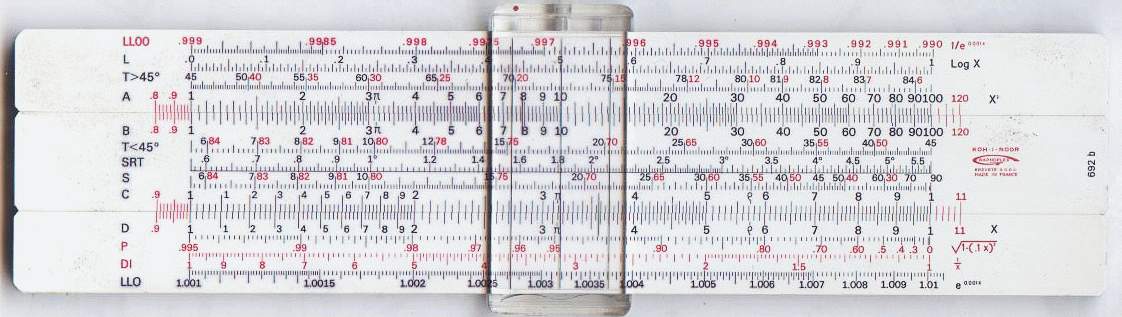

692b
Made in France
Pocket
Tecnilog
12.5cm/5"

White Plastic
Gray end braces

LL00, L, T, A,
[ B, T, SRT, S, C, ]
D, P, DI, LL0

LL01, LL02, LL03, DF,
[ CF, CIF, K, CI, C, ]
D, LL3, LL2, LL1

5/4-line Duplex indicator,

Extended capacity log log rule, has (P) Pythagorean scale. Leather slip case

CLICK for bigger PIC

CLICK for bigger PIC

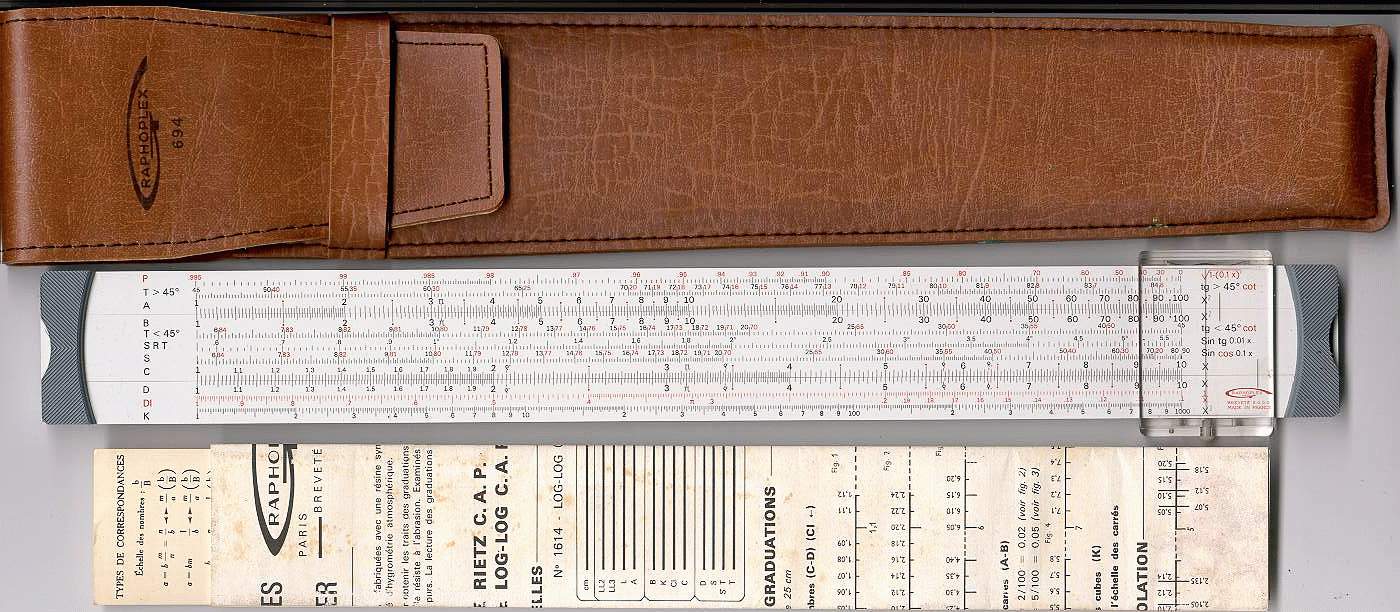

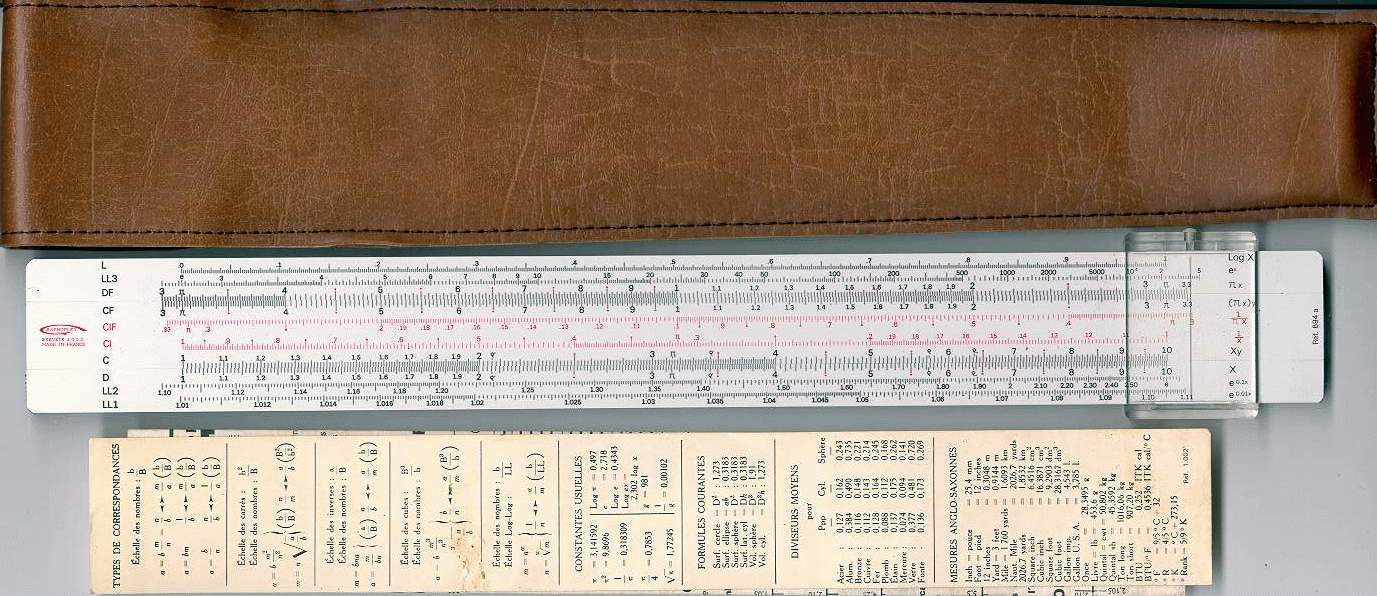

694a
Made in France
Tecnilog 25cm/10"

White Plastic
Gray end braces

P, T, A,
[ B, T, SRT, S, C, ]
D, DI, K

L, LL3, DF,
[ CF, CIF, CI, C, ]
D, LL2, LL1

1/4-line Duplex indicator,

Extended capacity trig rule, has (P) Pythagorean scale. Leather flap case

CLICK for bigger PIC

CLICK for bigger PIC

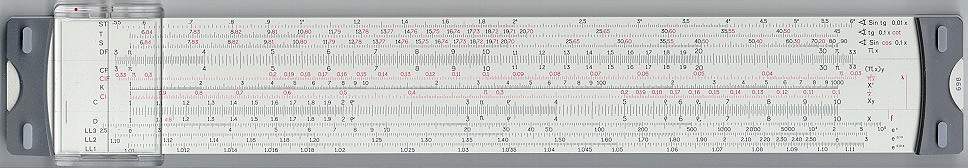

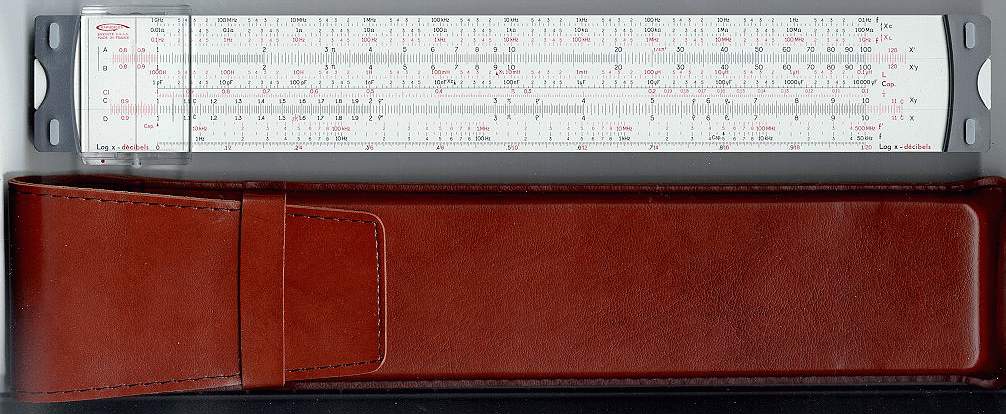

698
Made in France
Electronic
Duplex Log Log
25cm/10"

White Plastic
Gray end braces

f, Xc, Xl, A,
[ B, Ind, Cap, CI, C, ]
D, f', f, Log/dB

ST, T, S, DF,
[ CF, CIF, K, CI, C, ]
D, LL3, LL2, LL1

leather slip case

Multi-line Duplex indicator,

Specialty electronics engineering rule for direct calculation of frequency, capacitive reactance, inductive reactance, etc. Leather flap case

CLICK for bigger PIC

CLICK for bigger PIC
1600
Made in France
Rietz C.A.P. 25cm/10"

White Plastic

cm ruler
L, T, A,
[ B, K, CI, C, ]
D, S, ST, T

[ BLANK ]

3 line Simplex indicator,

General purpose simplex trig rule. 2 part maroon (later gray) plastic hard case

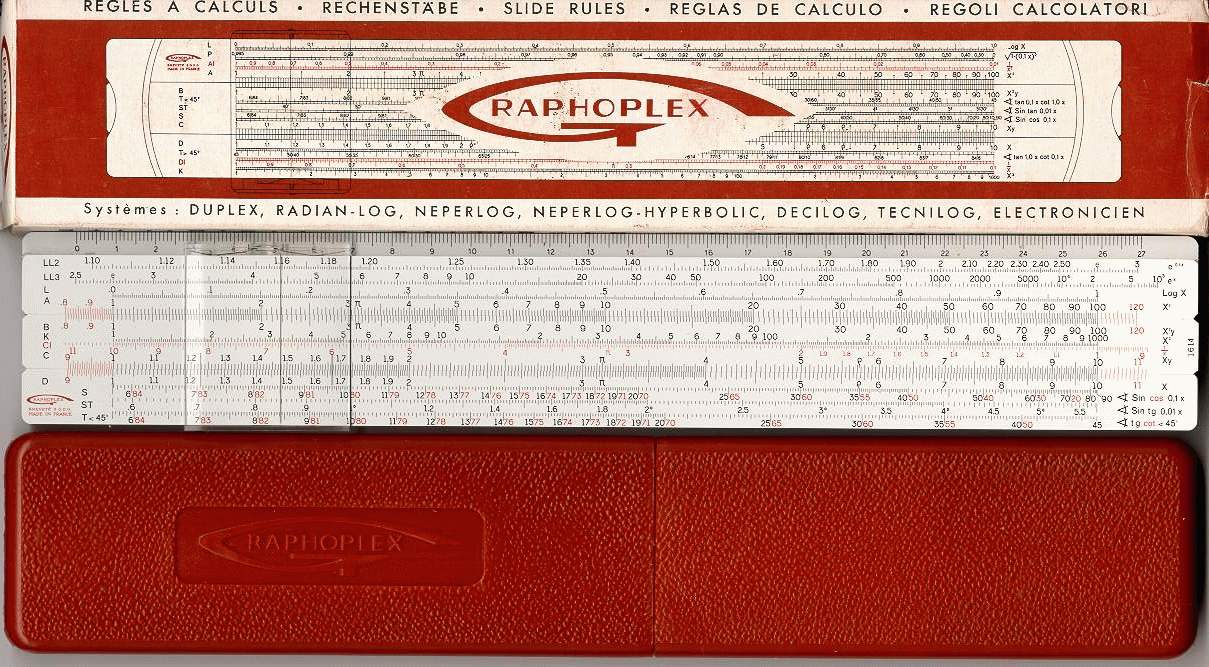

1614
Made in France
Log Log C.A.P. 25cm/10"

White Plastic

cm ruler
LL2, LL3, L, A,
[ B, K, CI, C, ]
D, S, ST, T

[ BLANK ]

3 line Simplex indicator,

General purpose high end simplex rule. 2 part maroon (later gray) plastic hard case

CLICK for bigger PIC!

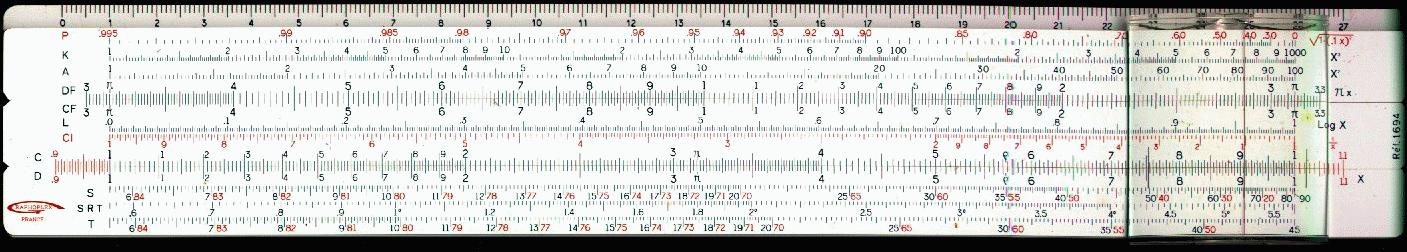

1694
Made in France
Trig 25cm/10"

White Plastic

P, K, A, DF,
[ CF, L, CI, C, ]
D, S, SRT, T

3-line Simplex indicator,

Extended capacity trig rule, has (P) Pythagorean scale. Leather flap case

CLICK for bigger PIC

CLICK for bigger PIC

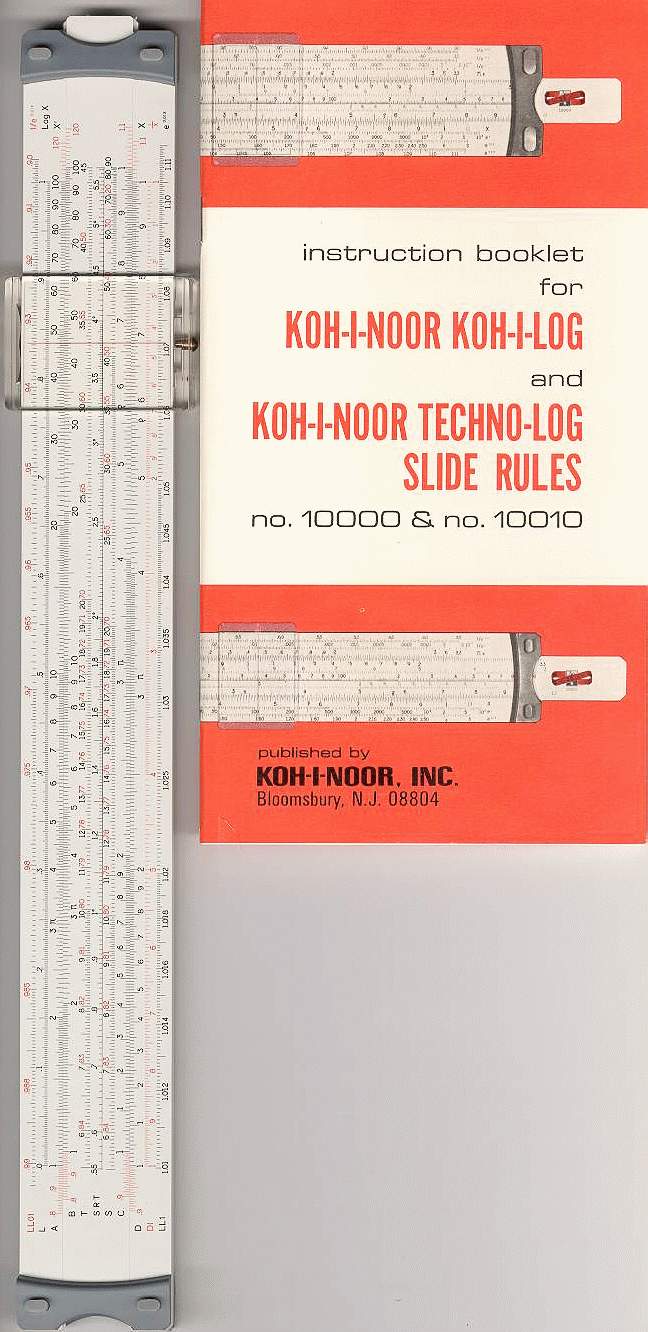

10000
Made in France
Koh-i-log 25cm/10"

White Plastic
Gray end braces

Koh-i-noor

LL00, L, T, A,
[ B, T, SRT, S, C, ]
D, P, DI, LL0

LL01, LL02, LL03, DF,
[ CF, CIF, K, CI, C, ]
D, LL3, LL2, LL1

1/1-line Duplex indicator,

Extended capacity log log rule, has (P) Pythagorean scale. Black Leather flap case

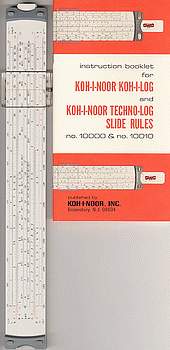

10010
Made in France
Techno-log 25cm/10"

White Plastic
Gray end braces

Koh-i-noor

LL01, L, A,
[ B, T, SRT, S, C, ]
D, DI, LL1

LL02, LL03, DF,
[ CF, CIF, K, CI, C, ]
D, LL3, LL2

1/1-line Duplex indicator,

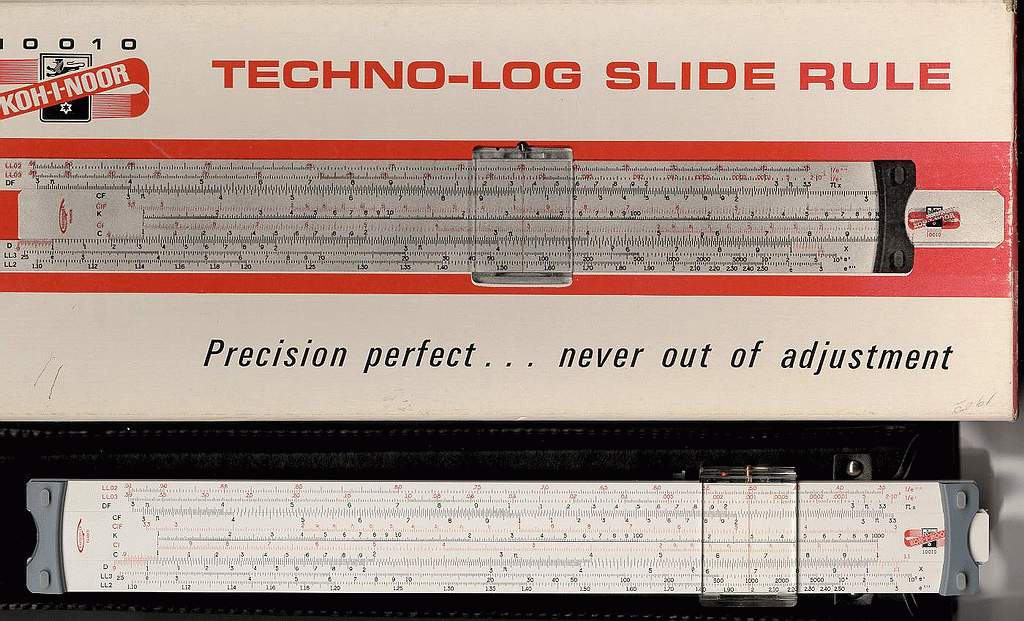

Extended capacity trig rule with log log scales. Black Leather flap case

CLICK for bigger PIC

CLICK for bigger PIC

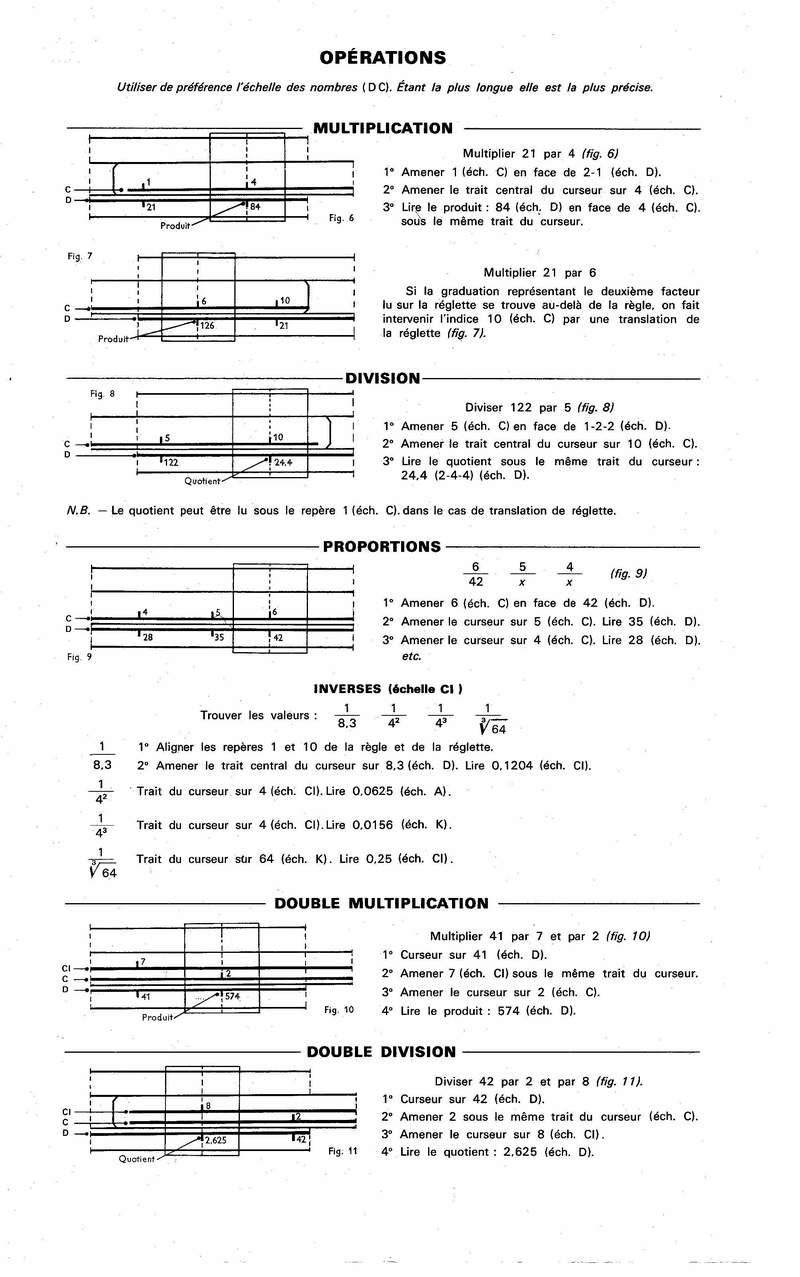

More French Instructions

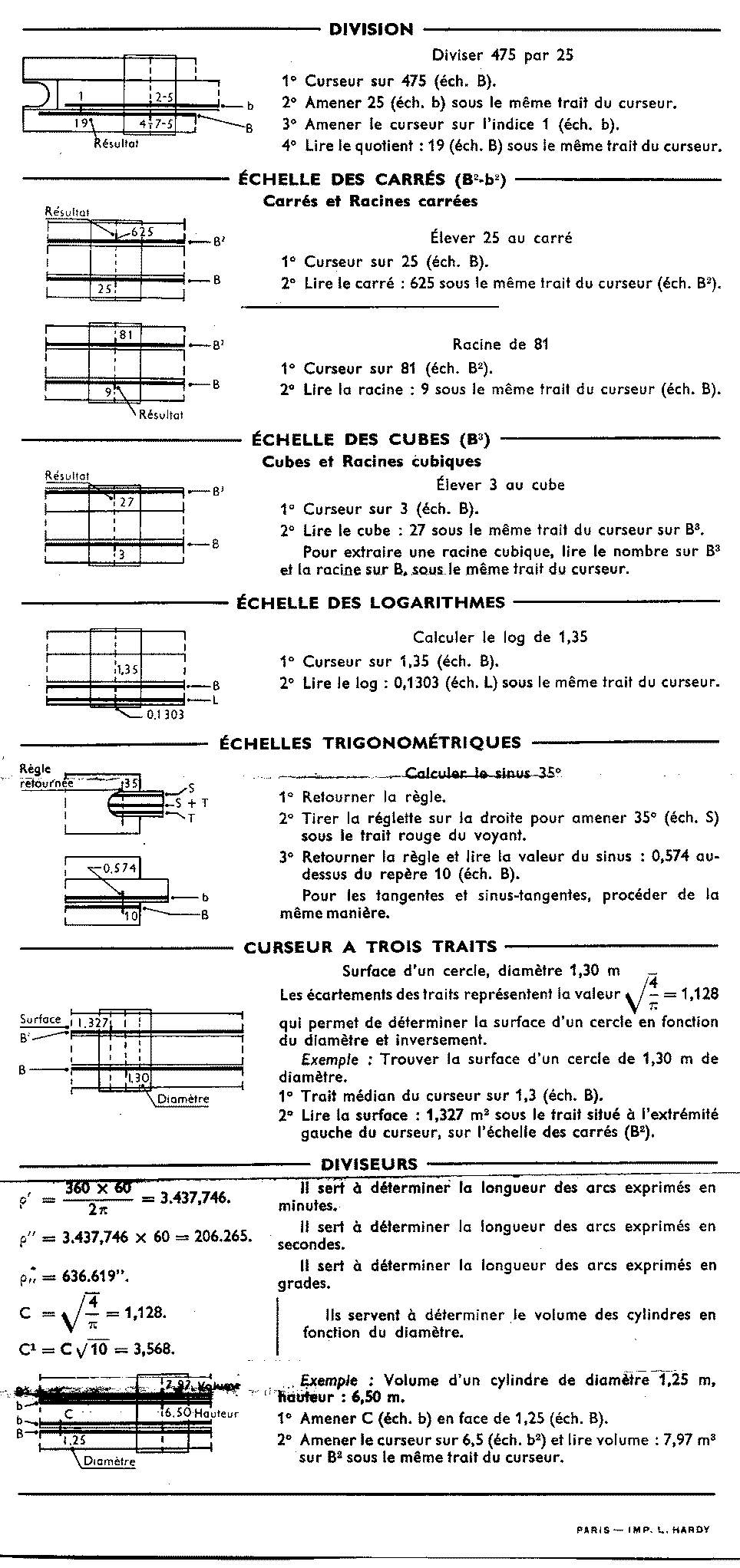

Page 1, CLICK for bigger PIC! Page 2, CLICK for bigger PIC! Page 3, CLICK for bigger PIC!
Page 4, CLICK for bigger PIC! Page 5, CLICK for bigger PIC! Page 6, CLICK for bigger PIC!
CLICK on each image to see the page in full size!

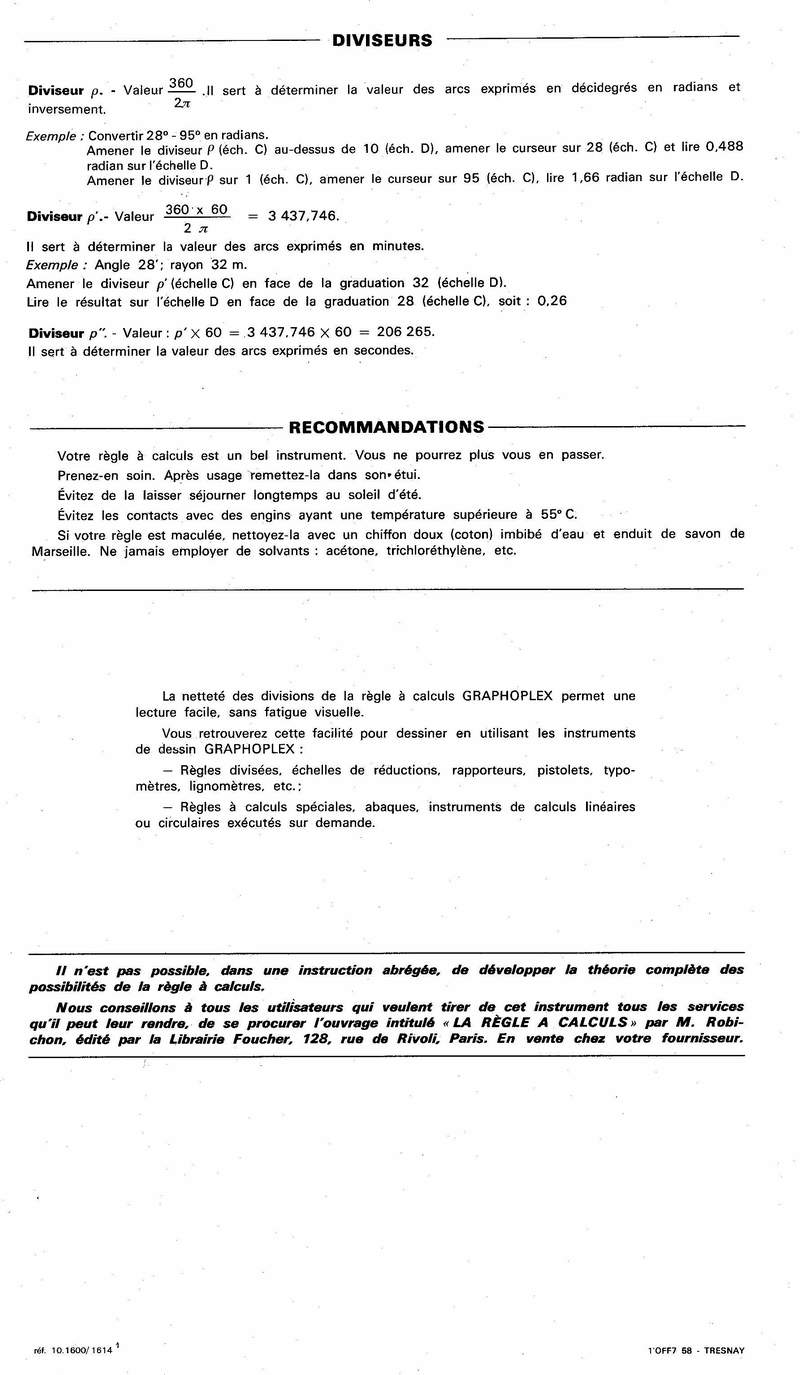

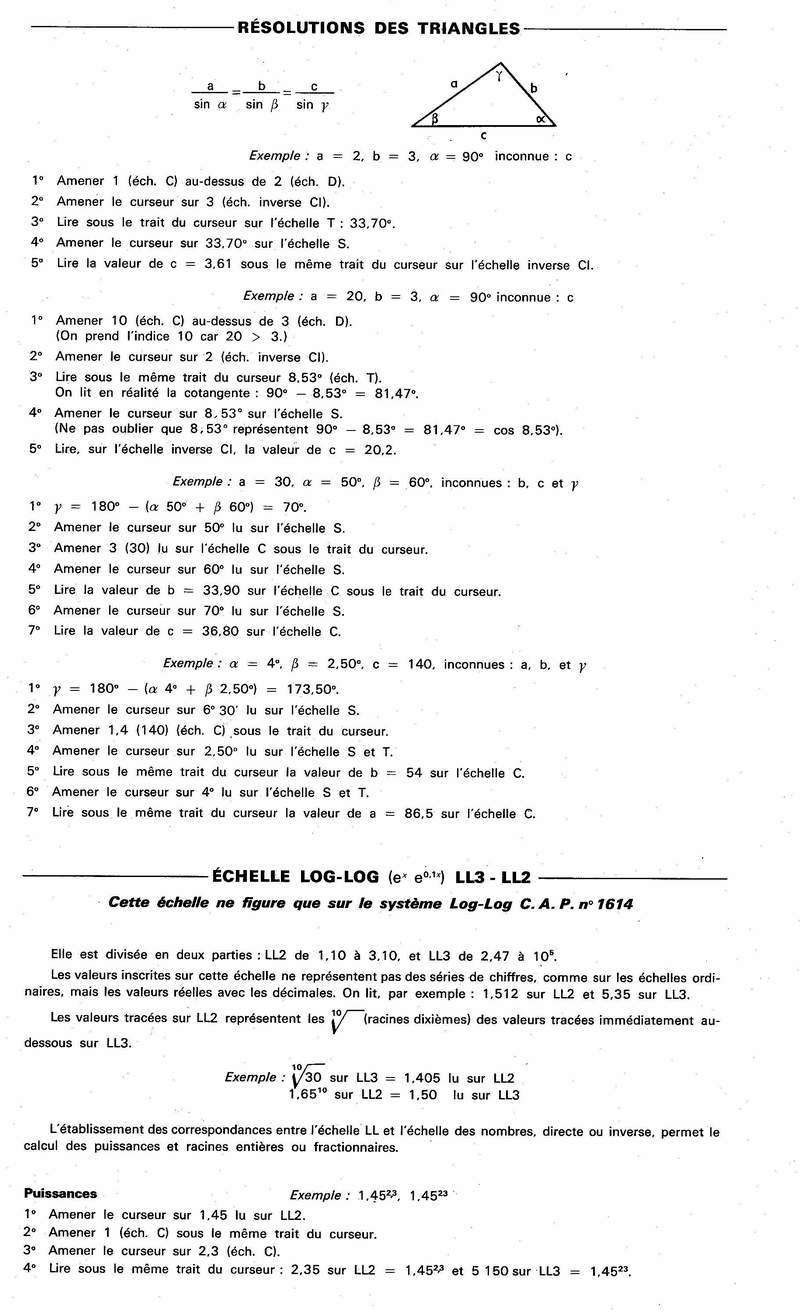

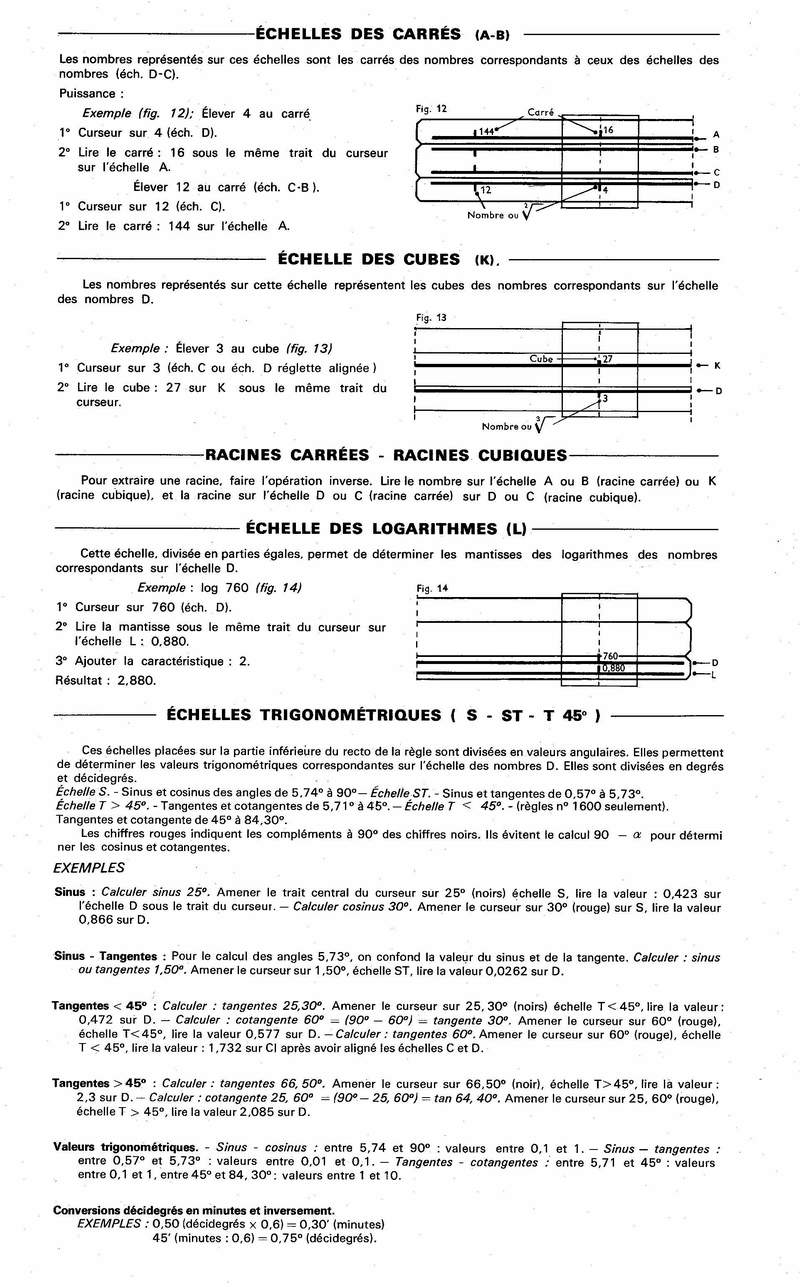

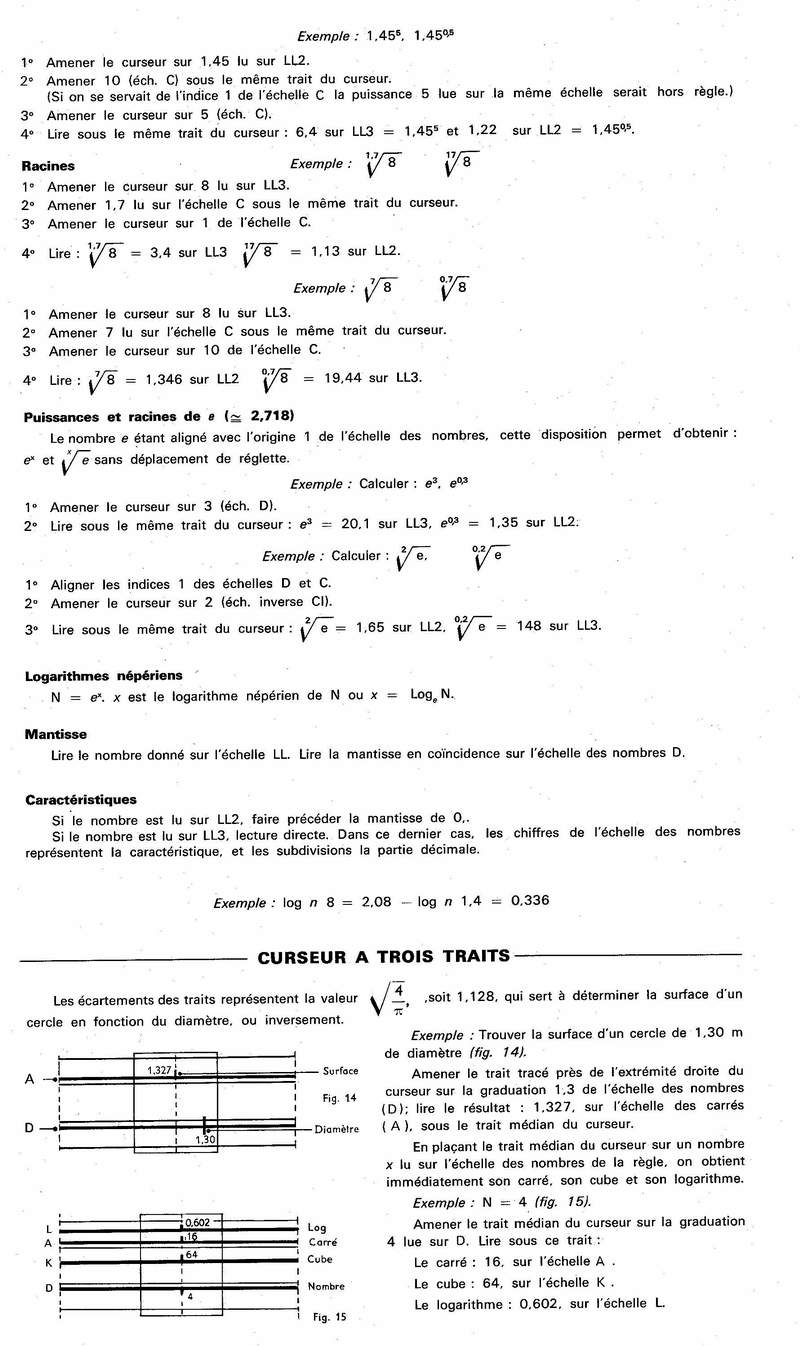

Graphoplex

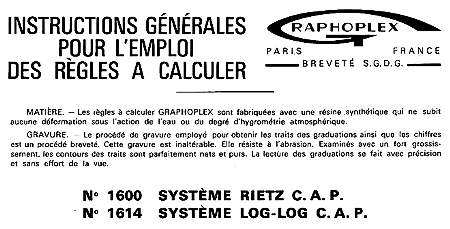

1600/1614 Instructions

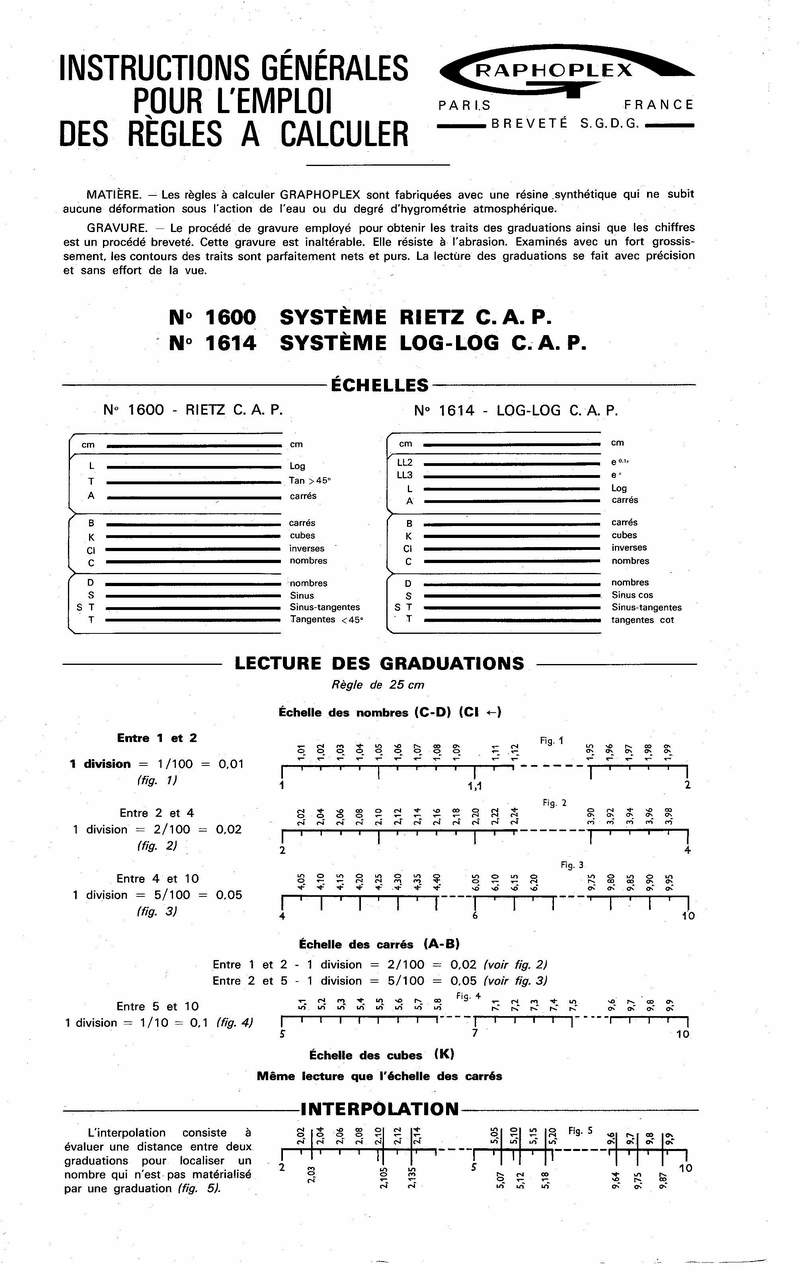

here is the full manual packed with these rules (in French), including some application data. This is typical of the instructions supplied with most of the more complex rules. Ther is also a formula chart (strip form) included with some rules.


Return to the Slide Rule Universe !RETURN
