Nestler

Albert Nestler KG

go right to the catalog! Skip the INTRO, Go RIGHT to the Archive!

* The Albert Nestler KG was one of Germany's major slide rule makers, along with Aristo and Faber-Castell. They initially had wood body rules with celluloid scales, and then converted to plastic body rules after World War 2 along with other makers.

* Early wood body rules closely resemble Faber-Castell models, and can be easily mistaken for them. The maker's name and model number was usually located inside the body cavity under the slide for many early wood rules, so it was not always so obvious who manufactured a given rule.
Inside the model no. 9

Nestler's model 23 was a very popular mannheim style rule among professionals in Europe, and their rules were used by such notables as Wernher von Braun, Russia's rocket pioneer and 'Chief Designer', Sergei P. Korolev and Albert Einstein.

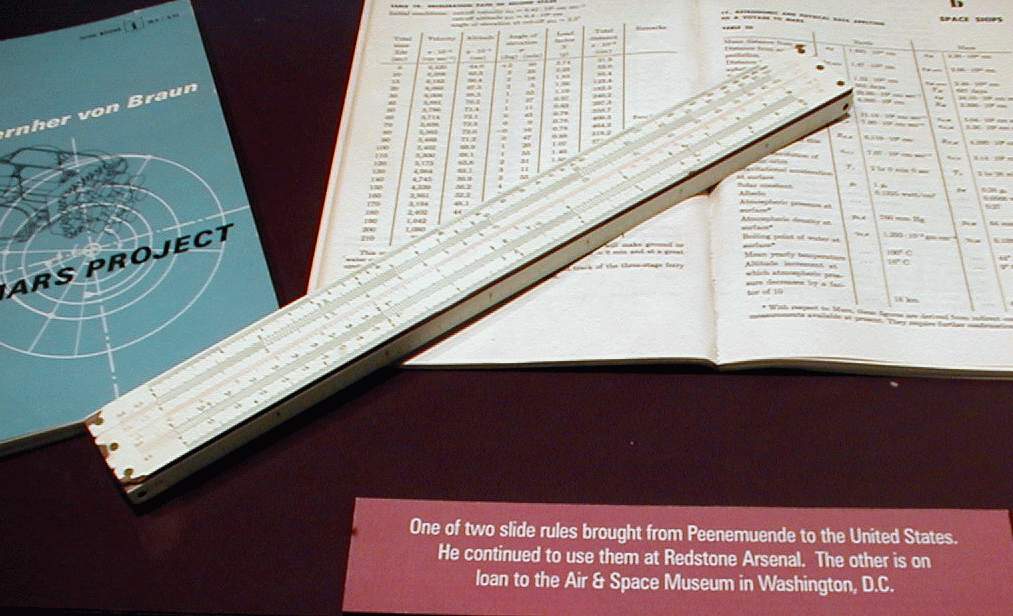

CLICK to see a close up of one of von Braun's rules, thanks to Duane Croft who went down and shot it in person. We'll assume WvB actually used it with a cursor that has been lost somehere by a feckless curator doomed to a bad career.

See more about them at the National Air and Space Museum Go there.HERE.


Just in case the exhibit changes, here are locally cached pics of:
Go there.WvB's rule, and Go there.SPK's rule from the NASM.

* Nestler rules, whether early or late manufacture, are of excellent quality, and often have some interesting features like color accented slides in later plastic body rules, and very fine scale markings. Early rule have simple model numbers like No. 9 or No. 23, but later rules have snappy identifiers like 'Log-Log Elemath, No. 1.34840'.

* Nestler appears to still exist today as Nestler-Matho, with a general art supply and paper products focus, like other survivors from the slide rule era. You can visit them here:

CLICK to visit Nestler

* Notes: Sizes are given as the SCALE LENGTH, not the over-all size of the rule itself.

* I will add in more data as I uncover it for Nestler, please EMAIL ME if you have missing photos or data abou this maker. Thanks to Dan Cherry, Peter Owens and Ray Hems for providing many additional model photos and descriptions. photos

The ARCHIVE will appear below shortly!

ARCHIVE: JUST SCROLL DOWN TO SEE EVERYTHING !down


NESTLER
Model Number
Slide Rule Type Size,
Core Material
Scales
Features
LINKS
(Browser Back to Return)

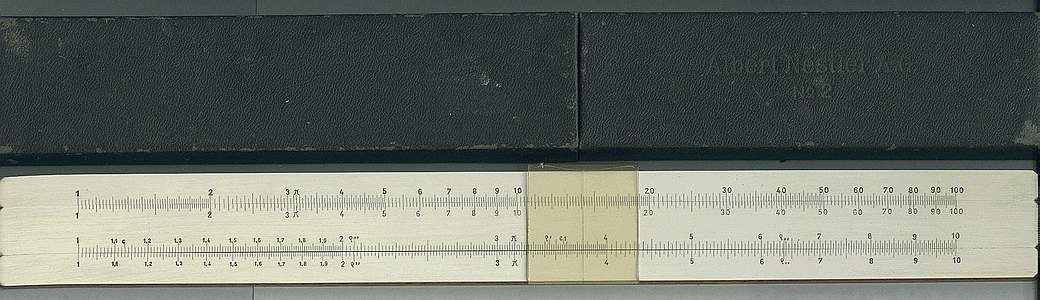

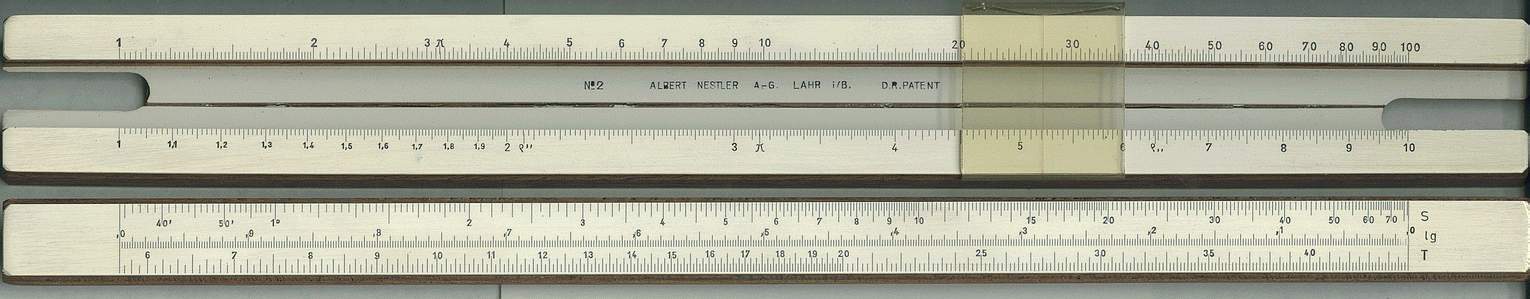

No. 2
Made in Germany
Mannheim 10"

Mahogany

A, [ B, C, ] D

[ S, log, T ]

1 line plastic simplex indicator

2 part hardboard case

CLICK for bigger PIC of No. 2

CLICK for bigger PIC of No. 2
No. 9
Made in Germany
Mannheim 10"

Mahogany

K, A, [ B, CI, C, ] D, L

(cm) [ S, ST, T ] (inch)

3 line plastic simplex indicator

leather case

CLICK for bigger PIC of No. 9

CLICK for bigger PIC of No. 9

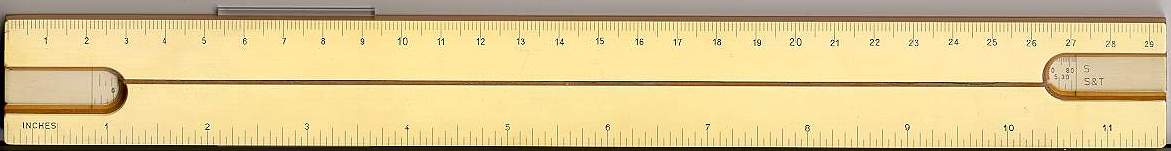

Inside the No. 9

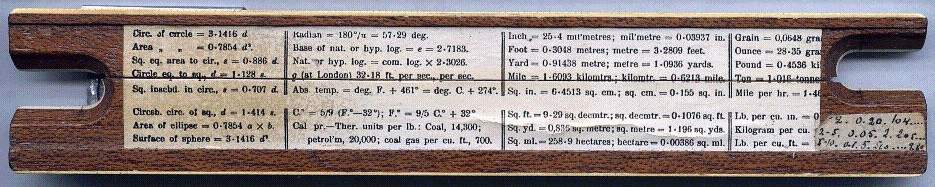

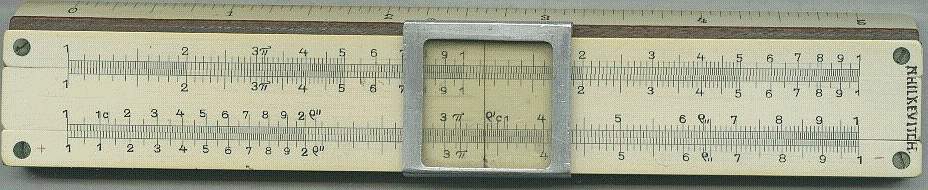

No. 12b
Made in Germany
Mannheim 5"

Mahogany

(inch) A, [ B, C, ] D

[ S, ST, T ] conversion factors

1 line metal framed indicator

hardboard case

CLICK for bigger PIC of No. 12b

CLICK for bigger PIC of No. 12b

CLICK for bigger PIC of No. 12b

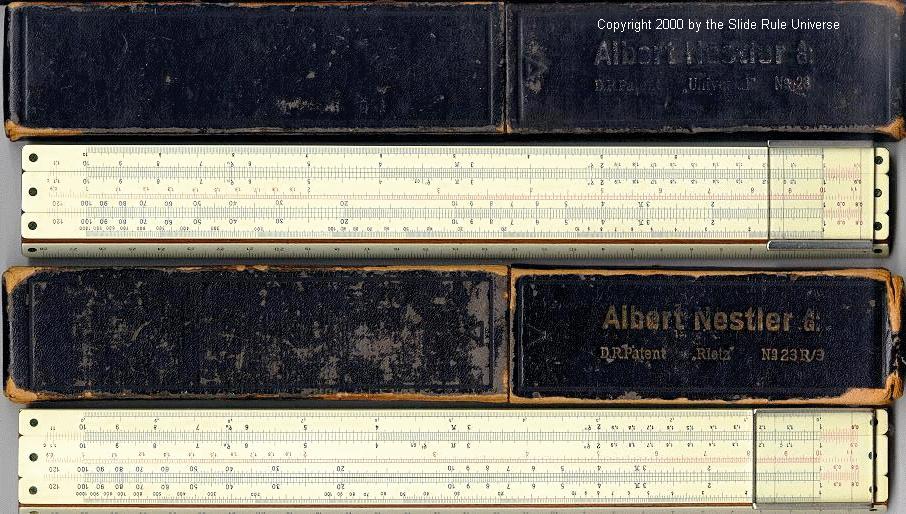

No. 23/R
Made in Germany
Rietz 10"

Mahogany

(inch) K, A, [ B, CI, C, ] D, L

[ S, ST, T ]

3 line metal framed glass simplex cursor

2 part box case

One of the most popular Rietz rules in Europe, also made in a 20 inch version as the model 24.

Numerous minor variations and cursor styles over time, data and dual cursor windows on the reverse.

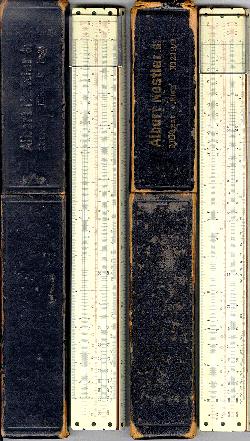

CLICK for bigger pic of No. 23

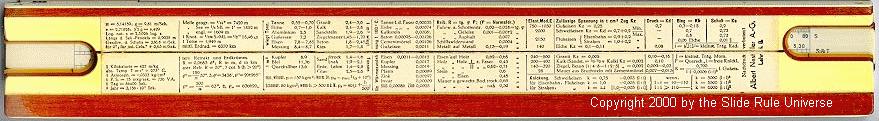

CLICK for Other Side

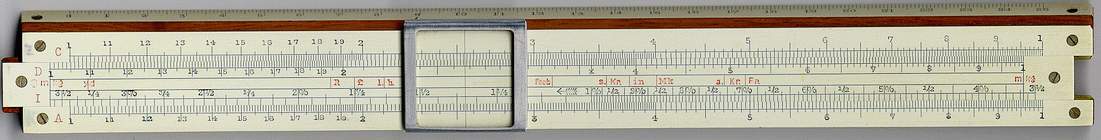

No. 40
Made in Germany
Kaufman Finance 10"

Mahogany

(cm) C, [ D, Conv, I, ] A

(cm) [ S, ST, T ] (inch)

single line metal framed simplex indicator

unknown case

for more details, see Peter Owen's page go there!HERE. Rule calculates currency exchange, units and interest.

CLICK for bigger PIC of the Nestler No. 40

CLICK for bigger PIC of the Nestler No. 40

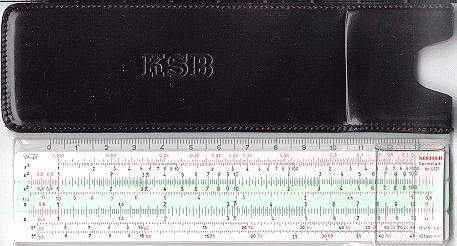

No. 0121
Made in Germany
Pocket 5"

Plastic

(cm) P, K, A, [ B, CI, C, ] D, S, T

[ LL1, LL2, LL3 ]

4 line plastic simplex indicator

leather case

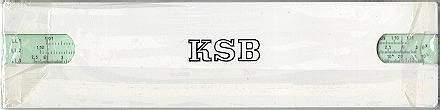

Advanced pocket rule with log log scales. Had green tinted slide, often made as a promotional rule for companies, like this example for KSB.
CLICK for bigger PIC of No. 0121

CLICK for bigger PIC of No. 0121
No. 0127
Made in Germany
International 5"

Plastic

(inch) inch fractions, cm, A, [ B, CI, C, ] D, conversion factors

[ Degrees C, Degrees F ]

3 line plastic simplex indicator

leather case

Unusual pocket rule for travellers, had metic/imperial conversions. Included an accessory pocket ruler with time zone changes and decimal equivalents.
CLICK for bigger PIC of No. 0127

CLICK for bigger PIC of No. 0127

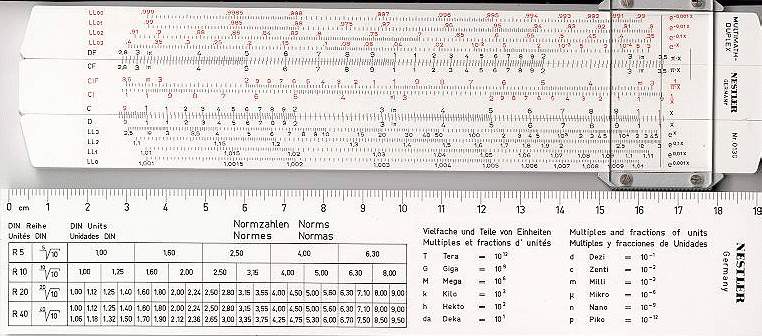

No. 0130
Made in Germany
Multi-Math Duplex 5"

Plastic

P, S, T1, T2, A, [ B, K, CI, C, ] D, R1, R2, L, ST

LL00, LL01, LL02, LL03, DF, [ CF, CIF, CI, C, ] D, LL3, Ll2, LL1, LL0

6 line plastic duplex indicator

leather case

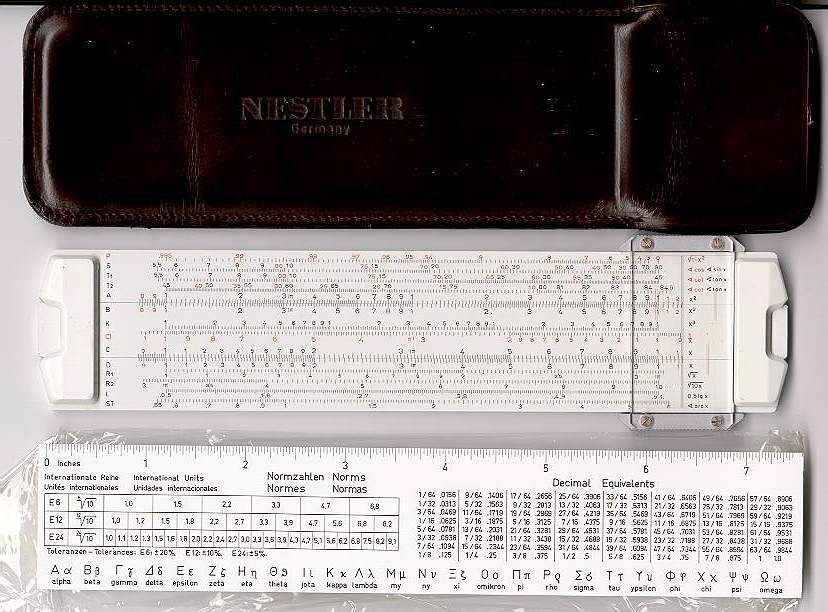

Very advanced pocket rule, 8 log log scales, dual root scale, dual tangent scale, Pythagorean scale. Included an accessory pocket ruler with conversion data and number interval standards.
CLICK for bigger PIC of No. 0130

CLICK for bigger PIC of No. 0130
No. 0210
Made in Germany
Rietz 10"

Mahogany

(inch log) K, A, [ B, CI, C, ] D, P (S, T)

[ LL1, LL2, LL3 ] conversion data on rear

4 line metal framed glass indicator with extensions for side scales

unknown case

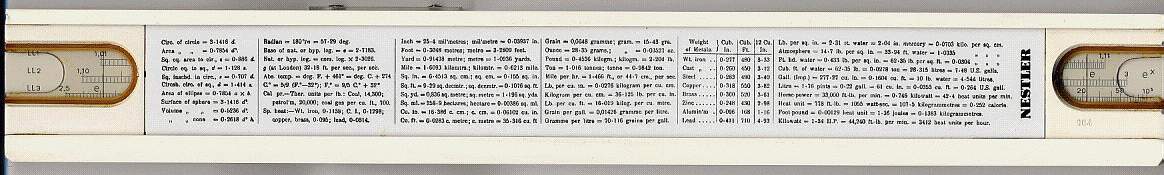

General conversion data on rear, along with 2 secondary cursor windows.
CLICK for bigger PIC of 0210

CLICK for bigger PIC of 0210

CLICK for bigger PIC of 0210

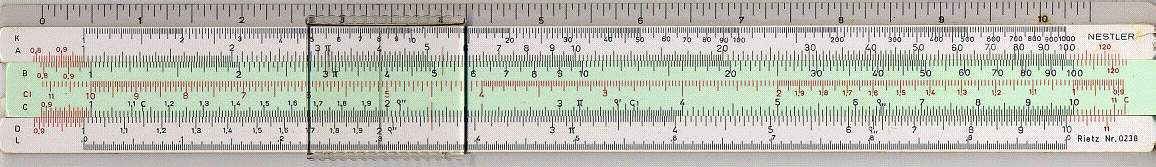

No. 0238
Made in Germany
Rietz 10"

Plastic

(inch) K, A, [ B, CI, C, ] D, L

[ S, ST, T ] conversion data on rear

3 line plastic simplex indicator

unknown case

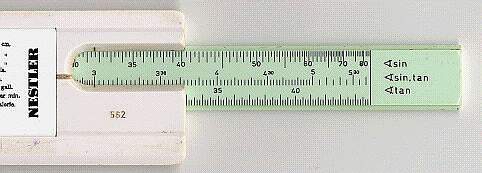

Green colored slide, general conversion data on rear, along with 2 secondary cursor windows.

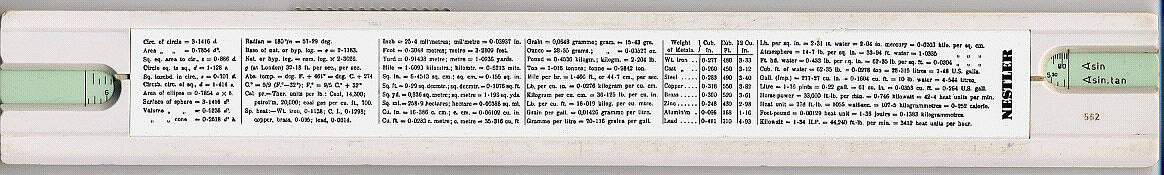

CLICK for bigger PIC of 0238

CLICK for bigger PIC of 0238

CLICK for bigger PIC of 0238

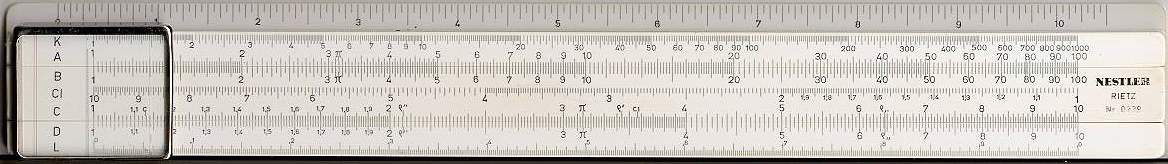

No. 0239
Made in Germany
Rietz 10"

Plastic

(inch) K, A, [ B, CI, C, ] D, L

[ S, ST, T ] conversion data on rear

3 line metal framed glass simplex indicator

unknown case

General conversion data on rear, along with 2 secondary cursor windows.
CLICK for bigger PIC of 0239

CLICK for bigger PIC of 0239

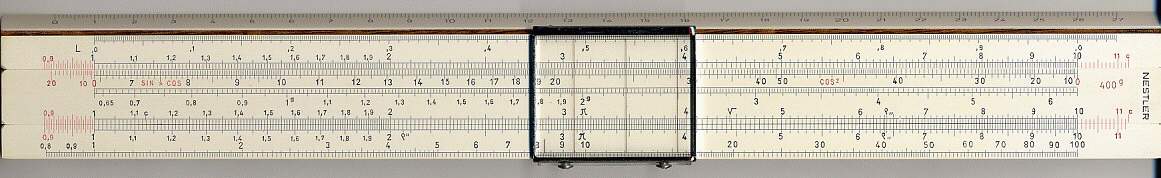

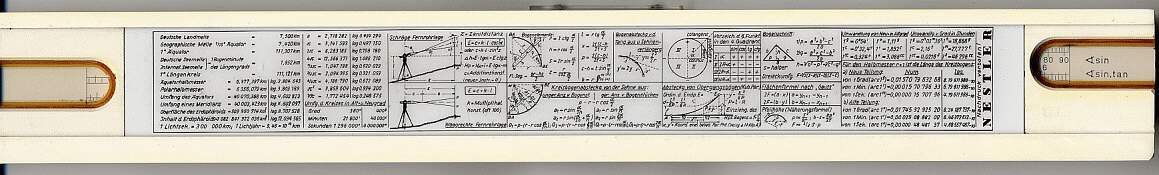

No. 0281
Made in Germany
Geometer 10"

Mahogany

(cm) L, D, [ Sin/Cos, Cos2, Sin/Tan, C, ] D, A, (K, AI)

[ S, ST, T ] conversion factors

Metal frames 4 line glass cursor with side indicator

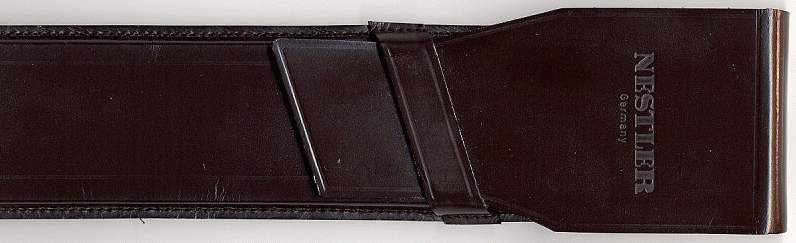

brown leather case

Centesimal (400 degree sin/cos scale. General conversion data on rear, along with 2 secondary cursor windows.

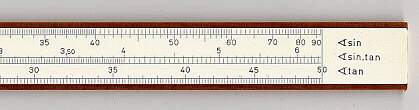

CLICK for bigger PIC of No. 0281

CLICK for bigger PIC of No. 0281

CLICK for bigger PIC of No. 0281

CLICK for bigger PIC of No. 0281

CLICK for bigger PIC of No. 0281

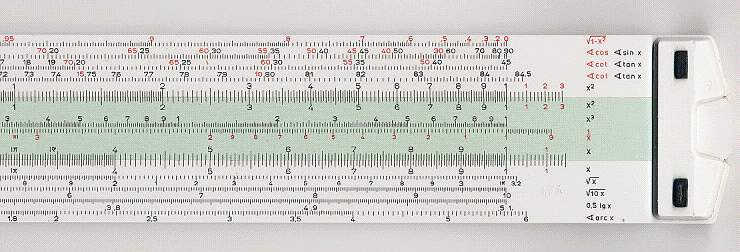

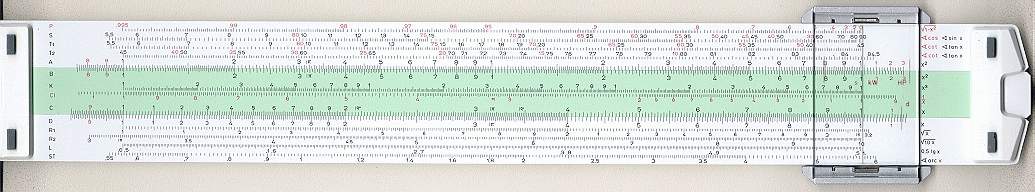

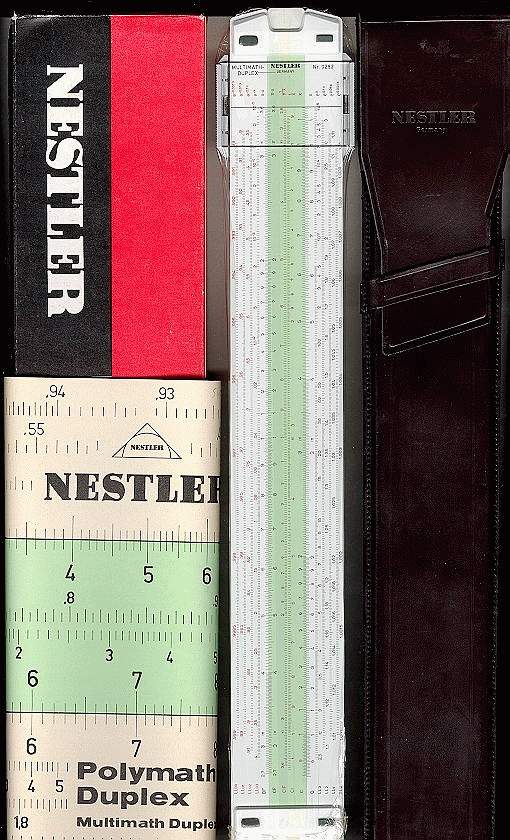

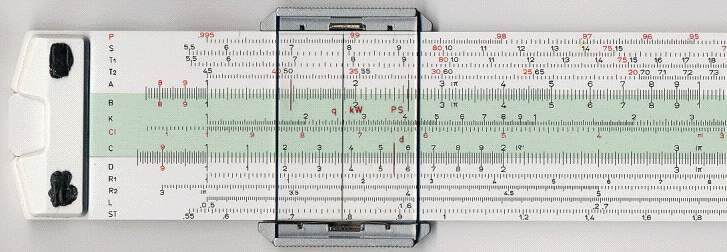

No. 0292
Made in Germany
Multi-Math Duplex 10"

Plastic

CLICK for bigger PIC of No. 0292

CLICK for bigger PIC of No. 0292

P, S, T1, T2, A, [ B, K, CI, C, ] D, R1, R2, L, ST

LL00, LL01, LL02, LL03, DF, [ CF, CIF, CI, C, ] D, LL3, Ll2, LL1, LL0

6 line plastic duplex indicator

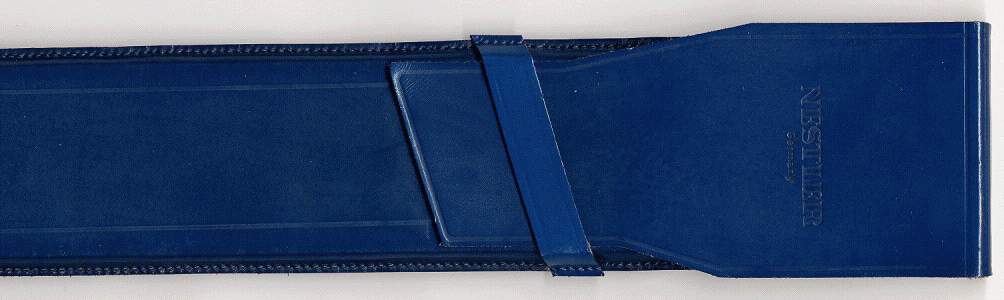

blue and brown leather case and 2 part plastic case variations

Very advanced full sized rule with green tinted slide, 8 log log scales, dual root scale, dual tangent scale, Pythagorean scale. Included an accessory ruler with conversion data and number interval standards. Pocket version is the No. 0130.

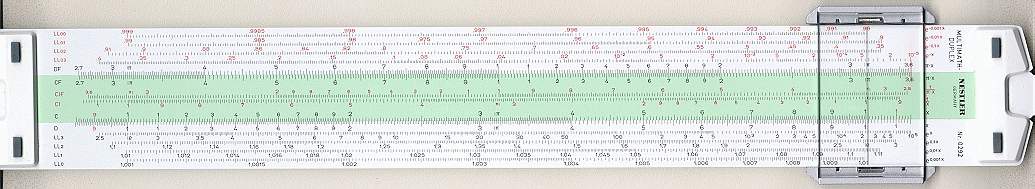

No. 0292 Pics:

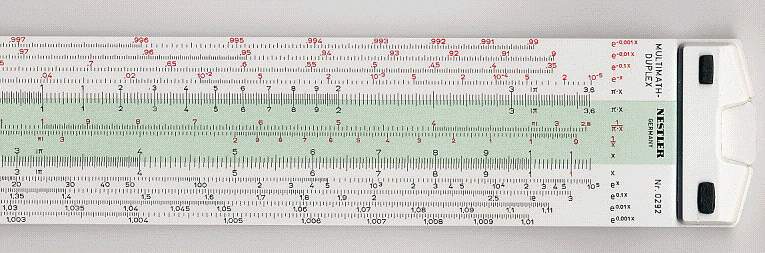

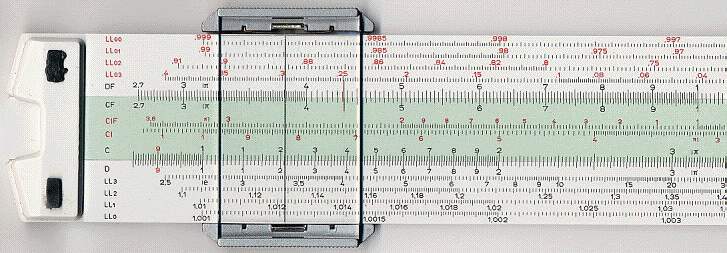

CLICK for bigger PIC of No. 0292

CLICK for bigger PIC of No. 0292


CLICK for bigger PIC of No. 0292

CLICK for bigger PIC of No. 0292

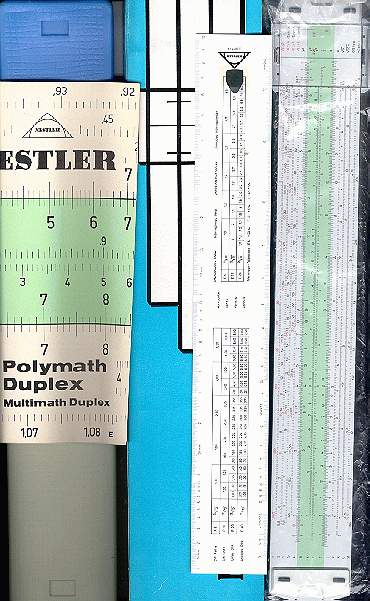

CLICK for bigger PIC of No. 0292 Case

CLICK for bigger PIC of No. 0292

CLICK for bigger PIC of No. 0292

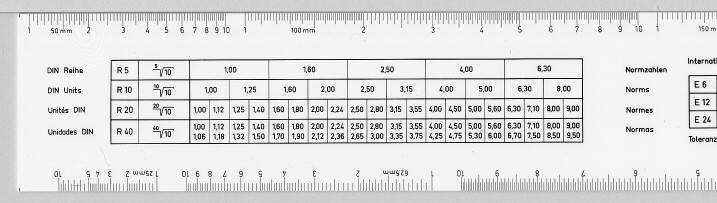

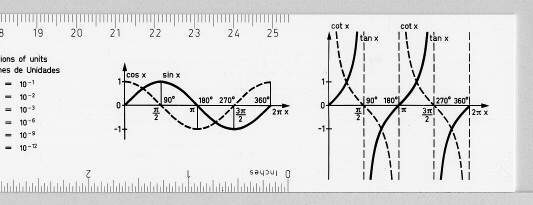

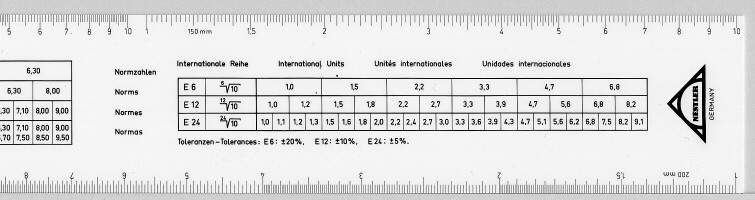

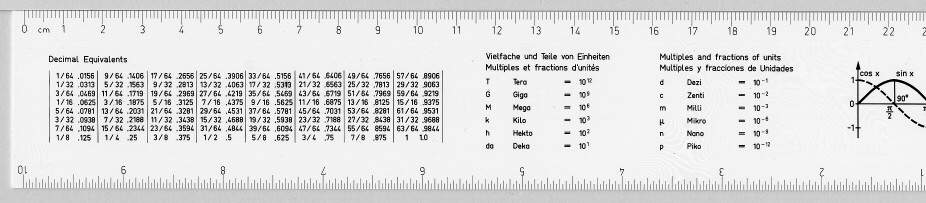

No. 0292 Ruler Pics:
CLICK for bigger PIC of No. 0292 Ruler

CLICK for bigger PIC of No. 0292 Ruler

CLICK for bigger PIC of No. 0292 Ruler

CLICK for bigger PIC of No. 0292 Ruler

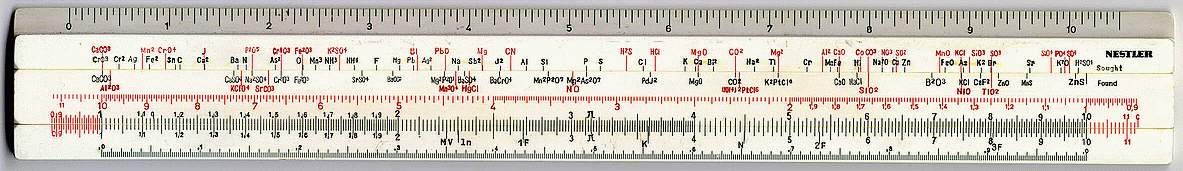

No. 0330
Made in Germany
Chemiker 10"

Mahogany

(inch) Sought, [ Found, CI, C, ] D, L

[ Found, CI, C ]

unknown cursor

unknown case

Chemical rule, two sets of Found scales, reversable.
CLICK for bigger PIC of 0330

CLICK for bigger PIC of 0330

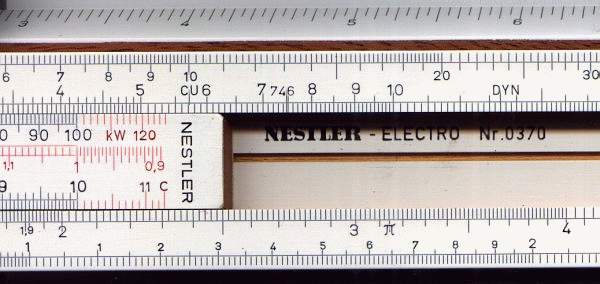

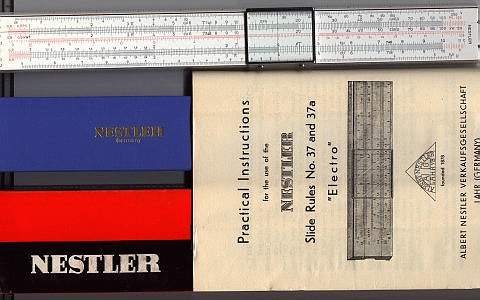

No. 0370
Made in Germany
Electro 10"

Mahogany

(inch) V, A, [ B, CI, C, ] D, U (LL1, LL2)

[ S, ST, T ] conversion data on rear

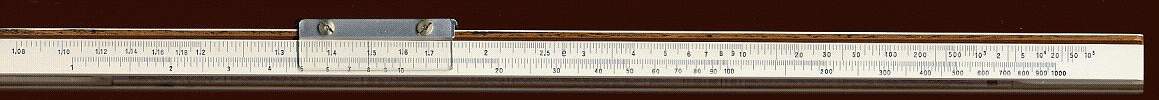

3 line metal framed glass simplex indicator, with edge extension for side scales

unknown case

General conversion data on rear, along with 2 secondary cursor windows.
CLICK for bigger PIC of 0370

CLICK for bigger PIC of 0370

CLICK for bigger PIC of 0370


CLICK for bigger PIC of 0370

CLICK for bigger PIC of 0370

CLICK for bigger PIC of 0370

CLICK for bigger PIC of 0370

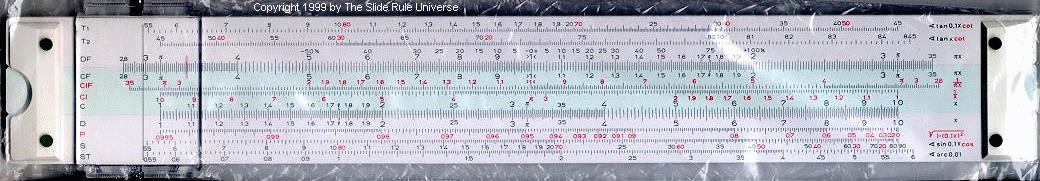

No. 1.34840
Made in Germany
Elemath Log Log Duplex 10"

Plastic

L, K, A, [ B, BI, CI, C, ] D, LL1, LL2, LL3

T1, T2, DF, [ CF, CIF, CI, C, ] D, P, S, ST

6 line plastic duplex indicator

2 part plastic case

Advanced rule, with dual tangent scale, 3 log log scales, Pythagorean scale. Pale blue/green accent colored slide, anti skid bumpers protect the cursor when laid down on a table.
CLICK for bigger PIC of 1.34840

CLICK for Other Side

Made in Germany
Polymath Duplex
5 inch
5"

Plastic

LL01, LL02, LL03, A, [ B, L, K, C, ] D, LL1, LL2, LL3

CT, T, ST, DF, [ CF, CIF, CI, C, ] D, P, S, CS

2/4 line plastic duplex indicator

unknown case

Advanced rule, with extended trig scales, 6 log log scales, Pythagorean scale. Pale blue/green accent colored slide, blue end braces.

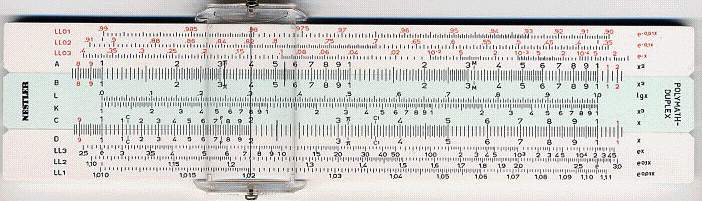

CLICK for bigger Pic of 5 inch Polymath


CLICK for bigger Pic of 5 inch Polymath

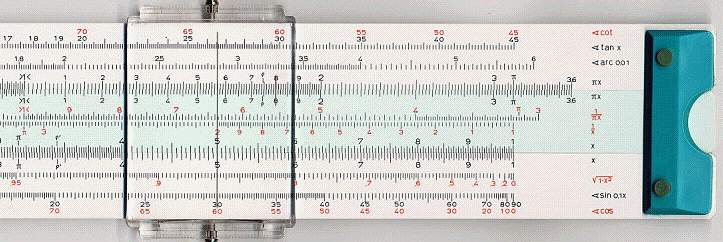

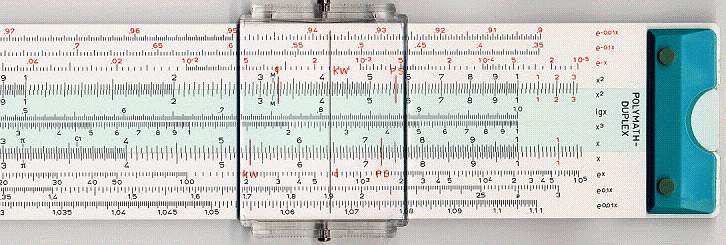

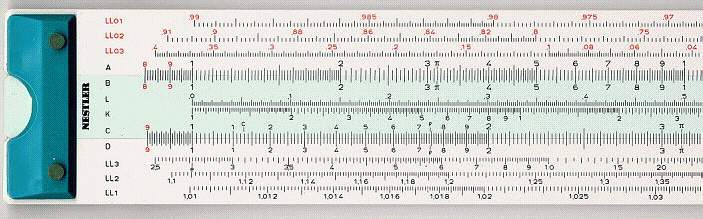

Made in Germany
Polymath Duplex
10 inch
10"

Plastic

LL01, LL02, LL03, A, [ B, L, K, C, ] D, LL1, LL2, LL3

CT, T, ST, DF, [ CF, CIF, CI, C, ] D, P, S, CS

2/5 line plastic duplex indicator

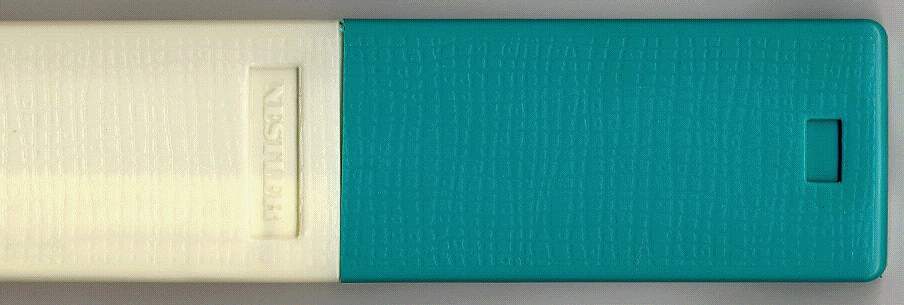

2 part blue/white plastic case

Advanced rule, with extended trig scales, 6 log log scales, Pythagorean scale. Pale blue/green accent colored slide, blue end braces, anti skid bumpers protect the cursor when laid down on a table.
CLICK for bigger Pic of 10 inch Polymath

CLICK for bigger Pic of 10 inch Polymath




CLICK for bigger Pic of 10 inch Polymath

CLICK for bigger Pic of 10 inch Polymath CLICK for bigger Pic of 10 inch Polymath




Return to the Slide Rule Universe !RETURN

Missing Images Do you have one of the rules we have no data or pictures for? Please EMAIL it to us so we can include it.

Many thanks, EMAILWalter Shawlee 2.
