The Frederick Post Co., P. O. Box 803, Chicago, Illinois 60690

Question marks indicate uncertainty, blanks indicate a more significant level of ignorance.
Where a surface is known to be blank, 0 or blank is used.
Colors indicate country of origin. Blue = U.S.A., Red = Japan, Green = Germany, Black = unknown.
Post 1450 Versatrig

The Slide Rule Universe Click to VISIT or RETURN	Click Here To go back to the Slide Rule Marketplace
E-Mail Us !	You are visitor number . Site Design & contents copyright 1999, 2000, 2003, 2004 by Walter Shawlee 2, Ted Hume & Paul Ross.

- Model Number -	Type	Length	Material	Front	Back	Dates	Comment
Catalog Number and Name Names in italics actually appear on the rule. Other names are common usage or taken from catalogs. Post brand slide rules are usually labeled with model number and the Post trademark or Frederick Post Co.	Type: Mannheim Duplex Simplex Circular Etc. Simplex means a duplex rule that has no calculating scales on the backs of the stators.	Nominal Length in Inches (Most 10-inch slide rules have scales that are actually 250 mm long--slightly shorter than 10 inches.)	What the rule is made of, such as wood, plastic, unobtanium, etc.	Scales on Front For mannheim rules only, this also includes any measuring scale on top edge set off with // or \|\|. 'cm //' indicates a centimeter scale on a slanted surface; '0 \|\|' indicates a vertical surface with no scale.	Scales on Back For mannheim rules only, this also includes any measuring scale on bottom edge set off with // or \|\|. Measuring scales are given wherever they are known. If nothing is shown, scale is not known.	Our guess about when the rule was made or available. If we have only one reference, that date is given.	Other interesting information such as original catalog price, what rule it was made from, or is similar to, etc.
1450 Post Mannheim Adjustable	Mannheim	20	Celluloid Mahogany	in // A [B, C] D	[S, L T] // cm	1925 - 31	10-inch 1449. Faber-Castell. $16.80 in 1927.
1450 Post Student Mannheim (C cursor)	Mannheim	20	Celluloid Bamboo	in // A [B, C] D	[S, L, T]	1936 - WW II	20-inch 1449. Hemmi 70?

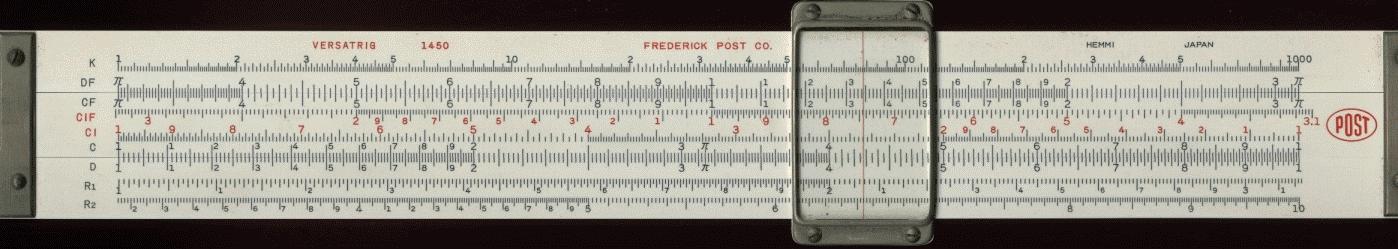

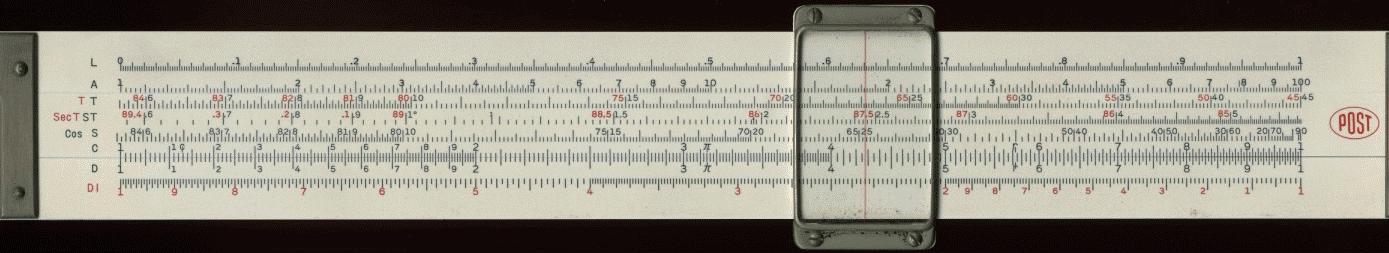

1450 Post Versatrig	Duplex	10	Celluloid Bamboo	K, DF [CF, CIF, CI, C] D, R1, R2	L, A [T T, Sec T ST, Cos, S, C] D, DI	1951+	Hemmi. $16.75 in 1969.
1450DP Post Projection Versatrig	Duplex	10	Acrylic	K, DF [CF, CIF, CI, C] D, R1, R2	L, A [T T, Sec T ST, Cos, S, C] D, DI	1969	Overhead Projectors. Hemmi.
1451 Post Universal (C Cursor)	Mannheim	5	Celluloid Bamboo	in // A [B, CI, C] D, K	[S, L, T]	1936 - WW II	5-inch 1452. Hemmi 34RK.
1451 Post Pocket Versatrig	Duplex	5	Celluloid Bamboo	K, DF [CF, CIF, CI, C] D, R1, R2	L, A [T T, Sec T ST, Cos, S, C] D, DI	c.1957 +	5-inch 1450. Hemmi.
1452 Post Multiphase Mannheim	Mannheim	10	Celluloid Mahogany	10 in // A [B, CI, C] D, K	[S, L, T] \|\| 26 cm	1925 - 31	Catalog shows rimless indicator w 3 hairlines but sample is aluminum w 1 hairline. Faber.

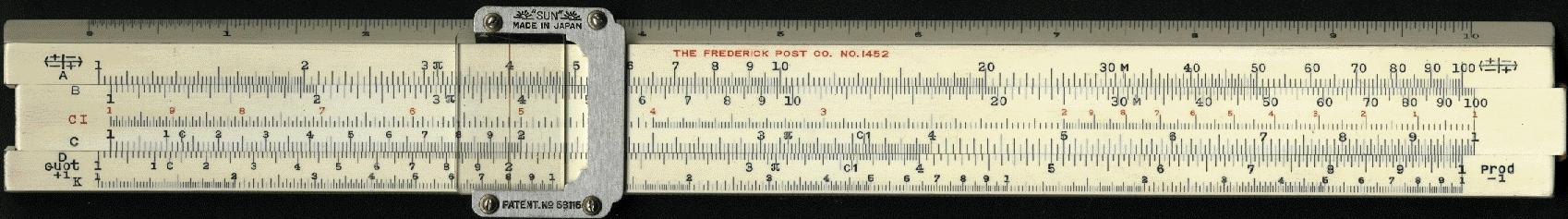

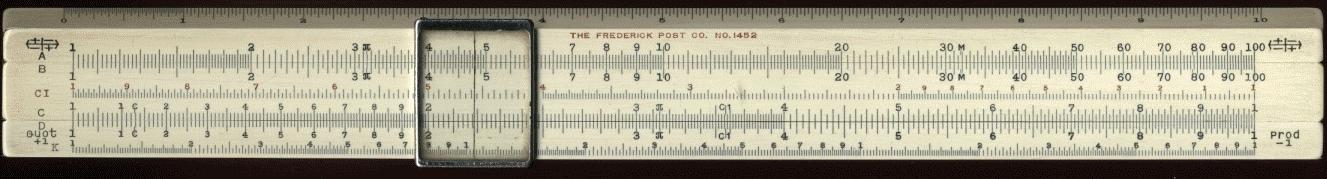

1452 Post Universal	Mannheim	10	Celluloid Bamboo	10 in // A [B, CI, C] D, K	[S, L, T] \|\| 28 cm	1932 - c. 1963	Hemmi 50. C cursor until 1937. $6.25 in 1932.

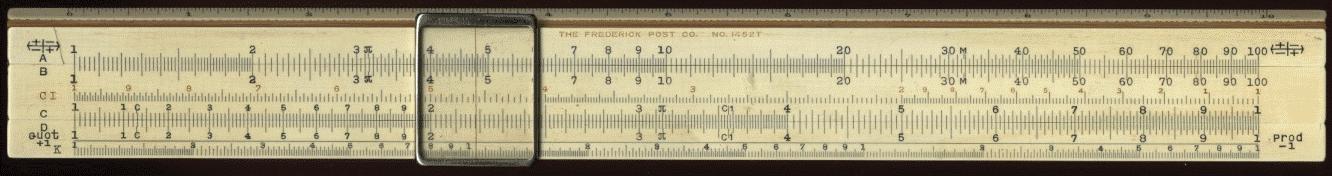

1452T Post Extra Thin Universal	Mannheim	10	Celluloid Bamboo	10 in // A [B, CI, C] D, K	[S, L, T] \|\| 28cm	1940	Hemmi.

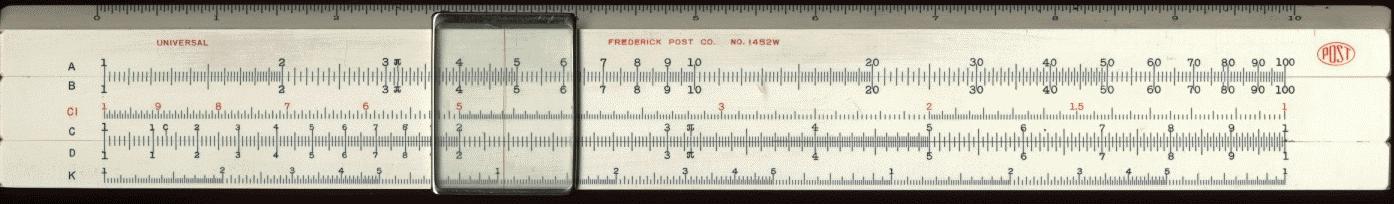

1452W Post Universal	Mannheim	10	Celluloid Bamboo	10 in // A [B, CI, C] D, K	[S, L, T] \|\| 27 cm	c. 1956+	Hemmi 50W. 6mm wider than old 1452.

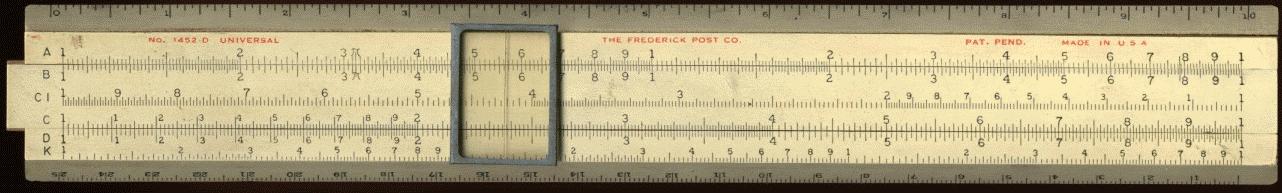

1452D Post Universal	Mannheim	10	Celluloid Wood	10 in // A [B, CI, C] D, K	[S, L, T] // 25 cm	WWII	Charvoz-Roos SR-1074. $3.50 in 1944.

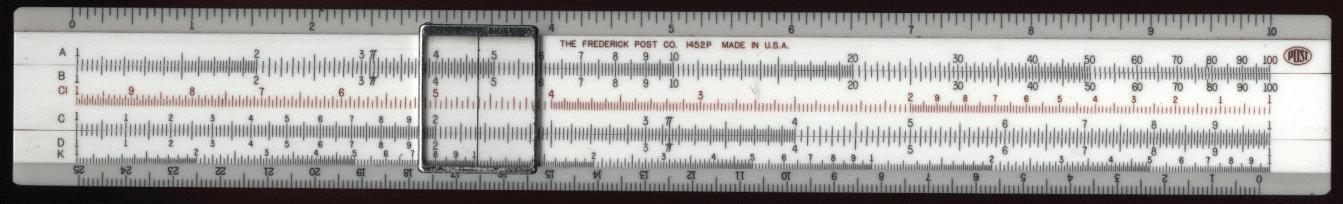

1452P Post Plastic	Mannheim	10	Plastic	10 in // A [B, CI, C] D, K	[S, L, T] // 25 cm	WWII	Bruning 2420 w Post, Bruning or Hemmi plain cursor or Hemmi magnifiying cursor.
1452 Post Plastic Variant: No make or model number, only Made in U.S.A.	Mannheim	10	Plastic	10 in // A [B, CI, C] D, K	[S, L, T] // 25 cm	WWII	Same as above. Post case and cursor. $3.25 in 1945.
1453 Post Universal Extra Fine	Mannheim	5	Celluloid Bamboo	in // A [B, CI, C] D, K	[S, L, T] \|\| cm	1936 - WW II	Magnifier & extra-fine divisions. Hemmi.
1454 Post Multiphase Mannheim	Mannheim	20	Celluloid Mahogany	in // A [B, CI, C] D, K	[S, L, T] \|\| cm	1925 - 31	Faber-Castell. $19.20 in 1927.
1454 Post Universal (C Cursor)	Mannheim	20	Celluloid Bamboo	in // A [B, CI, C] D, K	[S, L, T]	1936 - WW II	20-inch 1452. Hemmi 70.
1455 Post Universal (C cursor)	Mannheim	10	Celluloid Bamboo	10 in // A, DF [CF, CI, C] D, K	[S, L, T]	1936 - WW II	Catalog text says bottom scale is K but illustration shows L. Hemmi.
1456 Post Electrical	Mannheim	10	Celluloid Mahogany	in // LL2, A [B, C] D, LL3	[S, L, T] // cm. Dynamo and motor efficiency scales in gutter.	1925 - 31	Same as Faber-Castell 378. $9.30 in 1927.
1456 Post Electrical	Mannheim	10	Celluloid Bamboo	10 in // LL2, A [B, CI, C] D, LL3	[S, L, T] Dyn/Motor scale in gutter?	1932 - WW II	Hemmi 80. C cursor until 1937. $7.75 in 1932.

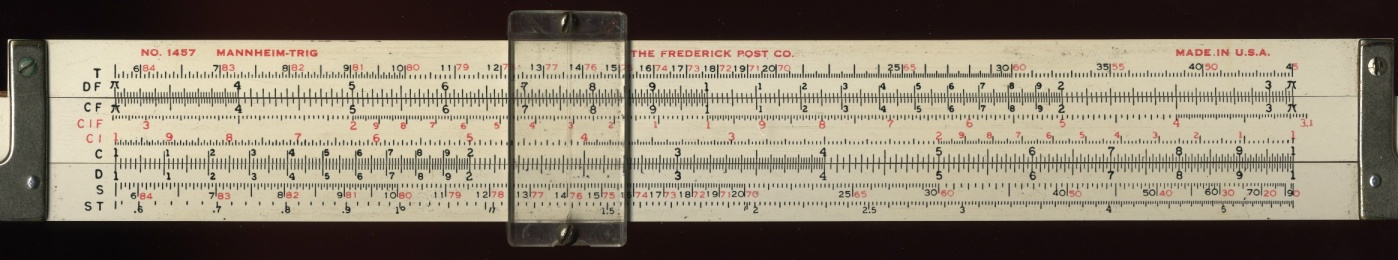

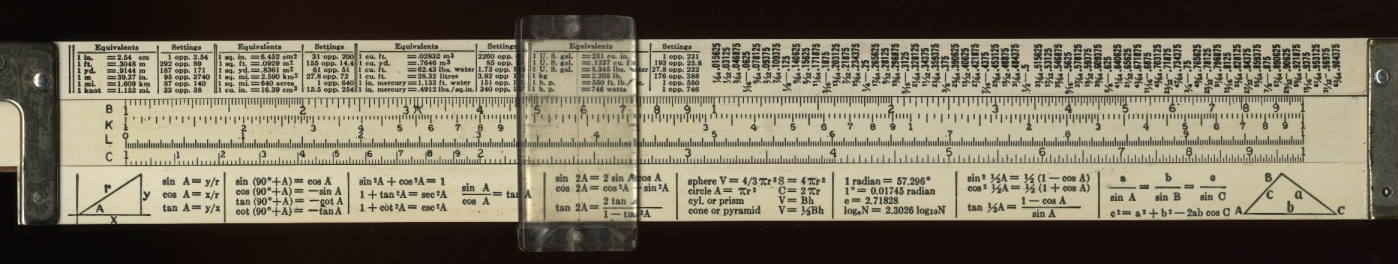

1457 Post Mannheim-Trig	Simplex	10	Celluloid Wood	T, DF [CF, CIF, C] D, S, ST	[B, K, L, C]	WWII	Charvoz-Roos SR-109. 1462 without scales on backs of stators.
1458 Post Multiphase Duplex	Duplex	10	Celluloid Mahogany	DF [CF, CIF, C] D		1925 - 27	Faber-Castell. $10.20. First Post duplex.

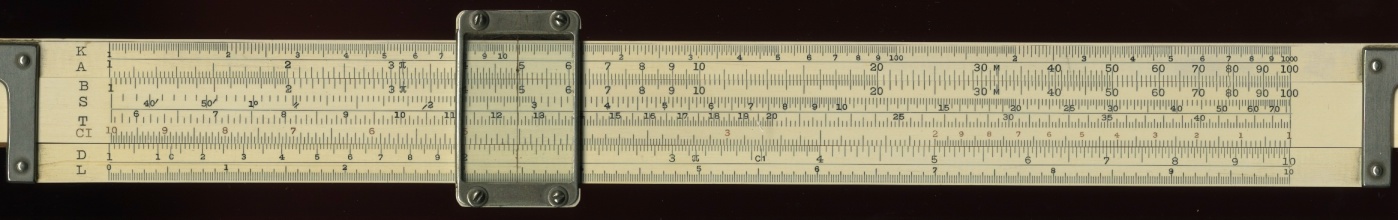

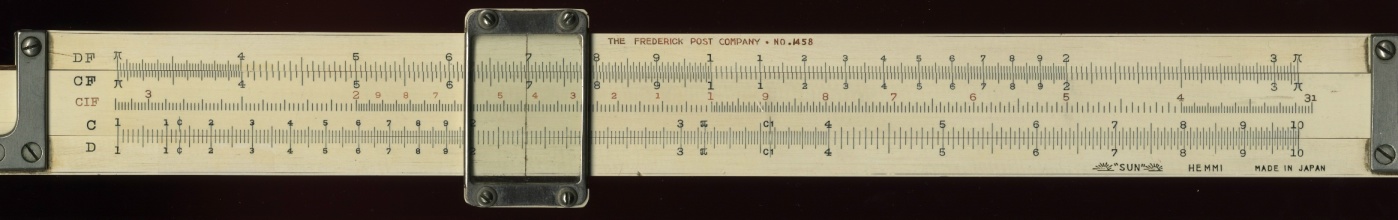

1458 Post Universal Duplex	Duplex	10	Celluloid Bamboo	DF [CF, CI, C] D	K, A, [B, S, T, CI] D, L	1932 - WW II	Hemmi 150.

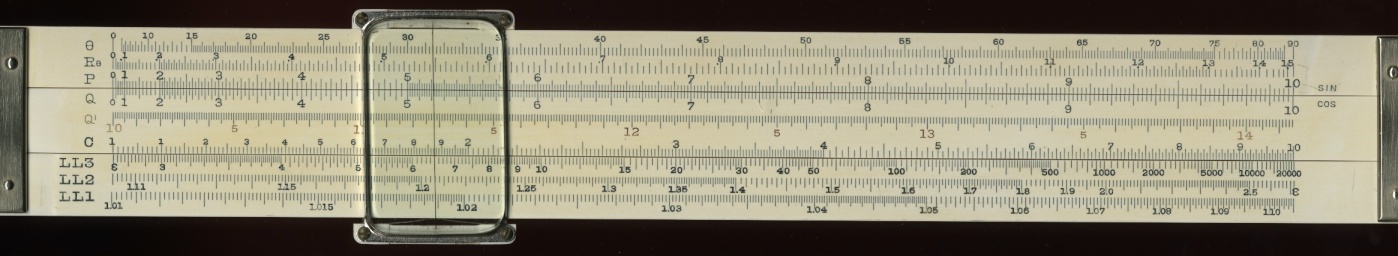

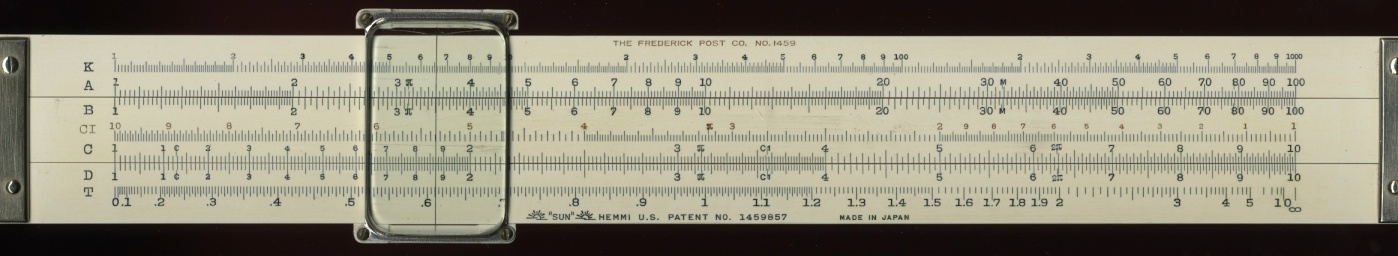

1459 Post Universal Log Log Duplex	Duplex	10	Celluloid Bamboo	K, A [B, CI, C] D, T	Q, R_q, P, [Q, Q', C] LL3, LL2, LL1	1932 - WW II	Model number may not appear on rule. Hemmi 152. $12.00 in 1932.
