- Model Number - |
Type |
Length |
Material |
Front |
Back |
Dates |
Comment |
Catalog Number and Name
Names in italics actually appear on the rule.
Other names are common usage or taken from catalogs.
Post brand slide rules are usually labeled with model number and the Post trademark or Frederick Post Co. |
Type:
Mannheim Duplex Simplex Circular Etc.
Simplex means a duplex rule that has no calculating scales on the backs of the stators. |
Nominal Length in Inches
(Most 10-inch slide rules have scales that are actually 250 mm long--slightly shorter than 10 inches.) |
What the rule is made of, such as wood, plastic, unobtanium, etc. |
Scales on Front
For mannheim rules only, this also includes any measuring scale on top edge set off with // or ||. 'cm //' indicates a centimeter scale on a slanted surface; '0 ||' indicates a vertical surface with no scale. |
Scales on Back
For mannheim rules only, this also includes any measuring scale on bottom edge set off with // or ||.
Measuring scales are given wherever they are known. If nothing is shown, scale is not known. |
Our guess about when the rule was made or available. If we have only one reference, that date is given. |
Other interesting information such as original catalog price, what rule it was made from, or is similar to, etc. |
1460
Ritow High School
|
Mannheim |
10 |
Bare Boxwood |
A1, A2 [B1, B2, C] D, L |
|
1925 - 27 |
Scales uncertain. $4.35 in 1927. |
1460
Post Electrical Engineer's Universal Duplex
|
Duplex |
20 |
Celluloid Bamboo |
DF, P', P [Q, CF, CI, Sq] A, D, K
|
Sx, Tx, Tq [Th, Sh, Sh, C] D, L, c
|
1932 - WW II |
Hemmi 154. Two Cursors! some w scale letters etched into glass. |

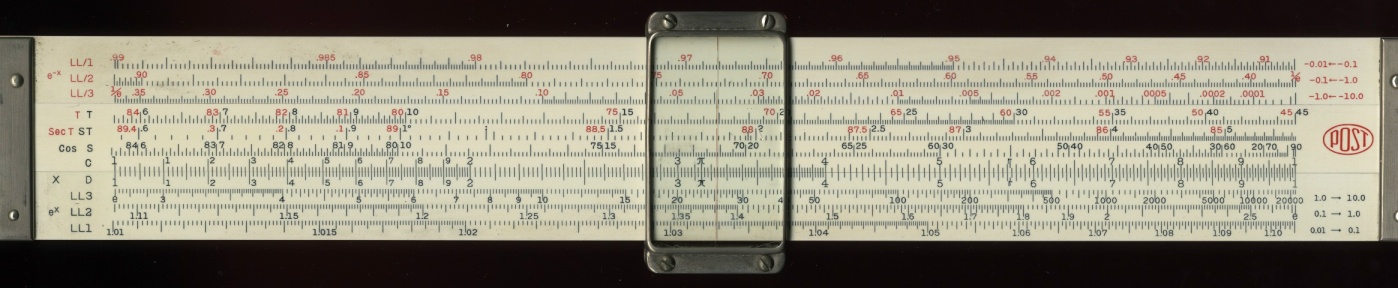

1460
Post Versalog Variant Ia: COS in navy
|
Duplex |
10 |
Celluloid Bamboo |
LL0, LL/0, K, DF [CF, CIF, CI, C] D, R1, R2, L |
LL/1, LL/2, LL/3, [TT, Sec T ST, Cos S, C] D, LL3, LL2, LL1 |
1951-60 |
Hemmi 258. Serial numbers start c. 10/56 w 700001. |

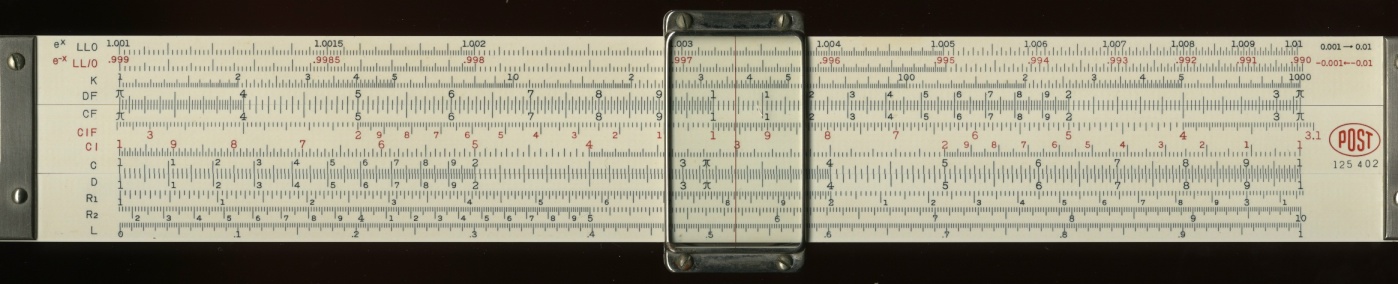

1460

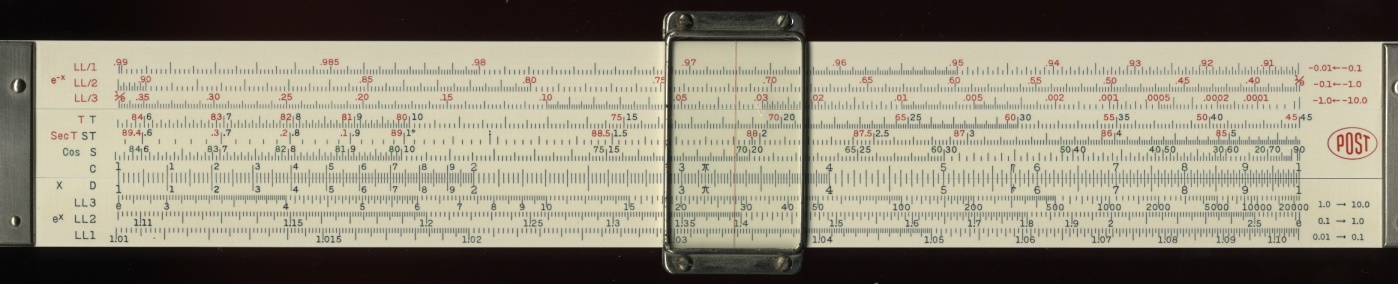

Post Versalog Variant 1b: COS in green
|
Duplex |
10 |
Celluloid Bamboo |
LL0, LL/0, K, DF [CF, CIF, CI, C] D, R1, R2, L |
LL/1, LL/2, LL/3, [TT, Sec T ST, Cos S, C] D, LL3, LL2, LL1 |
1960-68 |
Serial nos approx 110000 - 920000. Late may not have serial. |
1460

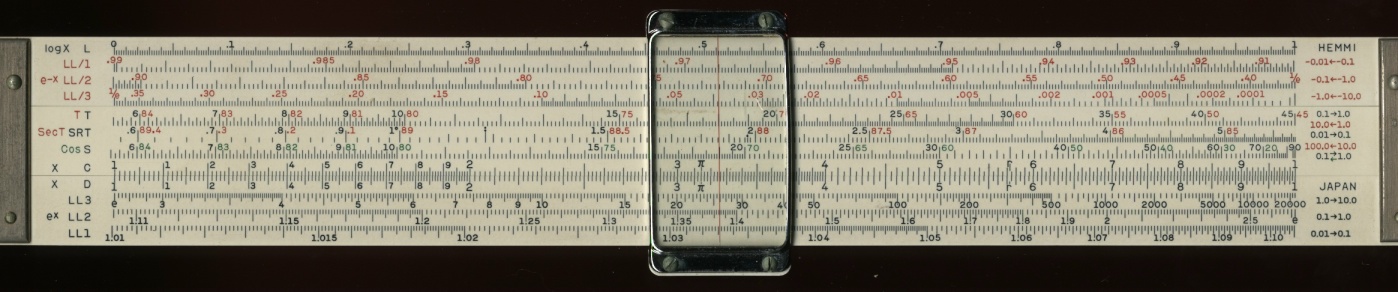

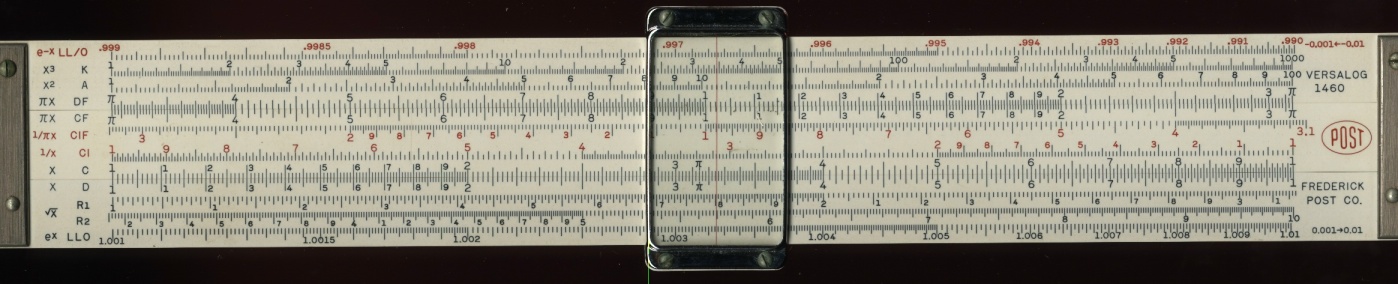

Post Versalog Variant II: A scale and 'R' (in SRT) added.
|
Duplex |
10 |
Celluloid Bamboo |
LL/0, K, A, DF [CF, CIF, CI, C] D, R1, R2, LL0 |
L, LL/1, LL/2, LL/3, [TT, Sec T SRT, Cos S, C] D, LL3, LL2, LL1 |
1968-72 |
$29.75 w leather case. 1460F = fabricoid case; 1460L = leather case; 1460M = molded plastic case. No serial numbers. |
1460 DP
Post Projection Versalog
|
Projection |
10 |
Acrylic |
LL/1, LL/2, LL/3 [TT, Sec T ST, Cos S, C] D, LL3, LL2, LL1 |
LL0, LL/0, K, DF [CF, CIF, CI, C] D, R1, R2, L |
1969 |
Overhead projector. Scales correspond to Versalog Ib. Hemmi. |

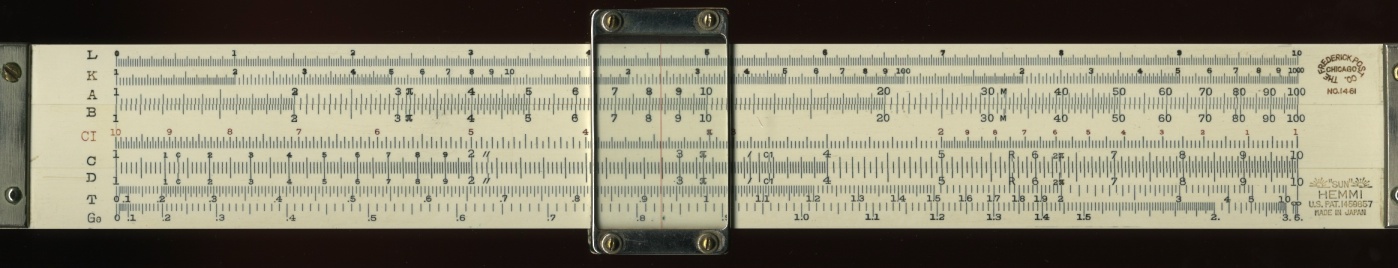

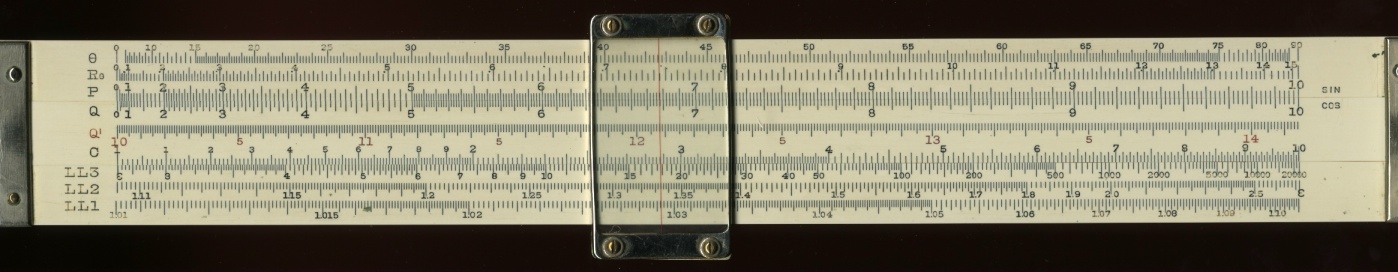

1461
Universal Deluxe Duplex
|
Duplex |
10 |
Celluloid Bamboo |
L, K, A [B, CI, C] D, T, Gq
|
Q, Rq, P [Q, Q', C] LL3, LL2, LL1
|
1932 - WW II |
Unique oval logo. Model number may not appear on rule. Hemmi 153. |
1461
Post Blank Slide Rule
|
Duplex |
10 |
Celluloid Bamboo |
Blank |
Blank |
1943 |
Hemmi. eBay 9/98 $227. |

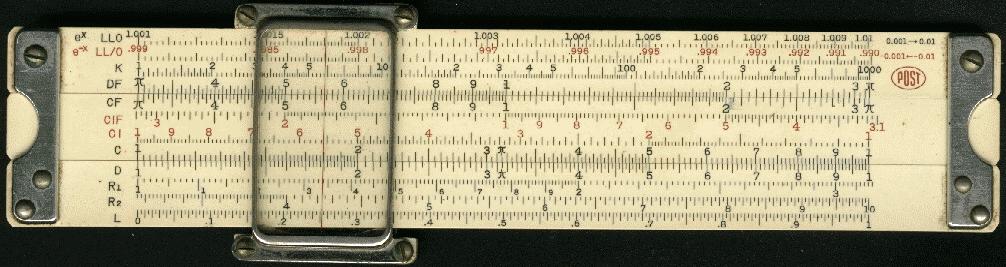

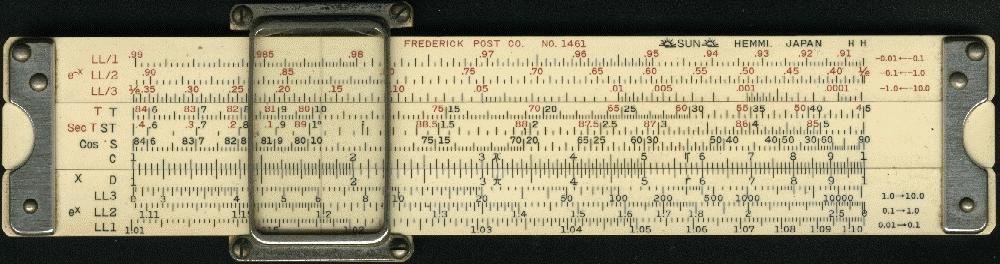

1461
Post Pocket Versalog Variant Ia: COS in navy
|
Duplex |
5 |
Celluloid Bamboo |
LL0, LL/0, K, DF [CF, CIF, CI, C] D, R1, R2, L |
LL/1, LL/2, LL/3 [TT, Sec T ST, Cos S, C] D, LL3, LL2, LL1 |
c. 1957-60 |
Hemmi. Five-inch version of 1460. |

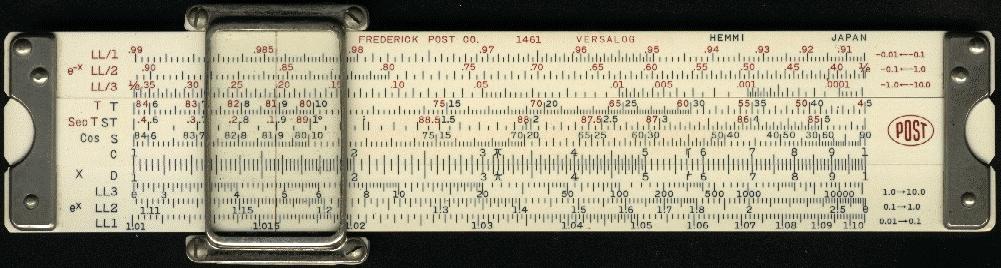

1461

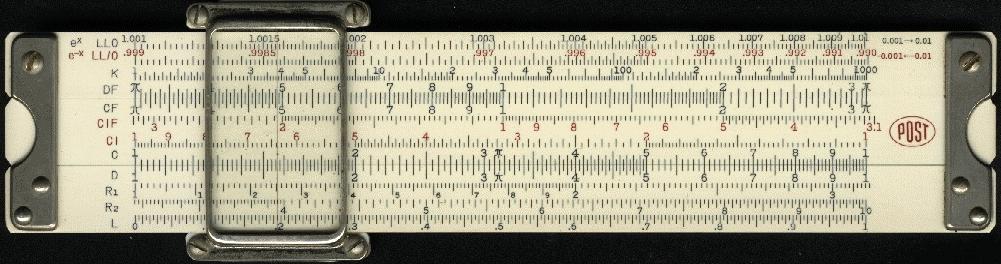

Post Pocket Versalog Variant 1b: COS scale in green
|
Duplex |
5 |
Celluloid Bamboo |
LL0, LL/0, K, DF [CF, CIF, CI, C] D, R1, R2, L |
LL/1, LL/2, LL/3 [TT, Sec T ST, Cos S, C] D, LL3, LL2, LL1 |
1960-68 |
Hemmi. $16.50 C 1967. |

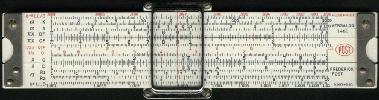

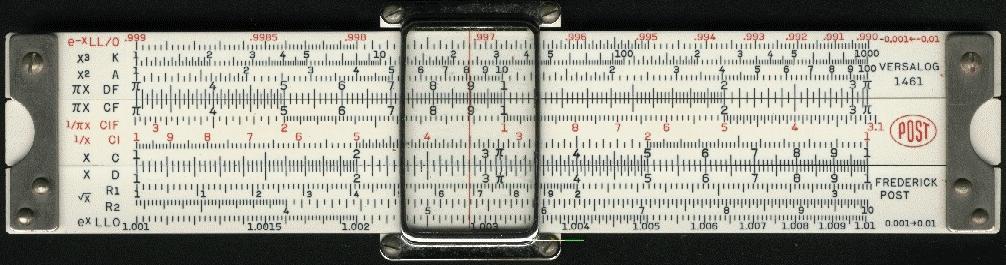

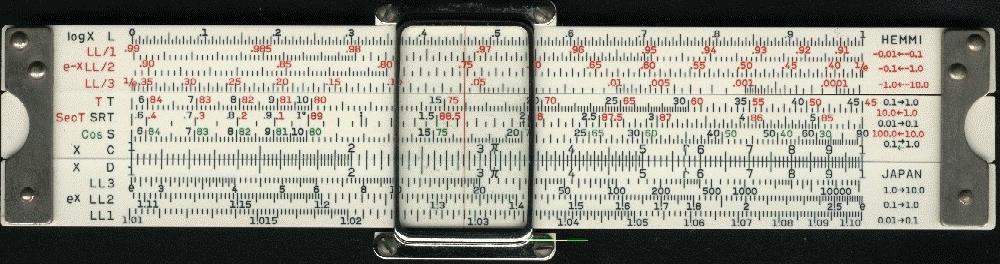

1461
Post Pocket Versalog Variant II
|
Duplex |
5 |
Celluloid Bamboo |
LL/0, K, A, DF [CF, CIF, CI, C] D, R1, R2, LL0 |
L, LL/1, LL/2, LL/3, [TT, Sec T SRT, Cos S, C] D, LL3, LL2, LL1 |
1968-72 |
Hemmi. Post Versalog II Pocket Slide Rule on box. |
1462
Ritow High School
|
Mannheim |
10 |
Celluloid Boxwood |
A1, A2 [B1, B2, C] D, L |
|
1925 - 27 |
Scales uncertain. $7.00 in 1927. |

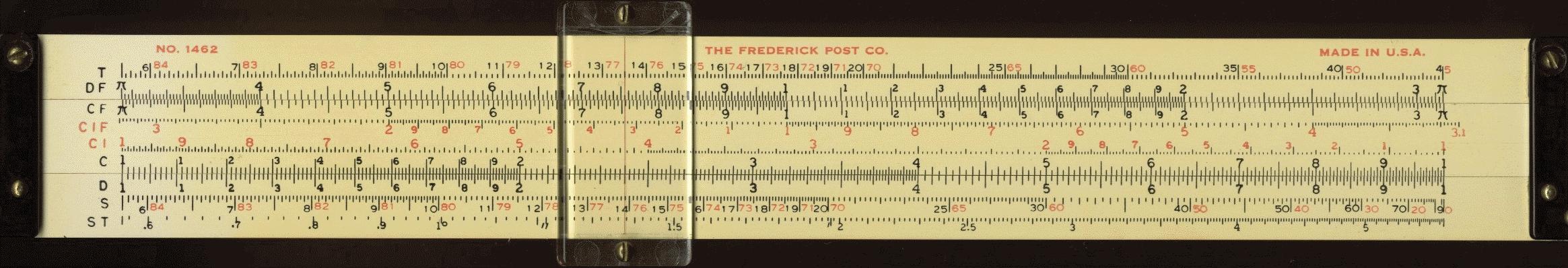

1462
Post Power Trig Made in USA.
|
Duplex |
10 |
Celluloid Wood |
T, DF [CF, CIF, CI, C] D, S, ST |
LL0, LL00, A [B, K, L, C] LL3, LL2, LL1 |
WWII |

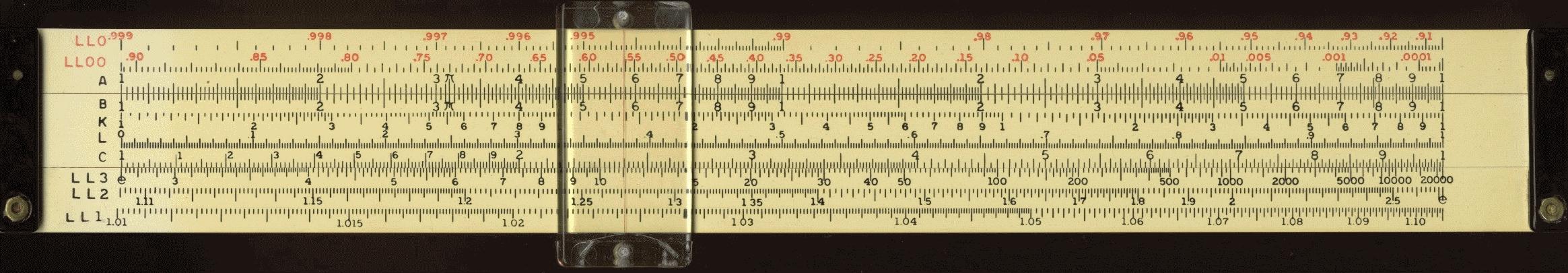

Charvoz-Roos. Black plastic endpieces. |

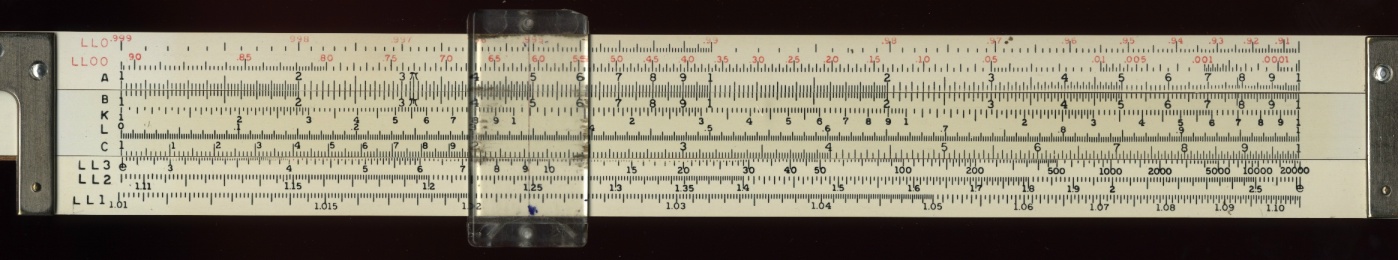

1462
Post Power Trig (Model name not on rule) Made in USA.
|
Duplex |
10 |
Celluloid Wood |
LL0, LL00, A [B, K, L, C] LL3, LL2, LL1 |
T, DF [CF, CIF, CI, C] D, S, ST |
WW II |
Charvoz-Roos. 1945 price list ($10.50) shows these scales. |

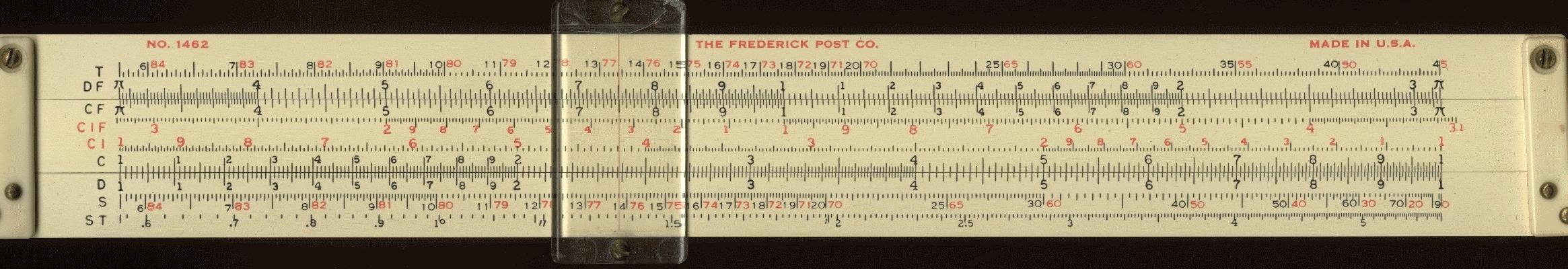

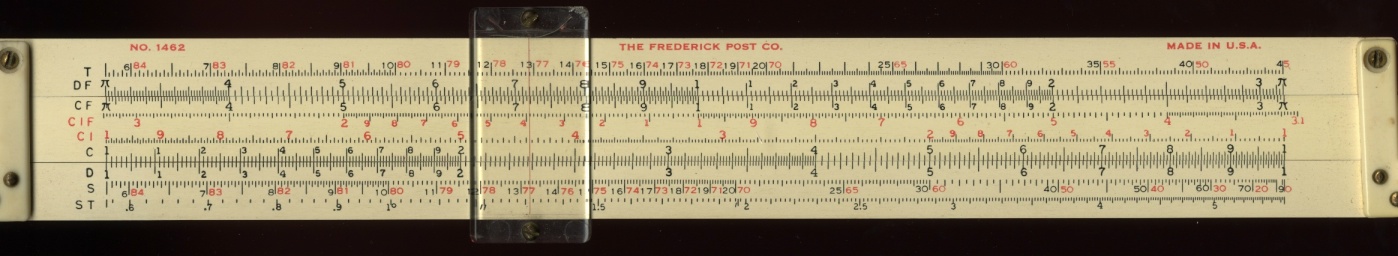

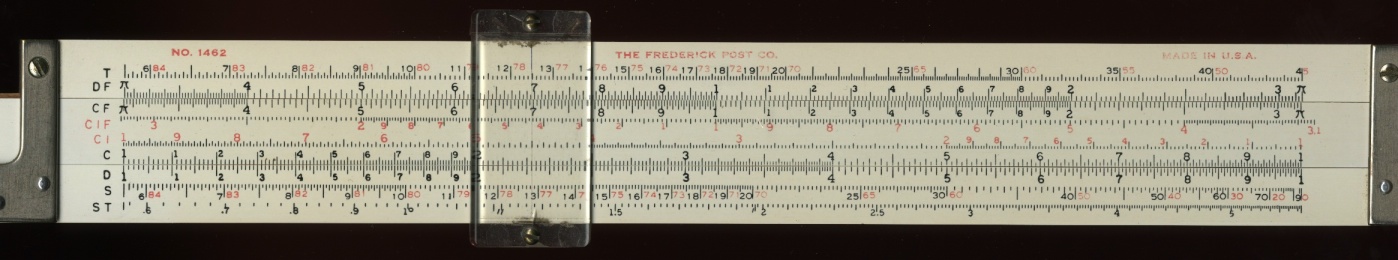

1462
Post (No model name on rule) Made in USA
|
Duplex |
10 |
Celluloid Wood |
T, DF [CF, CIF, CI, C] D, S, ST |
LL0, LL00, A [B, K, L, C] LL3, LL2, LL1 |
WW II |

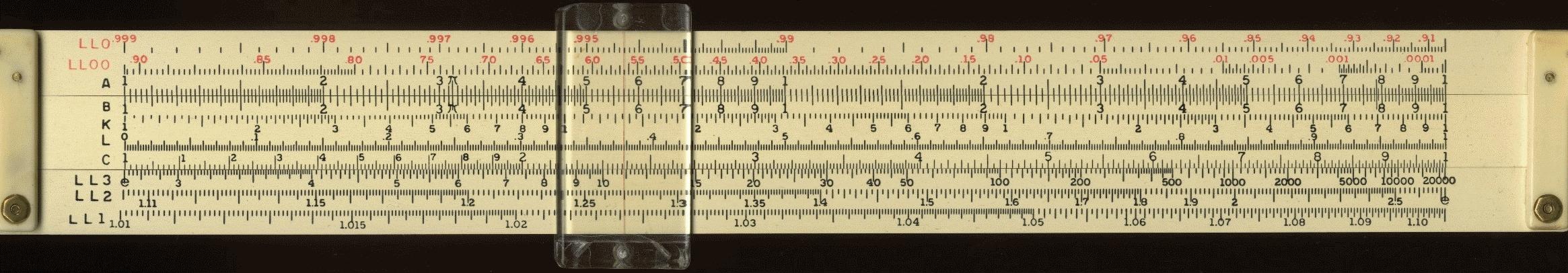

Charvoz-Roos. Cream plastic or metal endpieces. |
1462
Post Post-Trig (Model name not on rule) Made in USA
|
Duplex |
10 |
Celluloid Wood |
LL0, LL00, A [B, K, L, C] LL3, LL2, LL1 |
T, DF [CF, CIF, CI, C] D, S, ST |
WW II |
Instructions show these scales, four-screw cursor, Plastic endpieces. |
1462H
Post Postrig
|
Duplex |
10 |
Celluloid Bamboo |
T, DF [CF, CIF, CI, C] D, S, ST |
LL0, LL00, A [B, K, L, C] LL3, LL2, LL1 |
1949 + |
Hemmi 159. $18.00 in 1949. |
