JUST SCROLL DOWN TO SEE EVERYTHING !Available from OUR STOCK:
LCD displays are shown first, then Tubes are in ORDER by CORE PART NUMBER
Want something? Click here to e-mail us!
We accept Visa/MC for fast order processing.
Just LCD Displays!
| Part Number/Picture | Description | Qty./Price Ea. |

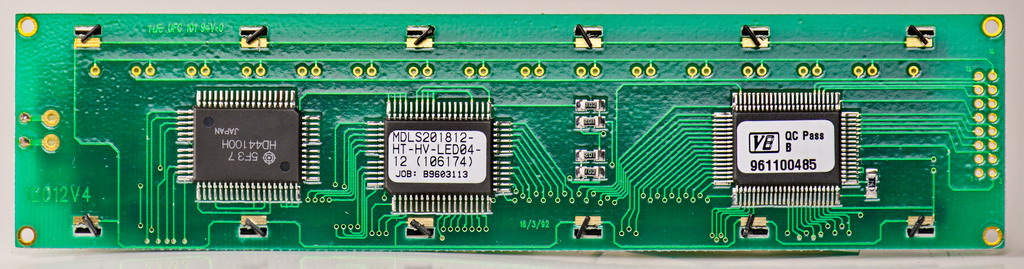

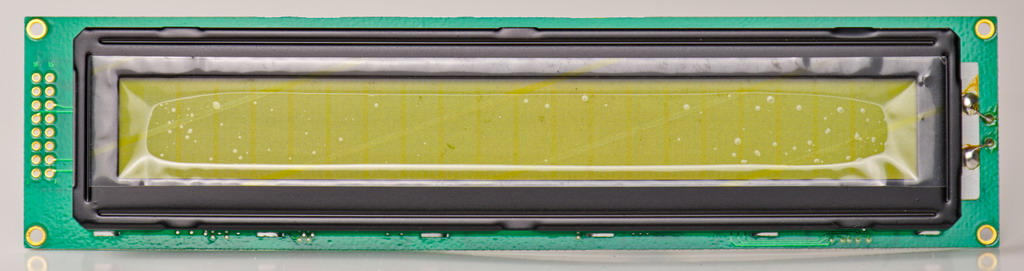

Varitronix MDLS201812-HT-HV-LED04-12 LCD Display  FRONT, CLICK for bigger PIC!  BACK, CLICK for bigger PIC! |
Varitronix MDLS201812-HT-HV-LED04-12 LCD Display New, 5x8 dot character matrix, 1 row of 20 characters. Active display area is 145mm wide by 17mm high, overall size is 169mm wide. Has yellow-green LED backlight (3-5VDC) via 2 pads or via 16 pin power/ I/F pad array. Parallel interface. Factory data is HERE. Have 18, $15 Ea.  CLICK HERE to E-Mail us an order! |
Have 18 $15 |
NEC NL3224BC35-20 Color LCD  FRONT, Click for bigger PIC!  Back, CLICK for bigger PIC! |
 Lit display, courtesy NEC  NEC NL3224BC35-20 Color LCD 5.5 inch 320x240 1/4 VGA Color LCD with back lighting, 3.3V logic. Factory Manual is HERE. New, unused Just 1, $39. CLICK HERE to E-Mail us an order!$39 |
Just 1 $39 |

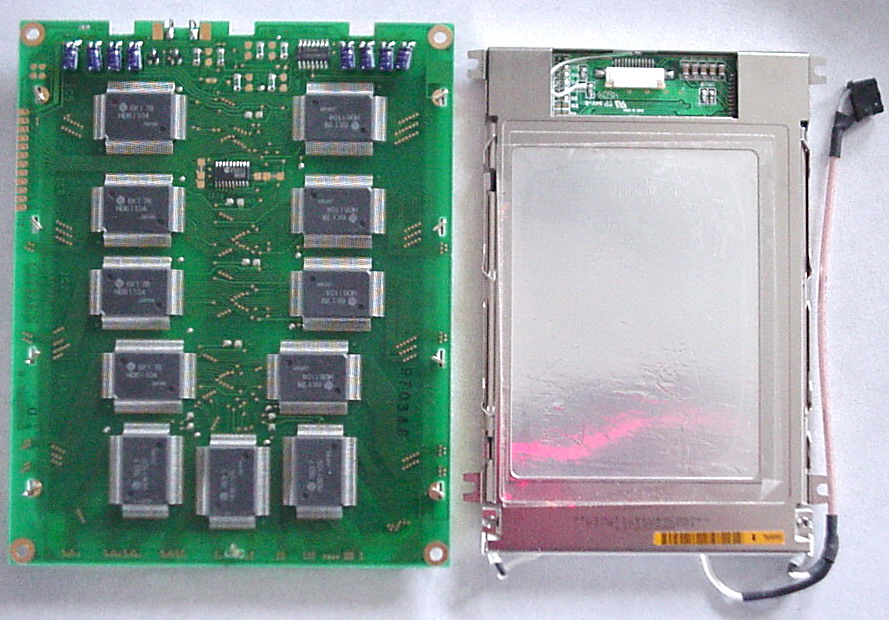

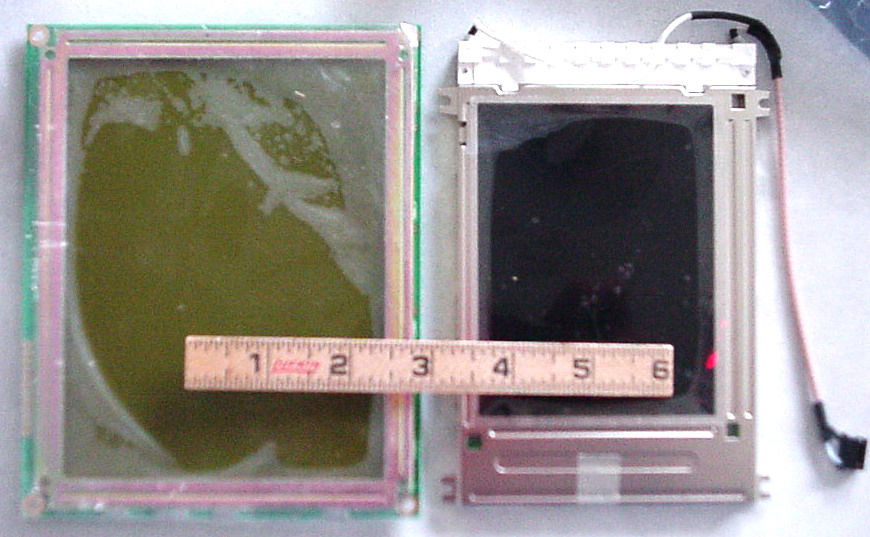

3 LCD Assortment Citizen CG3202400K  Backs, CLICK for bigger PIC!  FRONTS, Click for bigger PIC!  TM320240ICLB-1A |

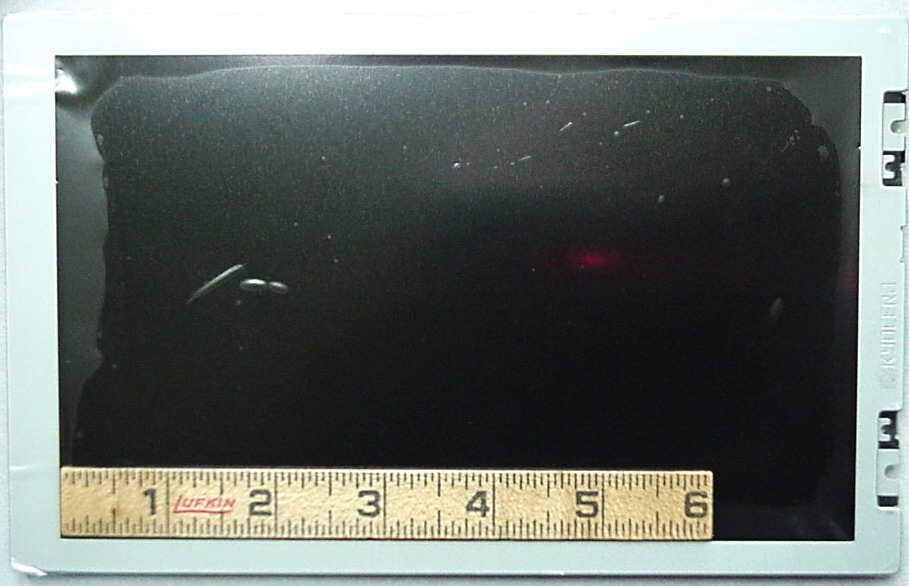

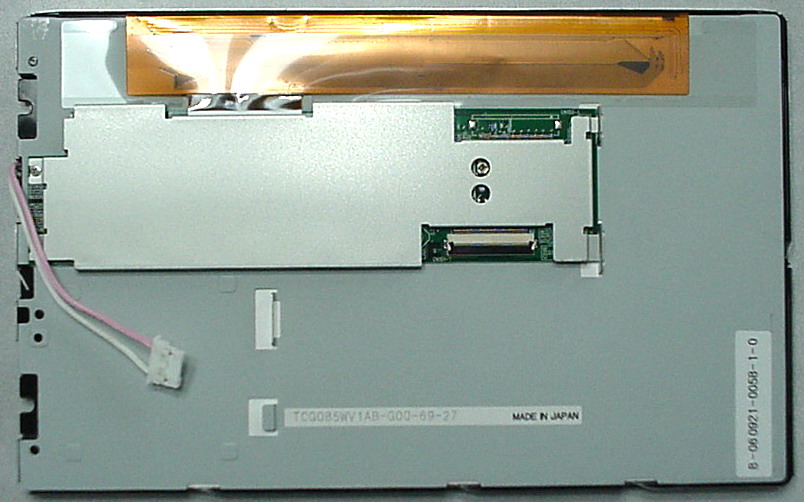

 TCG085WV1AB-G00-69-27  TCG085WV1AB-G00-69-27, Front, CLICK for bigger PIC!  TCG085WV1AB-G00-69-27, Back, CLICK for bigger PIC! 3 different LCD Displays Assorted LCD displays left over from a design project. New, unused Just 1 Lot of 3, $49. CLICK HERE to E-Mail us an order!$49 |
REDUCED! Just 1 Lot $49 |

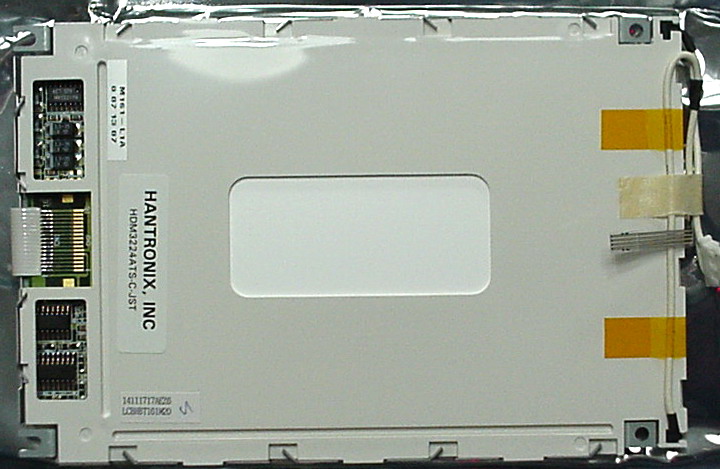

Hantronix HDM3224ATS-C-JST LCD Display  Front view, CLICK for bigger PIC!  Back view, CLICK for bigger PIC! |

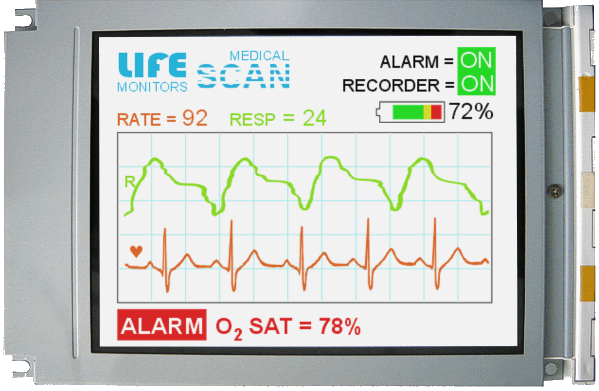

 Illuminated Display, courtesy Hantronix
Hantronix HDM3224ATS-C-JST LCD Display 320x240 COLOR 6 inch diagonal 1/4 VGA display with Touchscreen, CCFL backlighting. New, unused, and factory anti-static bagged, left over from a project a few years ago, still current production at Hantronix. Factory manual is HERE. Have 3, $49 Ea. CLICK HERE to E-Mail us an order!$49 |
Have 3 $49 Ea. |
| STOCK TUBES IN ALPHABETIC ORDER |
| E-mail us | Want something? Click here to e-mail us! We accept Visa / MC for fast order processing. |
| Description | |||||

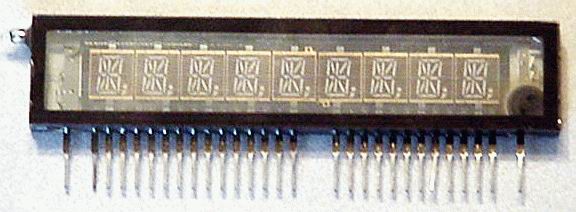

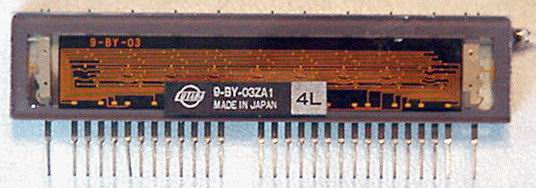

 CLICK for bigger PIC!  CLICK for bigger PIC! VF Display 9-BY-03ZA1 |
 CLICK to visit FutabaFutaba 9-BY-03ZA1 Vacuum Fluorescent Displays FutabaBrand new 9-character alpha-numeric multiplexed FIP Vacuum-Fluorescent Multi-digit displays. Great for clocks, calculators, counters, all kinds of data displays. Packed in factory bulk tray | $15 Ea. |
|||
| Description | |||||
 CLICK for bigger PIC!
|

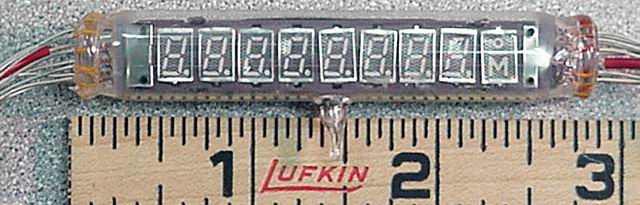

CLICK to visit Futaba Futaba 9-CT-02 Vacuum Fluorescent Displays FutabaBrand new Miniature 8-digit (+symbols) numeric multiplexed FIP Vacuum-Fluorescent Multi-digit displays. Great for clocks, calculators, counters, all kinds of displays. Unusual double ended cylinder design. Loose packed. | $11 Ea. |
|||
| Description | |||||

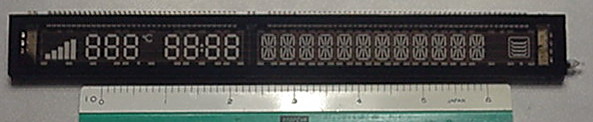

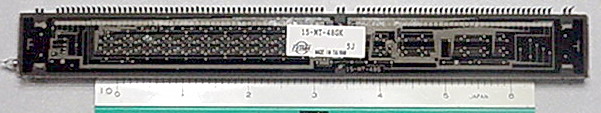

  CLICK for bigger PIC!  CLICK for bigger PIC! VF Display 15-MT-48GK |
CLICK to visit Futaba Futaba 15-MT-48GK Vacuum Fluorescent Displays FutabaBrand new 12+4+3-digit (+symbols and bargraph) multiplexed FIP Vacuum-Fluorescent Multi-digit displays (VFD). Appears to be some kind of custom appliance display, has a 12 character alpha section, 4 digit clock, and 3 digit temperature section, approx. 8.5 inches wide. Great display for experimenting, and VERY cheaply priced. Factory Packed in factory trays of 10. |  Only $6 per display! $6 Ea. 10/$49 |
|||
| Description | |||||
 CLICK for bigger PIC!
|

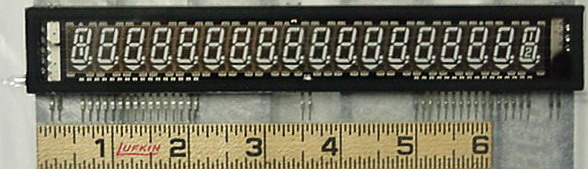

CLICK to visit Futaba Futaba18-LT-002G Vacuum Fluorescent Displays FutabaBrand new 18-digit (+symbols and under cursor arrows) numeric multiplexed FIP Vacuum-Fluorescent Multi-digit displays (VFD). Great for clocks, calculators, counters, all kinds of displays. Factory packed in trays of 12. | Big Discount! Just $5 Ea. 12/$55 |
|||
| Description | |||||
  Prime condition, LIT Minitron 3015F |
3015F Minitron Incandescent Displays Just Got A Large Factory Boxed Shipment! Factory NEW, Fully Tested Miniature 7-segment numeric displays with decimal point, very popular avionics display device. These have a 16 pin DIP package, with a flat glass lens. Still in the factory foam tray, perfect parts, work great. Every one has been individually tested, and is guaranteed good! We rarely see these, and new ones are almost unheard of. These are rated for 50,000 hours at 5VDC. We get endless inquiries for these, but it took some good luck to find a source to get some for your repairs. These are the miniature displays used in the Collins Microline Avionics units (VHF251, etc.)  3015F/G Data CLICK for PDF Datasheet! | $49 Ea., New, fully tested. |
|||
| Description | |||||
Prime condition, LIT Minitron 3015F |
3015F Minitron Incandescent Displays Just found some good used parts! Used, very good condition, Fully Tested Miniature 7-segment numeric displays with decimal point, very popular avionics display device. These have a 16 pin DIP package, with a flat glass lens. A grade (pictured) still have ruler flat elements, B grade have very slight sag, fully operational. Every one has been individually tested, and is guaranteed good! We rarely see these, and new ones are almost unheard of. These are rated for 50,000 hours at 5VDC. We get endless inquiries for these, but it took some good luck to find a source to get some for your repairs. These are the miniature displays used in the Collins Microline Avionics units (VHF251, VIR351, etc.) 3015F/G Data CLICK for PDF Datasheet! | $35 Ea., B |
|||
| Description | |||||
(DM160)  |
VFD Triode DisplaysAmperex 6977 NEW miniature VFD displays, made in Holland. An indicating VFD triode tube (1V filament, 50V bias). Same as the european DM160. Data is HERE | ||||
| Description | |||||
Dekatron A101  CLICK for bigger PIC!
|

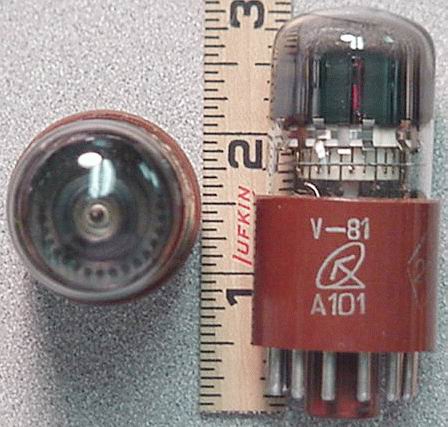

Neon Filled Dekatron Displays REFLECTOR A101 NEW Reflector A101 dekatron displays, made in Russia. An illuminated neon dot rotates around in a circle to display the count. Great for clocks, counters, all kinds of displays. Excellent condition, all have good gas.  CLICK for bigger PIC!

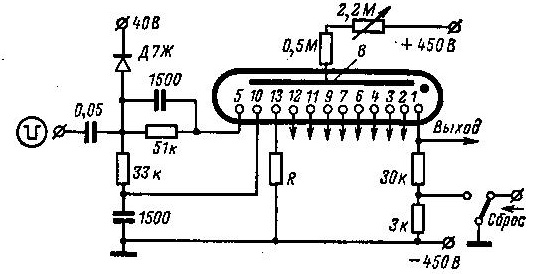

Several schematics are now on the web for Spinners using similar tubes, which have a racing neon dot, great desk accessory. We have a schematic for a 110V/60Hz Spinner (using a different tube, may be adaptable), and more data now on our web site HERE! | ||||
| Description | |||||

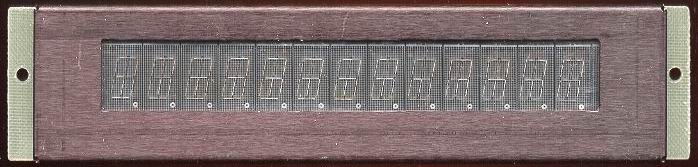

 CLICK for bigger PIC!  CLICK for bigger PIC! Panaplex Display BR13404 13 Digit Multiplexed 9-segment Display |

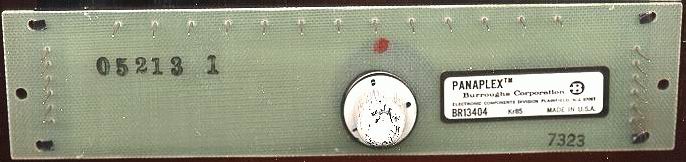

 Burroughs Panaplex Large 13 digit multiplexed 9-segment neon display with decimal points, uses HV drivers.As received, factory new. Used in the HP 5360 digital counter. | $95 Ea. |
|||
| Description | |||||

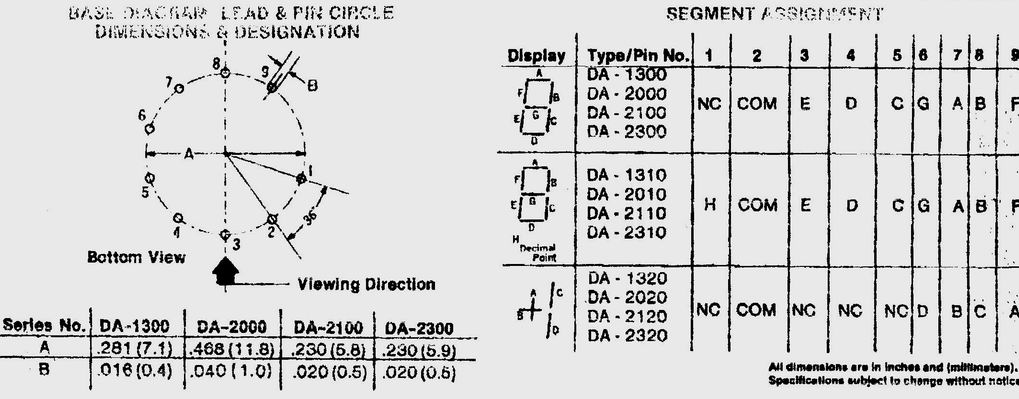

 Click for bigger PIC!  NUMITRON DISPLAY DA-1310  CLICK for base diagram |

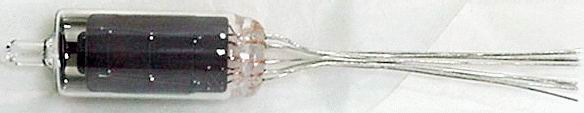

APOLLO (IEE)Miniature Numitrons, LHDP Vertical view, miniature, filament type 7-segment tube, LHDP, 9 solderable leads or plug into a 10 pin/TO5 socket. As received, new, boxed. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Very similar (same pinout) to the DR/DA2110, but flying leads, and slightly larger glass diameter. In an emergency, they could probably sub for DA/DR2100 and DA/DR2110. Full factory data is HERE on our site. | $39 Ea. |
|||
| Description | |||||
 NUMITRON DISPLAY DA2000 |
 Every tube TESTED 100%Apollo Apollo DA2000 NumitronsVertical view, full size, filament type 7-segment tube, solderable or plug into 9 pin socket. NEW Apollo tubes, every one 100% tested and inspected, re-boxed. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | SEE DR2000 |
$44 Ea. |
||
| Description | |||||
NUMITRON DISPLAY DA2000 |
Every tube TESTED 100% Apollo Apollo DA2000 NumitronsVertical view, full size, filament type 7-segment tube, solderable or plug into 9 pin socket. Used, Apollo tubes with FLAT TOPS, every one 100% tested and inspected. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Very clean pulls, look and test as new, re-boxed. Same visually and functionally as RCA DR2000. Some may have writing removed from previous application. Full factory data is HERE on our site. CLICK for base diagram | SEE DR2000 |
|||
| Description | |||||
 NUMITRON DISPLAY DA2010 |
 Every tube TESTED 100%Apollo Apollo DA2010 NumitronsVertical view, full size, filament type 7-segment tube with LH decimal point, solderable or plug into 9 pin socket. NEW, factory boxed Apollo tubes every one 100% tested and inspected. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Same visually and functionally as RCA DR2010. Full factory data is HERE on our site. CLICK for base diagram | $49 Ea. |
|||
| Description | |||||
 NUMITRON DISPLAY DA2100 Can be easily filtered to any display color! |
Every tube TESTED 100% IEE / ApolloApollo DA2100 NumitronsVertical view, miniature size, filament type 7-segment tube, solderable or plug into 10 pin round IC socket. Used, Apollo tubes with FLAT TOPS, every one 100% tested and inspected. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Very clean pulls, look and test very good, bagged. Same visually and functionally as RCA DR2100. Some may have writing partially removed from previous application. CLICK for base diagram | $7.50 Ea. 6/$43 |
|||
| Description | |||||
 NUMITRON DISPLAY DA2110 Can be easily filtered to any display color! |
Every tube TESTED 100% IEE / ApolloApollo DA2110 NumitronsVertical view, miniature size, filament type 7-segment tube with LHDP, solderable or plug into 10 pin round IC socket. Used, Apollo tubes with FLAT TOPS, every one 100% tested and inspected. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Very clean pulls, look and test very good, bagged. Same visually and functionally as RCA DR2100. Some may have writing partially removed from previous application. CLICK for base diagram | $8 Ea. 6/$45 |
|||
| Description | |||||
 CLICK for bigger PIC! VF Display DC409-E2A |

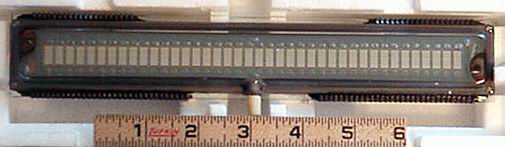

Itron/Noritake DC409-E2A Vacuum Fluorescent Displays ItronBrand new Itron/Noritake, 40-character alpha-numeric multiplexed Vacuum-Fluorescent Multi-digit displays. Great for clocks, test gear, calculators, counters, all kinds of data displays, large 5x12 pixel, 3/8 inch tall characters. Overall glass length is 9 1/2 inches. Packed in factory bulk trays of 8 displays. Have the hard to find interconnect and electrical data HERE. | $29 Ea. 8/$195 |
|||
| Description | |||||
CLICK for bigger PIC! VF Display |

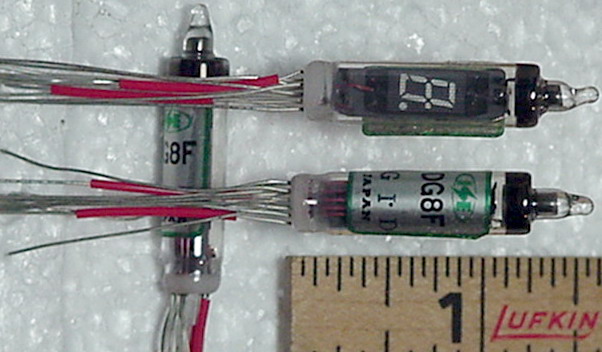

 Vacuum Fluorescent DisplaysISEBrand new miniature (1/4 inch) Vacuum-Fluorescent segment-style digit display. RHDP style, flying leads. | $12 Ea. |
|||
| Description | |||||
 CLICK for bigger PIC! VF Display |
 Vacuum Fluorescent DisplaysITRONBrand new miniature Vacuum-Fluorescent segment-style digit display. RHDP style, flying leads. Very similar to tube shown, but not idential. | $15 Ea. |
|||
| Description | |||||
 NUMITRON DISPLAY DR2000 CLICK for base diagram |
Every tube TESTED 100% RCA RCA DR2000 NumitronsVertical view, full size, filament type 7-segment tube, solderable or plug into 9 pin socket. Very good condition tubes, loose service stock, every one 100% tested and inspected, pins cleaned, flat and round tops. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Hard to find! Full factory data is HERE on our site. | 18 Flat 5 |
|||
| Description | |||||
NUMITRON DISPLAY DR2000  |
Every tube TESTED 100%RCA RCA DR2000 Numitrons Vertical view, full size, filament type 7-segment tube, solderable or plug into 9 pin socket. NEW, EXCELLENT CONDITION flat top tubes, every one 100% tested and inspected. Just arrived, mil-packed factory boxed tubes. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | Last 3 |
6/$259 |
||
| Description | |||||
 NUMITRON DISPLAY DR2010 CLICK for base diagram |
Every tube TESTED 100% RCA and National DR2010 Numitrons Vertical view, full size, filament type 7-segment full digit tube with LHDP, plug into 9 pin socket, or can be directly soldered (tinned pins). New tubes in excellent condition, 100% tested, RCA red factory boxed, National Red-black boxed and bulk white boxed. These have late rounded tops (6) and early flat tops. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Can also be used in DA2010/DR2000/DA2000 sockets with NO CHANGES. Very tough to find, took us quite a while to get more! Full factory data is HERE on our site. | $59 Ea. |
|||
| Description | |||||
NUMITRON DISPLAY DR2010 CLICK for base diagram |
Every tube TESTED 100%
RCA DR2010 Numitrons Vertical view, full size, filament type 7-segment full digit tube with LHDP, plug into 9 pin socket, or can be directly soldered (tinned pins). Used RCA tubes in good condition, 100% tested. They have the older flat tops, and filaments are not as flat as new tubes. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Can also be used in DA2010/DR2000/DA2000 sockets with NO CHANGES. Very tough to find, took us quite a while to get more! We have both RCA factory boxed and bulk white boxed parts, all are fully tested and inspected. Approx. 30 flat tops, 6 rounded tops. Full factory data is HERE on our site. | ||||
| Description | |||||
 NUMITRON DISPLAY DR2020 |
 Every tube TESTED 100%RCA RCA DR2020 Numitrons Vertical view, full size, filament type 7-segment tube with +/- and 1 digit, plug into 9 pin socket. Excellent condition, NEW factory boxed tubes, fully tested. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | $44 Ea. |
|||
| Description | |||||
NUMITRON DISPLAY DR2020 |
Every tube TESTED 100% RCA RCA DR2020 NumitronsVertical view, full size, filament type 7-segment tube with +/- and 1 digit, plug into 9 pin socket. Excellent condition, used tubes, fully tested. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | ||||
| Description | |||||
 NUMITRON DISPLAY DR2030 |
Every tube TESTED 100% NATIONAL Equivalent to RCA DR2030 NumitronsVertical view, full size, filament type +/- sign, plug into 9 pin socket. As received, new, boxed and loose. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | $12 Ea. |
|||
| Description | |||||
 NUMITRON DISPLAY DR2100 |
RCA Miniature DR2100 Numitron, no decimal pointVertical view, miniature size, filament type 7-segment tube, solderable or plug into min. 9/10 pin socket. Factory boxed, new, all RCA. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | $45 Ea. |
|||
| Description | |||||
  NUMITRON DISPLAY DR2110 |
RCA Miniature DR2110 Numitron, with LHDPVertical view, miniature size, filament type 7-segment tube, LHDP, solderable or plug into min. 9/10 pin socket. MIL and factory boxed, new, all RCA. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | $55 Ea. |
|||
| Description | |||||
 NUMITRON DISPLAY DR2120 |

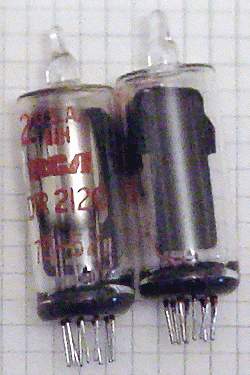

RCA Miniature DR2120 Numitron, with +/- and 1 over-range digit.Vertical view, miniature size, filament type 7-segment tube, solderable. As received, new, RCA. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | $25 Ea. |
|||
| Description | |||||
  CLICK for bigger PIC! NUMITRON DISPLAY DR2130 |

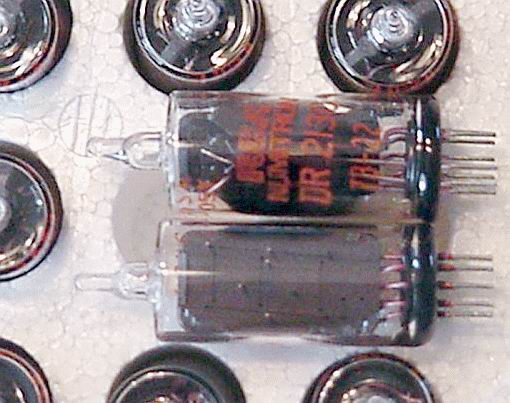

RCA Miniature DR2130 Numitron, with +/- only.Vertical view, miniature size, filament type 2-segment tube, solderable. As received, new, RCA. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC. Full factory data is HERE on our site. CLICK for base diagram | $5 Ea. |
|||
| Description | |||||
   NUMITRON DISPLAY DR2200 |
RCA Miniature DR2200 Numitron, with seven-segment digit.Vertical view, miniature size, filament type 7-segment tube, solderable. As received, new boxed, RCA. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, lower voltage tubes, run from 1.5-3.0VDC. Full factory data is HERE on our site. CLICK for base diagram | $22 Ea. |
|||
| Description | |||||
 NUMITRON DISPLAY DR2215 |
RCA RCA DR2215 NumitronsVertical view, full size, filament type 7-segment tube solderable, RHDP. New factory boxed. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, , lower voltage tubes, run from 1.5-3.0VDC. Full factory data is HERE on our site. CLICK for base diagram | $25 Ea. |
|||
| Description | |||||
 Tung Sol DIGIVAC |
 Vacuum Fluorescent DisplaysTUNG-SOL DIGIVAC DISPLAYS Good condition Vacuum-Fluorescent single digit displays, odd 10 pin base, like a standard 9 pin miniature, with one added pin. Hard to find, used in many industrial controls, these are used tubes with some visible darkening, good spares. We DO HAVE some sockets (12 pin) that will fit these. | ||||
| Description | |||||
 NUMITRON DISPLAY DTF-104B CLICK for base diagram |
 RCA RCA DTF-104B NumitronsHorizontal view, full size, filament type 7-segment tube, No DP, plug into 9 pin NOVAR socket. As received, Look excellent, and test perfectly. Can be driven from conventional 7447 LED drivers, will display any color with filtering, great for clocks, no HV required, run from 3-5VDC, all have been fully tested. I have never seen this package style before for Numitrons, it looks like a 5092 style Nixie, but it's a Numitron. Full general factory data is HERE on our site. Note that the common is moved to pin 1 on this style. | ||||
| Description | |||||
 E1T / 6370 |
Valvo E1T / 6370 miniature CRT beam counting tube One of many technologies that predates Nixies, these tiny CRT-like decade counter tubes toggle the position of a brightly lit blue/green rectangle from one digit to the next with a serial pulse input. They were used in some early lab counters, and are visually very attractive when lit. As I recall, their top speed is about 10Khz.They are very old stock, dated 1970, so they are strictly as-is, no returns. All look good, getters intact, but after 37 years, I am just not so sure they still work correctly, even though they came to us as good used tubes, still operational, but we cannot test these here. They use a 12 pin B12E Duodecal socket, we have a couple left.
Full factory data sheet HERE in PDF format, includes full operating circuits! The tubes are marked E1T, the E1T number is the one most people are familiar with, 6370 is the industrial number. I do not see any easy way these can be used in a clock, as they have no intermediate pulse take off, only a full decade carry output. Still pretty cool. You can see more data on these counter tubes, and how they look illuminated at Akes tube site.
| ||||
| Description | |||||
 CLICK for bigger PIC!
|

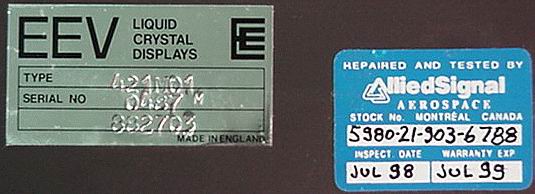

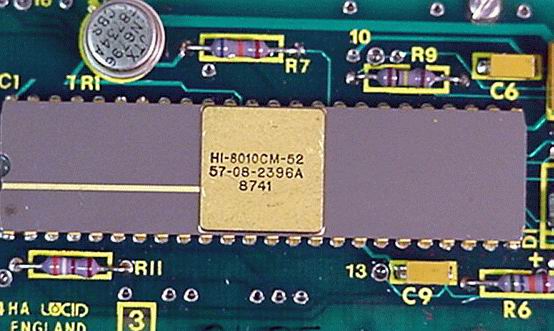

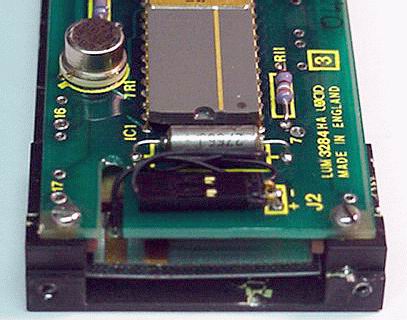

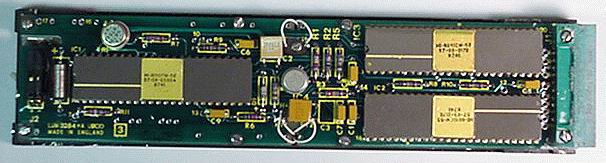

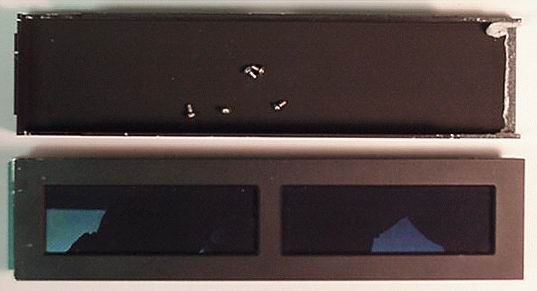

EEV LCD Avionics DisplayEEV Fascinating display sub-assemblies, with 4 Alpha characters, and 4 Numeric (with polarity) characters in 2 display windows. These high contrast large character displays have heaters for low temp operation, and backlighting, which appears to be an EL panel, although marked +/- on the board; it goes directly to the mating connector. CLICK HERE to see one of the 3 display controller chips. We have tried to get data on this assembly, but no luck, so these are for the braver experimenter out there. The mating connector is non-standard, but a 0.1 inch pitch header will plug into it. Beautifully made precision assembly, all are newly overhauled spares. | $29 Ea. |
|||
| Description | |||||

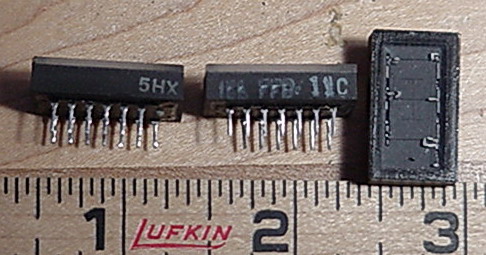

 Dual marked parts, CLICK for bigger PIC!  Single marked parts, CLICK for bigger PIC! IEE Aurora FFD11C FFD-11C ( FDB-5V15 ) |

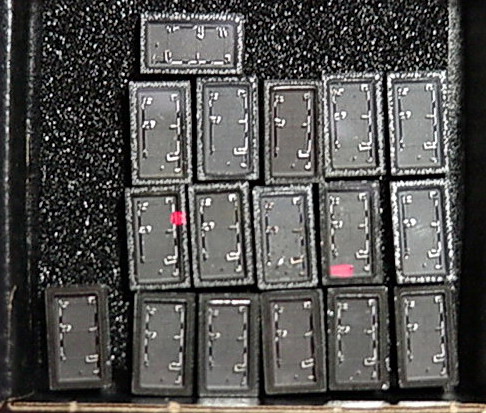

IEE FFD-11C Aurora Incandescent Displays

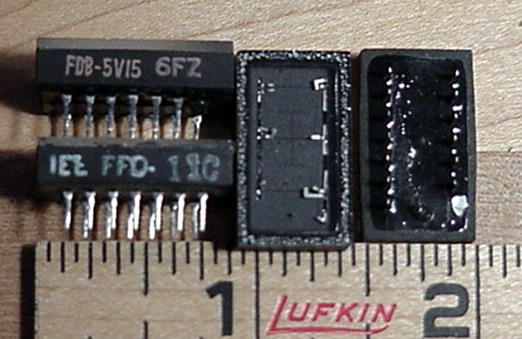

Factory NEW (old stock), Fully Tested Miniature 7-segment numeric displays with RH decimal point, popular avionics display device. These have a 13 pin ceramic/epoxy DIP package, 0.472 inch digit, with a flat glass lens. Every one has been individually tested, and is guaranteed good! We rarely see these, and new ones are almost unheard of. These are rated for 100,000 hours at 5VDC, with 4500fL brightness (15mA/segment). We get endless inquiries for this style displays but rarely see any now. We have 12 dual marked FDB-5V15 and FFD-11C, and 6 marked only FFD-11C. All work the same, the dual marked parts have a speckled seal around the front display glass, the single marked parts have a smooth dark gray seal. NO, these are NOT pin compatible with the 3015F, but are roughly the same size externally. Aurora family Data CLICK for PDF Datasheet! | ||||
| Description | |||||
 CLICK for bigger PIC!
|

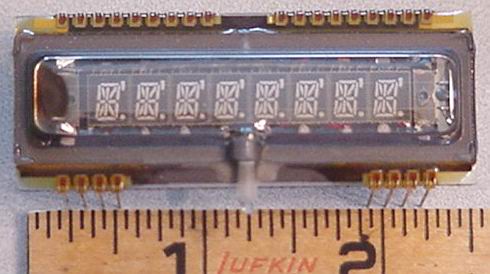

FIP8A5R Vacuum Fluorescent Displays NECBrand new Miniature 8-digit alphanumeric multiplexed FIP Vacuum-Fluorescent Multi-digit displays. Great for clocks, text displays, counters, all kinds of displays. Factory bulk packed | $9 Ea. |
|||
| Description | |||||
 CLICK for bigger PIC! VF Display |

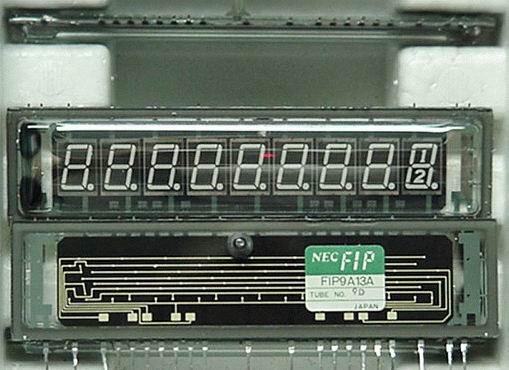

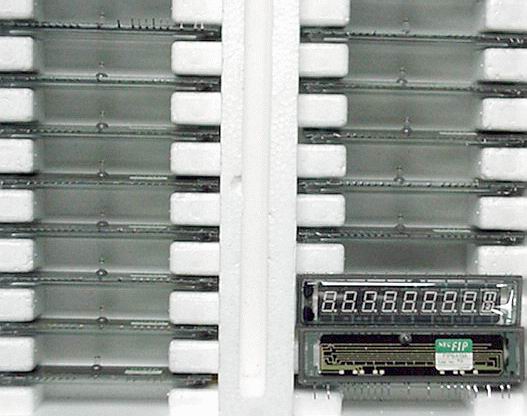

FIP9A13A Vacuum Fluorescent Displays NECBrand new LARGE 9-digit multiplexed numeric FIP Vacuum-Fluorescent Multi-digit displays. Great for clocks, counters, all kinds of displays. CLICK HERE to see them packed in the original container. Data coming shortly. | $19 Ea. |
|||
| Description | |||||
 CLICK for bigger PIC!
|

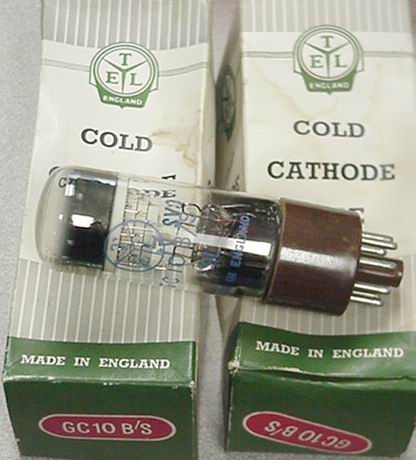

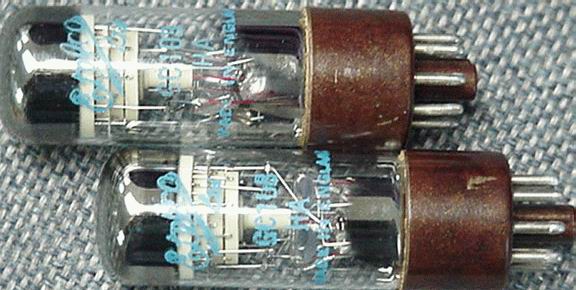

 Neon Filled Dekatron Displays ETELCOUsed ETELCO GC10B dekatron displays with octal bases, made in the UK. Used in many Baird Atomic radiation counters, and similar era lab equipment, an illuminated neon dot rotates around in a circle to display the count. Great for clocks, counters, all kinds of displays. Excellent condition, all have good gas. CLICK HERE to see full data in PDF format! We have a schematic for a 110V/60Hz Spinner, and more data now on our web site HERE! | ||||
| Description | |||||
|
Neon Filled Dekatron Displays ETELCO New, boxed Ericsson Telephones Limited GC10B/S dekatron displays with octal bases, made in the UK. Used in many Baird Atomic radiation counters, and similar era lab equipment, an illuminated neon dot rotates around in a circle to display the count. Great for clocks, counters, all kinds of displays. New condition, all have good gas, and have been fully tested. CLICK HERE to see full data in PDF format! We have a schematic for a 110V/60Hz Spinner, and more data now on our web site HERE! | $45 Ea. |
|||
| Description | |||||
|
Neon Filled 10 Dot Register Displays ETELCO New, boxed Ericsson Telephones Limited GR10A late generation register/indicator displays with keyed 12 pin (duodecal) bases, made in the UK. Like a Pixie tube, an illuminated neon dot illuminates in a circle to display the count, each dot is adressable directly, not counted and shifted as in a Dekatron, these use an external counter/decoder. Great for clocks, counters, all kinds of displays. These have the flat faces and shorter glass, and run on MUCH lower voltage, as low as 129V, making them much easier to drive, and much easier to interface. New boxed condition, all have good gas. Basically a Nixie tube that lights up 10 dots instead of 10 digits. CLICK HERE to see full GR10A data in PDF format! CLICK HERE to get B12E mating sockets! $15 each while they last. | $45 Ea. |
|||
| Description | |||||

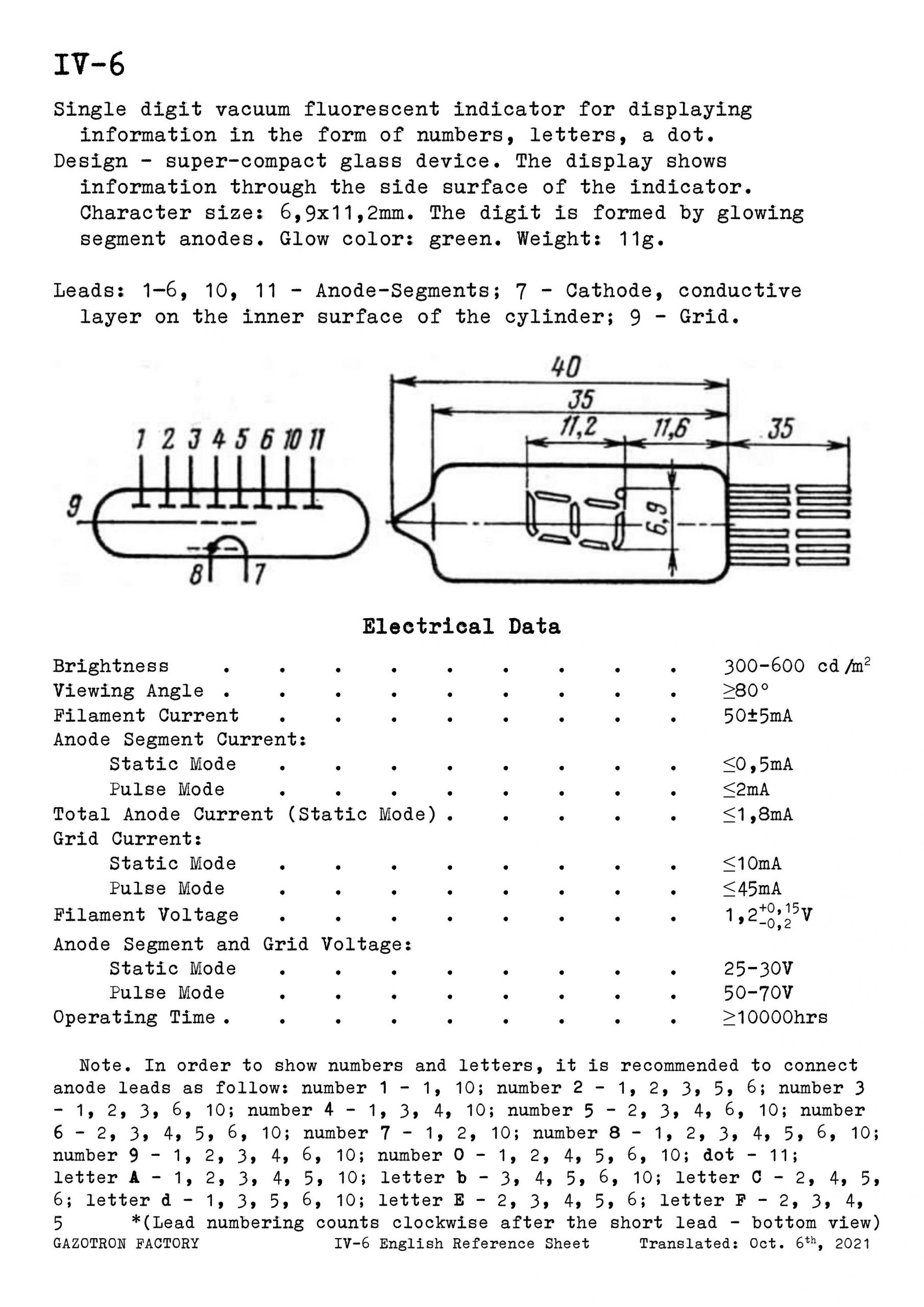

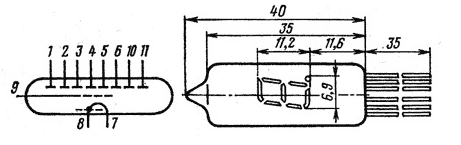

7-Segment VFD Displays  IV-6 Back  IV-6 Front |
Sovtek IV-6 7-Segment VFD Displays From the Sovtek factory in Russia, these are new, high quality Vacuum Florescent 7-segment green-blue displays with 13mm tall digits. Operation requires filament and bias voltages. Flying leads require no socket, very easy to prototype for clocks and other projects. CLICK HERE for PDF of Full Russian Data sheet with pin out and base diagram.
| $5 Ea. 6/$28 |
|||
| Description | |||||
7-Segment Numitron Displays  IV-9 Front |
Sovtek IV-9 7-Segment Numitron Displays From the Sovtek factory in Russia, these are new, high quality numitron filament 7-segment displays with 10mm tall digits plus RHDP. Operation requires 4.5V filament voltage typically, can be driven by 7447 ICs, and can be filtered to many colors. Flying leads require no socket, very easy to prototype for clocks and other projects. CLICK HERE for PDF of Full Russian Data sheet with pin out and base diagram.
| $5 Ea. 6/$28 |
|||
| Description | |||||
7-Segment VFD Displays  IV-11 Back  IV-11 Front |

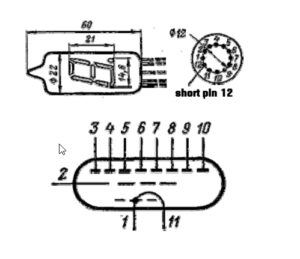

Sovtek IV-11 7-Segment VFD Displays From the Sovtek factory in Russia, these are new, high quality Vacuum Florescent 7-segment green-blue displays with 21mm tall digits. Operation requires filament and bias voltages. Flying leads require no socket, very easy to prototype for clocks and other projects. CLICK HERE for PDF of Full Russian Data sheet with pin out and base diagram.
| $5 Ea. 6/$28 |
|||
| Description | |||||
Reflector IV-16 7-Segment Numitron Displays
3V Operation 5V Operation |
Reflector IV-16 7-Segment Numitron Displays From the Reflector factory in Russia, these are new, high quality Numitron (incandescent filament) 7-segment displays. Operation requires 3.15-4.5V typical per filament segment, at 17-22mA. Easily driven by 7447 type drivers (with an added 1N4002 diode or two in the common VCC return of the display to drop the required voltage). Flying leads require no socket, very easy to prototype for clocks and other projects. Life will be increased by reducing voltage.CLICK HERE for PDF of Full Russian Data sheet with pin out and base diagram. | $5 Ea. 6/$28 |
|||

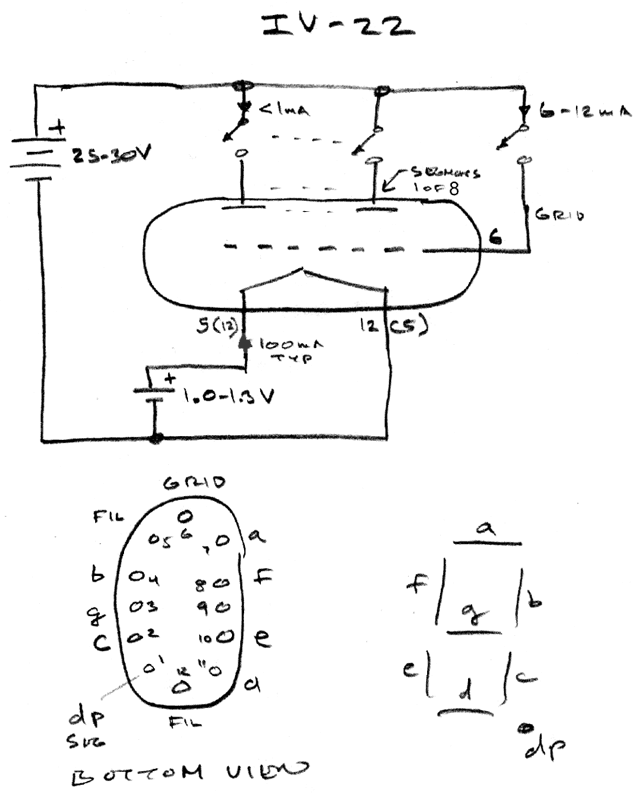

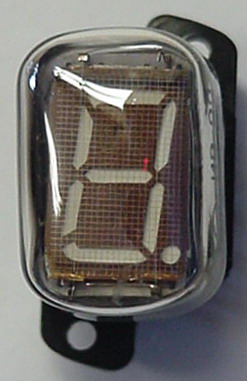

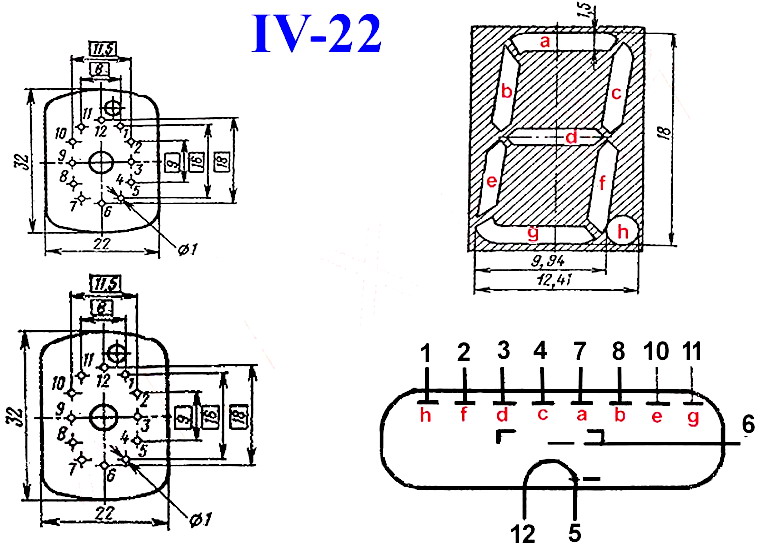

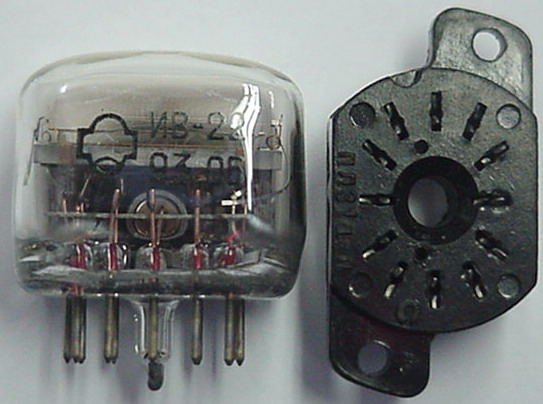

 CLICK for bigger PIC! Reflector IV-22 7-Segment VFD Displays  IV-22 Data, CLICK for bigger PIC! |
From the Reflector factory in Russia, these are new, beautiful blue-green, pluggable displays (RHDP). Operation requires filament and bias voltage, plus individual 7-segment drive. We can supply them with the SK136 Sockets shown, or just as loose tubes, your choice. CLICK HERE for a simple TEST CIRCUIT. Character size: 12.4 X 18mm Filament voltage: 1.0 to 1.32V Filament current: 85 to 115mA Grid Voltage: Constant, 23 to 30V, Pulse: 80V Voltage at anodes, 7-segments: Constant 22 to 30V, Pulse: 80V Grid Current: 6 to 12mA Current at anodes, 7-segments total, constant: 2.5 to 6mA Lifespan: 10K Hours Pin connections: 1,2,3,4,7,8,10,11 Anodes - segments 5, 12 filament 6 grid 9 free | Tubes $5 Ea. Tubes and Sockets, $9 Ea. |
|||
| Description | |||||
  CLICK for bigger PIC!
|

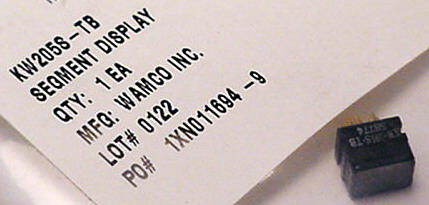

SPECIAL, Just Arrived! KW-205S-TB Incandescent Displays Miniature 7-segment numeric incandescent displays. Avionics displays, new factory bagged. These are very small, you can see full drawings HERE.
| US49 Ea. |
|||
| Description | |||||

 CLICK for bigger PIC! |
Just Arrived!

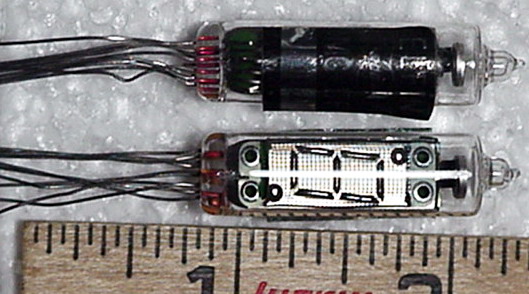

RodanElfin MG-17F Neon Displays Miniature 7-segment numeric NEON displays. Very rare parts, 7-segment NEON displays with top and bottom decimals. Common front cathode pin is tied to approx. +170VDC via 33K, grounded cathodes illuminate. Interesting display, can be driven from 7447 drivers with additional MPS-A42 driver transistors.
| $19 Ea. |
|||
| Description | |||||

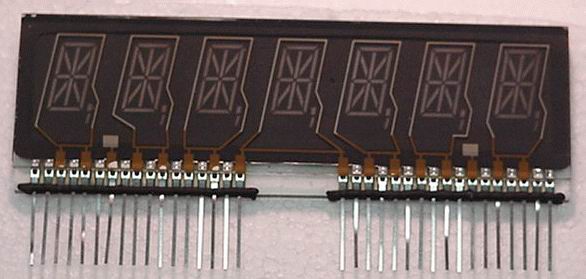

 CLICK for bigger PIC! Dale Panaplex Display PD-07A070-1 7 Digit Multiplexed 16-segment Display |
Dale Panaplex Large 7 digit multiplexed 16-segment alphanumeric neon planar display with decimal points/commas, uses HV drivers. Checked for gas seal, good! Includes 2 mating connector strips.As received, factory new. | $75 Ea. |
|||
| Description | |||||
 CLICK for bigger PIC! Panaplex SP-101 |
Babcock Panaplex Horizontal view, stackable, planar segmented neon display, 1 digits plus r/h decimal/comma and colon (presumably for a clock display), 1.0 inch digit height. Very hard to find, used in many clocks and sunlight readable displays. These are clean pulls, and are tested. | $49 Ea. |
|||
| Description | |||||
 Panaplex SP-152 |
 Beckman PanaplexHorizontal view, stackable, planar segmented neon display, 1 1/2 digits plus r/h colon (presumably for a clock display), 0.55 inch digit height. Very hard to find, used in many clocks and sunlight readable displays. These appear new, and are tested. | $39 Ea. |
|||
| Description | |||||
 Panaplex SP-336 (shown on right) |
SPERRY Sperry PanaplexHorizontal view, stackable, planar segmented neon display, 2 digits plus decimal points, and one additional arrow, miniature format. Very hard to find, used in many test systems and sunlight readable displays. Visually identical to the SP332, but has one additional arrow under the right hand digit (and one added pin) and common anodes (can't be multiplexed). These are factory new parts, 0.33 inch digit height. | Just Arrived! $25 Ea. |
|||
| Description | |||||
 CLICK for bigger PIC! Babcock + Beckman Panaplex SP-353 |

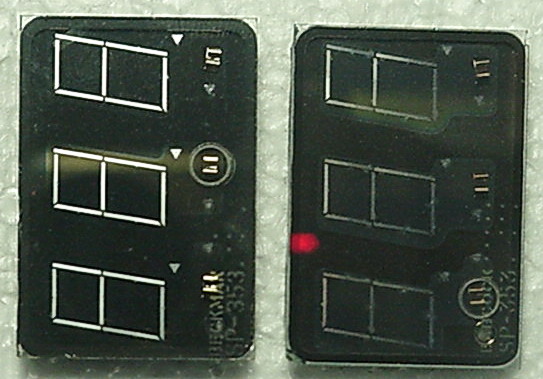

 Beckman/Sperry PanaplexHorizontal view, stackable, planar segmented neon display, 3 digits plus decimal points. Very hard to find, used in many test systems and sunlight readable displays. These are clean pull (perfect leads, unplugged), low time, late produiction parts, 0.55 inch digits! We have clean, tested parts from both vendors, your choice, or our random selection, most look like new, all test perfectly. | ||||
| Description | |||||
SP-354 |
Beckman/Sperry Panaplex Horizontal view, stackable, planar segmented neon display, 2 1/2 digits plus sign and decimal points, 0.55 inch digit height. Very hard to find, used in many test systems and sunlight readable displays. These are perfect NEW parts,known good and tested. | $49 Ea. |
|||
| Description | |||||
| Panaplex SP-736 |
SPERRY Beckman PanaplexHorizontal view, stackable, planar segmented neon display, 2 digits plus decimal points, and one additional arrow, miniature format. Very hard to find, used in many test systems and sunlight readable displays. Visually identical to the SP332, but has one additional arrow under the right hand digit (and one added pin). These are factory new parts, 0.33 inch digit height. | Just Arrived! $39 Ea. |
|||
| Description | |||||
SP-751 |
Beckman Panaplex Horizontal view, stackable, planar segmented neon display, 1 1/2 digits plus sign and decimal points, 0.55 inch digit height. Very hard to find, used in many test systems and sunlight readable displays. These are perfect NEW parts,known good and tested. | $39 Ea. |
|||
| Description | |||||
 Panaplex SP-751 |
Beckman/Sperry Panaplex Horizontal view, stackable, planar segmented neon display, +/-1 and 1 digit with decimal points, 0.55 inch digit height. Very hard to find, used in many test systems and sunlight readable displays. See BACK HERE. | $39 Ea. |
|||
| Description | |||||
 Panaplex SP-425-09 |
 Sperry PanaplexHorizontal view, planar segmented neon display, 9 digits plus decimal points. Bottom edge connector, both tin and gold contacts. Very hard to find, used in many test systems and sunlight readable displays. New parts, confirmed good. | $49 Ea. |
