![]() All Kinds of Oscilloscopes.... ![]() Analog and Digital.... ![]() Tektronix, Hewlett Packard, Philips/Fluke Oscilloscopes ![]() ![]() ![]() ![]() You can order anything here just by picking up the phone, and calling (250) 769-1834 during normal office hours, 8:30AM to 4:30PM PST OR, Email your order to Susan ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Don't forget these illustrated sections take a few seconds to load, but they are worth the wait!
|
E-mail us | Want something? Click here to e-mail us! We accept Visa / MC for fast order processing. |
![]() PHILIPS/FLUKE SCOPES ![]() ![]() All of these scopes are USED, Overhauled and calibrated, and may have minor cosmetic scuffs and marks. This series of late production scopes from Philips/Fluke are all based on the same core technology and control layout. Analog scopes have a secondary LCD display to show all control settings, and level/speed are selected with slew switches. The Auto-set switch gives one touch set up of all functions from triggering to level and sweep, an incredible time saver for many people. All scopes in this family include full TV triggering, as well as all regular internal/external modes, and scopes can have 1 or 2 full timebases to permit delayed, mixed and alternate timebase operation, a real help with waveforms that have both fast and slow characteristics. The famous COMBISCOPES have full function analog AND digital operation, giving the best possible presentation for each application, and still featuring Auto-Set. Philips scopes use a different 10x probe detection sceme than Tek scopes, and only the original Philips probes are correctly detected for the on screen and LCD displays. Any probe that can be compensated correctly will work, but display data will be as if the scope had 1X probes connected. We have a small quantity of the original Philips/Fluke probes sets available with a scope purchase ONLY, see data below. Add genuine Philips 100Mhz 10X indicating probe kits (NEW!) to any Philips scope for $90 each. Available with scope purchase only. ![]() Philips PM9020-092 Kits, CLICK for bigger PIC! |

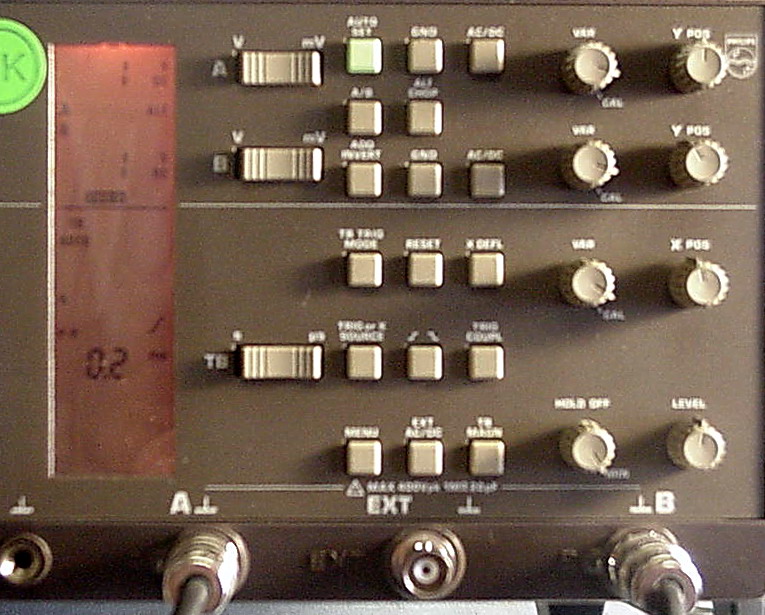

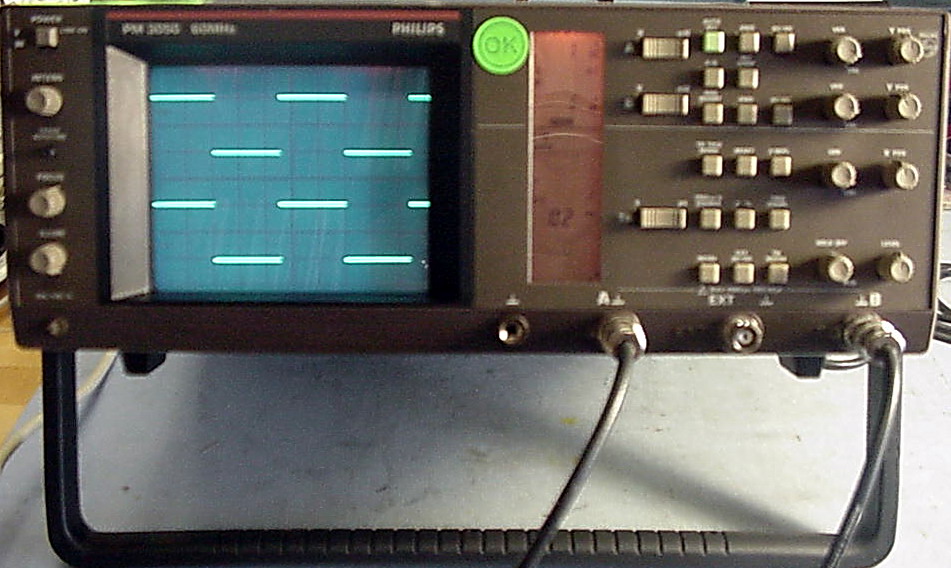

Philips Late Production Analog Scopes with AutoSet

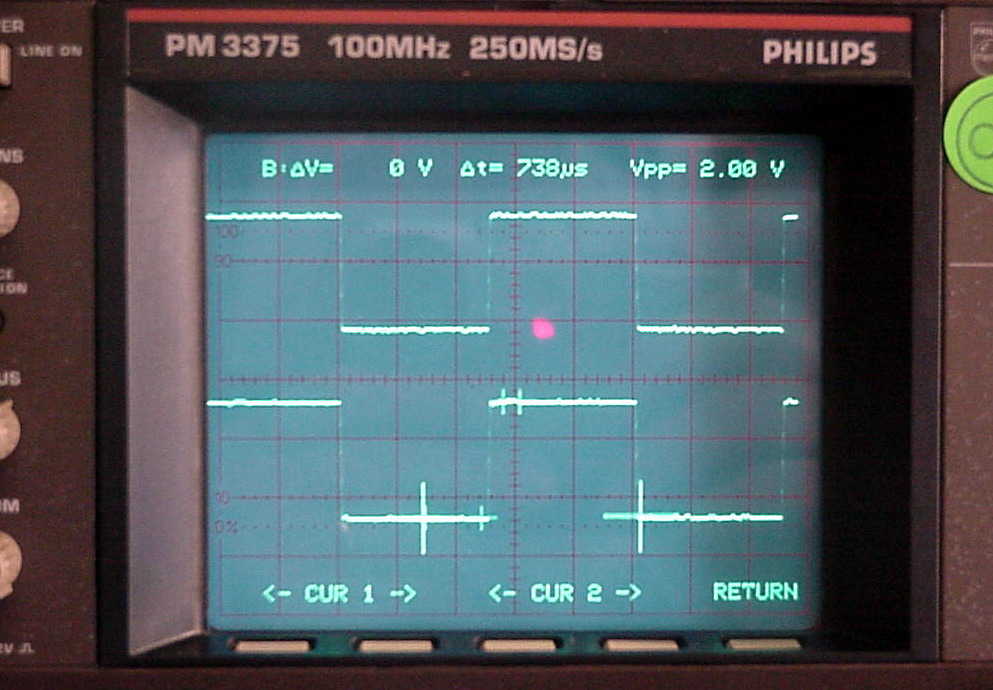

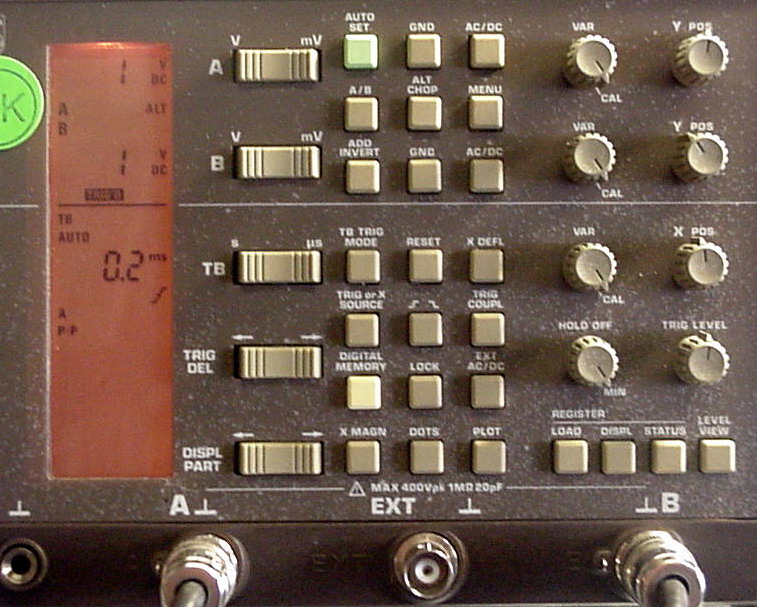

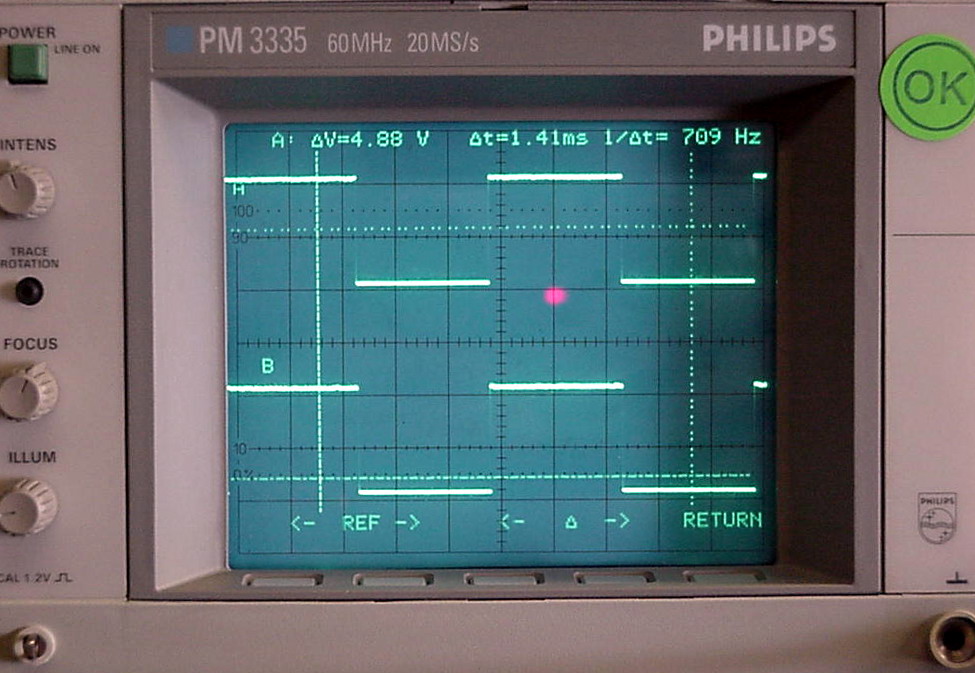

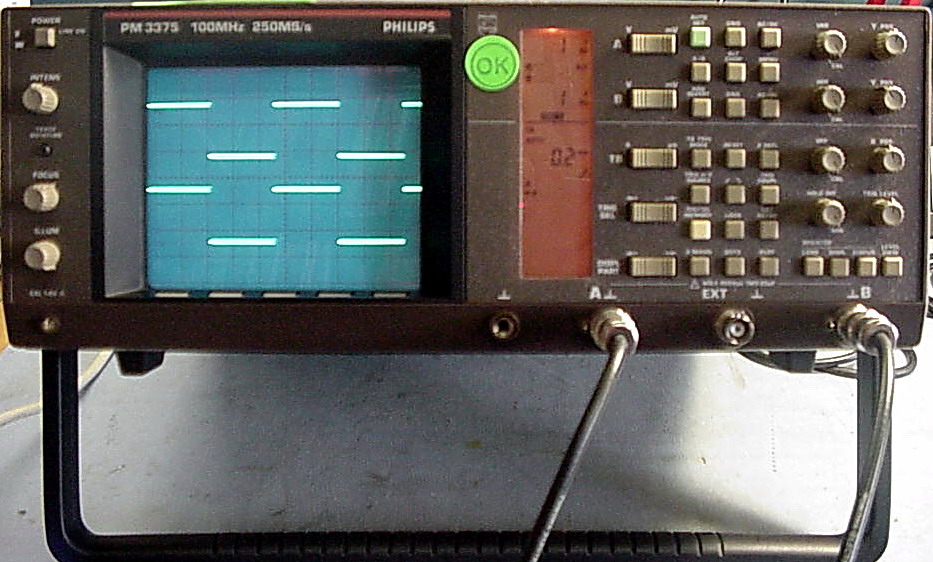

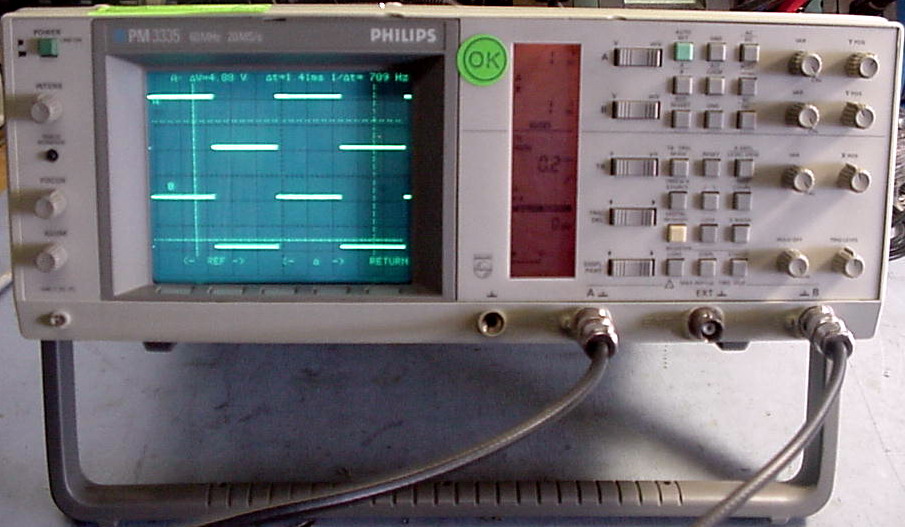

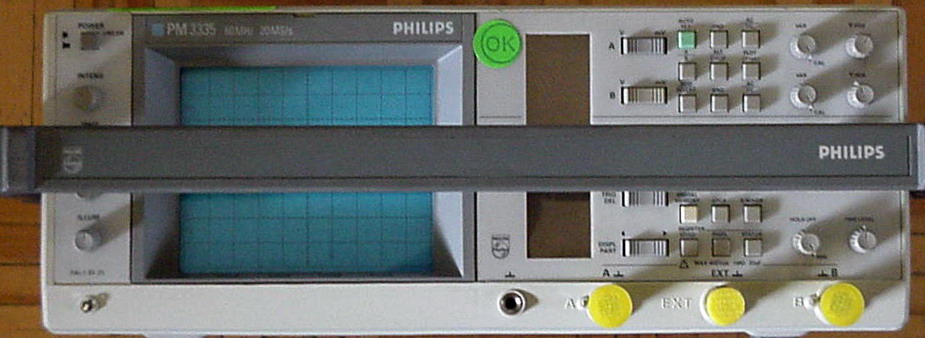

$495, Have 1 Philips/Fluke Late Production Analog/Digital CombiScopes with AutoSet
$595, Have 2
$795, Just 1 PM3390A Autoranging 2 channel 200Mhz 100Ms/s Combiscope (onscreen data display), XY, includes cover and pouch, late Gray colors. $995, have 1 |
E-mail us | Want something? Click here to e-mail us! We accept Visa / MC for fast order processing. |
![]() Tektronix 2235 ![]() CLICK for bigger PIC! ![]() CLICK for bigger PIC! |
Tektronix 2235 100MHz Portable Oscilloscope Dual trace scope with full X/Y capability and flexible vertical modes. Supports alternate A/B sweep with delay, see a generic example HERE. Vertical sensitivity down to 2mV/division, plus has channel inversion and bandwidth limiting. Has TV line and field triggering. This is the successor to the 465/B from Tektronix, and is a big improvement in terms of weight (1/3 the weight of a 465!) and eay to carry, plus dual sweep capability. A great scope to operate. Silent, no Fan. Exceptionally nice condition inside and out. Late, production, fully inspected, cleaned, overhauled and cal'd, plus additional 24 Hr. burn in and re-test before shipment. Lots of CRT intensity reserve, for long service life. Has low inrush, slow start switching power supply. Add a pair of NEW P6100 1X/10X 100Mhz probes for $69. ![]() SORRY, SOLD, $495 plus optional probes and shipping. ![]() ![]() |
![]() Tektronix 2235/AN/USM-488 ![]() CLICK for bigger PIC! ![]() CLICK for bigger PIC! |
Tektronix 2235/AN/USM-488 100MHz Portable Oscilloscope Dual trace scope with full X/Y capability and flexible vertical modes. Supports alternate A/B sweep with delay, see a generic example HERE. Vertical sensitivity down to 2mV/division, plus has channel inversion and bandwidth limiting. Has TV line and field triggering. This is the successor to the 465/B from Tektronix, and is a big improvement in terms of weight (1/3 the weight of a 465!) and eay to carry, plus dual sweep capability. A great scope to operate. Silent, no Fan.This version has the mil gray mesh EMI shield, not the blue one, plus has an additional ch1/2 trig select switch, improved RFI emission control, otherwise the same as a generic 2235. Exceptionally nice condition inside and out. Late, production, fully inspected, cleaned, overhauled and cal'd, plus additional 24 Hr. burn in and re-test before shipment. Lots of CRT intensity reserve, for long service life. Has low inrush, slow start switching power supply. Add a pair of NEW P6100 1X/10X 100Mhz probes for $69. ![]() SORRY, SOLD Just 1, $549 plus optional probes and shipping. ![]() ![]() |
Need high end configurable Lab performance?![]() Tektronix 5000/7000/11000 Series Mainframes and Plug-ins |
![]() We have most popular 5000, 7000 and 11000 series plug-ins in stock, fully overhauled and calibrated with factory fixtures. Mainframe selection varies, so email for availability. Please note, our 5000 and 7000 series inventory is now limited, and support is becoming increasingly limited. |
E-mail us | Want something? Click here to e-mail us! We accept Visa / MC for fast order processing. |
7000 Series Mainframes Conventional Frames: ![]() ![]() $695 Storage Frames: ![]() $395 Tek no longer offers real time high speed analog scopes, so get one of these beauties before they are all snapped up! We can configure these any way you want them, but not all models shown always in stock. |
7000 Series Plug-ins Until these are sold, we have a few 7000 series frame and plug-ins still available at excellent prices. A few Plug-ins left IN STOCK, E-Mail for current pricing and availability, when these are GONE, that's it, no more 7K items or support. Vertical Amplifiers: 7A19 500Mhz, 50 ohm 7A22 Differential 7A24 Dual 400Mhz, 50 ohm 7A26 Dual 225MHZ/5mV Horizontal Timebases: 7B53A Dual TB 7B70 7B71 7B80 7B85 7B92A Digital Functions: 7D12 7D13 7D14 Important, all plugs-ins over 225Mhz are 50 ohm inputs ONLY! |
7000 Series Systems![]() 7904A System ![]() 7603 |
E-mail us | Want something? Click here to e-mail us! We accept Visa / MC for fast order processing. |
![]() ![]() ![]() | ![]() FG503 Function Generators ![]() Normally in stock: DM501, DM502, FG501, FG503, DC504A, DC509, SG501, PS503, PS503A, PG501 | |
![]() ![]() SC500 series scopes are a miracle of mechanical packaging, offering the performance of Tek's best portables in tiny TM500 series modules. They make it possible to configure a very compact free-standing lab set up without the need for an additonal scope. Note, calibration of these scopes requires use of special TM500 cable extenders, and is not always simple to do in the field. There is also a single width single trace SC501, for low frequency monitor use, but we do not normally stock that unit. |
SC502/3/4 Oscilloscopes TM500 Plug-in Scopes can provide up to 80Mhz of bandwidth, dual channel (SC504), with most usuable beyond 100Mhz. They have the same capabilities as full blown Tek scopes, including full external triggering and XY operation, all in a tiny package. There are 3 double width scopes: SC502, 15Mhz, Dual Trace, 1mV/div. $425 SC503, 10Mhz, Dual Trace Storage, 1mV/div. $495 SC504, 80Mhz, Dual Trace, 5mV/div. $895 There is also a single width single trace SC501, for low frequency monitor use. | |
![]() Tektronix TM515 Lab in a Box ![]() CLICK for bigger PIC! ![]() CLICK for bigger PIC! |
Tektronix TM515 Portable equipment rack complete with SC502 Oscilloscope SC502 Dual trace scope with triggered timebase plus 10X sweep magnifier, front probe calibrator, all in great condition! The rear of TM515 unit has the power switch, line voltage setting jumpers, and line cord storage (inside fan cowling), CLICK HERE to see. The lab includes: PS503A Power Supply, with dual 0-20V adjustable supplies and 5V logic supply. DM501A 4 1/2 digt DMM. FG502 Sine/Square/Triangle/Pulse Function Generator. A complete tool kit of essential gear in one compact unit, easily packed for travel, or used on a bench. We get few full TM500 sets to offer, don't miss this one, all items fully checked, cleaned and calibrated. No ratty looking items, all are in very good condition. YES, we will throw in some patch cables. The pic shows an early DM501 unit, all our systems now have Late DM501A versions with the much better looking panel. Add a pair of NEW P6100 1X/10X 100Mhz NON-INDICATING probes for $69. ![]() Just 1, $796 plus optional probes and shipping. ![]() | $795 and up, we can configure many kinds of portable labs for you! $849 with DM501A/FG502/SC502/PI702. Sorry, we are currently OUT OF travel covers for this package. 10, 15, or 80Mhz Scopes available Triple Power Supply Function Generator DMM Pulse Generator Status:Call for availability! |
