LEDs, Indicators and Lamps
HDSP-U211 7-Segment Displays

Lamps

go right to the catalog! Skip the INTRO, Go RIGHT to the CATALOG!

These are the stock LED, indicator, lamp and lamp holders we have on hand, both new and used. There is a wide variety of material, and stock changes constantly. We try and keep a deep stock of commonly used parts, and always have some stange and bizarre items of high interest value.

* NAVIGATION: To make your life easier, and help you find exactly what you want, we have broken the on-line equipment catalogs into smaller sections. Just CLICK on the item you are looking for at the left, to see the matching catalog. Large graphical catalogs are a bit SLOW, so please give them a bit of time to load. The top header of each catalog is largely the same, so don't think you are stuck in one place!

You can order anything here just by picking up the phone, and calling (250) 769-1834 during normal office hours, 8:30AM to 4:30PM PST, or FAX to (250) 769-4106. OR, Email your order to Susan CLICKHERE.

Shipping*SHIPPING: Preferred and Alternate Methods as of June 4, 2013, CLICK for FULL DETAILS ON OUR FAQ Page. Rates are now changing rapidy, often with little notice to us, so all the data has been transferred to the FAQ page for speedy updating.

* E-Mail Susan if you want a quote for shipping to other destinations, or for something heavy. Sorry, we can't safely send most individual small parts in a regular letter envelope, they get destroyed by the automated handling equipment. Sometimes we can ship very rugged parts in a small padded envelope by letter post. Ask Susan.

*There is a packing charge for large or heavy equipment, see the FAQ for details.

*If we have your valid data on file, you can just click on the ORDER email link to place an order and indicate your approval to bill, and we will do the rest. We keep your active information for ONE YEAR for your convenience.

*If this is the first time you have dealt with us, you can phone +1 (250) 769-1834 or FAX +1 (250) 769-4106 to supply the billing info, or send it by the email link, as you prefer. We accept VISA/MC, international money order, Paypal (to Susan@Okanagan.net), and bank wire transfer. Please note that there are transaction fees with Paypal and wire transfer payments, the wire transfer fee is frankly horrifying.

We accept VISA/MC or international money order

* CONDITION: To answer your questions, YES, we completely check and inspect all used equipment, and do not offer any we feel is substandard. That gear is normally scrapped, broken down for parts, or may get offered as-is in the HOT DEALS section, with the unit's condition clearly identified. If there are any marks or detracting features, we clearly state them in the listing. Before shipment, we burn in the equipment for 24 hrs. again and re-check to be sure it is good prior to shipment.

* The CATALOG will appear below shortly!
Don't forget these illustrated sections take a few seconds to load, but they are worth the wait!


CATALOG: JUST SCROLL DOWN TO SEE EVERYTHING !down

E-mail us Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.

400W Linear Halogen Lights


CLICK for bigger PIC!
LED array, CLICK for bigger PIC!

E-mail us an order!
CLICK TO ORDER

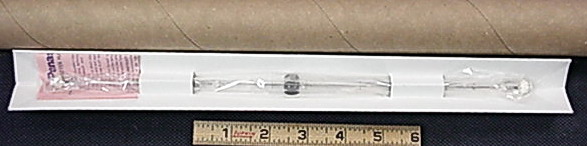

Model 750000 Panasonic 400W Tungsten Halogen Lamp
These linear 12.5 inch (3/8 in. diameter), ceramic/metal end contact lamps are meant for horizontal mounting only, and provide incredible light intensity. Each one is packed in an individual tube, and has proper care instructions for handling. These are originally for copiers, but can be used for a light table, or other high intensity application. Use care in handling and installation, as any fingerprints will cause glass cracks and premature lamp failure. 115VAC, 400W rating. CONTACT VIEW HERE.
$20 each, 28 on hand.
LOC: 750000/WSS


LEDs (Light Emitting Diodes)
Picture/Part Number
Description
Condition
Stock
Price Each
AMBER Precision Optical AlInGaP LED
HP HLMP-DL24-#S20, CLICK for bigger PIC!
CLICK for bigger PIC!

HP HLMP-DL24#S20
AMBER LED

Amber LED
HP HP HLMP-DL24#S20 AMBER LEDs
High efficiency precision AMBER (590nm) T1 3/4 5mm LED. Powerful 1500-1900mcd LEDs used in daylight displays, factory bagged stock with moisture absorber. Has special plastic case for UV survival outside, with precision 23 degree optical width, and very stable long term performance. Comes in factory bags of 500, graded for optical performance, all have identical intensity and color binning, ideal for matching in signs!
CLICK for PDFCLICK HERE for PDF Data Sheet.

LOC:LEDSHLF
NEWNEW
5,000 pcs.
NEW STUFF
100/$45
500/$149

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
AMBER SUPERFLUX
Lumileds Superflux LEDs
Lumileds HPWT-ML00
AMBER LED

Superflux LED Footprint
Top Package Polarity View
CLICK to visit LUMILEDS
CLICK to see LUMILEDS


LUMILEDS HPWA-ML00 RED LEDs
Side Light at 20mAHigh efficiency 4-pin SUPERFLUX AMBER (594nm) LED. Powerful LEDs used in vehicular running/side lights, new bulk stock, 100% individually tested. Rated to 70mA, with minimum optical output flux of 1.7 lumens at 100 degrees (0.9cd min to 2.5cd). These are very powerful emitters, useful for all kinds of wide angle flood lighting. TSAlInGaP material, Vf 2.6V typical. Polarity is marked by a chamfer on one corner, each connection is brought out to 2 pins for optimal heatsinking. Note that many T1 3/4 LEDs have this high or higher output, but only over a tiny angle (7-15 degrees), while this is a very wide angle emitter of 100 degrees, ideal for backlighting a large area.
CLICK for PDFCLICK HERE for PDF Data Sheet.

Light at 20mA Light at 50mA
Light at 20 mA      Light at 50mA
LOC:LED02
NEWNEW
1,000 pcs.
NEW STUFF
3/$2
100/$49

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
RED SUPERFLUX
Lumileds Superflux LEDs
Lumileds HPWA-MH00
RED LED

Superflux LED Footprint
Top Package Polarity View
CLICK to visit LUMILEDS
CLICK to see LUMILEDS


LUMILEDS HPWA-MH00 RED LEDs
Superflux LED side radiation at 20mAHigh efficiency 4-pin SUPERFLUX RED-Orange (618nm) LED. Powerful LEDs used in vehicular brake lights, new bulk stock, 100% individually tested. Rated to 70mA, with minimum optical output flux of 1.5 lumens at 95 degrees (0.9cd min to 2.5cd). These are very powerful emitters, useful for all kinds of wide angle flood lighting. ASAlInGaP material, Vf 2.1V typical. Polarity is marked by a chamfer on one corner, each connection is brought out to 2 pins for optimal heatsinking. Note that many T1 3/4 LEDs have this high or higher output, but only over a tiny angle (7-15 degrees), while this is a very wide angle emitter of 95 degrees, ideal for backlighting a large area.
CLICK for PDFCLICK HERE for PDF Data Sheet.

Light at 20mA Light at 50mA
Light at 20 mA      Light at 50mA
LOC:LED02
NEWNEW
1,200 pcs.
NEW STUFF
3/$2
100/$49

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
Dialight 551-1107 LEDs, CLICK for bigger PIC!
CLICK for bigger PIC!

Dialight 551-1107
Package Polarity
Top Package Polarity View
CLICK to visit Dialight!
CLICK to see Dialight


Dialight 551-1107 RED LEDs
Package ViewsHigh efficiency T1 RED (635nm) CBI (Circuit Board Indicator), with PC pins. Guaranteed to work down to 2mA, excellent stackable (0.175" mechanical centers, pins on 0.100" spacing) board indicator places LED at 0.200" centerline above the circuit board. UL 94 V-O black housings. Come prepacked in factory bags of 100 pcs. Excellent for in circuit BITE indicators, can be driven by CMOS or TTL gates easily via a 1K to 1.8K resistor.
CLICK for PDFCLICK HERE for PDF Data Sheet.

Light at 2mA Light at 5mA
 Light at 2 mA      Light at 5mA
LOC:LED02
NEWNEWNEW
10,000 pcs.
NEW STUFF
3/$1
100/$29
1,000/$249

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
Diallight 551-1307-810, CLICK for bigger PIC!
CLICK for bigger PIC!

Dialight 551-1307-810
Polarity View
Top Package Polarity View
CLICK to visit Dialight!
CLICK to see Dialight


Dialight 551-1307-810 GREEN LEDs
Package ViewsHigh efficiency T1 GREEN (565nm) CBI (Circuit Board Indicator), with PC pins. Guaranteed to work down to 2mA, excellent stackable (0.175" mechanical centers, pins on 0.100" spacing) board indicator places LED at 0.200" centerline above the circuit board. UL 94 V-O black housings. Come prepacked in factory bags of 100 pcs. Excellent for in circuit BITE indicators, can be driven by CMOS or TTL gates easily via a 1K to 1.8K resistor.
CLICK for PDFCLICK HERE for PDF Data Sheet.

Light at 2mA Light at 5mA
 Light at 2 mA      Light at 5mA
LOC:LED05
NEWNEWNEW
20,000 pcs.
NEW STUFF
3/$1
100/$29
1,000/$249

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
MV64538-MP7, CLICK for bigger PIC!
CLICK for bigger PIC!

MV54538-MP7
Polarity View
Top Package Polarity View
MV54538-MP7 GREEN LEDs
MV64538-MP7 Views High efficiency T1 3/4 GREEN (565nm) CBI (Circuit Board Indicator), with PC pins. Pins on 0.100" spacing), UL 94 V-O black housings. Come prepacked in factory bags of 250 pcs. Excellent for in circuit BITE indicators, designed for 10-20mA drive.

Light at 5mA Light at 10mA
Light at 5 mA      Light at 10mA
LOC:LED05
NEWNEWNEW
500 pcs.
NEW STUFF
3/$1
100/$29

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
CMD204GD-125TA
CMD204GD-125TA Green LEDs

Lit at 10mA
CLICK to visit CMLCLICK to visit Chicago Miniature

Green T1 LED w/integral spacer
General purpose green LED, very good brightness at 10mA as shown, diffused green package, built-in spacer on leads for PCB mounting. Taped boxes of 1800.
LOC:SEMIROOM-Cartons
NEW
7200
NEW STUFF
$3/Foot
$95/1800

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
LTL-1CHAE-071A
LTL1CHAE-071A
LTL-1CHAE Amber LEDs
Lit at 10mA
Lit at 10mA
CLICK to visit LITE-ONCLICK to visit LITE ON

Amber T1 LED
General purpose amber LED, very good brightness at 10mA as shown, clear (non-diffused) orange package, formed leads for wider spacing.
LOC:SEMIROOM-Reels
NEW
3000
NEW STUFF
$3/Foot
$9/100

E-mail us an order!
CLICK TO ORDER

CLICK HERE to see Tek LEDs and LampsCLICKCLICK HERE to see Tektronix LEDs and Lamps
CLICK HERE to see hp LEDs CLICKCLICK HERE to see hp LEDs and LED Displays

E-mail us Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.


7-Segment LED Displays
Picture/Part Number
Description
Condition
Stock
Price Each
LTS-2801AHG-05, CLICK for bigger PIC!
CLICK for bigger PIC!

LITE ON LTS-2801AHG-05
0.28"/7mm GREEN Display
LITEON, CLICK to visit!LITEON, CLICK to visit!

lts-2801ahg-05 LITE ON LTS-2801AHG-05
High Efficiency GREEN Common Anode
7-Segment LEDs

High efficiency ultra compact 7mm/0.28" high efficiency GREEN (569nm) display with RH decimal point. All are same intensity/color code, packed in tubes of 50. Can be driven by open collector style drivers (and series resistors), such as 7447.

CLICK for PDFCLICK HERE for PDF Data Sheet.

LOC:LEDSHLF
NEWNEW
750 pcs.
NEW STUFF
$1.50 ea.
50/$59

E-mail us an order!
CLICK TO ORDER
Picture/Part Number
Description
Condition
Stock
Price Each
HDSP-U211, CLICK for bigger PIC!
CLICK for bigger PIC!

HP HDSP-U211 0.31" RED Display
HP HP HDSP-U211
High Efficiency RED Common Anode
7-Segment LEDs

High efficiency ultra compact 8mm/0.31" high efficiency RED display with RH decimal point. All are same intensity/color code, B+, packed in tubes of 25. Can be driven by open collector style drivers (and series resistors), such as 7447.

CLICK for PDFCLICK HERE for PDF Data Sheet.

LOC:LED10
NEWNEW
600 pcs.
NEW STUFF
$1.50 ea.
25/$29

E-mail us an order!
CLICK TO ORDER

E-mail us Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.


Incandescent Lamps
Picture/Part Number
Description
Condition
Stock
Price Each
6A1 Lamps
6A1
GEGE 6V cartridge telephone lamp, available each or box of 10. New, Factory boxed in 10's. Not import knock-offs, these are premium US parts.
NEWNEWNEW
60
NEW STUFF
$1 ea.
$8/box
GE 12PSB Lamps
12PSB
GEGE New factory boxed 12V slide style cartridge lamps.
NEWNEWNEW
15
NEW STUFF
$2 each
44G
44G
GEGE miniature bayonet lamps, colored green, available each or in 10's. New, bulk packed. Not import knock-offs, these are premium US parts.
NEWNEW
200
NEW STUFF
$1 ea.
$8/10
46
46
GEGE 6.3V miniature screw base lamp, available each. New, Factory bagged individually. Not import knock-offs, these are premium US parts.
NEWNEWNEW
7
NEW STUFF
$1 each
GE 120PSB Lamps
120PSB
GEGE New factory boxed 120V slide style cartridge lamps.
NEWNEWNEW
7
NEW STUFF
$2 each
159
159
TS 6V wedge based lamp, available each or in 10's. New, bulk bagged. Not import knock-offs, these are premium US parts.
NEWNEW
80
NEW STUFF
$1 ea.
$8/10
Philips 250Q/CL/DC 130V Lamps, CLICK for bigger PIC!
CLICK for bigger PIC!

250Q/CL/DC 130V
250Q/CL/LP-SL
PHILIPS
Philips
High intensity tungsten halogen lamps, dual bayonet base, 130V, 250 Watts. Marked LP-SL, plus with the 250Q numbers.
New, factory boxed with protective covers.

Just arrived!
NEWNEWNEW
10
NEW STUFF
$29 each
327
327
GEGE 28V, 0.04A, 0.34MSCP intensity, miniature T1 3/4 flange based lamps, very popular aircraft lamps, available each or in 10's. New, Factory boxed in 10's. Not import knock-offs, these are premium US parts.
NEWNEWNEW
90
NEW STUFF
$1.20 ea.
$10/10
350 Lamp
350
WESTON 6.3V, 0.15A, 0.45MSCP intensity, miniature T1 3/4 flange based lamps, these are premium US parts, individually bagged.
NEWNEWNEW
200
NEW STUFF
$1.50 ea.
$10/12
656
656
CM/GE 28V wedge based lamp, available each. New, bulk bagged. Not import knock-offs, these are premium US parts.
NEWNEW
16
NEW STUFF
$1 each
1815
1815
GEGE 14V, miniature bayonet based lamps, very popular aircraft lamps, available each or in 10's. New, Factory boxed in 10's. Not import knock-offs, these are premium US parts.
NEWNEWNEW
20
NEW STUFF
$1.20 ea.
$10/10
2663.0
2663.0
ORION 24V/2W, miniature bayonet based lamps, available each or in 10's. New, Factory boxed in 10's. European lamps.
NEWNEWNEW
20
NEW STUFF
$1.20 ea.
$10/10
Oshino Lamps, CLICK for bigger PIC!
CLICK for bigger PIC!

Oshino OL-3046-002154E
CLICK to see Oshino Lamps
CLICK to see Oshino Lamp


Oshino OL-3046-002154E 12V/60mA Lamps
Miniature T1 Lamp w/Blue Silicone Filter 12V/0.060A with PC tinned leads on 0.2" centers. Excellent high performance lamp for lighting vehicle/aircraft instruments, LCD backlighting, transilluminated plastic panels and general illumination. The blue filter keeps the lamp cool (rather than red-orange) even at lower voltages, creating the color called "aviation blue-white" or cool white. The filter can be peeled off if not needed. Can be used to replace the LCD backlighting lamps in the Philips/Fluke scopes. Packed in factory boxes of 2,000.
Lamp at 7V Lamp at 12V
   Lamp at 7V       Lamp at 12V
LOC:LED02
NEWNEWNEW
6,000 pcs.
NEW STUFF
$2
100/$140
Philips S6DC, 6W, 120-130V
S6DC end view

S6DC
PHILIPS
Philips
6W dual bayonet based 120/130V lamp.
New, factory boxed with protective covers.

Just arrived!
NEWNEWNEW
12
NEW STUFF
$8 each

IMPORTANT !
Graphical logos and trademarks are the property of their respective owners, including Dialight, hp, Tektronix, Fluke, RCA, TI, GE, General Radio and Hewlett Packard, and are used here merely to unambiguously identify the products. Sphere Research IS NOT a factory authorized distributor for any of the product lines indicated.
Return to Sphere's Test Equipment Home Page Return to Sphere's Test Equipment Home Page
E-mail us Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.
Click to learn more about Godzilla GraphicsYou are visitor number .
Site Design & contents copyright 2005, 2006, 2007, 2008, 2013, 2014
by Walter Shawlee 2 & the ad hoc Godzilla Graphics Group.

All rights reserved.
