PMTs / Photomultiplier Tubes, Photocells,
Photodiodes,& Photo VacuumTubes

go right to the catalog! Skip the INTRO, Go RIGHT to the TUBE CATALOG!



* NAVIGATION: To make your life easier, and help you find exactly what you want, we have broken the on-line equipment catalogs into smaller sections. Just CLICK on the item you are looking for at the left, to see the matching catalog. Large graphical catalogs are a bit SLOW, so please give them a bit of time to load. The top header of each catalog is largely the same, so don't think you are stuck in one place!

You can order anything here just by picking up the phone, and calling (250) 769-1834 during normal office hours, 8:30AM to 4:30PM PST OR, Email your order to Susan CLICKHERE.

Shipping*SHIPPING: Preferred and Alternate Methods, CLICK for FULL DETAILS ON OUR FAQ Page. Rates are now changing rapidy, often with little notice to us, so all the data has been transferred to the FAQ page for speedy updating.

* E-Mail Susan if you want a quote for shipping to other destinations, or for something heavy. Sorry, we can't safely send most individual small parts in a regular letter envelope, they get destroyed by the automated handling equipment. Sometimes we can ship very rugged parts in a small padded envelope by letter post. Ask Susan.

*There is a packing charge for large or heavy equipment, see the FAQ for details.

*If we have your valid data on file, you can just click on the ORDER email link to place an order and indicate your approval to bill, and we will do the rest. We keep your active information for ONE YEAR for your convenience.

*If this is the first time you have dealt with us, you can phone +1 (250) 769-1834 to supply the billing info, or send it by the email link, as you prefer. We accept VISA/MC, international money order, Paypal (to Susan@Okanagan.net), and bank wire transfer. Please note that there are transaction fees with Paypal and wire transfer payments, the wire transfer fee is frankly horrifying, $50.

We accept VISA/MC or international money order

* CONDITION: We have both new and used tubes available, many factory new in original packaging. Other than inpesction, we cannot electrically test most of these tubes, and must be sold as-is.

* The CATALOG will appear below shortly!
Don't forget these illustrated sections take a few seconds to load, but they are worth the wait!



CATALOG: JUST SCROLL DOWN TO SEE EVERYTHING !down
PMT/Phototube Reference Data

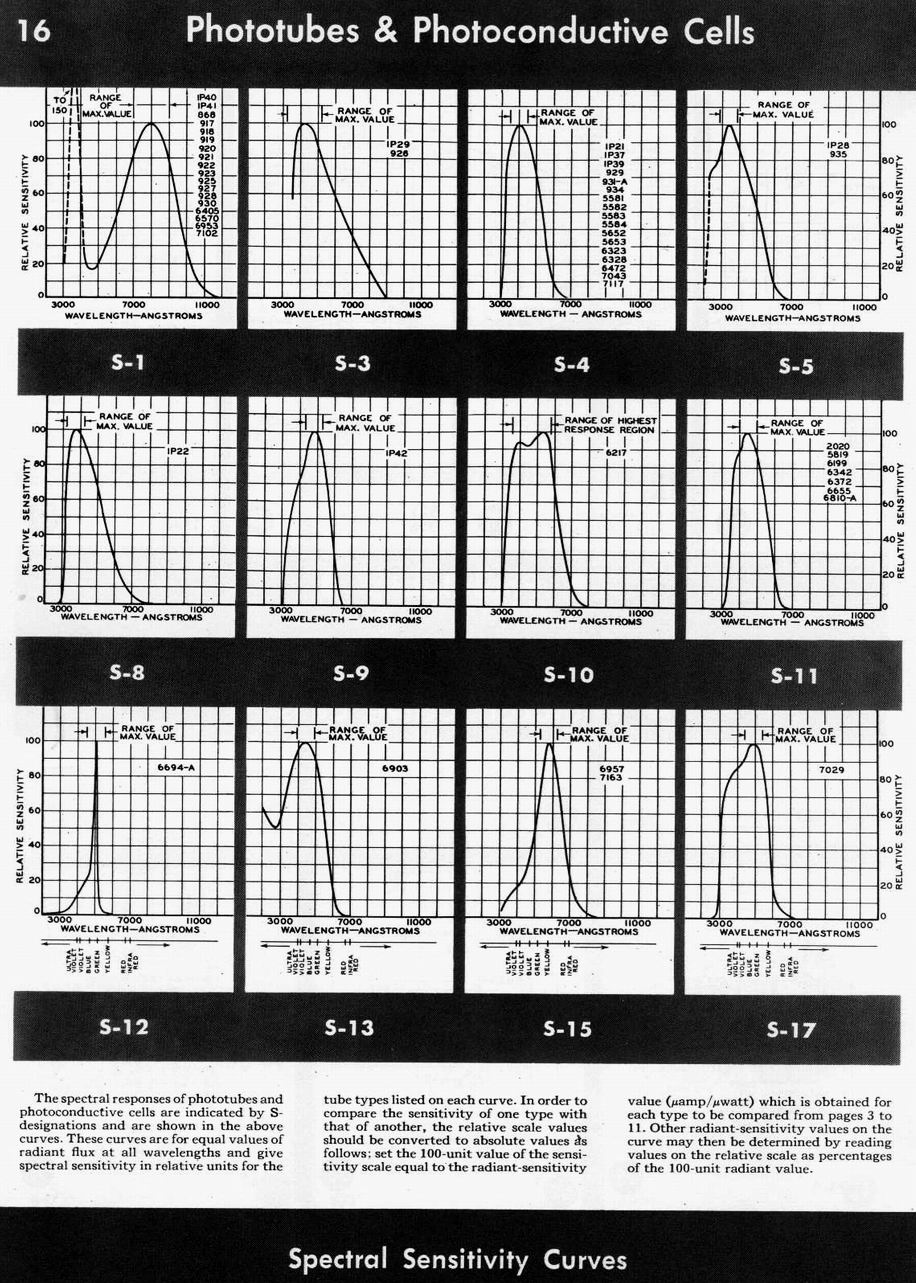

Phototube/PMT S-Curves
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

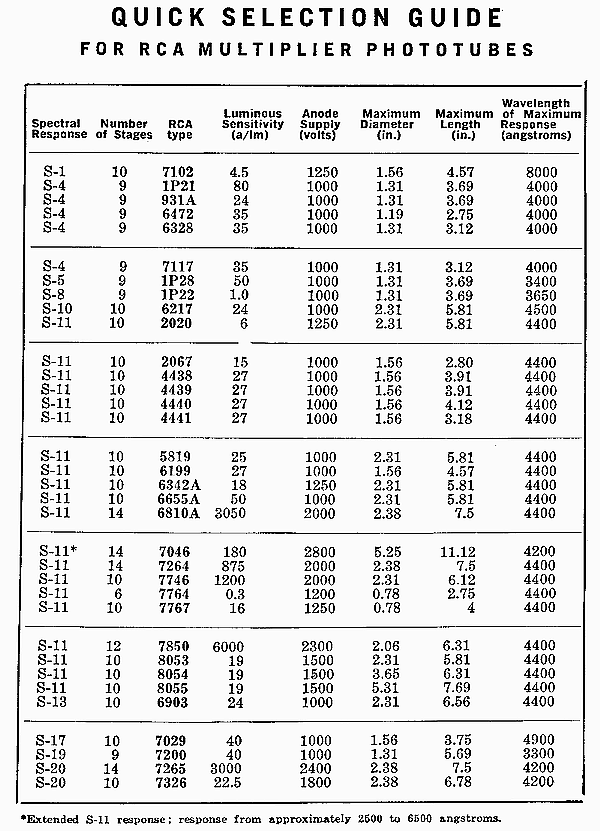

PMT Selection Guide
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Phototube/PMT Data
CLICK to SEE, detailed RCA Data!
CLICK to SEE!
Hamamatsu PMT
Cross-Reference

CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Hamamatsu PMTs Hamamatsu PMT

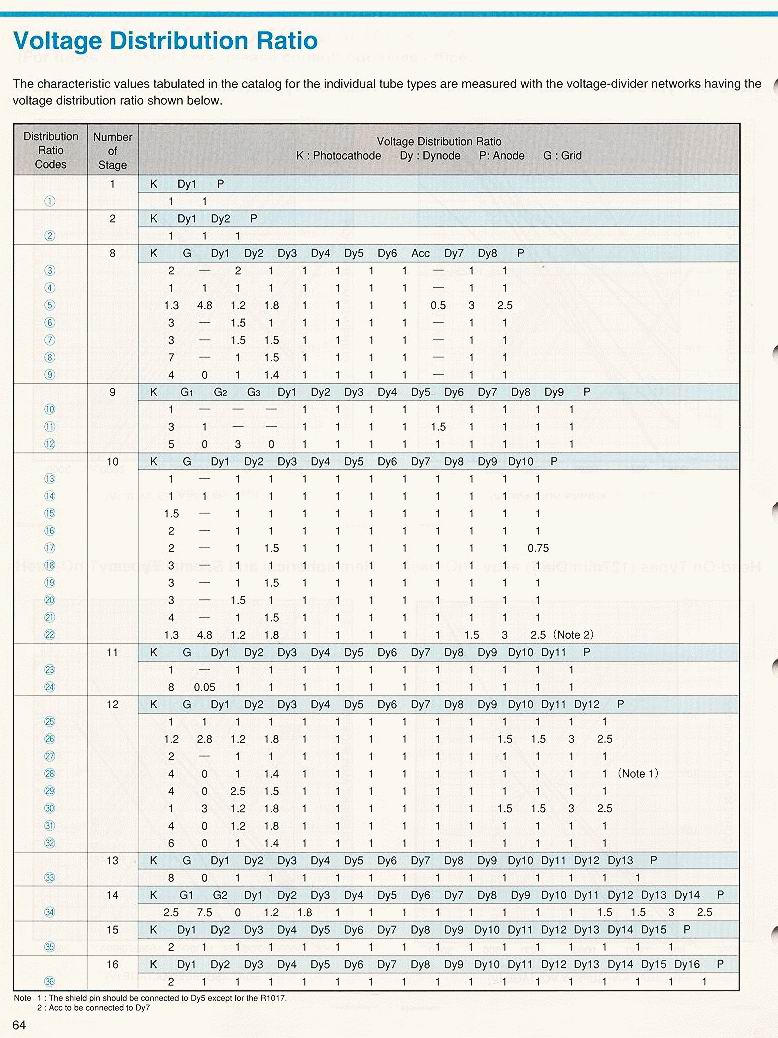

Electrode Ratios

CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Amperex, RTC and Philips PMTs were all made in the same factory in France (Brive),
which is now the independent company PHOTONIS
Photonis, CLICK to visit.
You can visit Photonis
HERE
Visit Electron Tubes
ET Enterprises
E-mail us
*Want something? Click here to e-mail us!
We accept Visa/MC for fast order processing.



PMT Accessories, Sockets and Power Supplies
TUBE NUMBER
MANUFACTURER/ NOTES
QUANTITY
UNIT PRICE
12 Pin Miniature PMT Sockets

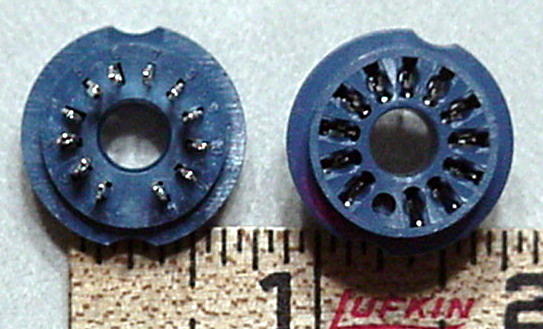

Thorn 12 pin Miniature PMT sockets, CLICK for bigger PIC!
CLICK for bigger PIC!
NEWTHORN NEW, excellent condition 12 pin miniature PMT sockets with combination PC and wire pins, blue low leakage material. Pins are in a 1/2 inch diameter circle, and there is a center hole for the tube evacuation seal. Very nice parts, hard to find in this odd size.
Pin close-up
37 pcs.
NEW
$25
each

CLICK to Visit Hamamatsu for specs.

Hamamatsu E678-13A
13 Pin Miniature PMT Sockets

Hamamatsu min. 13 pin socket, CLICK for bigger PIC!
CLICK for bigger PIC!

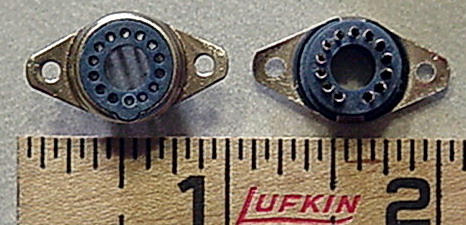

13 PIN Sub-Miniature Hamamatsu E678-13A PMT TUBE SOCKETS

Hamamatsu New 13 pin miniature low-leakage PMT socket with saddle mounting bracket, fits R647 and similar tubes.
NEW
Have 52
NEW
$12
each
Hamamatsu E678-13C

13 Pin Sub-Miniature PMT Sockets
Hamamatsu E678-13C
13 PIN Sub-Miniature Hamamatsu E678-13C PMT TUBE SOCKETS

New, factory boxed Hamamatsu sockets with long PC leads for 13mm PMTs. Hard to find, low leakage. .
NEW
Have 89
NEW
$10
each

each


E-mail us
*Want something? Click here to e-mail us!
We accept Visa/MC for fast order processing.


Photodiodes, Photocells and Photodetectors
PART NUMBER
MANUFACTURER/ NOTES
QUANTITY
UNIT PRICE
MILES IR Si Detectors
p/n 11748854


MILES IR sensor, CLICK for bigger PIC!
CLICK for bigger PIC!
This detector was designed for use in the Multiple Integrated Laser Engagement System (MILES) combat simulator. They are very rugged and will withstand outdoor environments. Detector type: Silicon photodiode (filtered). Spectral response: 800 to 1100nm. Active area: 100mm square. Dimensions: 1.618" diameter x .43" thick. Mounting: 4x .1" diameter holes with 1" spacing. Flooding the cell with IR from an incandescent lamp gives roughly 0.25VDc output. The cell appears to be photovoltaic, and has polarity markings on the rear surface. Individually bagged.
E-Mail US!CLICKCLICK HERE to E-Mail us an order!
10 pcs.
sale
NEW
$9
each
G5832-01

Hamamatsu G5823-01, CLICK for bigger PIC!
CLICK for bigger PIC!

CLICK to Visit Hamamatsu for specs.


Hamamatsu end viewing, IR optimized InGaAs photodiode, 1.0mm square detector area, TO-18 case. New in Factory anti-static bulk pack. Min.(A/W)Responsivity=950m at 1.55um, NEP Max.(W/(Hz)1/2)=.20f, Ioff Max. Off-state Current=10nA at 5V(R), Max. V(R)=10V, C(T) Max. Capacitance=90pF. No longer made, hard to source.
E-Mail US!CLICKCLICK HERE to E-Mail us an order!
52 pcs.
sale
NEW
$6
each
S5821-01

Hamamatsu S5821-01 PIN Photodiodes

CLICK to Visit Hamamatsu for specs.


Hamamatsu end viewing, Si PIN Photodiode, 1.2mm square detector area, Modified TO-18 case. New in Factory anti-static rails (50 each). Min.(A/W)Responsivity=0.6A at 960nm, wideband optical response from 320 to 1100nm, C(T) Max. Capacitance=3pF, fc=25Mhz. Current production device, ideal for high sensitivity, wide range sensing and photometry, FULL PDF DATASHEET HERE. Very nice solid state sensor, covers partial UV to IR.
E-Mail US!CLICKCLICK HERE to E-Mail us an order!
100 pcs.
sale
NEW
$5
each
C30808F

CLICK for bigger PIC!
CLICK for bigger PIC!
CLICK for bigger PIC!
CLICK for bigger PIC!

RCA

RCA end viewing, Si PIN Photodiode, 5mm square detector area, Modified TO-5 case. New in Factory bulk box, note that individual parts are UNMARKED and gold-plated. Wideband optical response from 400 to 1100nm, FULL PDF DATASHEET HERE. Very nice solid state sensor, covers partial UV to IR, now made by Perkin-Elmer under the same number.
E-Mail US!CLICKCLICK HERE to E-Mail us an order!
20 pcs.
sale
NEW
$5
each
OSD5-0A

CLICK for bigger PIC!
CLICK for bigger PIC!

CLICK for bigger PIC!
CLICK for bigger PIC!
CENTRONIC OSD5-0A

Centronic OSD5-0A end viewing, Si Photodiode, 2.62mm diameter detector area, Modified TO-5 case. New in Factory bulk bags of 10, wideband optical response from 430 to 1064nm, FULL PDF DATASHEET HERE. Very nice solid state sensor, covers partial UV to IR, no data on the A suffix meaning.
$5 Ea, $40/bag of 10

E-Mail US!CLICKCLICK HERE to E-Mail us an order!
90 pcs.
sale
NEW
$5
each
CL605

CLICK for bigger PIC!
CLICK for bigger PIC!
CLAIREX CL605

Clairex CL605 end viewing, glass sealed CdS Photoresistor New in Factory individual packs. 166K to 11M dark resistance.FULL PDF DATASHEET HERE.
$4 Ea

E-Mail US!CLICKCLICK HERE to E-Mail us an order!
22 pcs.
sale
NEW
$4
each
ETE logo
ETE FACT50 PMT Cooling Chamber

CLICK for bigger PIC!
CLICK for bigger PIC!
CLICK for bigger PIC!
CLICK for bigger PIC!


ETE FACT50 PMT cooler

ETE FACT50 PMT cooler, with solid state chiller and fan airflow system. Excellent condition, needs an external power supply, high current DC + AC for the fan. Can also be used as a small cooling chamber for other devices. FULL PDF DATASHEET HERE.
$45

E-Mail US!CLICKCLICK HERE to E-Mail us an order!

CLICK for bigger PIC!
CLICK for bigger PIC!
Just 1
sale
NEW
$45
each



E-mail us
*Want something? Click here to e-mail us!
We accept Visa/MC for fast order processing.


Phototubes and PMT/Photomultiplier Tubes
In Order by CORE NUMBER

TUBE NUMBER
MANUFACTURER/ NOTES
QUANTITY
UNIT PRICE
1P28
1P28
1P28
RCA
RCA and Hamamatsu High performance, 9 stage S-5 response, side-viewing photomultiplier tubes.

Factory new, mil and re-boxed.

SORRY, SOLD
NEW
$95
each
1P28HA
1P28HA Back
1P28HA Front

CLICK to Visit Hamamatsu for specs.


Hamamatsu High performance, 9 stage S-5 response, 185-700nm, side-viewing photomultiplier tubes with integral light shield. Unused bulk stock, dark stored, re-boxed, perfect condition, 1988/89 date codes.
SORRY, SOLD
NEW
$125
each
1P28HA
1P28HA Back
1P28HA Front

CLICK to Visit Hamamatsu for specs.


Hamamatsu High performance, 9 stage S-5 response, 185-700nm, side-viewing photomultiplier tubes with integral light shield. Slightly used for testing, bulk stock, dark stored, re-boxed, 1988/89 date codes.
SORRY, SOLD
$95
each


Phototubes and PMT/Photomultiplier Tubes
In Order by CORE NUMBER

TUBE NUMBER
MANUFACTURER/ NOTES
QUANTITY
UNIT PRICE
930
RCA
RCA gas photodiode, S-1 response photodetectors in standard octal format. See also 1P40. White boxed and re-boxed, sixties date codes, but look very good.
3 RCA
NEW
$25
each
931-A
931A

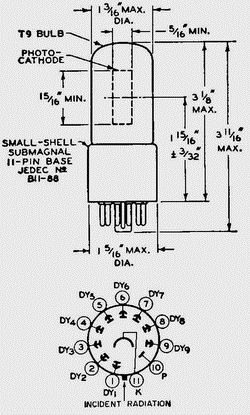

931A Pinout


sylvania
RCA


RCA and Sylvania 9 stage, side viewing popular photomultiplier. S-4 response photodetector with special Corning No. 0080 glass envelope, runs up to 1250VDC.

Premium beige based (non-hygroscopic) tubes, 70's manufacture, VERY HARD TO GET! New in factory boxes. Same outline and base diagram as 1P21. Have some 931B, and used 931A's as well, email for details.

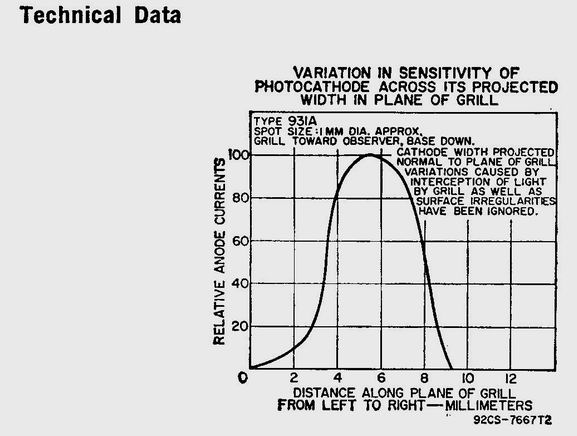

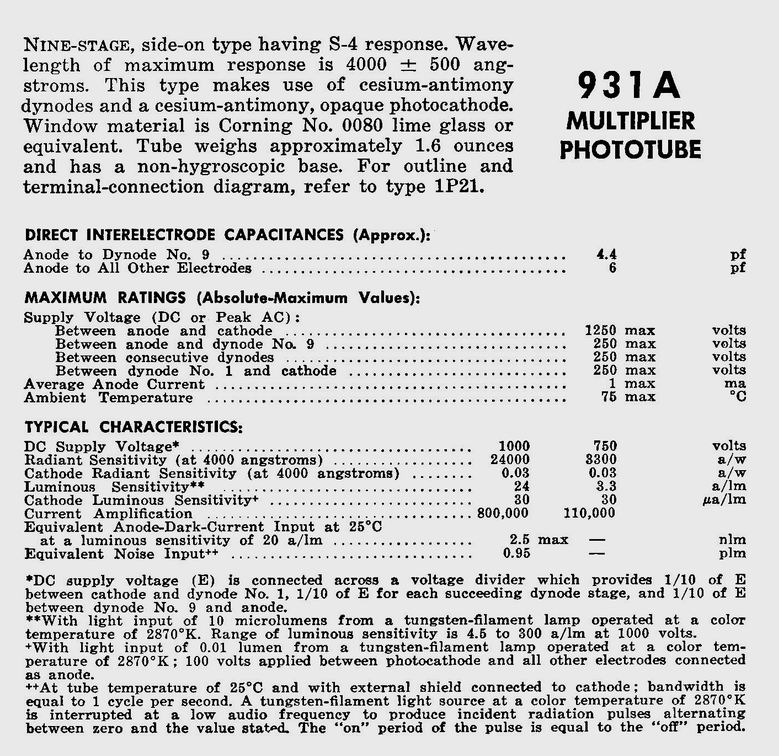

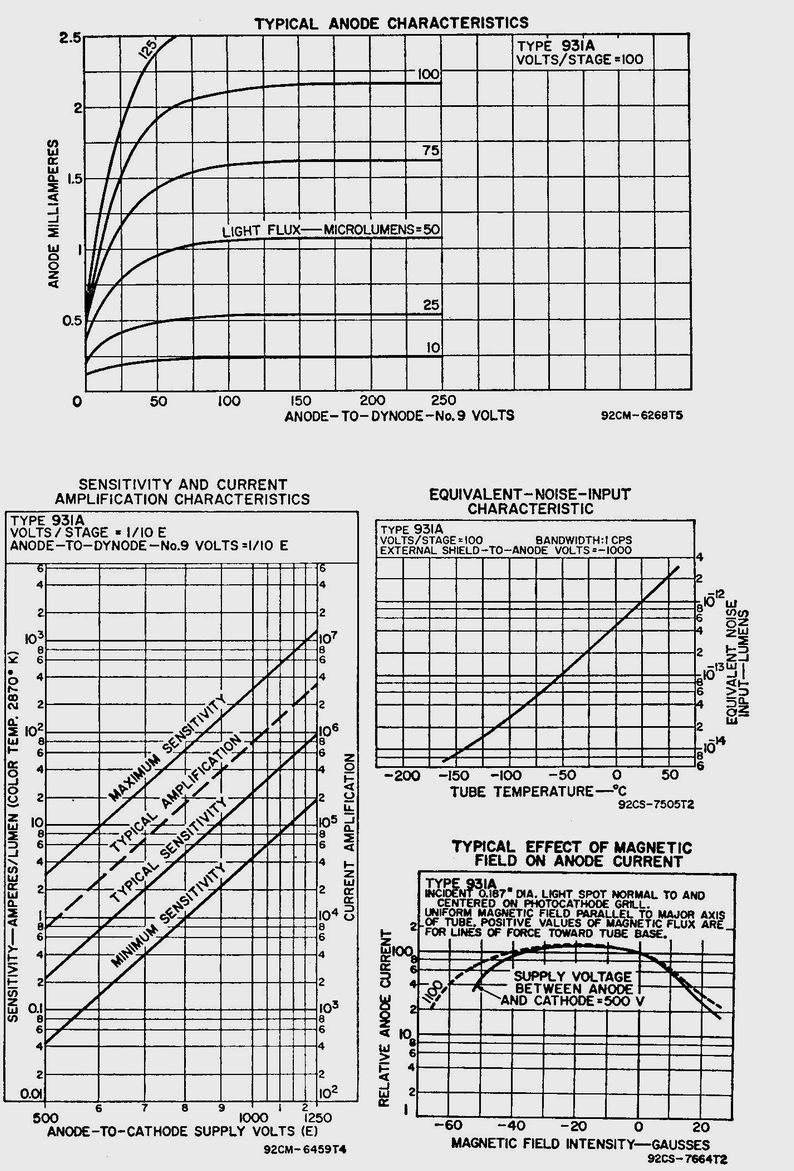

CLICKCLICK HERE for data sheet 1.

CLICKCLICK HERE for data sheet 2.

CLICKCLICK HERE for data sheet 3.
3 pcs.
NEW
$95
each
931-A
931A


GE 931A
Raytheon 931A


GE and Raytheon 9 stage, side viewing popular photomultiplier. S-4 response photodetector with special Corning No. 0080 glass envelope, runs up to 1250VDC.

Premium beige based (non-hygroscopic) tubes, VERY HARD TO GET! New in factory boxes. Same outline and base diagram as 1P21.

CLICKCLICK HERE for data sheet 1.

CLICKCLICK HERE for data sheet 2.

CLICKCLICK HERE for data sheet 3.
6 GE
4 Raytheon
NEW
$95
each
JAN-931VA

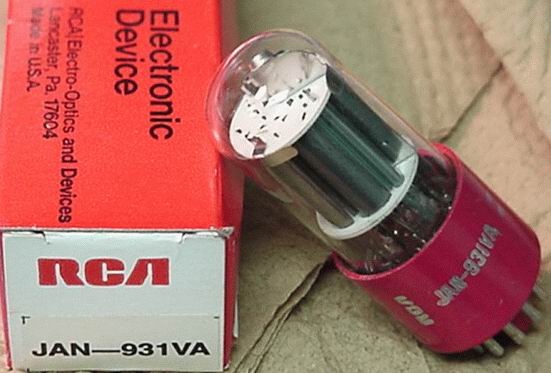

RCA JAN-931VA
Click for bigger PIC!




RCA JAN-931VA

RCA
RCA 9 stage, side viewing popular photomultiplier. S-4 response photodetector with special Corning No. 0080 glass envelope, runs up to 1250VDC.

Premium red based (non-hygroscopic) mil-spec tubes, late manufacture, VERY HARD TO GET! New in factory boxes. Same outline and base diagram as 1P21.
CLICKCLICK HERE for data sheet 1.
CLICKCLICK HERE for data sheet 2.
CLICKCLICK HERE for data sheet 3.

931A Pinout
6 pcs.
NEW
$125
each
