RCA Data
CRT (Cathode Ray Tube) and
PMT (Photomultiplier Tube) Data

IMPORTANT! This reference data is provided for your convenience only, these specific items are not for sale.
To see cathode ray tubes FOR SALE:

CRTs CLICK HERE!

PMTs/PhototubesFor PMTs, CLICK HERE!



go right to the catalog! Skip the INTRO, Go RIGHT to the CATALOG!
CRT / PMT Data:
This section has detailed specifications and connection data for these specialized tubes. Additional on line sites like Frank's can provide additional data on tubes not listed here.

* NAVIGATION: To make your life easier, and help you find exactly what you want, we have broken the on-line equipment catalogs into smaller sections. Just CLICK on the item you are looking for at the left, to see the matching catalog. Large graphical catalogs are a bit SLOW, so please give them a bit of time to load. The top header of each catalog is largely the same, so don't think you are stuck in one place!

* ORDERING: You can order anything here just by picking up the phone, and calling +1 (250) 769-1834 during normal office hours, 8:30am to 4:30pm, PST. We process VISA/MC orders immediately. Or, EMAIL YOUR ORDER HERE!

Shipping*SHIPPING: Preferred and Alternate Methods as of June 4, 2013, CLICK for FULL DETAILS ON OUR FAQ Page. Rates are now changing rapidy, often with little notice to us, so all the data has been transferred to the FAQ page for speedy updating.

E-Mail Susan if you want a quote for shipping to other destinations, or for something heavy. Sorry, we can't safely send individual small parts in a regular letter envelope, they get destroyed by the automated handling equipment.

We can also ship FedEx or UPS when time or weight is critical, and over-night FedEx P1 shipping is available. Note that our pick-up cut-off time is noon for FedEx. There is a packing charge for large equipment, see the FAQ for details. If we have your valid data on file, you can just click on the ORDER email link to place an order and indicate your approval to bill, and we will do the rest. If this is the first time you have dealt with us, you can phone (250) 769-1834 the billing info, or send it by the email link, as you prefer.

We accept VISA/MC or international money order

* The CATALOG will appear below shortly!
Don't forget these illustrated sections take a few seconds to load, but they are worth the wait!
E-mail us Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.



CATALOG: JUST SCROLL DOWN TO SEE EVERYTHING !down
RCA CRT, PMT, Camera and Phototube Data
COVER
CLICK for bigger PIC
CLICK for BIGGER PIC!

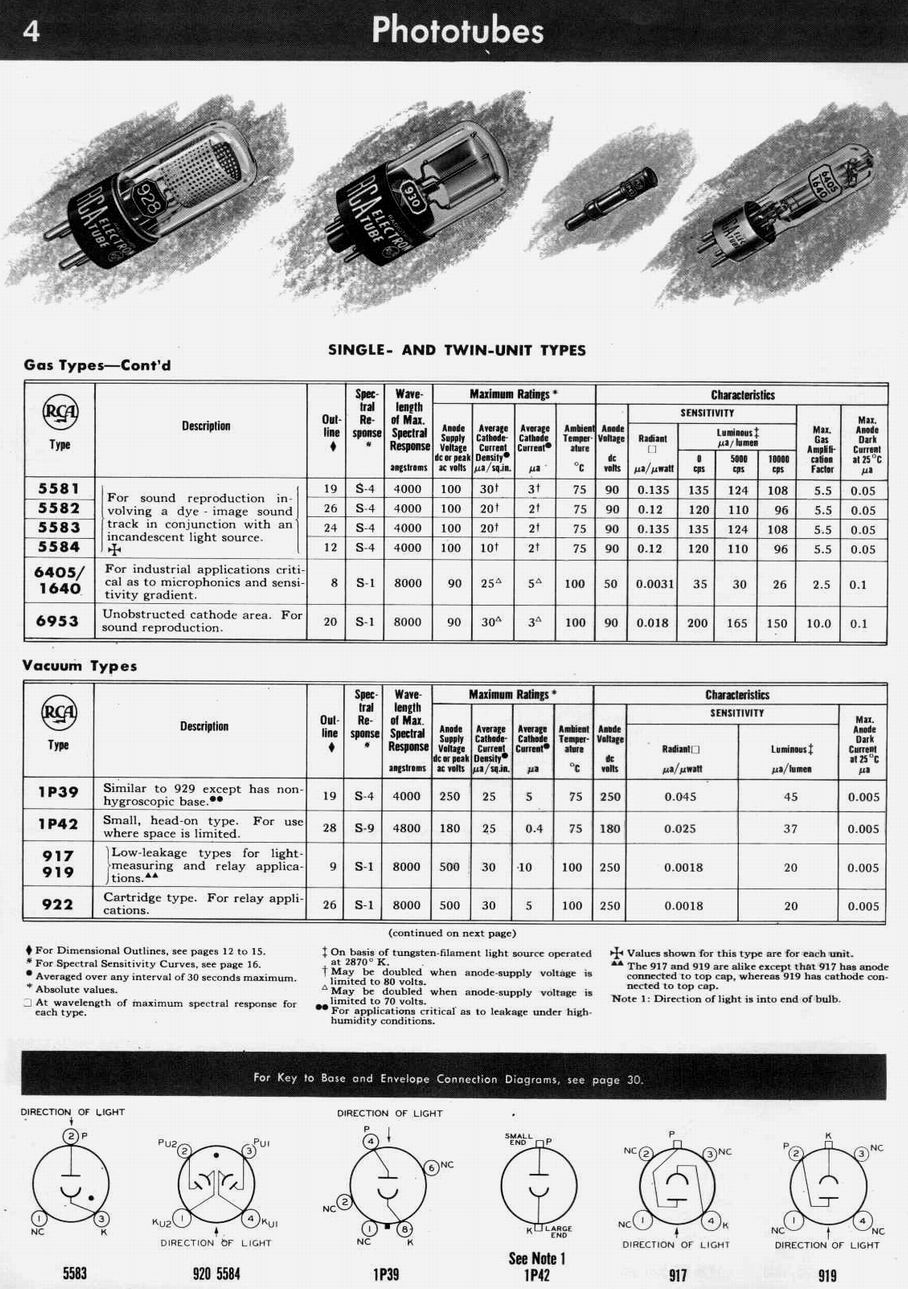

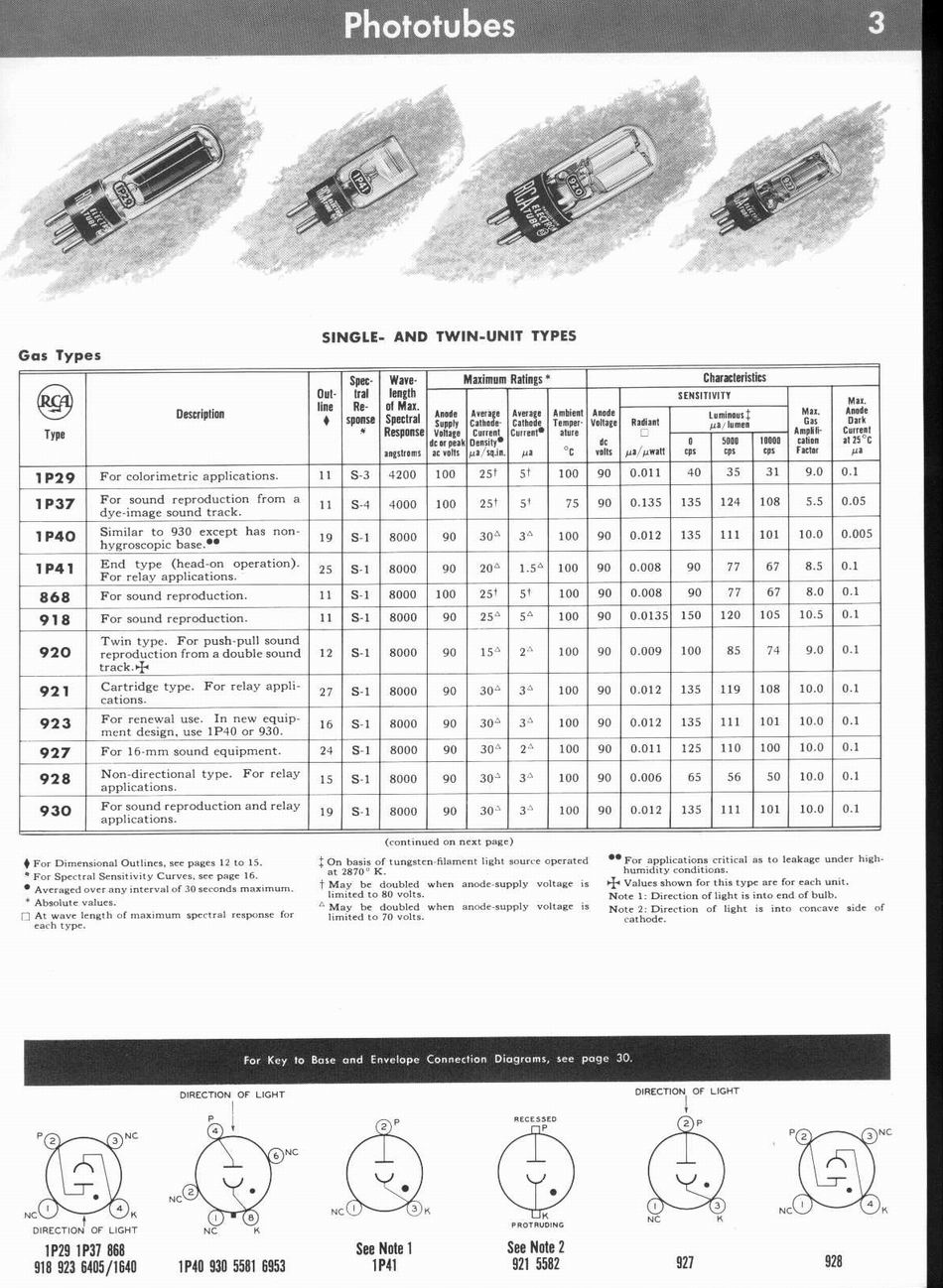

1P29-930 Phototubes
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
1P39-6953 Phototubes
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

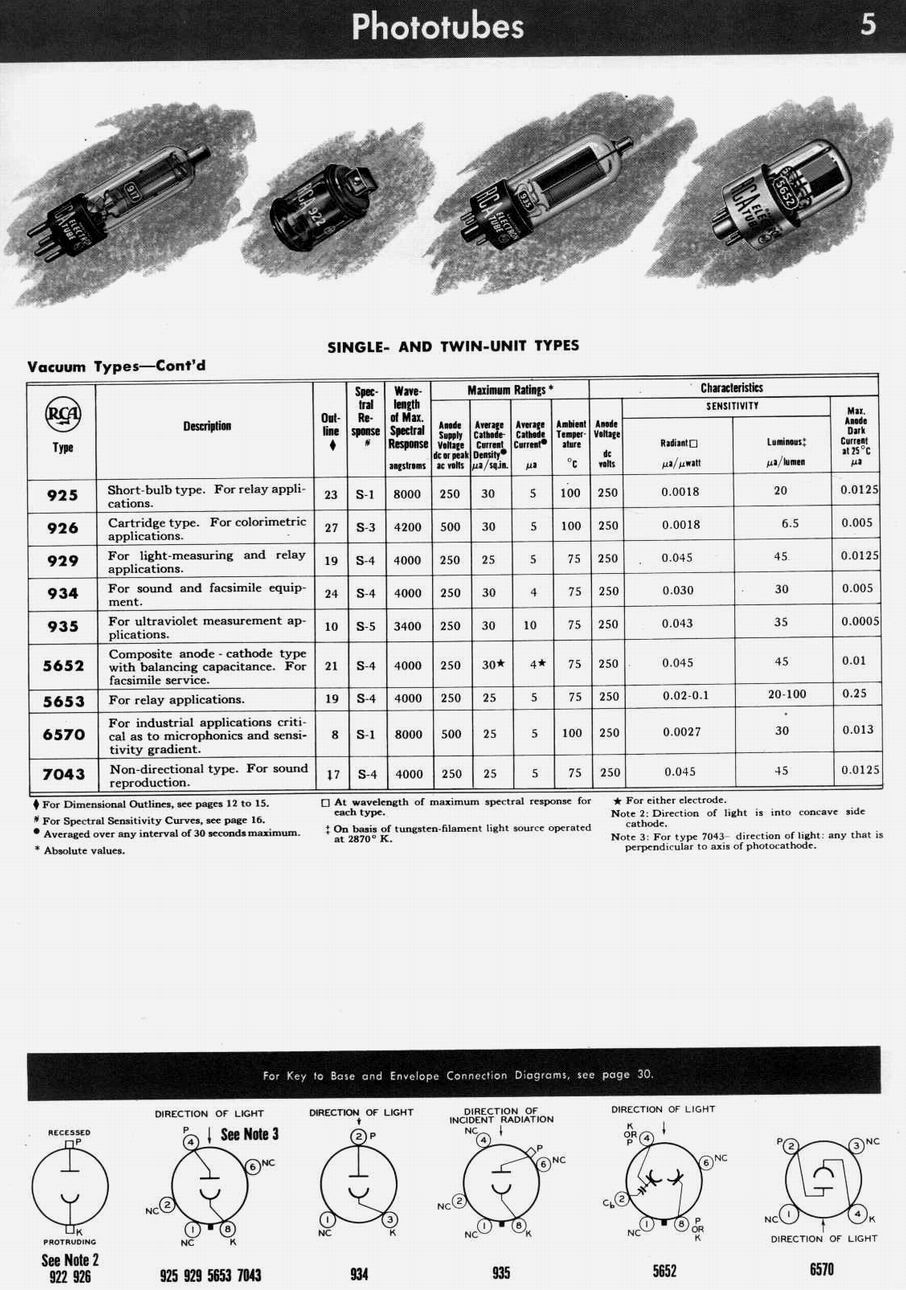

925-7043 Phototubes
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

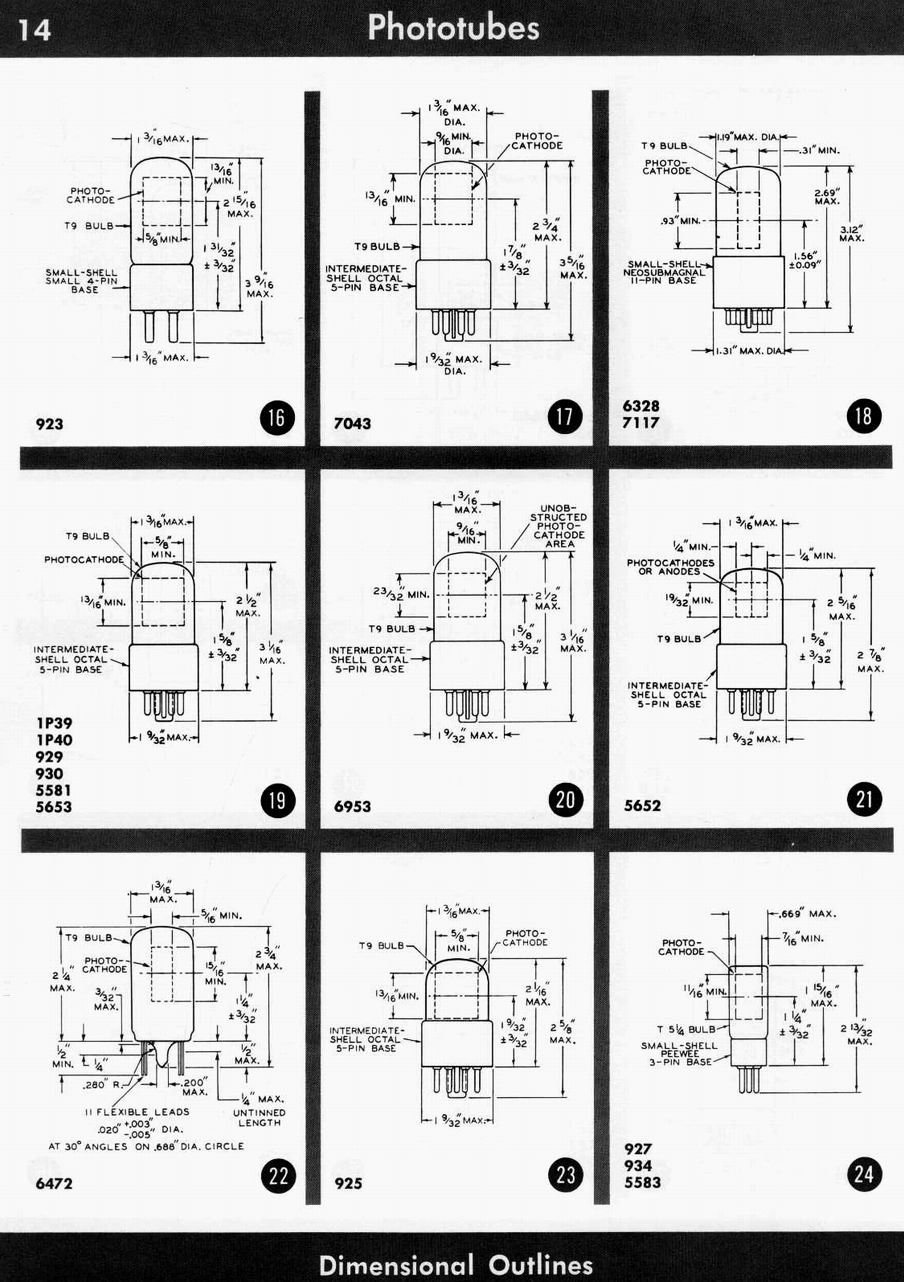

RCA Photodevices and CRTs 1P29, 1P37, 1P40, 1P41, 868, 918,
920, 921, 923, 927, 928, 930
1P39, 1P42, 917, 919, 922, 5581
5582, 5583, 5584, 6405, 6953
925, 926, 929, 934, 935, 5652
5653, 6570, 7043

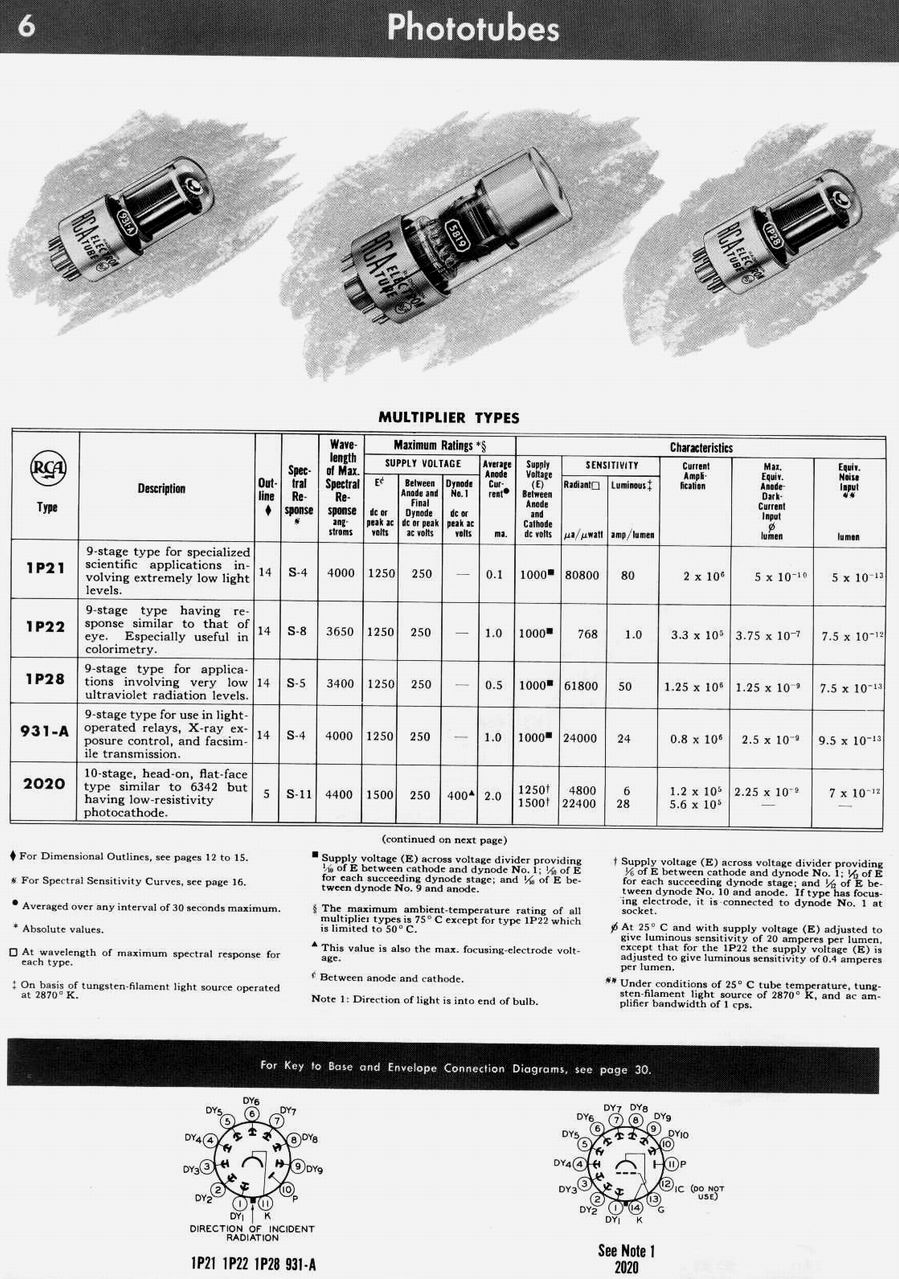

1P21-2020 PMTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

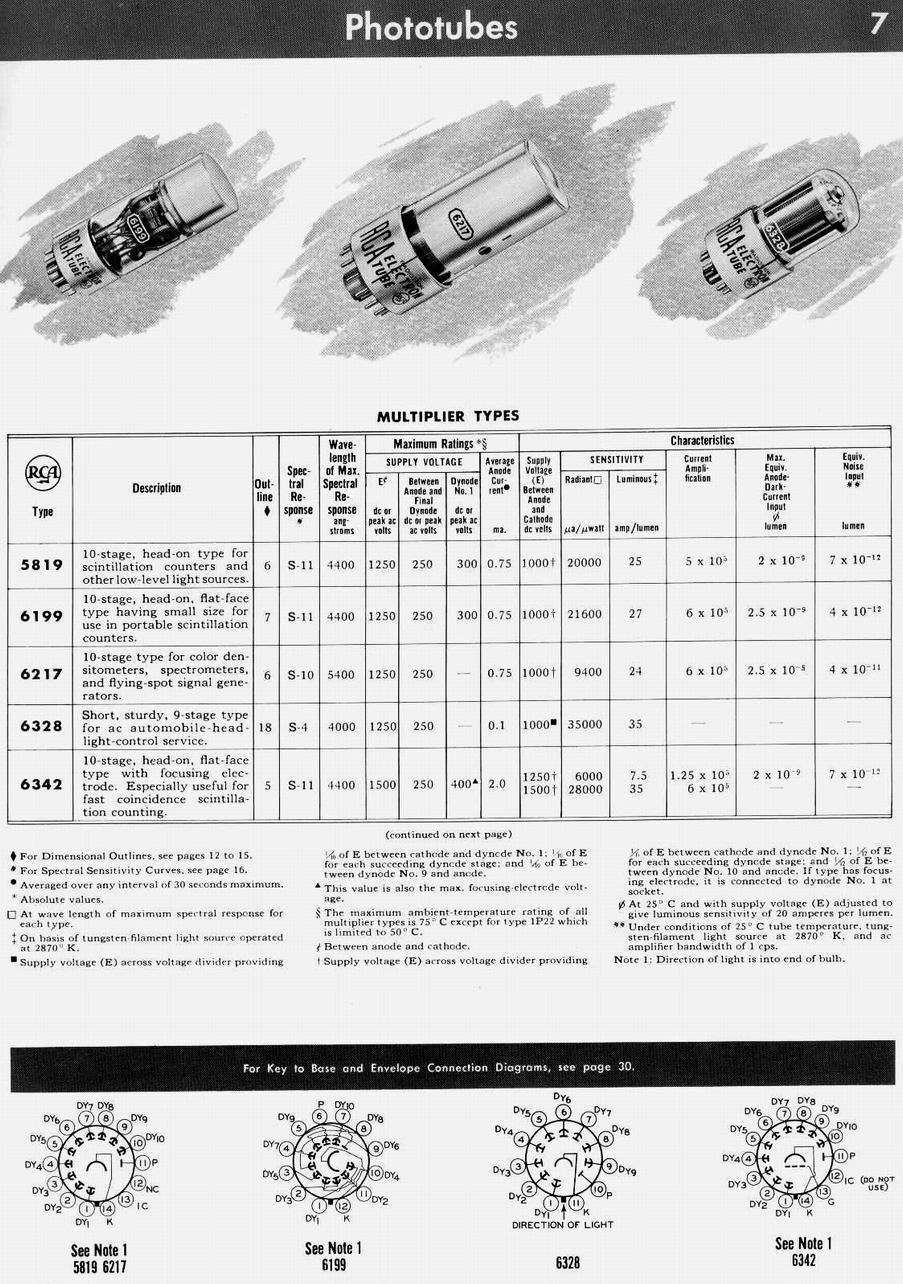

5819-6342 PMTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

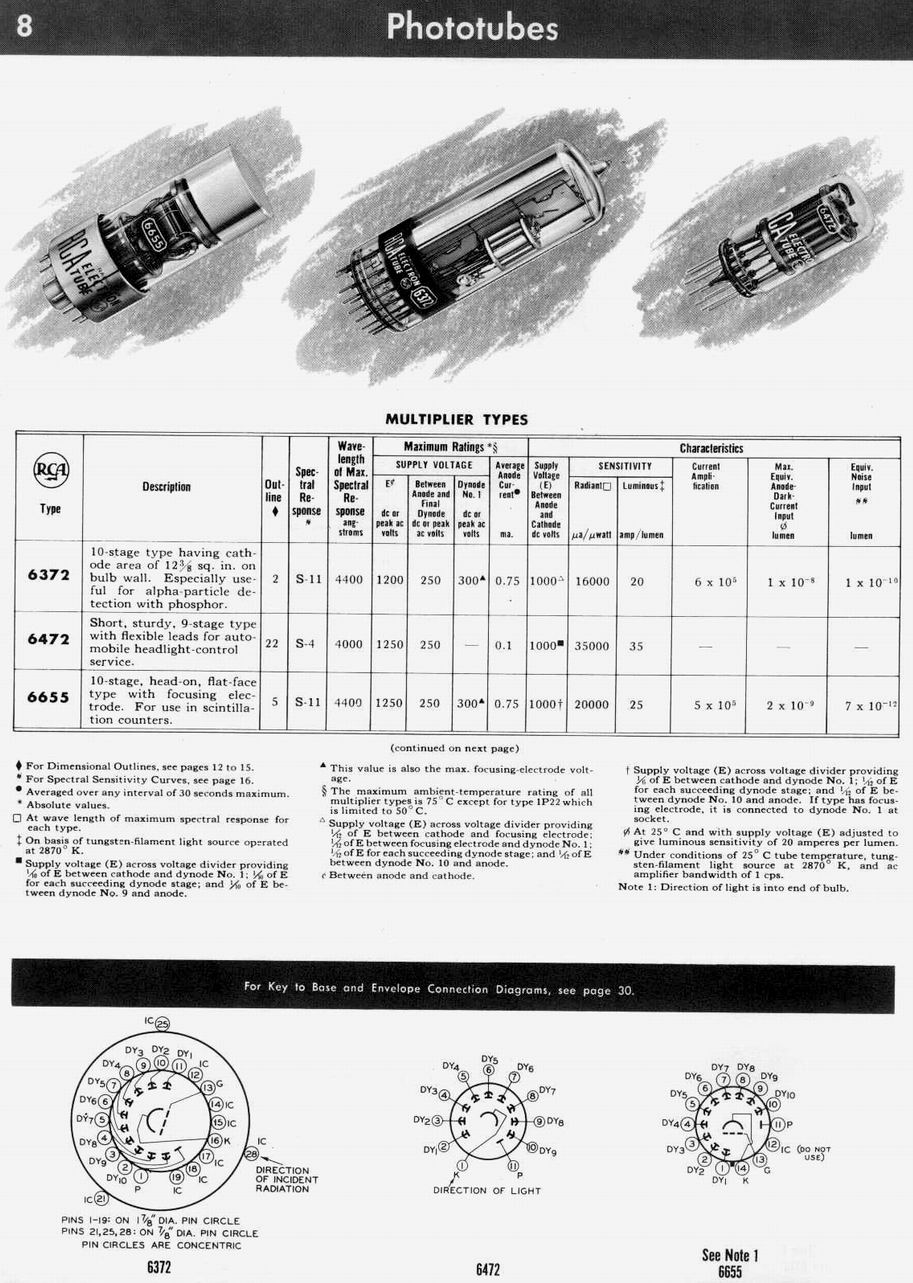

6372-6655 PMTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

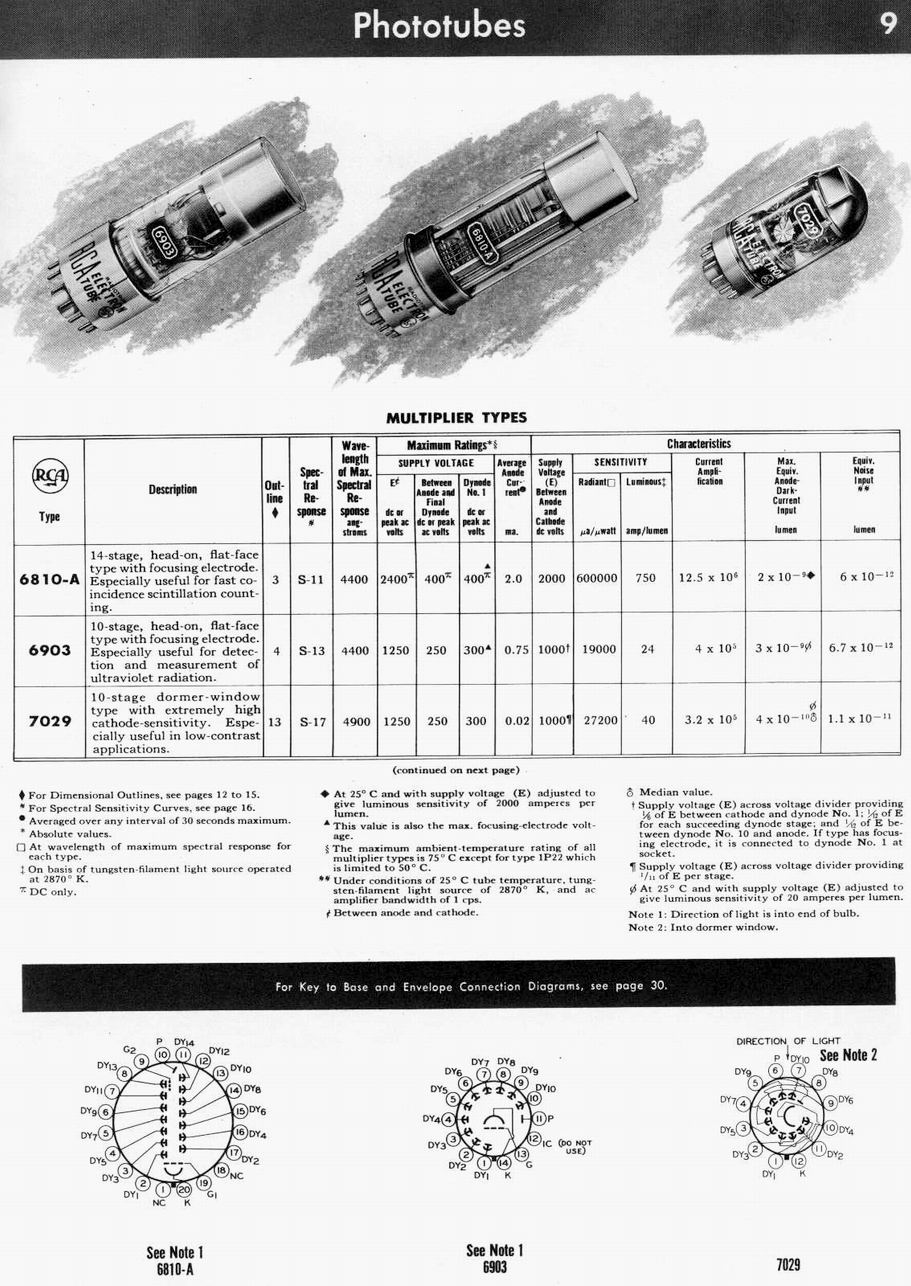

6810A-7029 PMTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
1P21, 1P22, 1P28, 931-A, 2020 5819, 6199, 6217, 6328, 6342 6372, 6472, 6655 6810-A, 6903, 7029

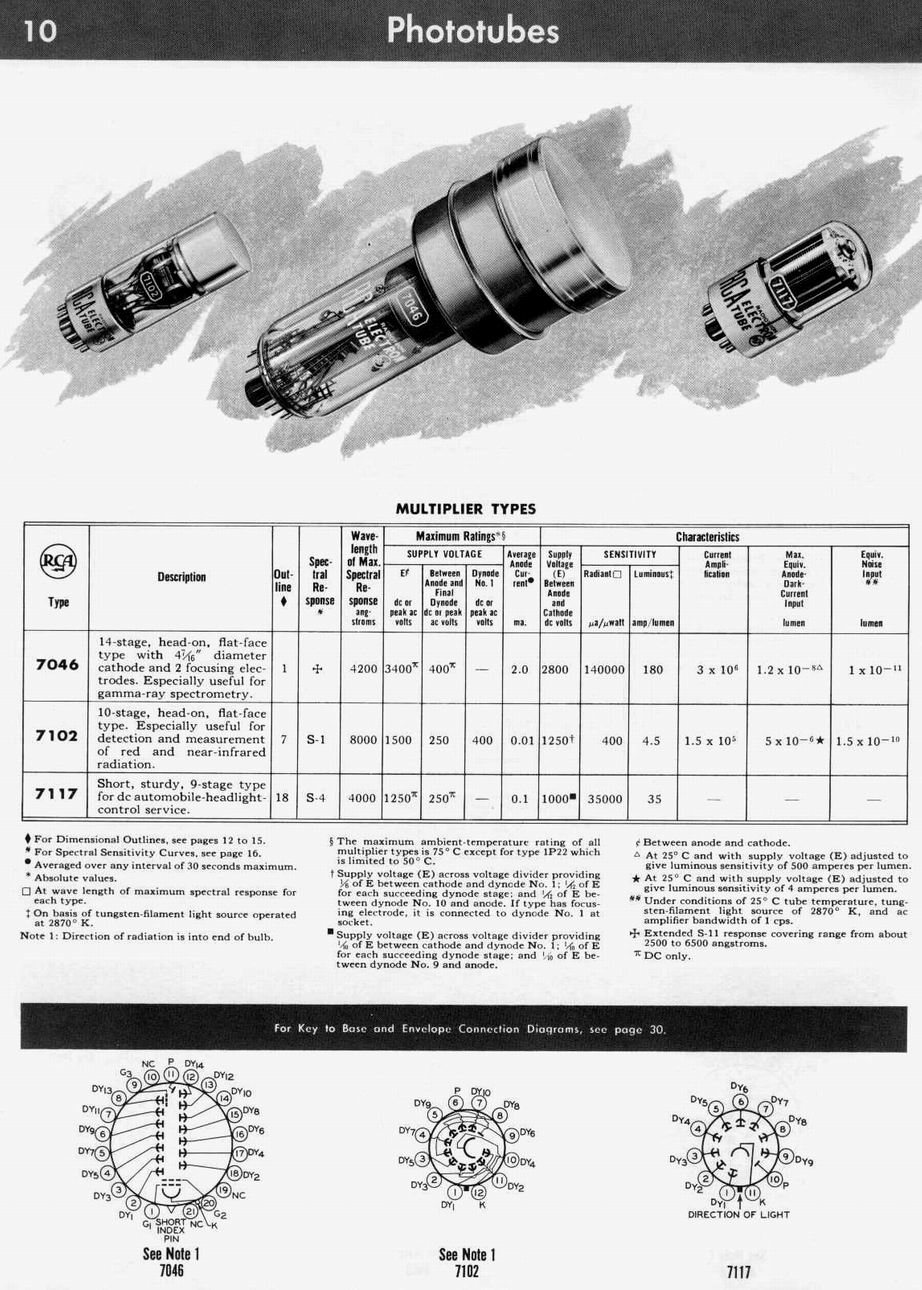

7046-7117 PMTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

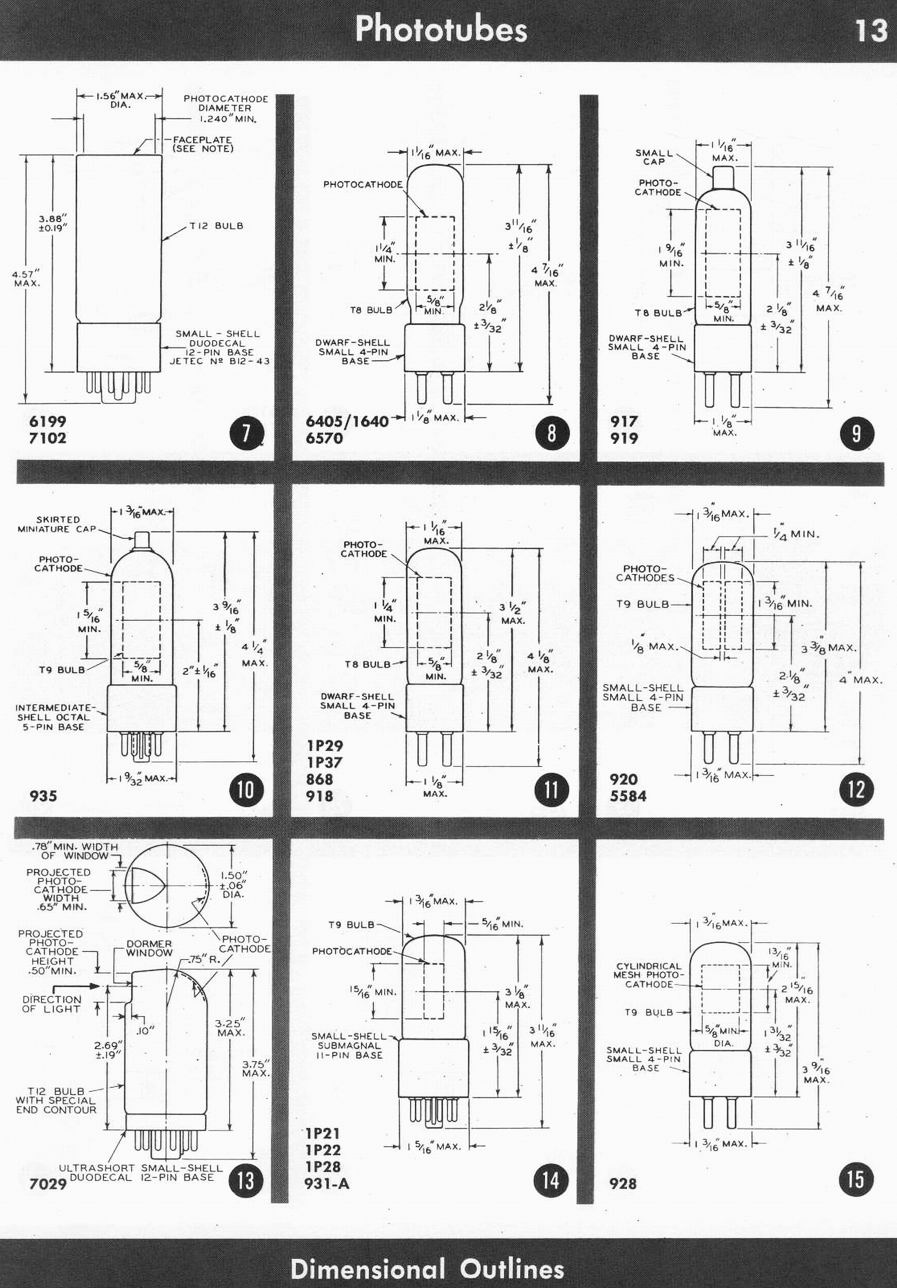

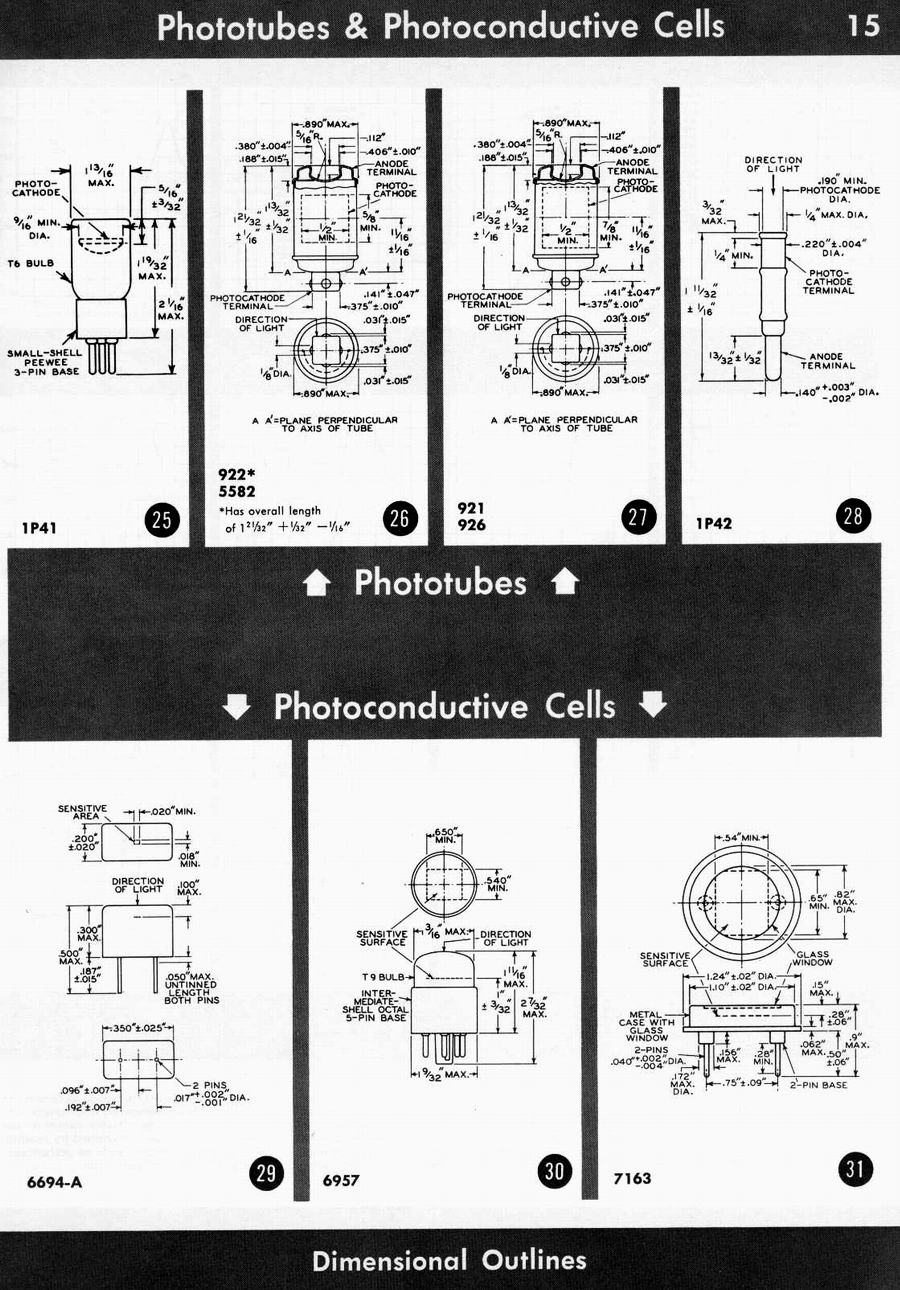

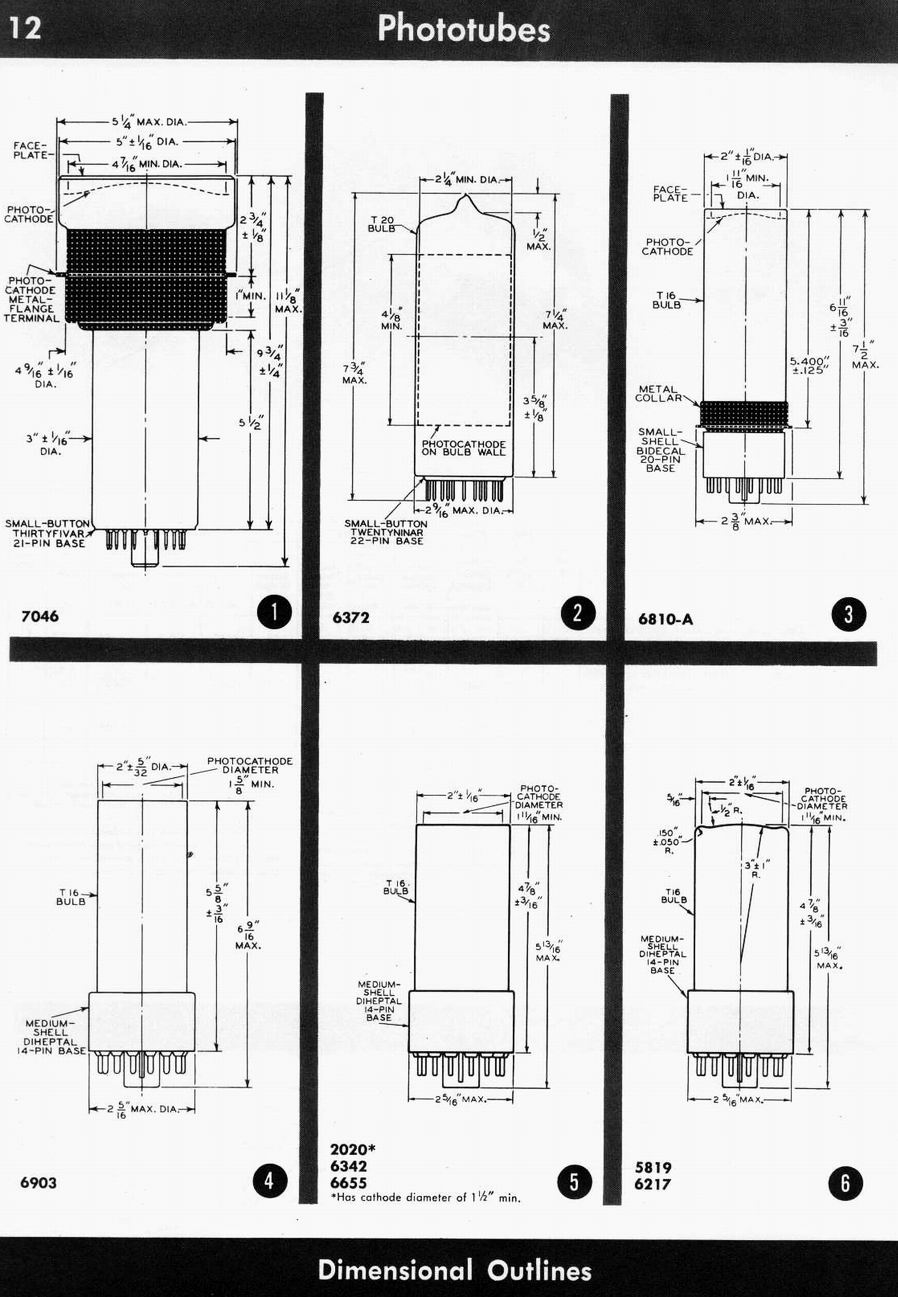

Outlines
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Outlines
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Outlines
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
7046, 7102, 7117 Outlines Outlines Outlines
Outlines
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

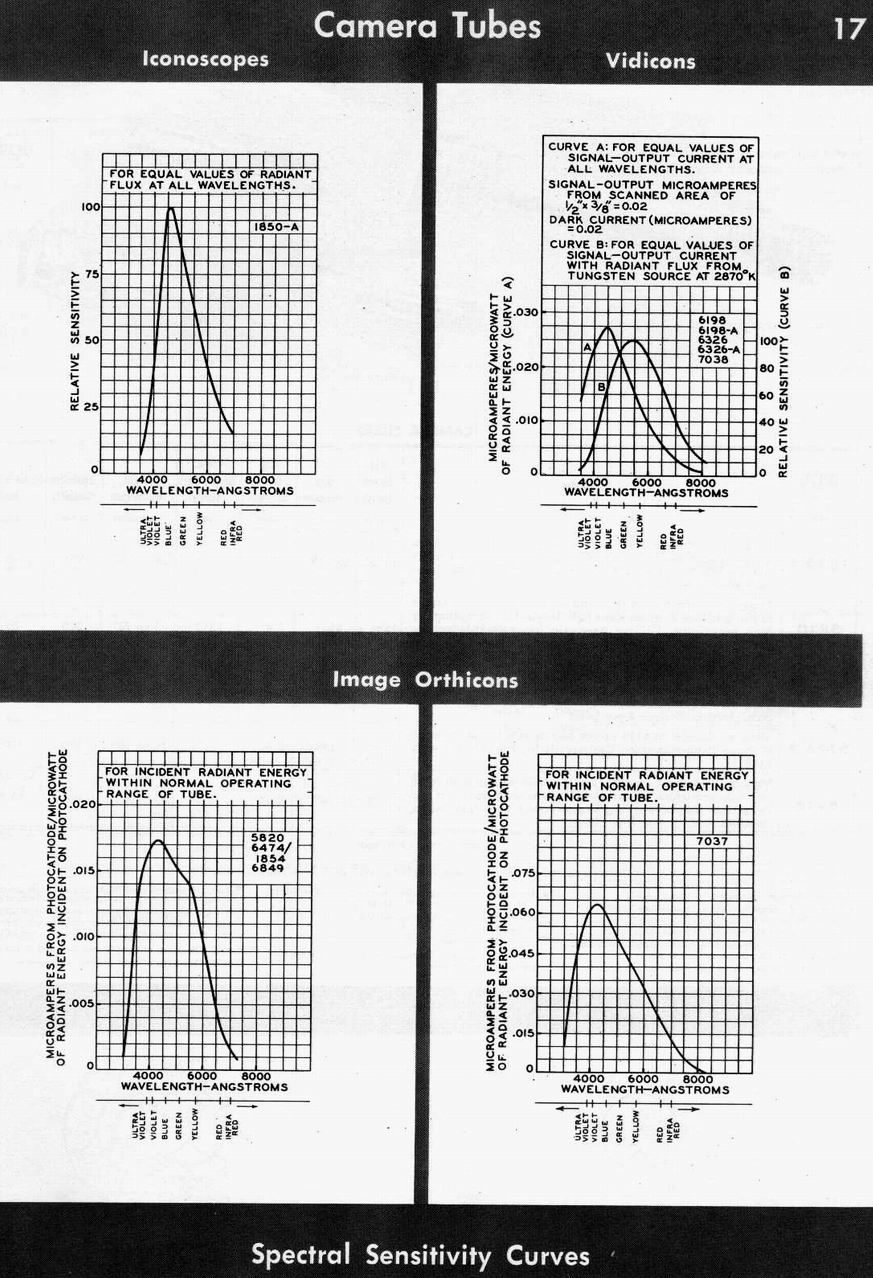

S-Curves
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

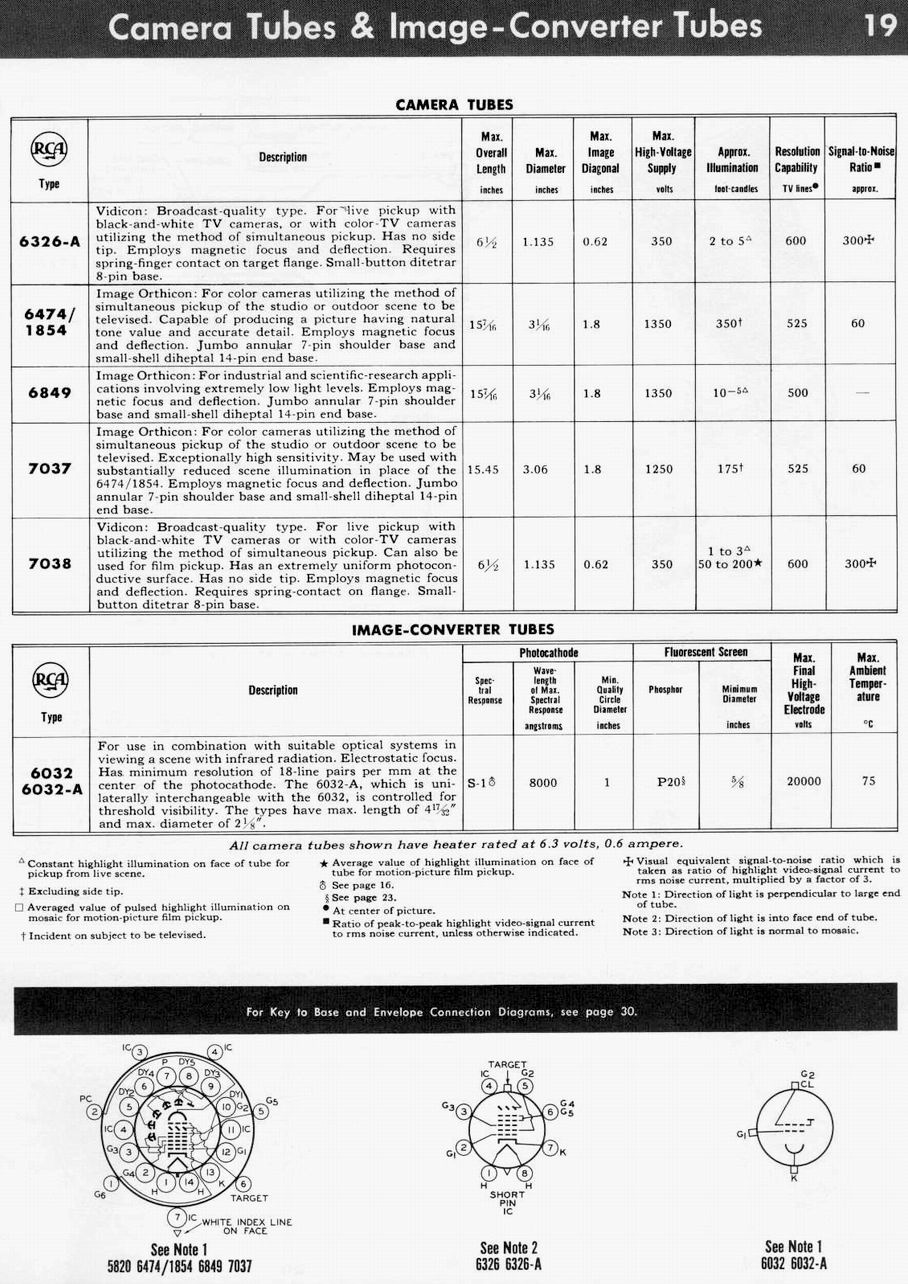

Camera Tube Curves
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Camera Tubes
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

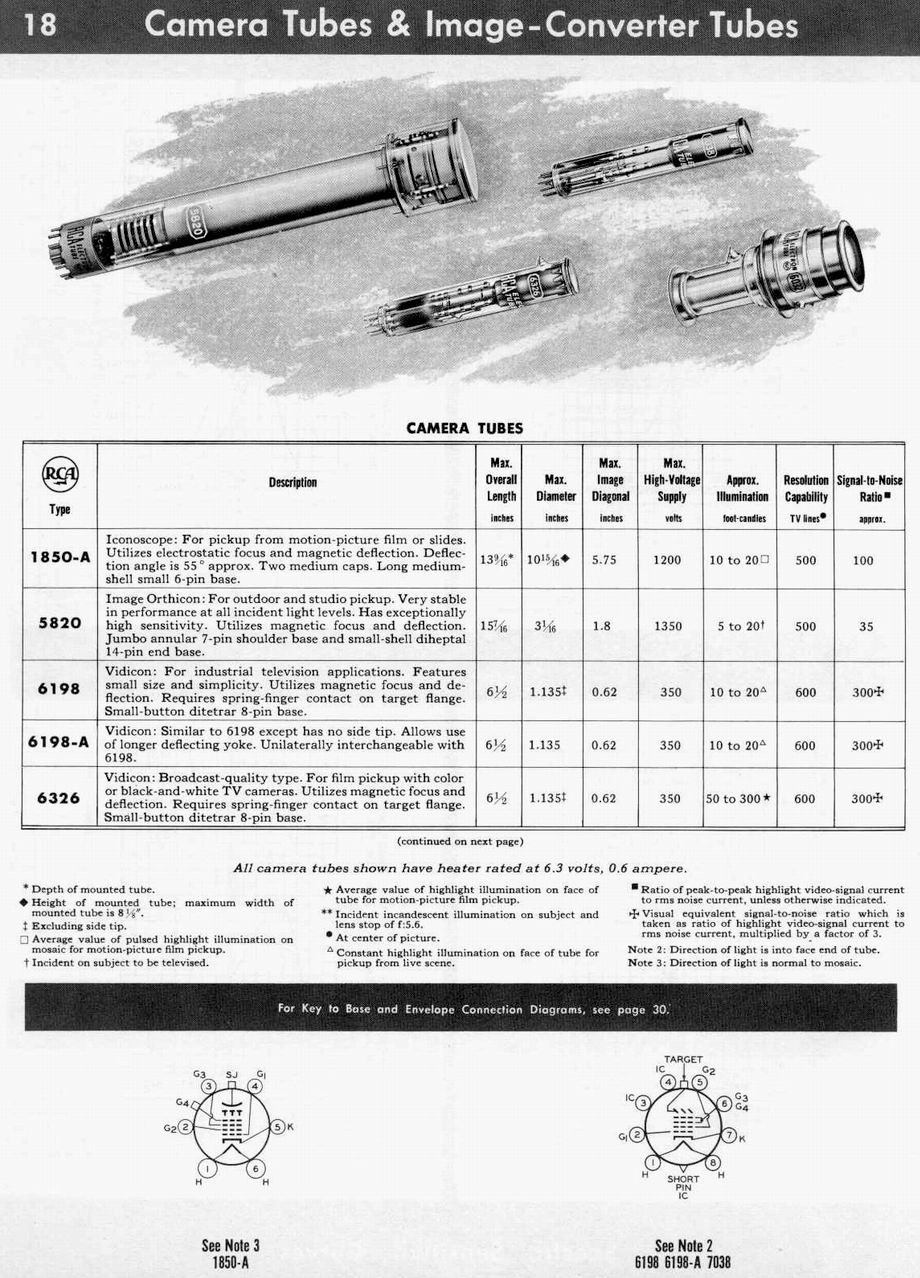

Outlines S-Curves Camera Tube Curves 1850A, 5820, 6198, 6198-A, 6326
Camera Tubes
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
Frank's Tube Data,
CLICK HERE
CLICK HERE

to see many more datasheets.

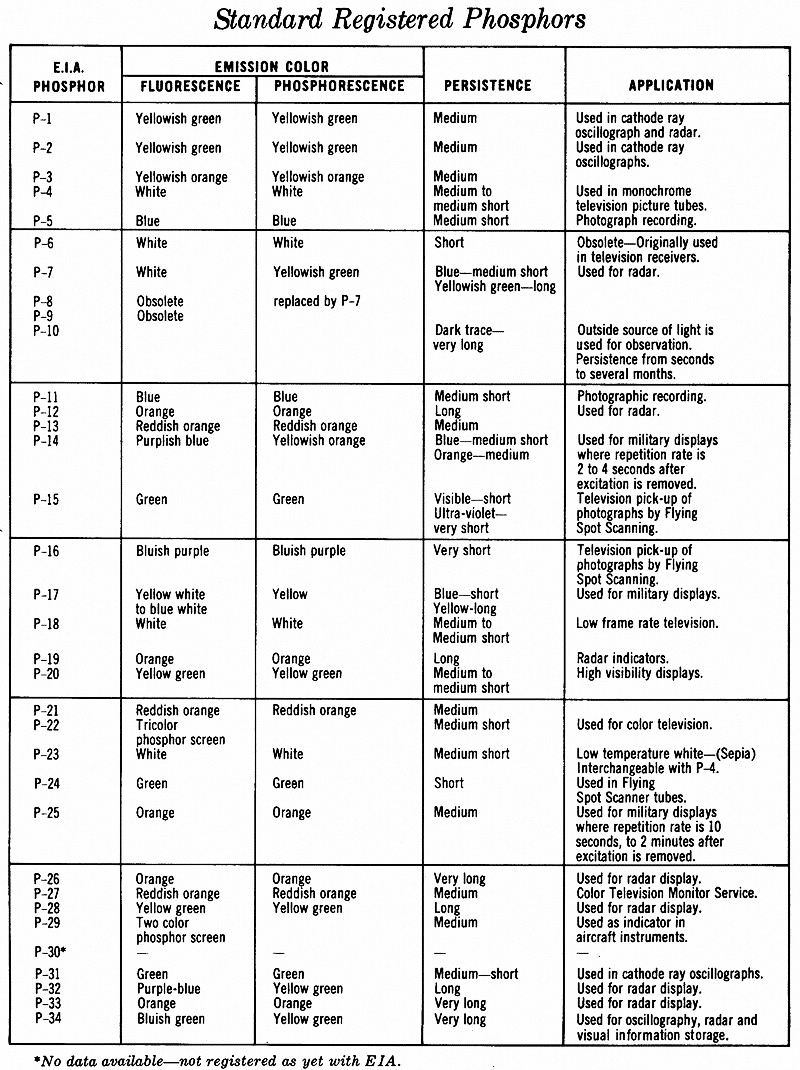

CRT CRT Phosphors
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
6326A, 6474, 6849, 7037, 7038, 6032,
6032-A
P-Designations

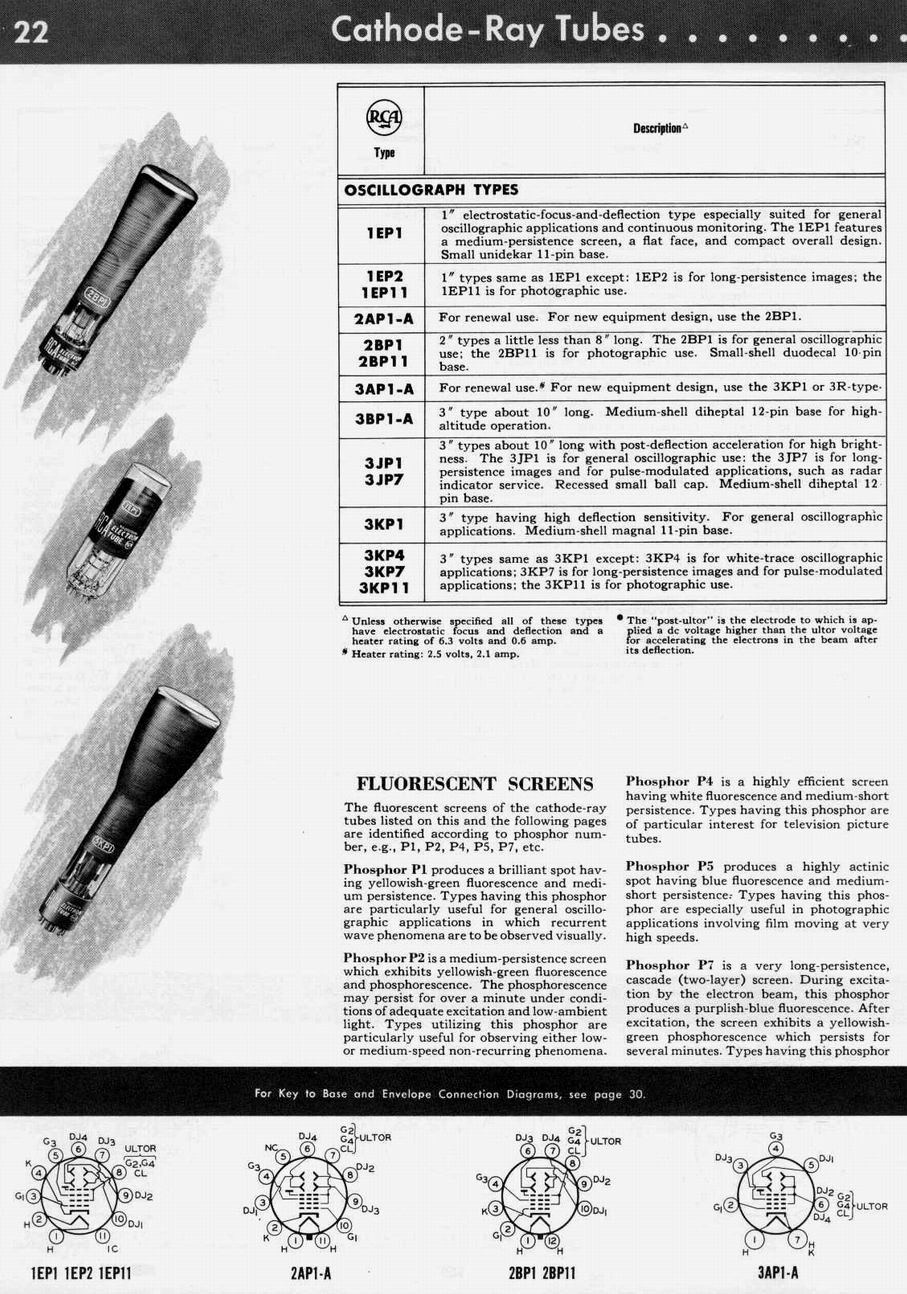

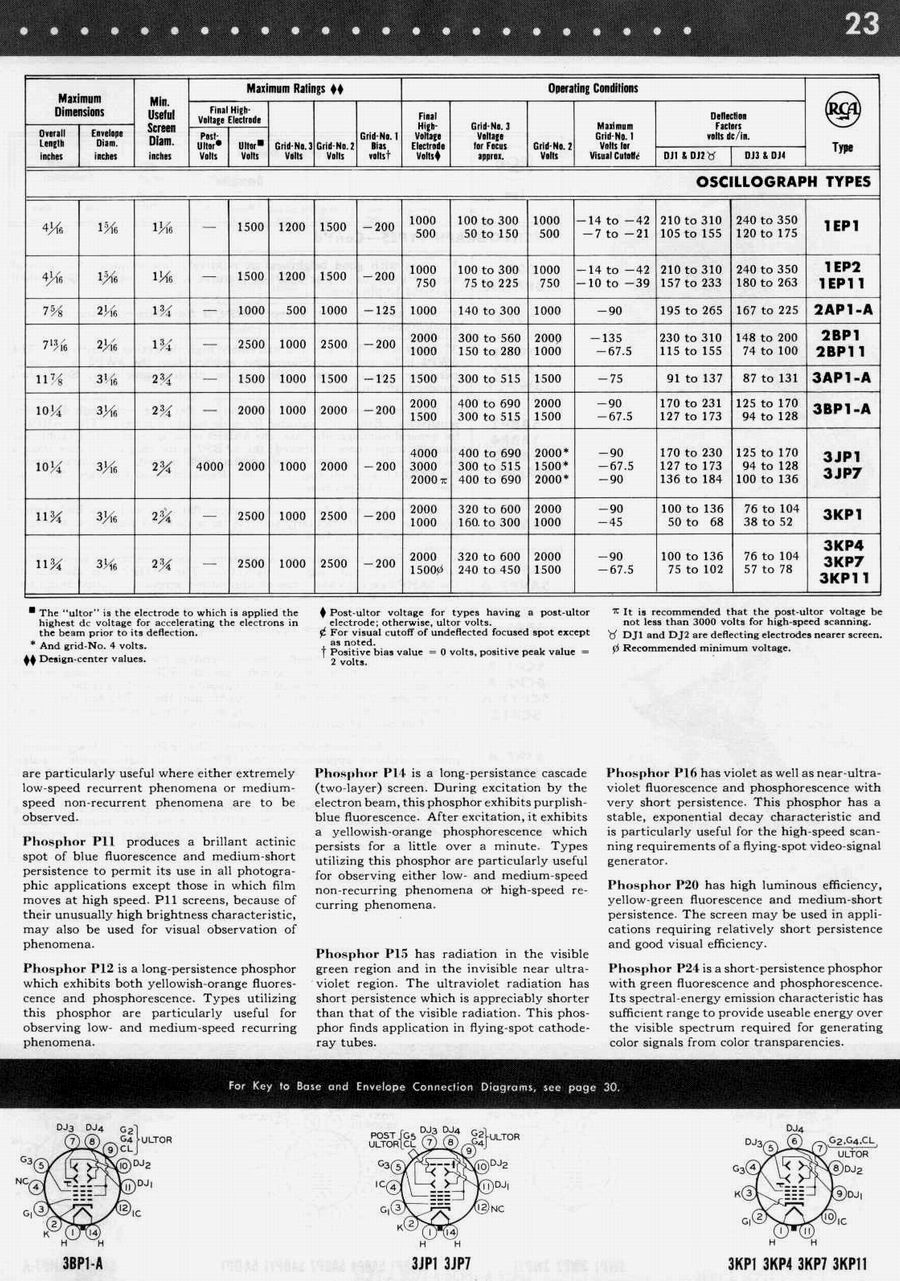

1EP1-3KP11 CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
1EP1-3KP11 CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
3RP1-5FP15A CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
3RP1-5FP15A CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

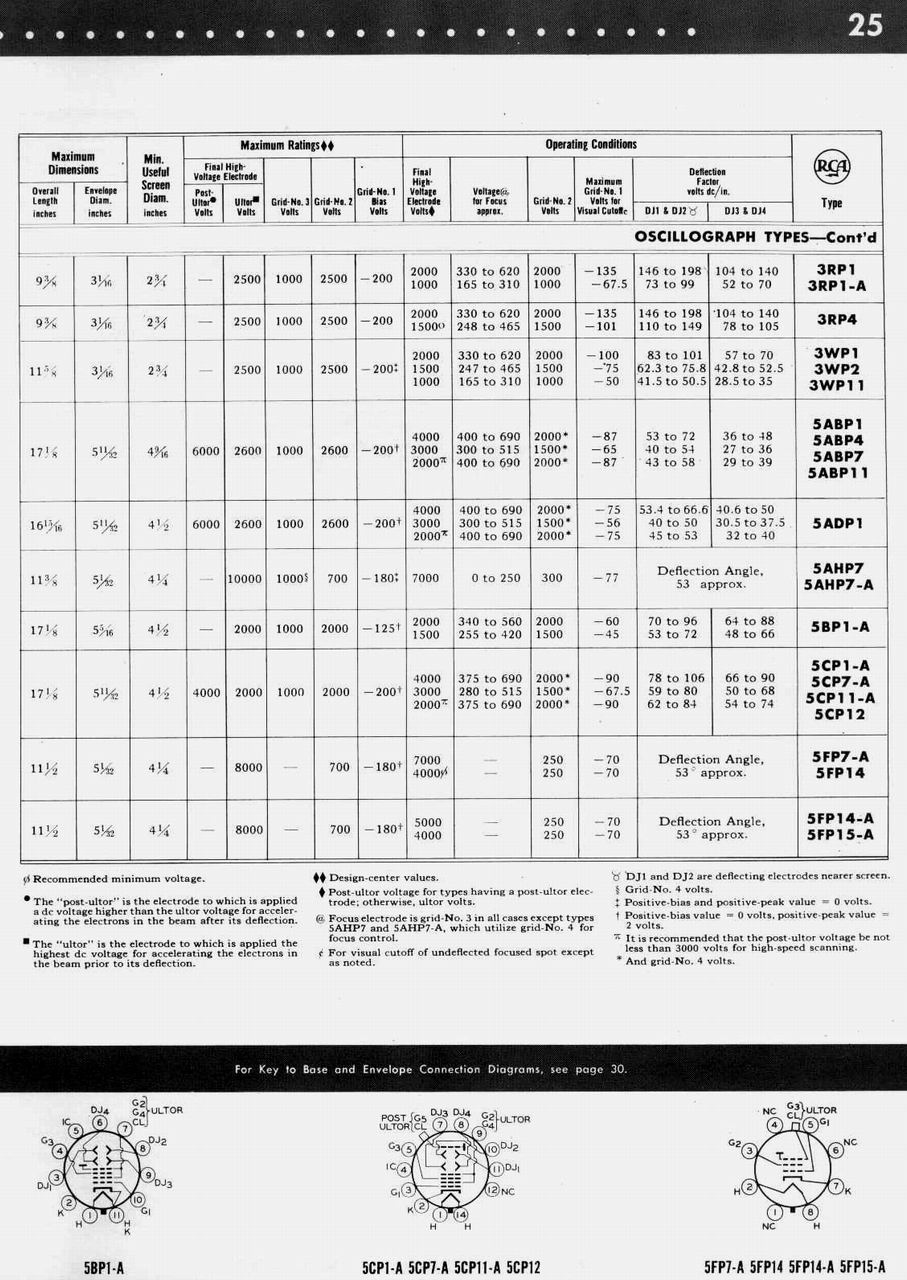

1EP1, 2AP1-A, 2BP1, 3AP1-A, 3BP1-A,
3JP1, 3KP1
1EP1, 2AP1-A, 2BP1, 3AP1-A, 3BP1-A,
3JP1, 3KP1

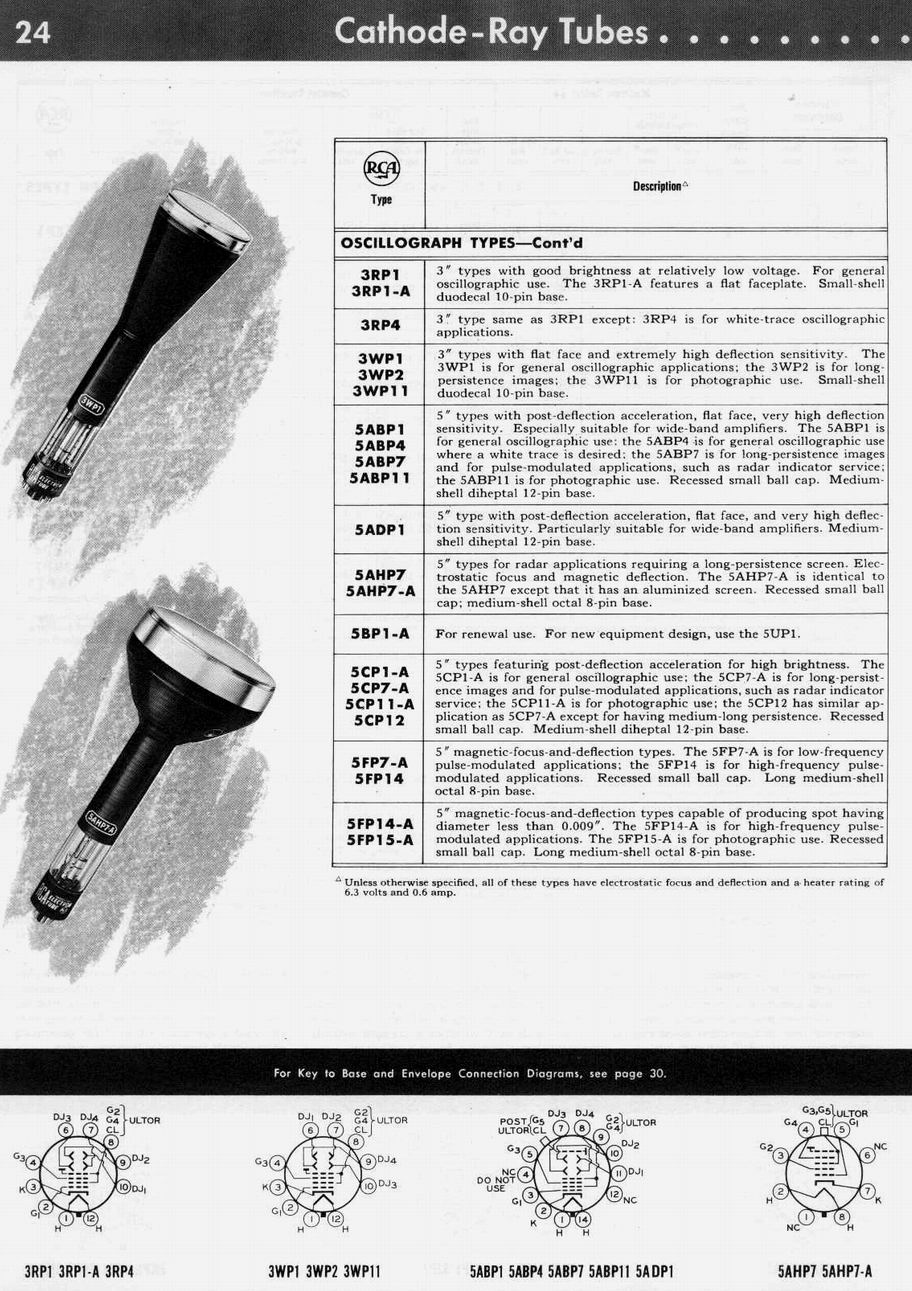

3RP1, 3RP1-A, 3WP1, 5ABP1, 5ADP1,
5AHP7, 5BP1-A, 5CP1-A, 5FP7-A
3RP1, 3RP1-A, 3WP1, 5ABP1, 5ADP1,
5AHP7, 5BP1-A, 5CP1-A, 5FP7-A
5UP1-908A CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
5UP1-908A CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

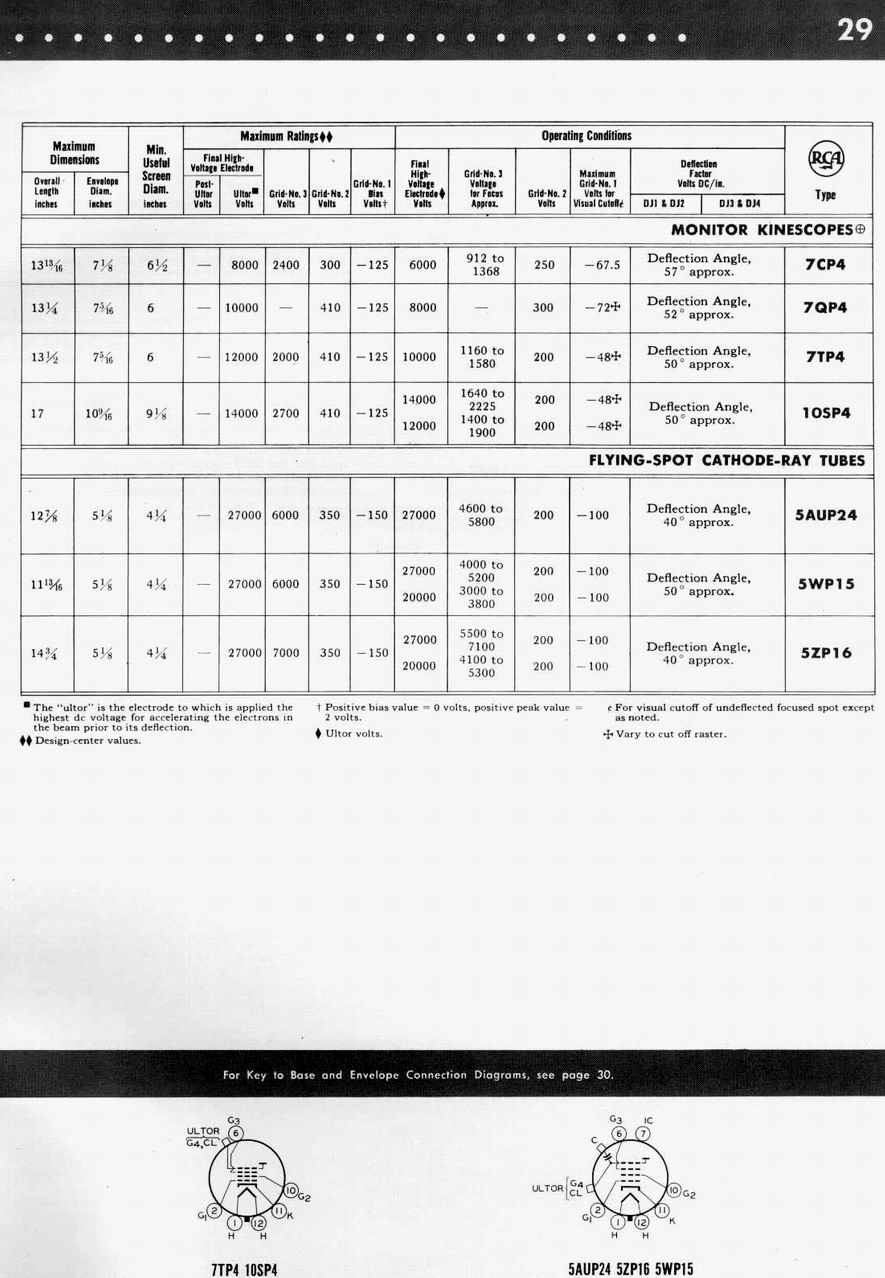

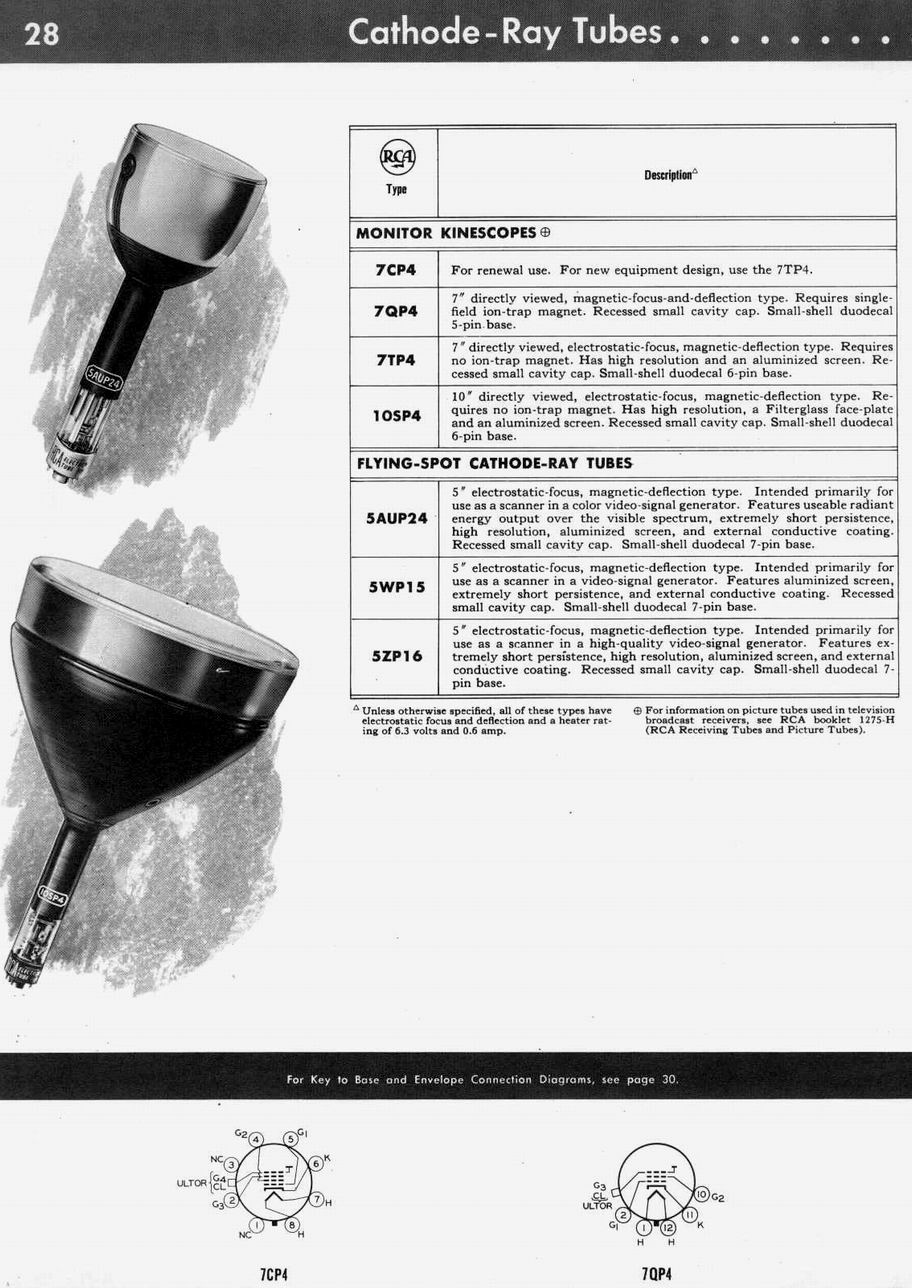

7CP4-10SP4 CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!
7CP4-10SP4 CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

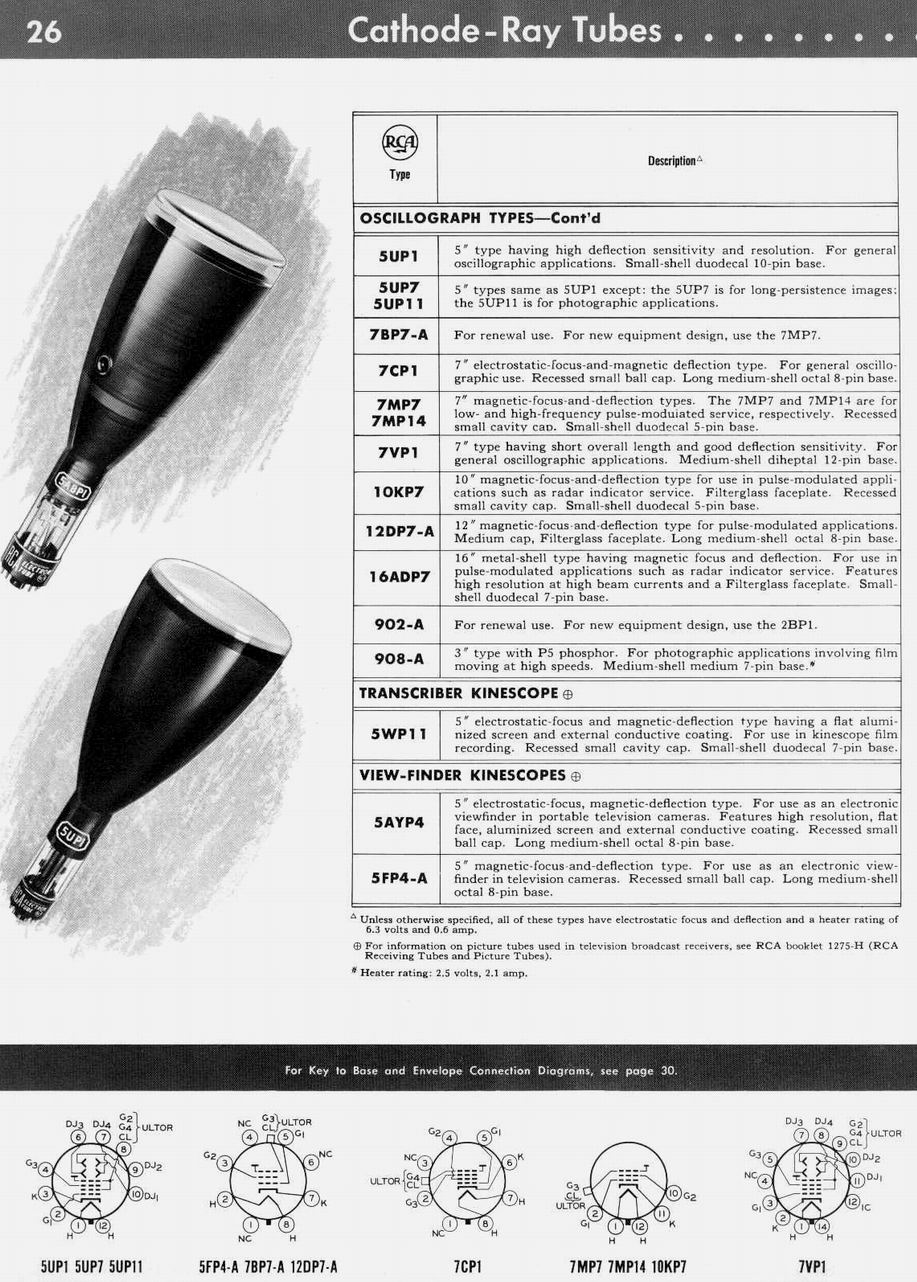

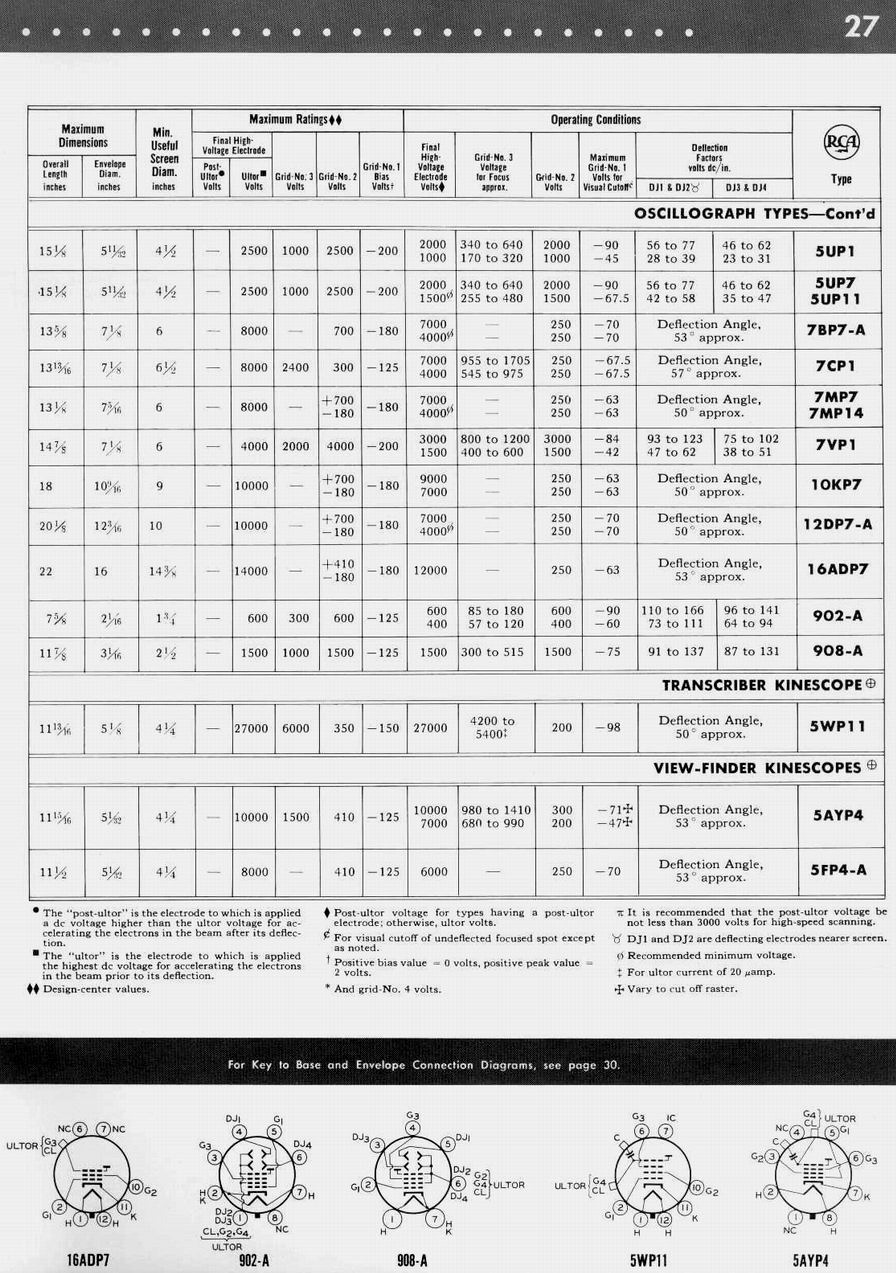

5AYP4, 5FP4-A, 5UP1, 5WP11, 7BP7-A,
7CP1, 7MP7, 7VP1, 10KP7,
12DP7-A, 902-A, 908-A
5AYP4, 5FP4-A, 5UP1, 5WP11, 7BP7-A,
7CP1, 7MP7, 7VP1, 10KP7,
12DP7-A, 902-A, 908-A
5AUP24, 5WP15, 5ZP16, 7CP4, 7QP4, 7TP4, 10SP4 5AUP24, 5WP15, 5ZP16, 7CP4, 7QP4, 7TP4, 10SP4

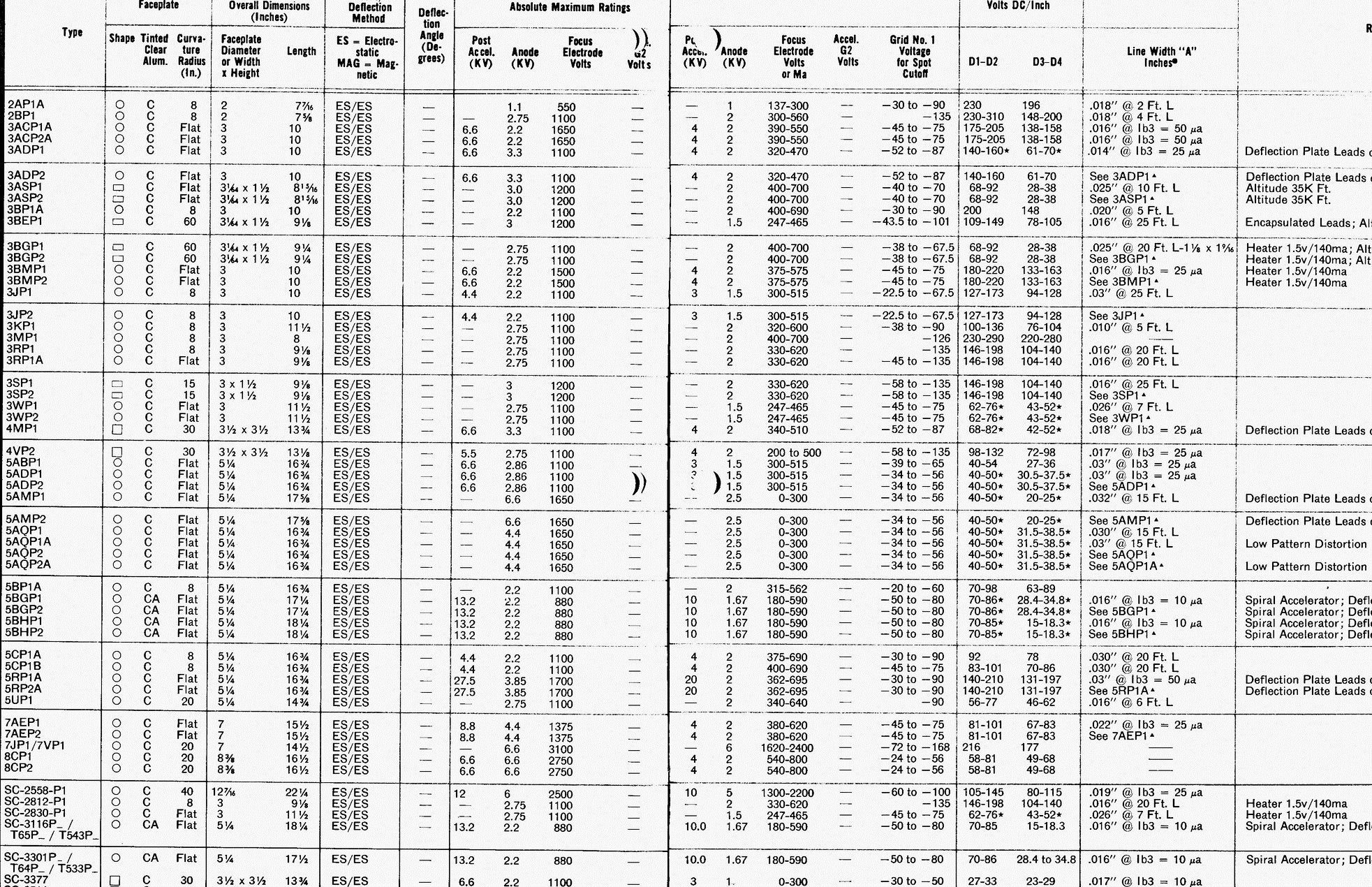

sylvania Sylvania CRT Shortform Data
2AP1A-SC3377 CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

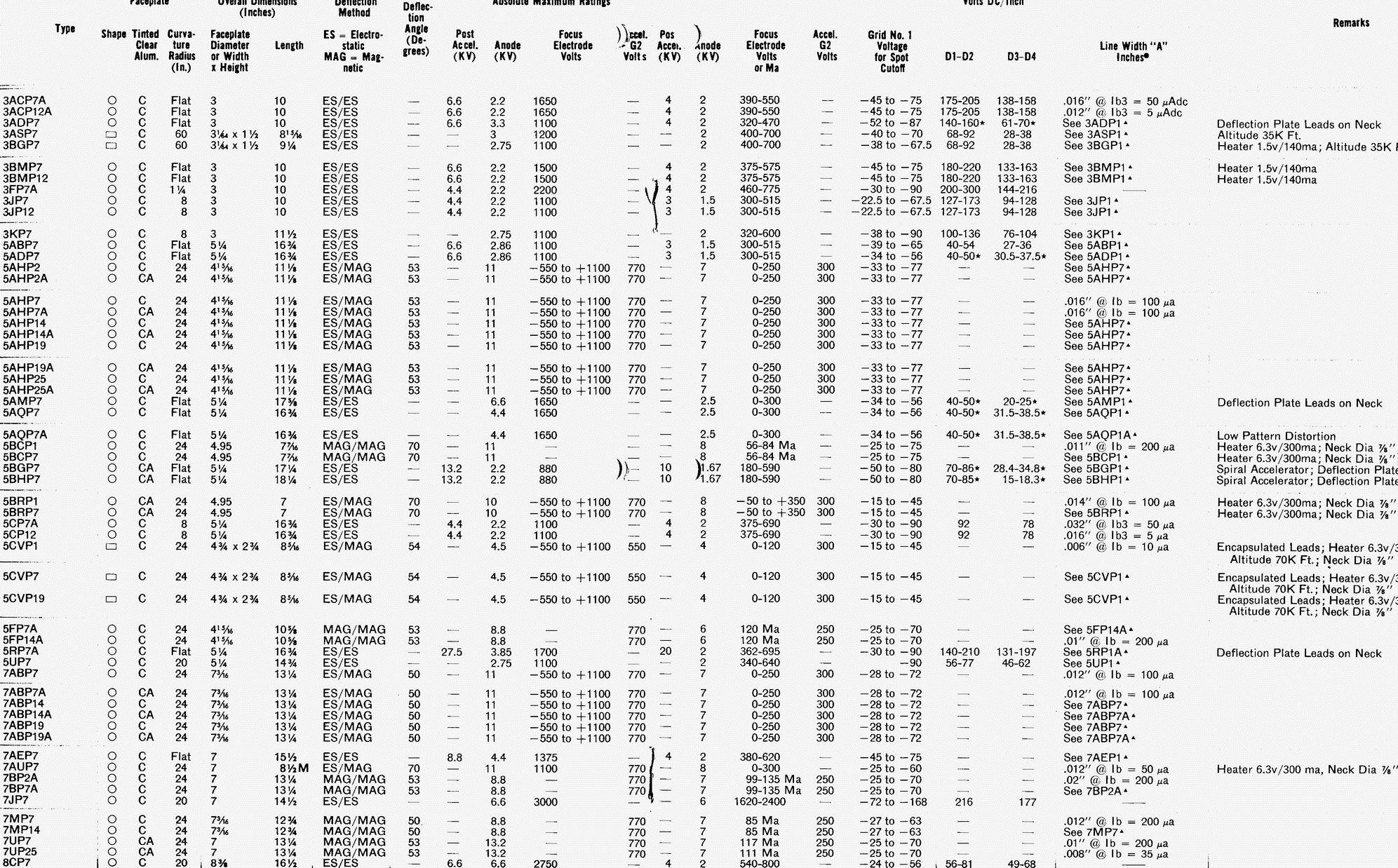

3ACP7A-8CP7 CRTs
CLICK for BIGGER PIC!
CLICK for BIGGER PIC!

sylvania Download a HUGE Sylvania CRT datasheet archive, for all their CRTs CLICKHERE.

Almost impossible to find Japanese CRT data!
Posted here to satisfy all those looking for this difficult to track down information!
Full Hitachi CRT catalog, 16 pages.
From 1EP1 to 130 and H-Series Tubes.
Catalog CE-EO12


CLICK to download!
CLICK to download the PDF File (2.5mb).
Full Toshiba CRT catalog, 48 pages.
From E-series and 75/130/140/150/170 tubes
to special purpose CRTs.
November 1971 Catalog.

CLICK to download!
CLICK to download the PDF File (5.2mb).



Common European Scope Maker CRTs
Scope Manufacturer Model Number CRT Used
Philips PM3065 D14-372GH/123
D14-372GM/123
Philips PM3067 D14-372GH/123
D14-372GM/123
Philips PM3070/72 D14-374GH/123
Philips PM3212 D14-125GH/08
Philips PM3217 D14-125GH/117
Philips PM3225 D10-160GH
Philips PM3226 D10-160GH
Philips PM3230 E10-12GP
Philips PM3233 D18-190GH/129
Philips PM3234 L14-130GH
Philips PM3256 (U) D12-120GH-115
Philips PM3262 85D14GH
E14-100GH
Philips PM3267 D14-125GH/117
Philips PM3311 D14-292GH/39
Philips PM3315 D14-292GH/39
European Phosphor
Designation
EIA/US Phosphor
Designation
GH P31 (Bright green, Fast)
GM P7 (Blue, Slow)
