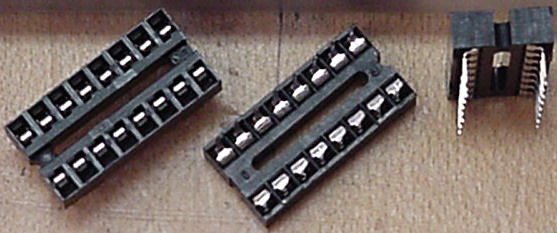

16 Pin DIP
Welcome To Sphere Research's Canadian Test Equipment & Parts Site!
Oh, Canada.... This Section Updated Weekly
Click REFRESH on your browser if pages seem unchanged

Visit the Document Server!Visit our amazing document server.
Everything from Quotes and SciFi to Ethics & Business.
EMAIL US!Want something? Click here to e-mail us!
Go to Our FAQOur FAQ !! Answers to all those tricky questions...
LinksVery Useful Engineering Links Color codes to datasheets...
Sphere Research Coporation, CLICK to visit!
Please Note:
All Prices are in US$
Sphere Research Corporation
3394 Sunnyside Rd.
West Kelowna, BC, Canada V1Z 2V4
Phone: +1 (250) 769-1834


A great source for test equipment, repairs, calibrations, useful metrology information, and of course, SLIDE RULES!

Just SCROLL DOWN to see everything!
CLICK to see Parts By the FootCLICKCLICK to SEE!
 Parts by the Foot!
Now OPEN, our PRODUCTION PARTS WAREHOUSE
Literally millions of parts available at great prices!
CLICK to visit the parts warehouse! CLICKCLICK HERE
CLICKTo Visit The Parts Section
   I'm in a HURRY! Show me all the: CLICKOscilloscopes CLICKMeters CLICKPower Supplies CLICKCounters
Cinch Octal Sockets

Test Equipment Navigation
return home
Go to the Sphere FAQ Go to Sphere's FAQ Page
TEKTRONIX
Used Tektronix
Equipment

Go to the Tek EquipmentEquipment
Go to the Tek Cross-reference DataCross-Ref Data
Go to the Tek CRT DataCRTs & Data
Go to the Tek PartsParts
Hewlett-Packard
Used HP
Equipment

Go to the HP EquipmentEquipment
Go to the HP Cross-reference DataCross-Ref Data
Go to the HP CRT DataCRTs & Data
Go to the HP PartsParts
PHILIPSFLUKE
Used Fluke + Philips
Equipment

Go to the Fluke EquipmentEquipment
Go to the Fluke PartsParts
Go to the Fluke/Philips CRT DataCRTs & Data
GENRAD
Used General Radio
(Genrad) Equipment
Go to Microwave Power MetersPower Meters
Go to Microwave Power MetersScalar Analyzers
Go to RF SemiconductorsRF Semiconductors
CLICK to see Generators!
Go to GeneratorsRF/Function
Generators
CLICK to see Power Supply Parts
Power Supply Parts
NEW STUFF, CLICK to see!NEW STUFF, CLICK to see!NEW STUFF, CLICK to see!
Go to the NEW STUFF!Lots of NEW Arrivals!
Go to the HOT Deals!Go to the HOT Deals!Go to the HOT Deals!
Go to the NEW STUFF!Assorted HOT Deals!
Capacitors, CLICK to SEE!
Go to CapacitorsCapacitors

CLICK to see Inductive parts!
Go to InductorsInductive Parts
Power Resistors, CLICK to See!
Go to Power ResistorsPower Resistors

Connectors, CLICK to see!
Go to ConnectorsConnectors
FANS, CLICK to see!
Go to FansFans
CLICK to see the Test CablesLeads
& Cables



Go to ToolsProduction Tools
Go to Service ManualsService Manuals
Go to ToolsData Books
*Optics*
Optical Equipment

CLICK to see the Meggers
Go to MeggersMeggers
CLICK to go to the Power Supplies
Go to Power SuppliesPower Supplies
CLICK to go to the RF/Microwave Parts
Go to the RF/Microwave PartsRF/Microwave Parts
TUBETUBETUBETUBETUBETUBE
Go to Vacuum TubesVacuum Tubes
Meters, CLICK to see!Meters
CLICK to go to the Nixie Tubes
Go to the Nixie TubesNixie Tubes

Go to the NumitronsNumitrons/VFD/LCD
CLICK to go to the CRT's

Go to the Cathode Ray Tubes (CRT's)Standard CRT's

Go to the Cathode Ray Tubes (CRT's)Euro CRT's
Go to the Tek Cathode Ray Tubes (CRT's)Tektronix CRT's
Go to the -hp- Cathode Ray Tubes (CRT's)- hp - CRT's
Visit classic old gear from Long Ago!
Visit the SemiconductorsVisit Standards
Go to LoadsVisit the Telecom Section
SLIDE RULESGo to the Slide RulesSlide Rules !
return home
Go to the Sphere FAQ Go to Sphere's FAQ Page
Tube, Transistor and IC Sockets
Terminal Strips

Augat/RDI 3 screw terminal block

TO-5 Transistor Sockets

Tube, Transistor and IC Sockets

go right to the catalog! Skip the INTRO, Go RIGHT to the CATALOG!
All kinds of tube, transistor and IC sockets, including hard to find test fixture sockets, and many obscure tube types.

Here's your chance to get some hard to find things at great prices. Quantities are limited, so when they are gone, that's it.


* NAVIGATION: To make your life easier, and help you find exactly what you want, we have broken the on-line equipment catalogs into smaller sections. Just CLICK on the item you are looking for at the left, to see the matching catalog. Large graphical catalogs are a bit SLOW, so please give them a bit of time to load. The top header of each catalog is largely the same, so don't think you are stuck in one place!

You can order anything here just by picking up the phone, and calling (250) 769-1834 during normal office hours, 8:30AM to 4:30PM PST. OR, Email your order to Susan CLICKHERE.

Shipping*SHIPPING: Preferred and Alternate Methods as of June 4, 2013, CLICK for FULL DETAILS ON OUR FAQ Page. Rates are now changing rapidy, often with little notice to us, so all the data has been transferred to the FAQ page for speedy updating.

* E-Mail Susan if you want a quote for shipping to other destinations, or for something heavy. Sorry, we can't safely send most individual small parts in a regular letter envelope, they get destroyed by the automated handling equipment. Sometimes we can ship very rugged parts in a small padded envelope by letter post. Ask Susan.

*There is a packing charge for large or heavy equipment, see the FAQ for details.

*If we have your valid data on file, you can just click on the ORDER email link to place an order and indicate your approval to bill, and we will do the rest. We keep your active information for ONE YEAR for your convenience.

*If this is the first time you have dealt with us, you can phone +1 (250) 769-1834 to supply the billing info, or send it by the email link, as you prefer. We accept VISA/MC, international money order, Paypal (to Susan@Okanagan.net), and bank wire transfer. Please note that there are transaction fees with Paypal and wire transfer payments, the wire transfer fee is frankly horrifying.

We accept VISA/MC or international money order

* CONDITION: To answer your questions, YES, we completely check and inspect all used equipment, and do not offer any we feel is substandard. That gear is normally scrapped, broken down for parts, or may get offered as-is in the HOT DEALS section, with the unit's condition clearly identified. If there are any marks or detracting features, we clearly state them in the listing. Before shipment, we burn in the equipment for 24 hrs. again and re-check to be sure it is good prior to shipment.

* The CATALOG will appear below shortly!
Don't forget these illustrated sections take a few seconds to load, but they are worth the wait!



CATALOG: JUST SCROLL DOWN TO SEE EVERYTHING !down

Tube, Transistor and IC Sockets


Want to order something,
or need to ask us a question??
CLICK to e-mail us!Just CLICK HERE
to email us!
We are approved merchants, and can take Visa/MC directly, by fax, phone or email,
as you prefer.

We accept VISA/MC or international money order


NIXIE TUBE SOCKETS!
Need Nixie Sockets?


Cinch 13 pin Nixie Tube Sockets
PC Mounting Sockets!
13 Pin PC Mounting, Cinch circular sockets, fit most standard and jumbo Burroughs and National numeric tubes, like the 8421, Jumbo 8423, B-5092, B-5031, 6844, 8037, B-6033, B-6091, ZM1022, ZM1040, etc. Bright tin plated PC Pins are in a 1 inch circle, to ease board layout. If the center is drilled out, the socket will fit German Z560M tubes, we will pre-drill them for you, $4 ea.)
NEW
SORRY, SOLD
(new, unused), $4.50/each
CLICK HERE
to order.
Need Nixie Sockets?

Euro 13 pin Nixie Sockets
Euro 13 pin Nixie Tube Sockets
Just ARRIVED, PC Mounting Sockets!
13 Pin PC Mounting, circular sockets with center opening, fit most standard and jumbo Burroughs and National numeric tubes, like the 8421, Jumbo 8423, B-5092, B-5031, 6844, 8037, B-6033, B-6091, ZM1022, ZM1040, PLUS they fit ZM560 styles with center glass stems with no problems! PC Pins are in a 21mm/0.825 inch circle (require 0.062" holes for pins), to ease board layout. Can also be chassis mounted (top mounting) if secured with epoxy.
NEW
40 pcs.
(new, unused), $5/each
CLICK HERE
to order.
Need Nixie Sockets?

Cinch 13+1 pin Nixie Tube Sockets
Cinch 13+1 pin Nixie Tube Sockets
Just ARRIVED, Chassis Mounting Sockets!
13+1 Pin Saddle Mounting, Cinch circular sockets, fit most standard and jumbo Burroughs and National numeric tubes, like the 8421, Jumbo 8423, B-5092, B-5031, 6844, 8037, B-6033, B-6091, ZM1022, etc. Note, no center recess, so ZM1040 does not fit. Bright solder dipped pins, passivated bracket. The extra inner 14th pin is used for beam switching tubes, and maybe other things, works great for Nixies.
NEW
Large Quantity
Just Arrived!

(new, unused), $6/each
CLICK HERE
to order.
Need Nixie Sockets?

14 Pin NL840 compatible Sockets
RTS-14 Saddle Mount Sockets
RTS-14
National NL-840 compatible 14 pin PC Nixie Tube Sockets
NL-840
These are 14 Pin, RTS14 format saddle mounting circular sockets. Fits National NL-800, NL-807, NL-840, NL-848, NL-900 series tubes (10 pins in outer circle, 4 in center). Brand new, good quantity on hand!. Very hard to find sockets, stock up while we have them!

NEW
SORRY, SOLD
$7/each

CLICK HERE
to order.
Need Nixie Sockets?
14 Pin Sockets

Cinch 14 pin Nixie Tube Sockets
KS-19944L114 Pin Cinch mil spec oval sockets, very high quality, fit most oval pattern Burroughs and National numeric tubes, like the 8422, B-5991, B-59917A, KS-19944L1, etc. Sockets are marked with pin numbers, solder tag contacts and have a 2-hole mounting flange. NEW
Just 6
$15/each
Need Nixie Sockets?
Russian IN-2 style sockets, with tube installed

IN-2/IN-8 Nixie Tube Sockets
11+1 Pin Russian mil spec miniature round sockets with spring retainer, designed for the Russian IN-2 miniature top view Nixie, but also fits the much larger horizontal view IN-8 tube.

Sockets are unmarked with pin numbers and have a metal 2-hole mounting flange and spring retainer (does not have to be used). The center pin is unused on the IN-2, and rarely used on other tubes of this mechanical format. Slightly snugger fit than US sockets.
NEW
SORRY, SOLD
$6/each


CLICK HERE

to order.
Need Nixie Sockets?
IN-12 Socket

PL31a-P / IN-12 Nixie Tube Sockets
KS-19944L112+2 Pin Russian mil spec oval sockets, part number PL31a-p, designed for the Russian IN-12 Nixie, but also fit most oval pattern Burroughs and National numeric tubes, like the 8422, B-5991, B-59917A, KS-19944L1, etc. Sockets are marked with pin numbers (same format at the US tubes), solder tag contacts and have a molded in 2-hole mounting flange. The two center pins are simply clearance holes (pins 13 and 14), as they are unused on the IN-12, and rarely used on other tubes of this mechanical format. Slightly snugger fit than US sockets, but work great on both types of tubes. NEW
70 pcs.
$6/each


CLICK HERE

to order.
Need Nixie Sockets?
HP Socket

HP Socket
hp 14 pin Nixie Tube Sockets
Type 1
KS-19944L1 Fits this style tube
CLICK for bigger PIC!14 Pin (w/2 center contacts (unused) removed). hp made oval sockets, fit most oval pattern Burroughs and National numeric tubes, like the 8422, B-5991, B-59917A, 1970-0009, KS-19944L1, etc. Sockets are marked with pin numbers, have solder tag contacts and have a integral top light barrier and front mounting flange. These are used, good condition assemblies, some old wires still attached.
Limited Quantity
$8/each

CLICK HERE

to order.
Need Nixie Sockets?
Burroughs 16 pin Nixie Tube Sockets
Burroughs 16 pin Nixie Tube Sockets
Out of stock a long time, just got more!
NL-5441A16 Pin Burroughs nixie sockets, fit Burroughs and National 5440 series, B-5440, NL-5440A, 5441A and related displays.

Sockets are marked with pin numbers, have solder tag contacts, and have 2 mounting holes. Wickedly hard to find, but we just found a small stash.
NEW
BACK IN STOCK!
Have 180, $8/each, 6/$42
CLICK HERE

to order.
Need Nixie Sockets?
Cinch 11 pin gold PC contact sockets
Cinch 11 pin Miniature Nixie Tube Sockets
B 7977 TubesNEW 11 Pin Cinch miniature sockets, fits miniature tube styles such as 7009, 4041, 8502 and 7977. Sockets are marked with pin numbers, for direct PC mounting, with gold flashed contacts. These sockets are almost impossible to find, this was a rare discovery! NEW
SORRY, SOLD
$7/each


CLICK HERE

to order.


Email US! Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.


VACUUM TUBE, RELAY and AC SOCKETS
PART NUMBER
GRAPHIC
DESCRIPTION
CONDITION
QTY
PRICE
EACH
National 1/2 inch Plate Caps
National 1/2" Plate Caps
Ceramic 1/2" Plate Caps

Very nice quality 1/2" ceramic plate caps for high powered, large envelope transmitting tubes and rectifiers. NEW, Excellent condition.
NEW
12
$5 each
Kulka-Smith 227B AC Outlet
Kulka/Smith 227B
3 Wire AC Sockets
AC Line Sockets

Snap fit (0.93" square hole) AC Line sockets
Still Mil-packed, great for that rear accessory outlet on equipment and switching panels, prewired. NEW, Excellent condition.
NEW
12
$5 each

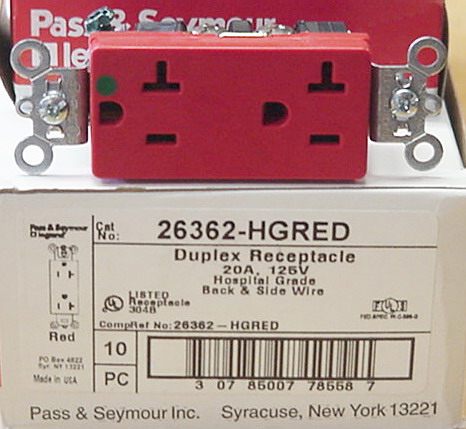

20A Sockets, CLICK for bigger PIC!
CLICK for bigger PIC!

Pass + Seymour Inc.
26362-HGRED
Hospital Grade Dual 20A
3 Wire AC Sockets
Pass + Seymour Inc.
26362-HGRED, Hospital Grade 20A AC Line Sockets


Dual 20A Hospital Grade Line Sockets
NEW, Excellent condition. Come in factory boxes of 10, also individually boxed. Box of 10, $55
NEW
50
$7 each

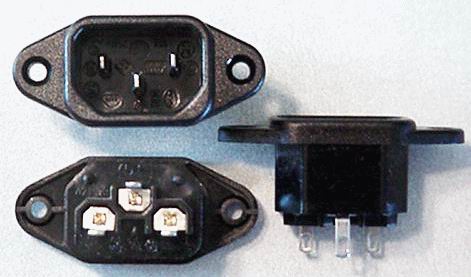

42R03 3-wire Line Cord Socket, CLICK for bigger PIC!
CLICK for bigger PIC!

42R03
International IEC Std.
3 Wire AC Line Cord Sockets
AC Line Cord Sockets

Model 42R03, 2 Hole mounting 3 wire AC Line Cord sockets
NEW, Excellent condition.
UL / CSA / D-marked, full international approval to 250V/10A.
Marked: L (line), N (neutral) and E (Earth Ground) on rear for easy wiring to solder lug terminals.

Fits standard computer style detachable line cord, or AC input use only, NOT output.

We also have this style AC Line Cord Socket in an RF FILTERED VERSION, CLICK HERE to see towards the bottom of the page.
NEW
25
$3 each
4 Pin Amphenol Sockets
Amphenol 4 Pin Tube Sockets
Amphenol
4 Pin Big Bottle Tube Sockets

Saddle mounted 4 Pin sockets
Perfect for large rectifiers. Very hard to find in good condition with clean contacts. Used, but look unused except for tinned connections, Very Good condition.
Used
15
$4 each

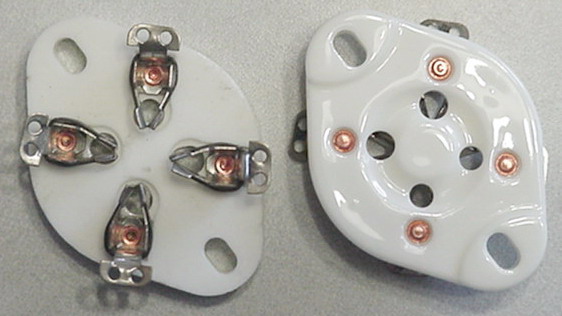

Ceramic 4 pin, CLICK for bigger PIC!
CLICK for bigger PIC!

Ceramic 4 Pin Tube Sockets
Ceramic 4 Pin Big Bottle Tube Sockets

Brand New, MINT condition saddle mounted 4 Pin sockets
Perfect for large rectifiers and triodes. Very hard to find in good condition with clean contacts, these are exceptional, freshly manufactured.
NEW
16
$7 each
4 Pin Ceramic Socket
Deep Cavity Ceramic 4 Pin Tube Sockets
Ceramic 4 Pin Socket
4 Pin Big Bottle Tube Sockets

Saddle mounted deep cavity 4 Pin sockets
Perfect for large rectifiers, has additional side wall keyway recess for tubes like 3B series, etc.. Very hard to find in good condition with clean contacts. Milspec sockets, unused, Very Good condition.
NEW
10
$8 each
5 Pin Phenolic Sockets
5 Pin Bakeleite Tube Sockets (3536)
5 Pin Big Bottle Tube Sockets

NEW Bottom saddle mounted 5 Pin sockets, have part number 3536 stamped on them
Perfect for large tubes like 807's 1625's etc. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
20 Pcs.
$4 each

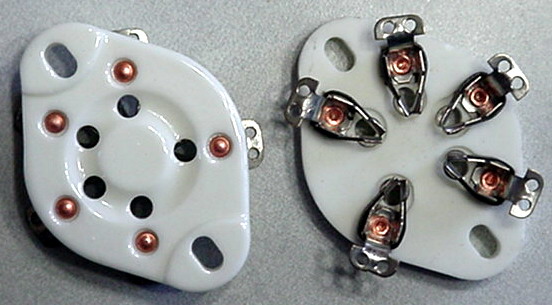

Ceramic 5 pin, CLICK for bigger PIC!
CLICK for bigger PIC!

Ceramic 5 Pin Tube Sockets
5 Pin Big Bottle Tube Sockets

NEW, Saddle mounted 5 Pin ceramic sockets with heavy duty construction.
Perfect for large tubes like 807's 1625's etc. Very hard to find in good condition with clean contacts. NEW, freshly manufactured.
NEW
8
$7 each
Nuvistor Sockets
5 Pin Nuvistor Sockets Snap-in Mounting
5 Pin Nuvistor Miniature Tube Sockets

Snap mounted 5 Pin miniature nuvistor tube sockets
Perfect for RCA nuvistors like the 6CW4, 7586, etc. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$5 each
Cinch Nuvistor Sockets
5 Pin Nuvistor Sockets Chassis Mounting
5 Pin Nuvistor Miniature Tube Sockets

Chassis mounted CINCH 5 Pin miniature nuvistor tube sockets
Perfect for RCA nuvistors like the 6CW4, 7586, etc. Very hard to find in good condition with clean contacts. NEW, Excellent condition, we have been out for a long time. They are Tektronix part number 136-0131-00.
NEW
SORRY, SOLD
$7 each
PC Mounting Nuvistor Sockets
5 Pin Nuvistor Sockets PC Mounting
5 Pin Nuvistor Miniature Tube Sockets

PC or Chassis solder in mounted 5 Pin miniature nuvistor tube sockets
Have very low loss Kel-F insulation, used in high impedance front ends. Perfect for RCA nuvistors like the 6CW4, 7586, etc. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$5 each
Ceramic 6 pin, CLICK for bigger PIC!
CLICK for bigger PIC!

6 Pin Tube Sockets
6 Pin Big Bottle Tube Sockets

Flange mounted 6 Pin ceramic/silver contact sockets
Perfect for older large tubes. Very hard to find in good condition with clean contacts. NEW, Excellent condition, freshly manufactured.
NEW
8
$8 each
7 Pin PC Mounting
7 Pin Tube Sockets
Cinch
7 Pin Tube Sockets, PC Mounting

Black phenolic PC mounting sockets, appear to be Cinch. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
35
$3 each
Cinch 7 pin black
7 Pin Tube Sockets
Cinch
7 Pin Tube Sockets

Cinch saddle mounted 7 Pin tube sockets
Perfect for single triode tubes like 417's, etc. Bottom-mounted, has 4 integral ground lugs. US made by Cinch. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
25
$3 each
7 Pin Saddle Socket
7 Pin Tube Sockets
Cinch
7 Pin Tube Sockets

Cinch saddle mounted 7 Pin tube sockets
Perfect for single triode tubes like 417's, etc. Bottom-mounted, higher temp rated mica-filled sockets. US made by Cinch. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
100
$3 each
7 pin PC Mtg/90 degree gold sockets
7 Pin Tube Sockets
7 Pin Tube Sockets, PC Mounting, 90 degree, GOLD pins

Brown phenolic PC mounting sockets, GOLD pins, with 90 degree transition mount, includes retainer for shield. Probably made by Cinch. Very hard to find in good condition with clean contacts, GOLD allows very low noise operation with audio tubes. NEW, Excellent condition.
NEW
39
$5 each
CLICK for bigger PIC!
CLICK for bigger PIC!

7 Pin Tube Sockets w/Spring Retainers
7 Pin Tube Sockets w/Spring Retainers

Saddle mounted ceramic 7 Pin tube sockets
Perfect for single triode tubes like 417's, etc. Top-mounted, has integral hold-down retainer and center tie post. Silver plated pins, Russian manufacture. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
30
$7 each
Vector 7 Pin socket
Vector 7 Pin Tube Sockets with Parts Turret
Vector 7 Pin Tube Sockets with Parts Turret

Saddle mounted phenolic 7 Pin tube sockets with integral component mounting turret from Vector, bottom mounting.
Perfect for breadboarding or constructing your own tube stages, US made, very hard to find. NEW, Excellent condition.
NEW
5
$12 each
Ceramic 4 pin, CLICK for bigger PIC!
CLICK for bigger PIC!

Ceramic 7 Pin Tube Sockets
Ceramic 7 Pin Big Bottle Tube Sockets

Brand New, MINT condition saddle mounted 7 Pin sockets
Perfect for large single and dual triodes and RF types, 2 large pins, 5 small. Very hard to find in good condition with clean contacts, these are exceptional, freshly manufactured.
NEW
8
$12 each
RCA UT-104 Sockets
Large RCA 7 Pin Ceramic Tube Sockets
RCA UT-104 Large 7 Pin Ceramic Tube Sockets

Bottom mounted ceramic 7 Pin tube sockets, for older large transmitting tubes (2 large pins, 5 small ones). Used, good condition, but a brief clean with deoxit or other contact cleaner is recommended, due to age and storage. Back view.
USED
4
$8 each
CCC OT08-PC Octal Socket
8 Pin Standard Octal Tube/Relay Sockets
CCC OT08-PC
OT08-PC Breadboard
Big Bottle Tube Sockets


Custom Connector Corporation chassis mounted standard octal sockets
Tube or relay BREADBOARDS! Perfect for octal relays and large tubes like 5U4GB, 6DQ6, 6L6, 6146B, 8336B. Fantastic for breadboarding tube circuits, rated 10A/300V. Hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
6
$10 each
CCC RB08 Octal Socket
8 Pin Standard Octal Tube/Relay Sockets
RB08-PC Breadboard Sockets
Big Bottle Tube Sockets


Custom Connector Corporation chassis mounted standard octal sockets
Tube or relay BREADBOARDS! Perfect for octal relays and large tubes like 5U4GB, 6DQ6, 6L6, 6146B, 8336B. Fantastic for breadboarding tube circuits, rated 10A/600V. Hard to find in good condition with clean contacts. NEW, factory boxed parts, Excellent condition.
NEW
20
$10 each
Cinch Octal Sockets
8 Pin Standard Octal Tube Sockets
Cinch
Octal Big Bottle Tube Sockets

Cinch low cost flange mounted standard octal sockets
Bottom mounting, perfect for large tubes like 5U4GB, 6DQ6, 6L6, 6146B, 8336B. Hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
4
$5 each
Cinch Octal Sockets
8 Pin Standard Octal Tube Sockets
Cinch
Octal Big Bottle Tube Sockets

Cinch high quality flange mounted standard octal sockets
Top mounting, perfect for large tubes like 5U4GB, 6DQ6, 6L6, 6146B, 8336B. Hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
Last 1
$5 each
Octal Sockets
8 Pin Standard Octal Tube Sockets
CELANEX

Octal Big Bottle Tube Sockets

Celanex new production flange mounted standard octal sockets
Bottom mounting, perfect for large tubes like 5U4GB, 6DQ6, 6L6, 6146B, 8336B. NEW current production, Excellent condition. Have 16
NEW
16
$7 each
Amphenol 2087784
8 Pin Standard Octal Tube Sockets w/ground lugs
2087784
Amphenol
Octal Big Bottle Tube Sockets

Cinch high quality flange mounted standard octal sockets
Bottom mounting, includes 1 ground lug, perfect for large tubes like 5U4GB, 6DQ6, 6L6, 6146B, 8336B. Hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
4
$6 each
Ceramic Universal Octal Sockets
CLICK for bigger PIC!
CLICK for bigger PIC!

8 Pin Ceramic Octal Tube Sockets
Universal Ceramic Octal Big Bottle Tube Sockets

Russian made, very high quality flange mounted ceramic octal sockets, with silver plated contacts
Unique Top or bottom mounting (ring may be rotated or reversed, for two mounting orientations, and either top or bottom attachment, incredibly handy!), perfect for large tubes like 5U4GB, 6DQ6, 6L6, 5881, 6146B, 8336B. Extremely popular for audio amplifier applications, one of the best designed sockets I have seen. NEW, Excellent condition. Use a 1.05 inch/27mm clearance hole, top or bottom mounted.
NEW
140
$6 each
8 pin sub-miniature tube sockets
8 Pin Sub-Miniature Tube Sockets Saddle Mounting
8 Pin Sub-Miniature Tube Sockets

Saddle mounted 8 Pin miniature tube sockets
Perfect for miniature military tubes, like the 8506, etc. Allows socket mounting of sub-miniature 8-pin tubes with flying leads. It has gold flashed socket contacts, tube hold down retainer mounts, and a center contact post for wiring. Look to be made by Cinch. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$4 each
Vector Octal Tube Sockets with Parts Turret
Vector Octal Tube Sockets with Parts Turret
Vector Octal Tube Sockets with Parts Turret

Saddle mounted phenolic octal tube sockets with integral component mounting turret from Vector, bottom mounting.
Perfect for breadboarding or constructing your own tube stages, US made, very hard to find. NEW, Excellent condition.
NEW
SORRY, SOLD
$18 each
CLICK for bigger PIC!
CLICK for bigger PIC!

Mil-spec 9 Pin Tube Sockets, PC Mounting
Mil-spec 9 Pin Tube Sockets, PC Mounting

Rugged PC mounted 9 Pin, high temp, low-loss tube sockets.
Perfect for dual triode tubes like 12AX7's, ECC83's etc., as well as most common Numitrons like the DR2000. 0.725 in. diameter pin circle, pins require 0.050 holes. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
40
$6 each
Ceramic 9 Pin PC Mounting Sockets
Ceramic 9 Pin Tube Sockets, PC Mounting
Ceramic 9 Pin Tube Sockets, PC Mounting

Ceramic PC mounted 9 Pin tube sockets, with silver plated pins
Perfect for dual triode tubes like 12AX7's, ECC83's etc., as well as most common Numitrons like the DR2000. 0.54 inch diameter pin circle, pins require 0.050 holes. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
100
$4 each
9 pin Ceramic PC mounting sockets with center post
Ceramic 9 Pin Tube Sockets with center post, PC Mounting
Ceramic 9 Pin Tube Sockets with center post, PC Mounting

Ceramic PC mounted 9 Pin tube sockets, with silver plated pins and center post (for increased mechanical strength)
Perfect for dual triode tubes like 12AX7's, ECC83's etc., as well as most common Numitrons like the DR2000. 0.7 inch diameter pin circle, pins require 0.045 holes. Very hard to find in good condition with clean contacts. NEW, Excellent condition. Also have a few with no center posts, if required.
NEW
120
$4 each
Cinch 9PC-M2
9 Pin Tube Sockets PC Mounting w/Shield Base
9PC-M2
Cinch
9 Pin Tube Sockets, PC Mounting

PC mounted 9 Pin tube sockets with shield base
Perfect for dual triode tubes like 12AX7's, ECC83's etc., as well as most common Numitrons like the DR2000. Very hard to find in good condition with clean contacts. NEW, Excellent factory boxed condition.
NEW
SORRY, SOLD
$5 each
9-pin belton
Belton 9 Pin Tube Sockets, Saddle Mount
Belton 9 Pin Tube Sockets, Top Saddle Mounting

NEW current production, 9 Pin tube sockets
Perfect for dual triode tubes like 12AX7's, ECC83's etc., as well as most common Numitrons like the DR2000. Very hard to find in perfect condition with clean contacts. NEW, Excellent condition.
NEW
20
$6 each
Cinch 9 Pin PC Mounting
9 Pin Tube Sockets PC Mounting
Cinch 9 Pin Tube Sockets

PC mounted 9 Pin tube sockets
Perfect for dual triode tubes like 12AX7's, ECC83's etc., as well as most common Numitrons like the DR2000. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$3 each
9 Pin w/Shield
9 Pin Tube Sockets w/Shield Mounting
9 Pin Tube Sockets

Saddle mounted ceramic 9 Pin tube sockets
Perfect for dual triode tubes like 12AX7's, ECC83's etc. Has integral shield mounting sleeve (sorry, no mating shields available right now), and center tie post. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
Just 3
$6 each
9 Pin Bottom
9 Pin Top
9 Pin Tube Sockets, Saddle Mounting
9 Pin Tube Sockets

Saddle mounted white ceramic 9 Pin tube sockets
Perfect for dual triode tubes like 12AX7's, ECC83's etc. Has center tie post, TOP mounting, appears to have silver plated contacts. Very hard to find in good condition with clean contacts. NEW, MINT condition, individually wrapped.
NEW
60
$3.50 each
9 Pin
9 Pin
9 Pin Tube Sockets w/Shield Mounting and Shields
9 Pin Tube Sockets w/Shields

Saddle mounted 9 Pin tube sockets
Perfect for dual triode tubes like 12AX7's, ECC83's etc. Has integral shield mounting sleeve and spring loaded shield, and center tie post. Silver plated pins, Russian manufacture. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
Just 10
$8 each
Vector 9 Pin Tube Sockets with Parts Turret
Vector 9 Pin Tube Sockets with Parts Turret
Vector 9 Pin Tube Sockets with Parts Turret

Saddle mounted phenolic 9 pin tube sockets with integral component mounting turret from Vector, bottom mounting.
Perfect for breadboarding or constructing your own tube stages, US made, very hard to find. NEW, Excellent condition.
NEW
SORRY, SOLD
$15 each

Big 9 Pin Tube Sockets, Saddle Mounting
Large 9 Pin Tube Sockets

Saddle mounted big 9 Pin tube sockets
Larger 9 pin socket (Novar?) for some sweep and rectifier tubes, as well as circular front view Numitrons. Very hard to find in good condition with clean contacts. Has center opening to accommodate tube end seals or flush bottoms. NEW, Excellent condition.
NEW
10
$4 each
Keyed 11 pin socket
Keyed 11 Pin Tube/Relay Sockets, PC Mounting
Keyed 11 Pin Tube/Relay Sockets

PC mounted big 11 Pin tube/relay sockets, have octal style keyway
Larger 11 pin socket for numerous plug-in relay types, some PMTs and CRTs. Very hard to find in good condition with clean contacts. Has center keyway. NEW, Excellent condition.
NEW
30
$4 each
Magnecraft 70-170, 11 pin Keyed Socket
Keyed 11 Pin Tube/Relay Sockets
Keyed 11 Pin Tube Sockets

Magnecraft 70-170
Magnecraft 70-170 Chassis mounted, screw terminal connect, keyed 11 Pin tube sockets (same style as regular octal)
This is the keyed 11 pin socket typically used for 3PDT plug in relays and PMTs. Screw connect is ideal for industrial interfacing and class experiments. NEW, Excellent condition. CSA listed.
NEW
25
$9 each
EF Johnson 11 Pin Back
EF Johnson 11 Pin Front
Big 11 Pin Tube Sockets, Saddle Mounting
Large 11 Pin Tube Sockets

Saddle mounted big 11 Pin tube sockets
Larger 11 pin socket for some Compactron style tubes, and some small CRTs like 1EP1, etc.. Very hard to find in good condition with clean contacts. Has center opening to accommodate tube end seals or flush bottoms. NEW, Excellent condition, premium parts from EF Johnson, with 3 point anchor, ideal for CRTs. We have been out of stock for a while, these are very difficult to source.
NEW
15 Pcs.
$15 each
12 Pin
12 Pin Tube Sockets, Saddle Mounting
Fit DT-1705E VF Tubes
12 Pin Tube Sockets

NEW
10
$4 each
Waldom 12 Pin Compactron Sockets
12 Pin Tube Sockets, PC Mounting
Duodecar Compactron
12 Pin Tube Sockets

Waldom PC mounted 12 Pin Duodecar tube sockets for Compactrons.
NEW, Excellent condition.
NEW
12
$6 each

CLICK for bigger PIC!

12 Pin Keyed Tube Sockets, Saddle Mounting
12 Pin Keyed Tube Sockets

Saddle mounted 12 Pin tube sockets with octal style keyway
Larger 12 pin socket for some cathode ray tubes (note NOT for 3RP1, this socket has a smaller keyway). Very hard to find in good condition with clean contacts. Has center keyway. NEW, Excellent condition.
NEW
5
$8 each
B12A
B12A, 12 Pin Keyed Tube Sockets, Saddle Mounting
EdiswanEdiswan B12A, Large 12 Pin Keyed Tube Sockets

Saddle mounted 12 Pin tube sockets with large keyway.

Larger 12 pin socket fits cathode ray tubes like 2BP1 and 3RP1, plus some PMTs. Very hard to find in good condition with clean contacts. Ediswan CLIX catalog no. CRT 33/1201, NEW factory boxed, Excellent condition. Hard socket to locate.
LOC: SOCK21
NEW
8
$15 each
Ediswan B12E 12+1 Keyed Socket
B12E, 12+1 Pin Keyed Tube Sockets, Saddle Mounting
Rear View, CLICK for bigger PIC!Ediswan B12E, Large 12+1 Pin Keyed Tube Sockets

Saddle mounted 12 Pin tube sockets with large keyway, AND additional keyway pin (used in some PMTs and Dekatrons)

Larger 12 pin socket fits cathode ray tubes like 2BP1 and 3RP1, plus dekatrons like the GR10A. Very hard to find in good condition with clean contacts. Ediswan CLIX catalog no. CRT 34/1201, NEW factory wrapped and loose, Excellent condition. Very hard socket to locate.
LOC: SOCK21
NEW
15
$15 each
Amphenol 12 pin Keyed Sockets
12 Pin Keyed Tube/Relay Sockets
Amphenol 12 Pin Keyed Tube/Relay Sockets

Chassis mounted 12 Pin tube sockets with octal style keyway and same pin diameter and size.

Very hard to find in good condition with clean contacts. NEW bulk packed. Excellent condition.
NEW
12
$12 each
Cinch 3M-12
12 Pin Keyed Tube Sockets
Cinch
Cinch 3M-12 Large 12 Pin Keyed Tube Sockets

Cable mounted 12 Pin tube sockets with large keyway

Larger 12 pin socket fits cathode ray tubes like 2BP1 and 3RP1. Very hard to find in good condition with clean contacts. NEW factory bagged, Excellent condition.
NEW
SORRY, SOLD
$12 each
12 Pin Miniature PMT Sockets

Thorn 12 pin Miniature PMT sockets, CLICK for bigger PIC!
CLICK for bigger PIC!
12 PIN Miniature PMT TUBE SOCKETS
THORN NEW, excellent condition 12 pin miniature PMT sockets with combination PC and wire pins, blue low leakage material. Pins are in a 1/2 inch diameter circle, and there is a center hole for the tube evacuation seal. Very nice parts, hard to find in this odd size, fits 3/4 inch/19mm tubes liek the XP-1918.
Pin close-up
NEW
37 Pcs.
NEW
$25
Hamamatsu 13 Pin Minaiture, CLICK for bigger PIC!
CLICK for bigger PIC!

Hamamatsu E678-13A
13 Pin Miniature PMT Sockets

Hamamatsu 13 PIN Miniature PMT TUBE SOCKETS

A beautifully made saddle mounting socket for PMT's, low loss blue Pthallate material. Hard to find, low leakage. Fits R647 tubes and similar.
NEW
60
NEW
$12
14 Pin Teflon PMT Socket, CLICK for bigger PIC!
CLICK for bigger PIC!

14 Pin Socket
14 PIN TUBE SOCKET

A beautifully made saddle mounting teflon socket for PMT's, may also fit other tubes.

The contacts are in a 3/4 inch diameter circle with one blank (number 15) for a keyway. Hard to find, very low leakage.
NEW
SORRY, SOLD
$19
Euro 14 PIN CRT Socket, CLICK for bigger PIC!
CLICK for bigger PIC!

14 Pin Euro CRT Tube Sockets
Large 14 Pin Open Center Euro CRT Tube Sockets

14 Pin tube sockets with open center, for Euro CRTs, GOLD plated pins in 25mm diameter circle, pin numbers on socket rear surface.
Larger 14 pin socket for many European cathode ray tubes. Very hard to find in good condition with clean contacts. Has center open keyway. NEW, Excellent condition.
NEW
SORRY, SOLD
$18 each
Ediswan B14A, CLICK for bigger PIC!
CLICK for bigger PIC!

B14A, 14 Pin Keyed Tube Sockets, Diheptal
EdiswanLarge 14 Pin Diheptal Keyed Tube Sockets

14 Pin tube sockets with large octal style keyway
Larger 14 pin socket for many cathode ray tubes and PMTs like 3BP1, 5ABP1, 5CP1, this style includes a rotation mount to allow tubes to be aligned for trace straightness. Very hard to find in good condition with clean contacts. Has center keyway. NEW, Excellent condition, both brown and black colors.
LOC: SOCK22
NEW
100
$18 each
TRW Cinch 3B.14 Diheptal Socket
Close-up view
14 Pin Keyed Tube Sockets, Diheptal
Cinch
TRW/Cinch 3B.14 Large 14 Pin Diheptal Keyed Tube Sockets

14 Pin black bakelite tube sockets with octal style keyway
Larger 14 pin socket for many cathode ray tubes and PMTs. Very hard to find in good condition with clean contacts. Has center keyway. NEW, Excellent condition, complete with rear insulator and assembly screws.
NEW
SORRY, SOLD
$18 each
Cinch 3M.14 Sockets

Rear Insulator
14 Pin Keyed Tube Sockets, Diheptal
Cinch
Cinch 3M.14 Large 14 Pin Diheptal Keyed Tube Sockets

14 Pin brown mica-filled bakelite tube sockets with octal style keyway
Larger 14 pin socket for many cathode ray tubes and PMTs. Very hard to find in good condition with clean contacts, these are very high quality mica-filled mil-type sockets, with lower leakage. Has center keyway. NEW, Excellent condition, complete with rear insulator and assembly screws.
NEW
Last 1
$22 each
19 Pin Teflon PMT Socket
19 Pin Socket
19 PIN TUBE SOCKET

A beautifully made teflon socket for PMT's.

The contacts are in a 1 1/4 inch circle with one blank (number 20) for a keyway, which makes them 18 degrees apart, very low leakage. These are clean used pulls, all we could find for this hard to locate style. Rear view HERE.
USED
8
$19



Email US! Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.



Terminal Strips / Terminal Blocks
PART NUMBER
GRAPHIC
DESCRIPTION
CONDITION
QTY
PRICE
EACH
Cinch 2 Lug Terminal Strip
Cinch 2 Lug Terminal Strip
CINCH
2 Lug Terminal Strip

Single Screw Mounted Terminal Strip
Has one grounded and one insulated lug, very useful for point to point construction. NEW, Excellent condition.
NEW
250
$1 for 5
Curtis 3 screw terminal block
Curtis 3 screw terminal block
CURTIS
3 Screw Terminal Block
3 Screw Terminal Block

PC Mounting
3 insulated 6-32 screw connections, straight PC pins (0.063 inch diameter) directly under the screw locations. Made by Curtis, black phenolic construction, over-all width is 1.5 inches. NEW, Excellent condition.
NEW
90
$3
10/$25
Augat/RDI 3 screw terminal block
Augat/RDI 3 screw terminal block
Augat/RDI
3 Screw Terminal Block
Augat
3 Screw Terminal Block

PC Mounting
3 insulated 8-32 screw connections, straight PC pins (0.047 inch diameter) offset to the rear of the screw locations. Made by Augat/RDI, black synthetic construction, over-all width is 1.4 inches. Has 2 self-locking pressure plates for stripped wire end insertion, does not require a lug. 8 series, UL/CSA listed, up to 10ga wire, 30A/300V. NEW, Excellent condition.
NEW
150
$4
10/$33
Bussman 6 Terminal Strip, CLICK for bigger PIC!
CLICK for bigger PIC!

Bussman
6 Stud Terminal Strip
6 Stud Terminal Strip

Bolt Close Up (nuts not included)Bussman CB767-series heavy duty bolt style terminal strips, allow many high current terminals to be stacked on the 10-32 studs (heavy brass) with ease, fully insualted bottoms. NEW, Excellent condition, NUTS NOT included.
LOC: FACT BOX WSS2
NEW
120
$6
Bussman 6 Terminal Strip, CLICK for bigger PIC!
CLICK for bigger PIC!

Bussman
10 Stud Terminal Strip
10 Stud Terminal Strip

Bolt Close Up (nuts not included)Bussman CB767-series heavy duty bolt style terminal strips, allow many high current terminals to be stacked on the 10-32 studs (heavy brass) with ease, fully insualted bottoms. NEW, Excellent condition, NUTS NOT included. We have two different terminal markings as shown, advise if any preference.
LOC: FACT BOX WSS2
NEW
120
$8
HH Smith LTS 210 Terminal Strip
HH Smith LTS 210
10 Lug Terminal Strip
10 Lug Terminal Strip

Double Screw Mounted Terminal Strip
Has 10 insulated lugs, very useful for point to point construction. NEW, Excellent condition, have been stored in sealed bags.
NEW
100
$2


Want to order something,
or need to ask us a question??
CLICK to e-mail us!Just CLICK HERE
to email us!
We are approved merchants, and can take Visa/MC directly, by fax, phone or email,
as you prefer.

We accept VISA/MC or international money order


IC/Transistor SOCKETS
PART NUMBER
GRAPHIC
DESCRIPTION
CONDITION
QTY
PRICE
EACH
TO-%
3 Pin Transistor Sockets
3 Pin Transistor Production Sockets

Solder mounted 3 Pin TO-5/39 Transistor sockets
Perfect for signal transistors, FETs, where replacement or substitution is needed, tin contacts. Will also fit TO-18 if leads spread. Also OK for test sets, but not ideal for hundreds of cycles. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$1 each
4-pin transistor socket
4 Pin Transistor Sockets
4 Pin Transistor Sockets

Solder mounted 4 Pin TO-5/39 Transistor sockets
Perfect for signal transistors, FETs, where replacement or substitution is needed, tin contacts. Will also fit TO-18 pin circle if leads spread. Also good for test sets, as it has gold flashed contacts. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$2 each
MK-15 Kit

CLICK for bigger PIC


Motorola TO-3 Power Transistor Sockets
MK-15 Kits
TO-3 Power Transistor Socket Kits

Full MK-15 power transistor mounting kits, with socket, insulators, drilling guide and screws. Great for amplifiers, power supplies or anywhere you use a metal TO-3 power transistor or IC regulator. NEW, Excellent condition.
NEW
15
$2.50 each
MD-3452

Mil Spec TO-3 Power Transistor Sockets
MD-3452
TO-3 Power Transistor Sockets

Robinson-Nugent mil spec, gold pin sockets, great for testing, or high temp applications. Ideal for professional amplifiers, power supplies or anywhere you use a metal TO-3 power transistor or IC regulator. NEW, Excellent condition, very hard to find.
NEW
SORRY, SOLD
$6 each
TM13 TO-66 Sockets
CLICK for bigger PIC

Workman TO-66 Power Transistor Sockets
TM-13
TO-66 Power Transistor Socket

Workman TO-66, SCR and power transistor mounting sockets. NEW, Excellent condition.
NEW
4
$2.50 each
6 PIN Socket
6 Pin IC/Transistor Sockets
6 Pin Test Sockets

Saddle mounted 6 Pin IC/Transistor sockets
Perfect for dual transistors, FETs, 6 pin ICs, has open bottom, for long leads. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
5
$5 each
Augat 8 pin
8 Pin IC Sockets
Augat
8 Pin Test Sockets

Augat Press-fit Teflon 8 Pin IC sockets
Perfect for linear and digital 8 pin ICs in TO-99 style packages, has closed bottom, gold contacts. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$6 each

8 Pin IC Sockets
8 Pin Production Sockets

Solder in 8 Pin IC sockets
Perfect for linear and digital 8 pin ICs in TO-99 style packages, has closed bottom, orange material, gold contacts. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$4 each
8 Pin Berg IC socket
8 Pin IC Sockets
8 Pin Production Sockets

Berg small profile Solder in 8 Pin IC sockets
Perfect for linear and digital 8 pin ICs in TO-99 style packages, has closed bottom, clear material, tin contacts. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
150
$1.50 each
Augat 10 Pin Socket, with expanded diameter pin circle
10 Pin IC Sockets-Expanded Diameter
ICs and Numitrons
Augat
Augat 10 Pin Sockets with Expanded Diameter

10 Pin gold/teflon IC and Numitron Sockets
Takes a TO-99 10 pin IC or Numitron, and expands the pin circle diamter to 0.4 inches to allow easier board layout. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$6 each
10 Pin IC Sockets
10 Pin IC Sockets
10 Pin Test Sockets

10 Pin IC Test sockets
Perfect for linear and digital 10 pin ICs in TO-99 style packages, has open bottom for long leads, gold contacts, saddle mounting. Very hard to find in good condition with clean contacts. NEW, Excellent condition.
NEW
SORRY, SOLD
$10 each
14 Pin Flat Pack
14 Pin Flat Pack IC Sockets
14 Pin Flat Pack Test Sockets

CAMBION quick release flat pack 14 Pin IC test sockets
Perfect for hard to handle W and D style flat packs, either linear and digital ICs. Blue dialyll phthalate body, Gold contacts. Almost impossible to find in good condition with clean contacts. NEW, Excellent condition. Rugged enough for burn-in applications.
NEW
3
$10 each
Burndy 16 pin DIP, CLICK for bigger PIC!
CLICK for bigger PIC!

16 Pin DILB16P 108T
DIP IC Sockets
Clos eup view, CLICK for bigger PIC!
CLICK for bigger PIC!
FCI-Burndy, CLICK to visit!
FCI-Burndy, CLICK to visit!

16 Pin DIP Sockets

BURNDY DILB16P-108T 16 pin DIP IC sockets
Perfect condition, in tubes of 30 (min. buy) tin plated contacts (RoHS compliant). NEW, packed in anti-static tubes of 30, some clear, some orange. Holds 1 each 16 or two 8 pin DIPS, very handy for prototyping.
NEW
10,000
$5/tube of 30
300/$45
Augat 24 Pin DIP
324AG2D
24 Pin DIP IC Sockets
Augat
24 Pin DIP Test Sockets

Augat 24 Pin DIP IC test sockets
Perfect for repeated insertion, either linear and digital ICs. Blue dialyll phthalate body, Gold contacts, has supplemental screw hole mounting for stress reduction. Almost impossible to find in good condition with clean contacts. NEW, Excellent condition. Rugged enough for burn-in applications
NEW
20
$8 each
17324-01-445 24 Pin sockets
Part number
17324-01-445
24 Pin Narrow DIP IC Sockets
Narrow (0.3 inch) 24 Pin DIP Sockets with machined pins

New, in factory tubes (16 per tube) and loose, gold insert Mil-max sockets. Excellent condition. Outstanding quality, works under high vibration, and multiple insertions.
NEW
150
$2 each
RN ICE-283-S-TG 28 Pin Sockets, CLICK for bigger PIC!
CLICK for bigger PIC!

17324-01-445
28 Pin Narrow DIP IC Sockets
Narrow (0.3 inch) 28 Pin DIP Sockets with machined pins PERFECT for Microchip Microcontrollers!

New, in factory tubes (14 per tube) gold insert Robinson-Nugent sockets. Excellent condition. Outstanding quality, works under high vibration, and multiple insertions.
NEW
420
$2 each
14/$25
Factory Tubes
28 Pin ZIF

28 Pin ZIF-back ARIES
28 Pin DIP IC ZIF Sockets
28 Pin DIP ZIF Test Sockets

Premium Aries 28 Pin DIP IC ZIF (Zero Insertion Force) lever-release test sockets
Dual sided lever release design allows tight packing and easy inserion or extraction, plus postive locking when seated. Perfect for repeated insertion, either linear and digital ICs. Blue dialyll phthalate body, Gold internal contacts, solder plated PC pins. Almost impossible to find in good condition with clean contacts. NEW, Excellent condition, still in factory tubes. Rugged enough for burn-in applications.
NEW
60
$10 each
Fujitsu PCMCIA Sockets

Fujitsu
68 Pin PCMCIA Sockets
Fujitsu
Fujitsu
FCN-565P068-G/AC-V4
68 Pin PCMCIA Module Sockets


Premium Fujitsu sockets with through hole pins, and card ejector assembly.
NEW, Excellent condition, still in factory boxes. Great for microprocessor projects and adding peripherals to systems.
NEW
35
$8 each

CLICK for bigger PIC!

68 Pin PLCC, front

68 Pin PLCC, Back AUGAT
68 Pin PLCC IC Sockets
Augat
AUGAT
PCS-068A-1
68 Pin PLCC Production Sockets


Premium AUGAT 68 Pin PLCC IC production sockets with through hole pins
NEW, Excellent condition, still in factory tubes. Great for microprocessor projects.
NEW
100
$3 each
IMPORTANT !
Graphical logos and trademarks are the property of their respective owners, including Tektronix, Fluke, RCA, TI, GE, General Radio and Hewlett Packard, and are used here merely to unambiguously identify the products. Sphere Research IS NOT a factory authorized distributor for any of the product lines indicated.
Return to Sphere's Test Equipment Home Page Return to Sphere's Test Equipment Home Page
Email US! Want something? Click here to e-mail us!
We accept Visa / MC for fast order processing.
Click to learn more about Godzilla GraphicsYou are visitor number .
Site Design & contents copyright 2000, 2001, 2002, 2003, 2004, 2005, 2008, 2013, 2014
by Walter Shawlee 2 & the ad hoc Godzilla Graphics Group.

All rights reserved.
