Tube Circuit Service and Construction Parts
High Quality Film Capacitors
Had it with leaky or shorted Black Beauty/Bumblebee Caps in that Amp? Try these babies!
Terminal Strips / Terminal Blocks
High Voltage Electrolytic Capacitors
Great for Tube Projects!
Capacitor Clamps
| Want to order something, or need to ask us a question?? |
 Just CLICK HERE to email us! | We are approved merchants, and can take Visa/MC directly, by fax, phone or email, as you prefer. |
| Tube Sockets are HERE. |
Tubes to 6Z.. are HERE. |
Tubes to 9999 are HERE. |
European Tubes are HERE. |
WE Tubes are HERE. |
High Quality Film Capacitors
Had it with leaky or shorted Black Beauty/Bumblebee Caps in that Amp? Try these babies!
GRAPHIC |
DESCRIPTION | QTY |
PRICE EACH |

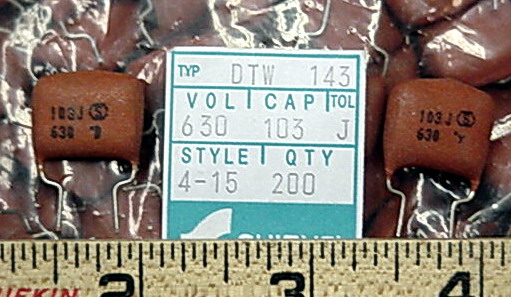

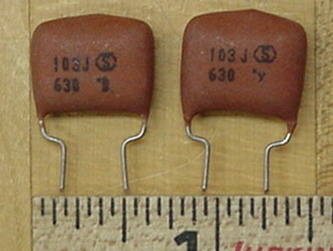

 CLICK for bigger PIC! 0.01uF/630VDC |
 0.01uF/630VDC/5% Shinyei 0.01uF/630VDC/5% Dipped Radial DTW series Film Capacitors. 5/16 in./8mm pre-formed lead spacing, or can be re-bent to wider pitch. Very high quality parts from Shinyei, Bagged in 200's. Loc: FILMCAP10 |
NEW 2,000 pcs. |
$2 10/$18 200/$220 |
 CLICK for Bigger PIC! 0.047uF/275VAC |
0.047uF/275VAC ERO 0.047uF/275VAC X2 rated film radial capacitors. 0.6 inch/15mm lead spacing. VDE/CSA/UL rated for 250VAC line use, very high quality parts from ERO in Europe. Perfect as AC line filter caps in that tired old guitar amp. Loc: CAP02 |
NEW 250 pcs. |
$1 10/$9 |

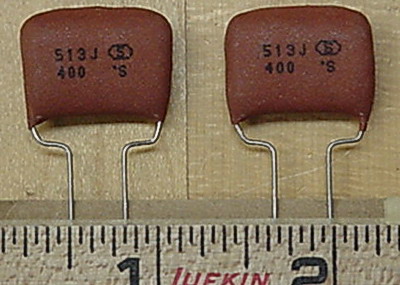

 0.051uF/400VDC Use for 0.047/0.05/0.051uF |
0.051uF/400VDC/5%Shinyei 0.051uF/400VDC/5% Dipped Radial DTW Series Film Capacitors. 5/16 in./8mm pre-formed lead spacing, or can be re-bent to wider pitch. Very high quality parts from Shinyei, taped and reeled (lots of 300). Good sub for older .047uF/0.05uF caps. Loc: FILMCAP10 / 11 |
NEW 1,200 pcs. |
$2 10/$18 $320/300 |
 0.1uF/250VDC |
 Rubycon, CLICK to visit!0.1uF/250VDC/10% 250MMW104KSO Rubycon 0.1uF/250VDC/10% Dipped Radial Metallized Polyester Film Capacitors. 0.3 inch pre-formed lead spacing, or can be re-bent to wider pitch or used point-to-point with the long leads like an axial part. Very high quality parts from Rubycon, Bagged in 200's. Loc: FILMCAP11 |
NEW 1,200 pcs. |
$1 10/$9 200/$150 |

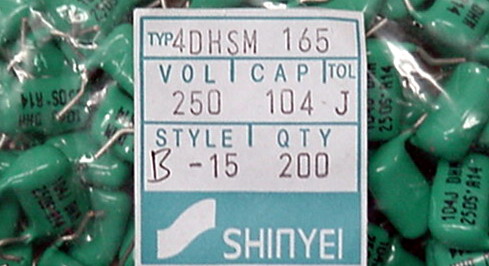

 CLICK for bigger PIC! 0.1uF/250VDC |
0.1uF/250VDC/5% Shinyei 0.1uF/250VDC/5% Dipped Radial DHSM series Film Capacitors. 1/4 in./7mm pre-formed lead spacing, or can be re-bent to wider pitch. Very high quality parts from Shinyei, Bagged in 200's. Loc: FILMCAP10 |
NEW 1,500 pcs. |
$1 10/$9 200/$150 |

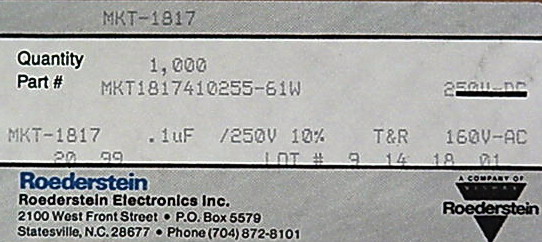

  CLICK for bigger PIC! 0.1uF/250VDC MKT-1817 |
0.1uF/250VDC/10% ERO/Roederstein/Vishay 0.1uF/250VDC/10% Molded Compact Radial Film Capacitors. Stacked film parts, p/n MKT1817410255-61W. 160VAC rating, reeled in 1000's. 9920 Date Code. Loc: FILMCAP12A |
NEW 5,000 pcs. |
$1 10/$8 1,000/$450 |
Terminal Strips / Terminal Blocks
GRAPHIC |
DESCRIPTION | QTY |
PRICE EACH |
 Cinch 2 Lug Terminal Strip |
 2 Lug Terminal Strip Single Screw Mounted Terminal Strip Has one grounded and one insulated lug, very useful for point to point construction. NEW, Excellent condition. |
NEW 250 |
$1 for 5 |
  CURTIS 3 Screw Terminal Block |
3 Screw Terminal Block PC Mounting 3 insulated 6-32 screw connections, straight PC pins (0.063 inch diameter) directly under the screw locations. Made by Curtis, black phenolic construction, over-all width is 1.5 inches. NEW, Excellent condition. |
NEW 90 |
$3 10/$25 |
  Augat/RDI 3 Screw Terminal Block |
 3 Screw Terminal Block PC Mounting 3 insulated 8-32 screw connections, straight PC pins (0.047 inch diameter) offset to the rear of the screw locations. Made by Augat/RDI, black synthetic construction, over-all width is 1.4 inches. Has 2 self-locking pressure plates for stripped wire end insertion, does not require a lug. 8 series, UL/CSA listed, up to 10ga wire, 30A/300V. NEW, Excellent condition. |
NEW 150 |
$4 10/$33 |
 HH Smith LTS 210 10 Lug Terminal Strip |
10 Lug Terminal Strip Double Screw Mounted Terminal Strip Has 10 insulated lugs, very useful for point to point construction. NEW, Excellent condition, have been stored in sealed bags. |
NEW 100 |
$2 |
| Want to order something, or need to ask us a question?? |
Just CLICK HERE to email us! | We are approved merchants, and can take Visa/MC directly, by fax, phone or email, as you prefer. |
High Voltage Electrolytic Capacitors
Great for Tube Projects!
GRAPHIC |
DESCRIPTION | QTY |
PRICE EACH |
 3.3uF/350VDC |
3.3uF/350VDC Nichicon, CLICK to Visit!Nichicon, 3.3uF/350VDC electrolytic capacitor, 85C rated, type VX (M). Radial Leads 9546 DC. Tektronix P/N 290-0806-00 LOC: CAP05 |
NEW 100 pcs. |
$1 Each |
3.3uF/350VDC |
10uF/100VDCNichicon, CLICK to Visit! Nichicon, 10uF/100VDC electrolytic capacitor, 105C rated, type PC (M). Axial Leads, blue sleeves, taped, 98 DC. LOC: CAP20 |
NEW 3,000 pcs. |
2/$1 250/$100 |
 22uF/350VDC |
22uF/350VDC United Chemi-con, KMG type, 22F/350VDC radial electrolytic capacitor, high temp, 105C rated. Radial leads, 20.5mm tall, 12.7mm in diameter, very compact. Factory new surplus, ideal for tube designs with the high temp rating. |
NEW 100 pcs. |
$3 Each |
 CLICK for bigger PIC!
22uF/400VDC |
22uF/400VDC United Chemi-con/Nippon Chemi-con, KMG type, 22F/400VDC radial electrolytic capacitor, high temp, 105C rated. Radial leads, 12.7mm in diameter, very compact. Factory new surplus, ideal for tube designs and nixie power supplies with the high voltage/high temp rating. LOC: CAP202 |
NEW 950 pcs. |
$4 Each |
  100uF/200VDC |
100uF/200VDC Marcon (United/Nippon Chemi-con brand), CESEM-2D-101, 100F/200VDC radial electrolytic capacitor, 85C rated. Radial leads, 31.5mm tall, 16mm in diameter, good quality. Factory new surplus, 94 date code. Factory sealed bags of 50 pcs. |
NEW 500 pcs. |
$2 Each $65/50 pcs. |
 150uF/250VDC |
150uF/250VDC Illinois Capacitor CLICK to visit! ILLINOIS CAPACITORS, 150F/250VDC radial snap-in electrolytic capacitor, 8L12A Type, 85C. Radial snap-in leads, good quality. Factory new surplus, 98 date code. Loc: CAP01 |
NEW 140 pcs. |
$3 Each |
 220uF/200VDC |
220uF/200VDC  Philips, 200uF/200VDC electrolytic capacitor, 85C. 3 PC pins (single ground on one side (pin5), single + on other side (pin1), remaining (pin2) is support only). DIN41238 standard. Factory new surplus, DC 9438. Great for nixies and tube supplies. |
NEW 90 pcs. |
$3 Each |
 270uF/100VDC |
270uF/100VDC United Chemi-con, SXE type, 270uF/100VDC radial electrolytic capacitor, high temp, 105C rated. Radial leads, very compact. Factory new surplus. |
NEW 60 pcs. |
$4 Each |
 270uF/450VDC |
270uF/450VDC CLICK to visit CDE!CDE, 381LX type, 270uF/450VDC radial electrolytic capacitor, high temp, -40C to 105C rated. Radial leads, snap in mounting, very compact, high ripple current rated. Factory new surplus, ideal for tube designs with the high temp rating, or line operated switchers. |
NEW Last 4 |
$8 Each |
330uF/100VDC |
330uF/100VDCNichicon, CLICK to Visit! Nichicon, 330uF/100VDC electrolytic capacitor, 105C rated, type PF (M). Part number NICUPF2A331MHH. Radial Leads, brown sleeves, package 09/04/2002 DC. LOC: CAP75 / WSS |
NEW 500 pcs. |
$3 Each |
 330uF/100VDC |
330uF/100VDC Philips, 330uF/100VDC electrolytic capacitor, High temp, 105C rated. Radial leads (pre-trimmed). Factory new surplus, high quality parts. |
NEW 100 pcs. |
$3 Each |
 CLICK for bigger PIC! 680uF/180VDC |
680uF/180VDC United Chemi-con, KMM type, 680uF/180VDC radial electrolytic capacitor, high temp, 105C rated. Radial leads, very compact. Factory new surplus, Dec99 Date code. LOC: CAP77 |
NEW 600 pcs. |
$4 Each |
 1,000uF/160VDC |
1,000uF/160VDCNichicon, CLICK to Visit! Nichicon, 1,000uF/160VDC electrolytic capacitor, Hight temp 105C rated, type GQ (M). PC snap in pins Factory new surplus. |
NEW 120 pcs. |
$12 Each |
  2200uF/250VDC |
2200uF/250VDC CLICK to visit CDE! CDE, 382LX type (382LX-658-0429), 2200uF/250VDC radial electrolytic capacitor, high temp, 85C rated. Radial leads, snap in mounting with extra pins for mechanical support, very compact, high ripple current rated. Factory new surplus, ideal for high current/high voltage designs, or line operated switchers. LOC: CAP200/WSS |
NEW 63 pcs. |
$11 Each |
| Want to order something, or need to ask us a question?? |
Just CLICK HERE to email us! | We are approved merchants, and can take Visa/MC directly, by fax, phone or email, as you prefer. |
Capacitor Clamps
GRAPHIC |
DESCRIPTION | QTY |
PRICE EACH |
 CLICK for bigger PIC! 2.5 inch Clamps |
2.5 Inch Clamps Philips 2.5 inch adjustable capacitor clamps, for large compuer style electrolytics. Complete with clamp hardware. New, bulk packed, anti-corrosion fishish. Hard to find, and can be modified for smaller sizes, 3 hole mounting. |
NEW 220 pcs. |
$1 Each |
| Want to order something, or need to ask us a question?? |
Just CLICK HERE to email us! | We are approved merchants, and can take Visa/MC directly, by fax, phone or email, as you prefer. |
